Electric Tension Reducer System (Driver): Location

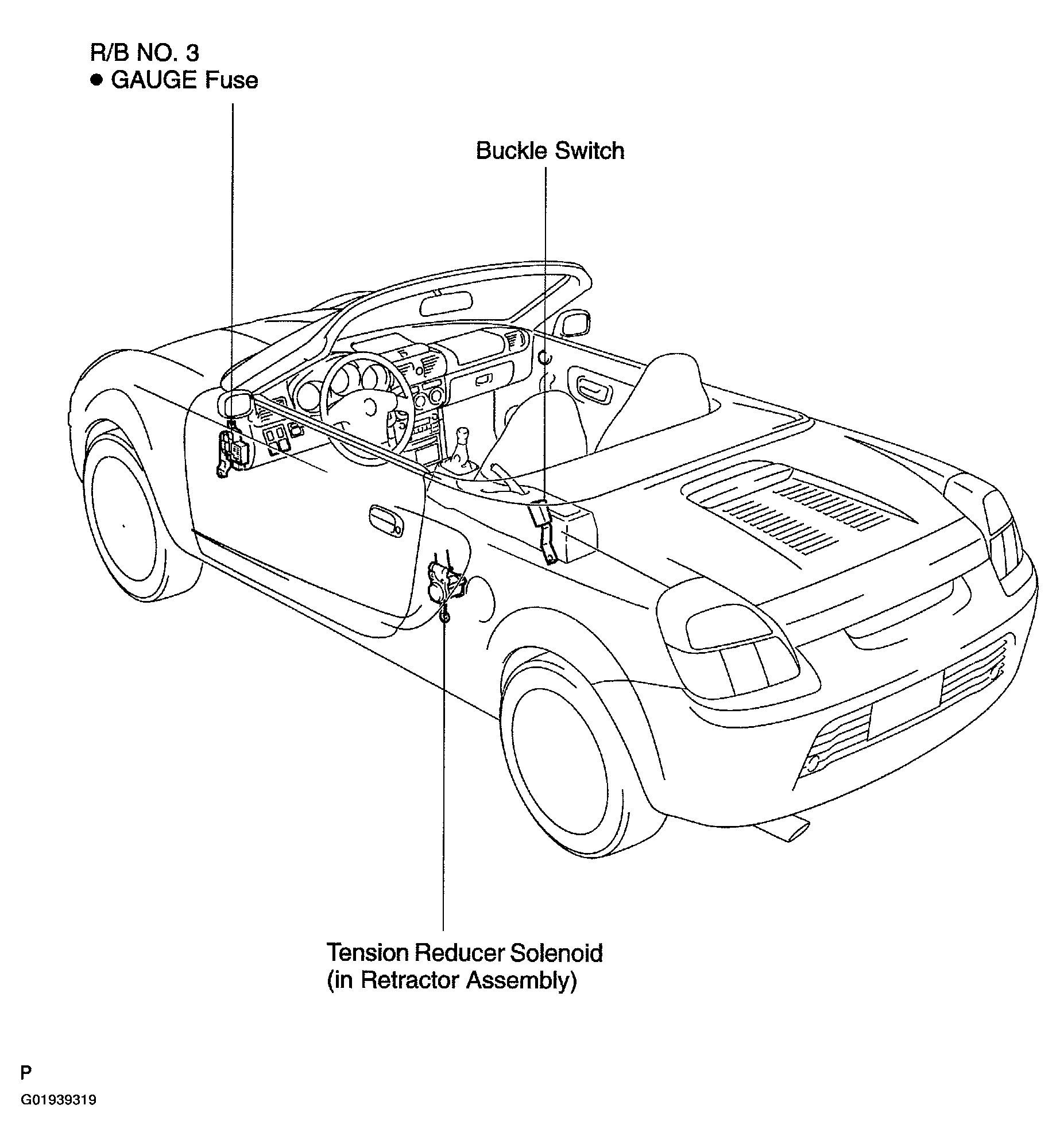

Fig 1: Locating Electric Tension Reducer System-Related Components
G01939319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
