Wireless Door Lock Control System: Pre-Check

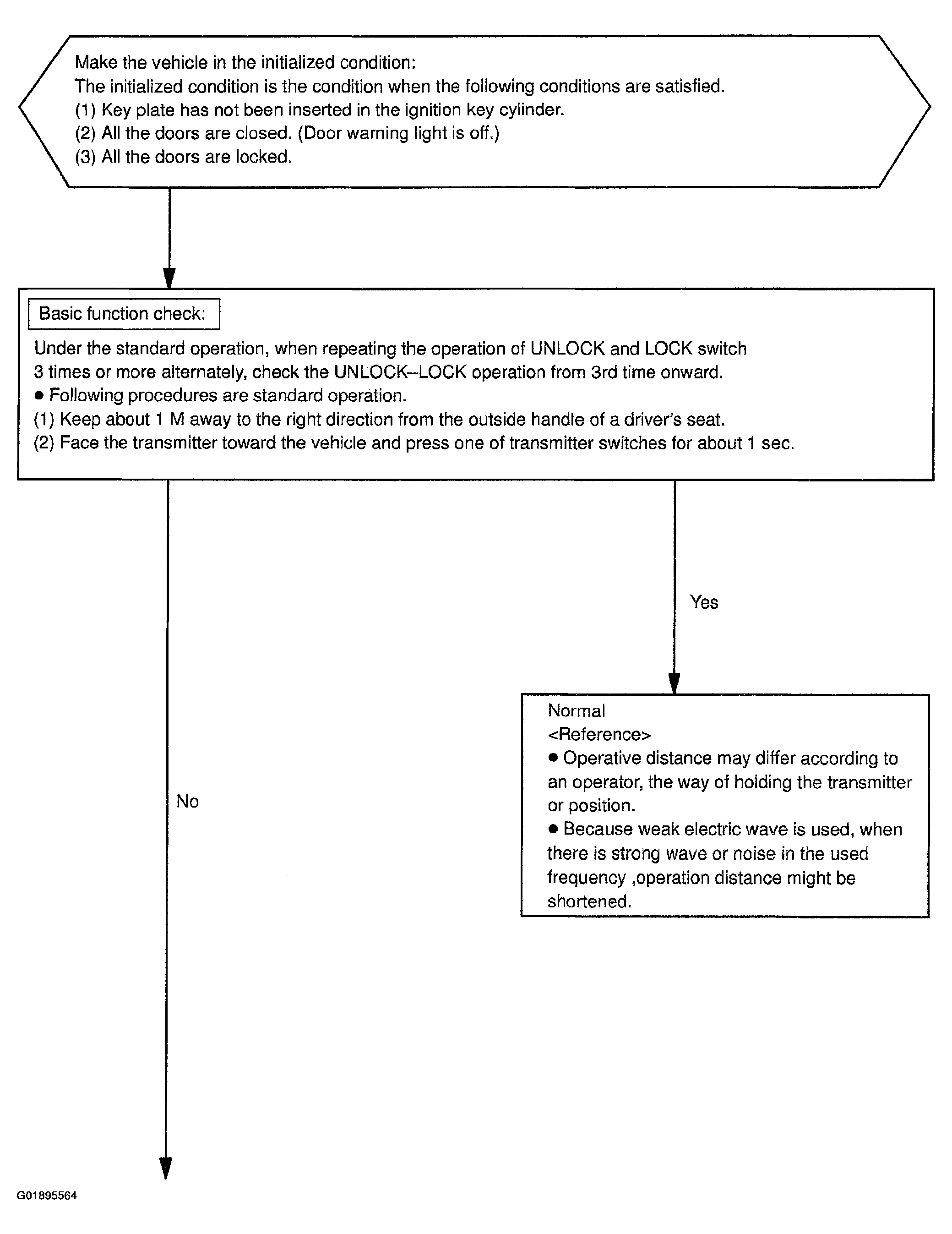

Fig 1: Troubleshooting Flow Chart (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Troubleshooting Flow Chart (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Troubleshooting Flow Chart (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Troubleshooting Flow Chart (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Troubleshooting Flow Chart (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
