Terminal Of Ecu

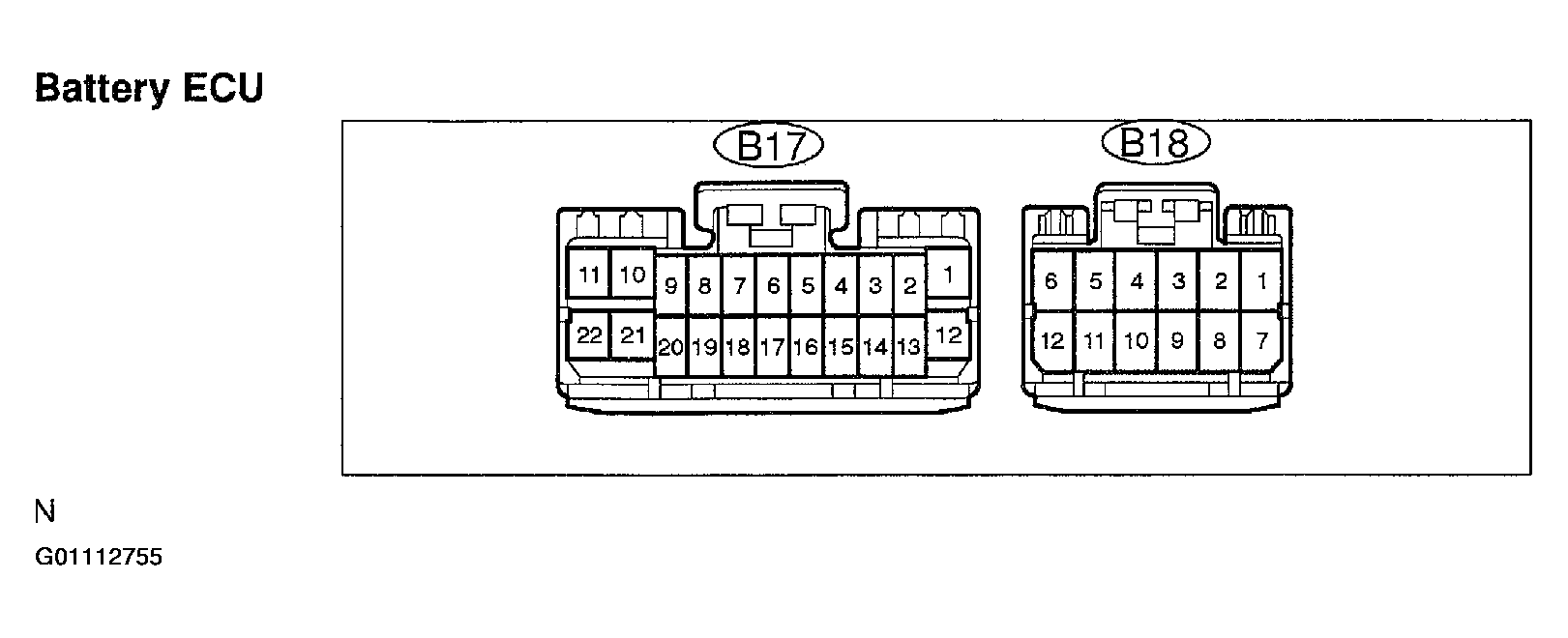

Fig 1: Identifying Battery ECU Connectors B17 & B18 Terminals
G01112755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

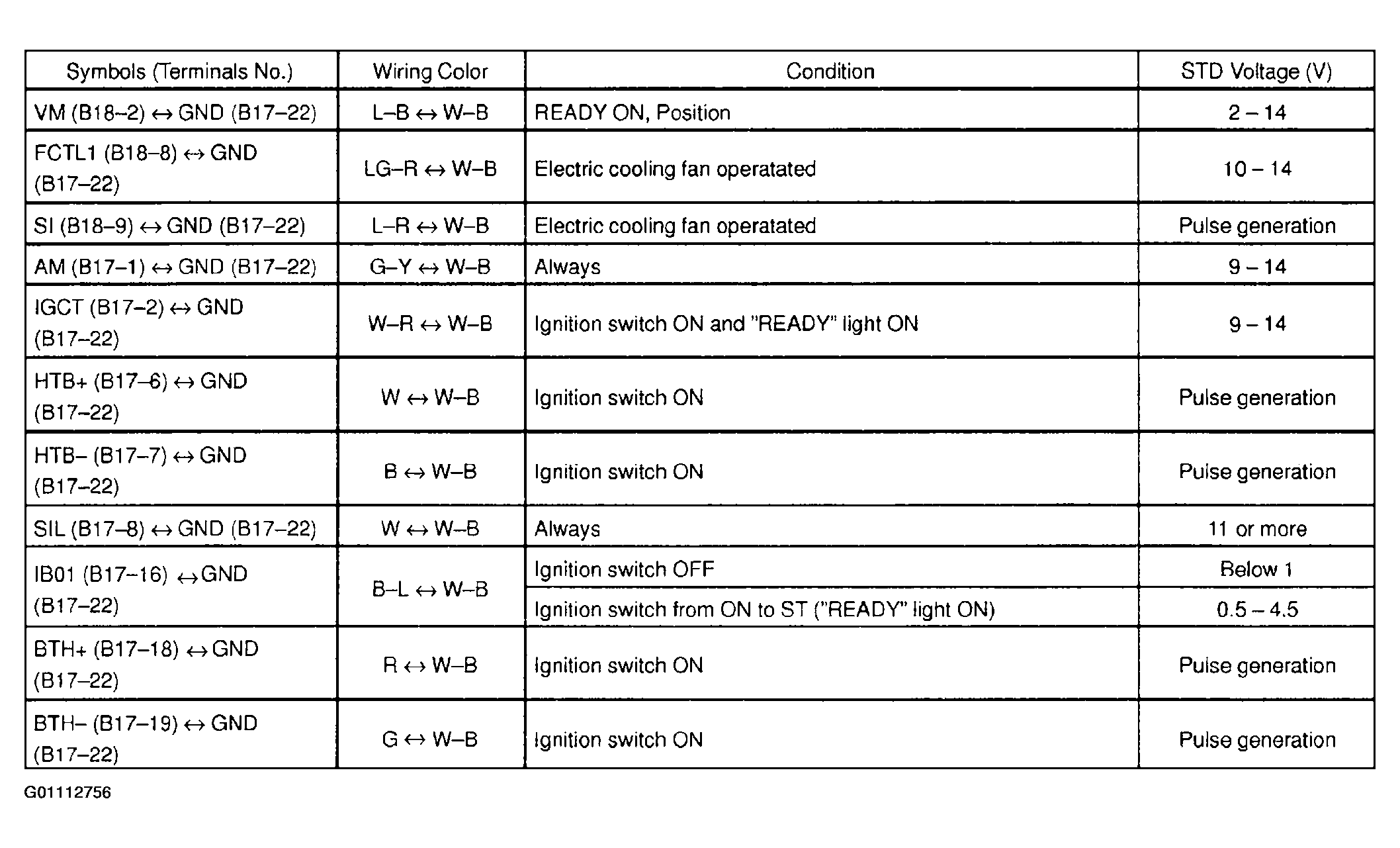

Fig 2: Battery ECU Connectors Terminal Specifications
G01112756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
