Front Wheel Alignment

Fig 1: Identifying Vehicle Height Measuring Points
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Vehicle height:
   1. 2WD:

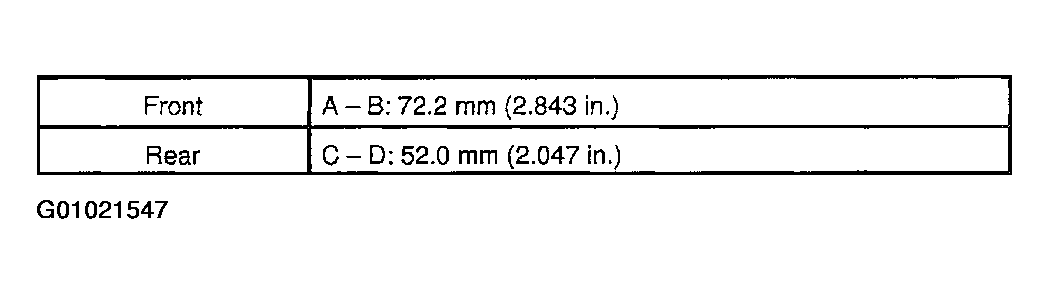

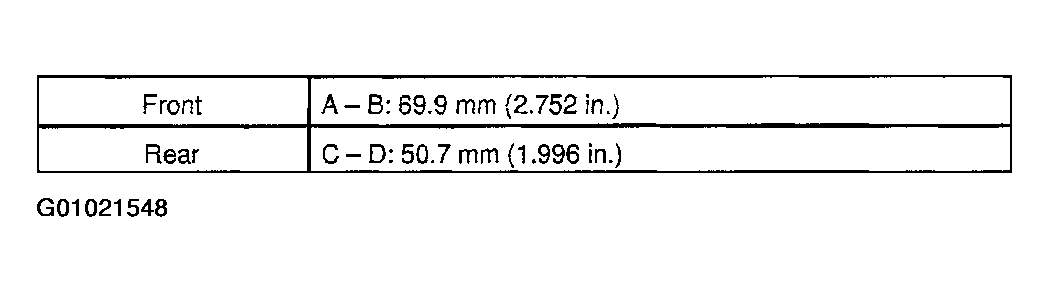

      Fig 2: Identifying Vehicle Height Specifications (2WD)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. 4WD:
      Fig 3: Identifying Vehicle Height Specifications (4WD)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

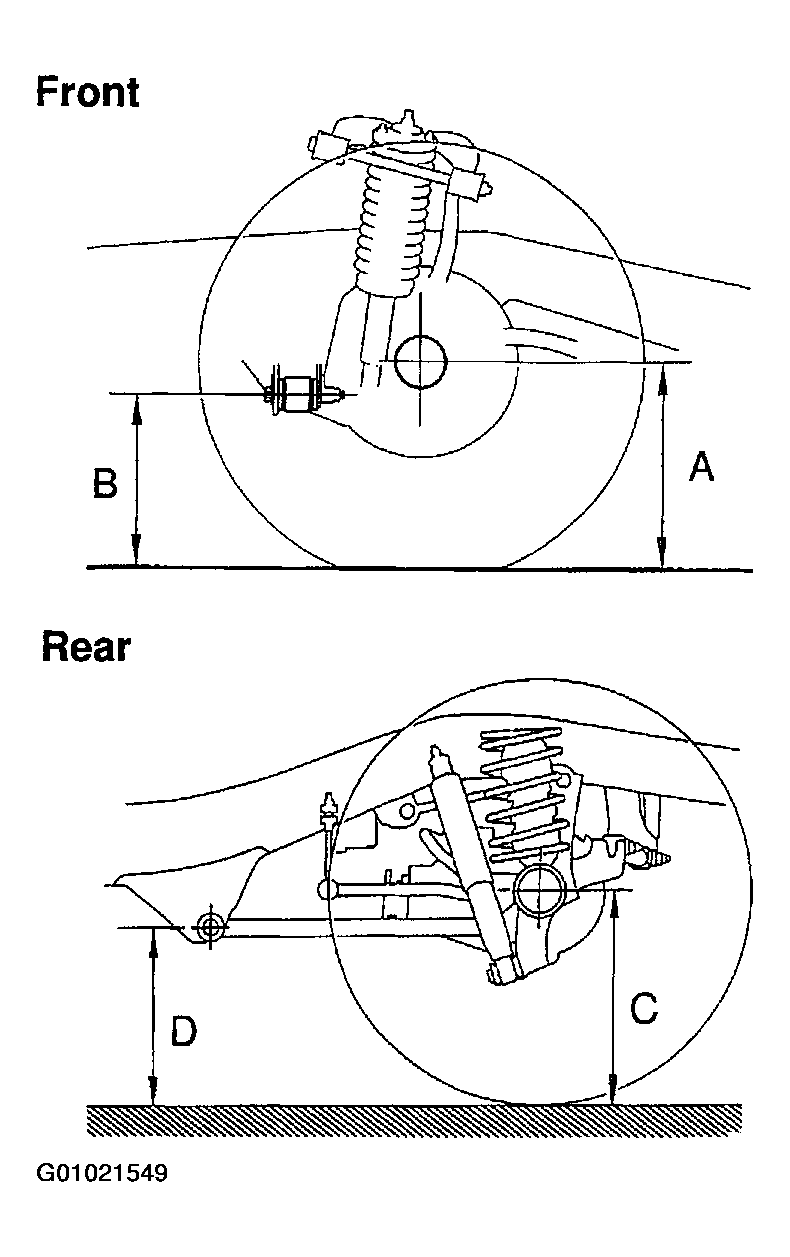

Measuring points:

1. A: Ground clearance of spindle center
2. B: Ground clearance of front adjusting cam bolt center
3. C: Ground clearance of rear axle shaft center
4. D: Ground clearance of lower control arm front bushing center
   NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.

   If the vehicle height is not within the specification, try to adjust it by pushing down on or lifting the body.

Fig 4: Installing Camber/Caster/Kingpin Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Follow the specific instructions of the equipment manufacturer.

1. 2WD:

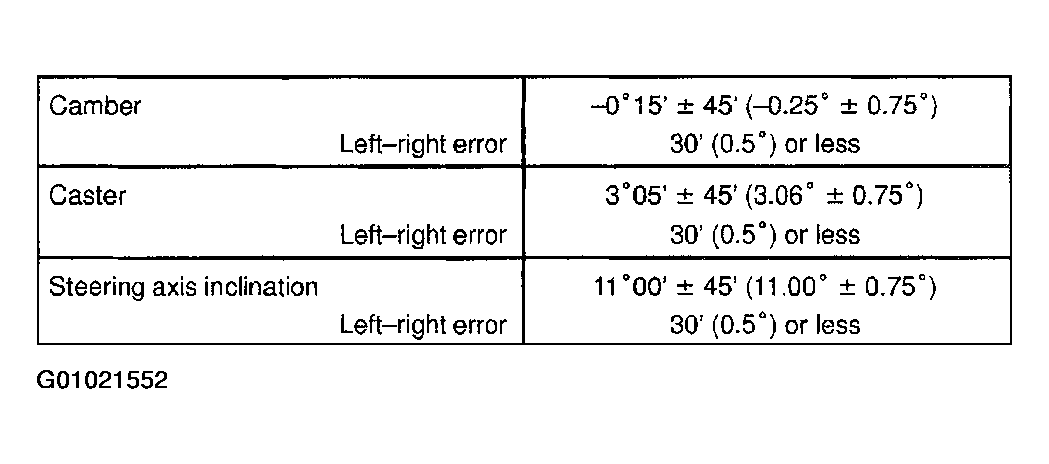

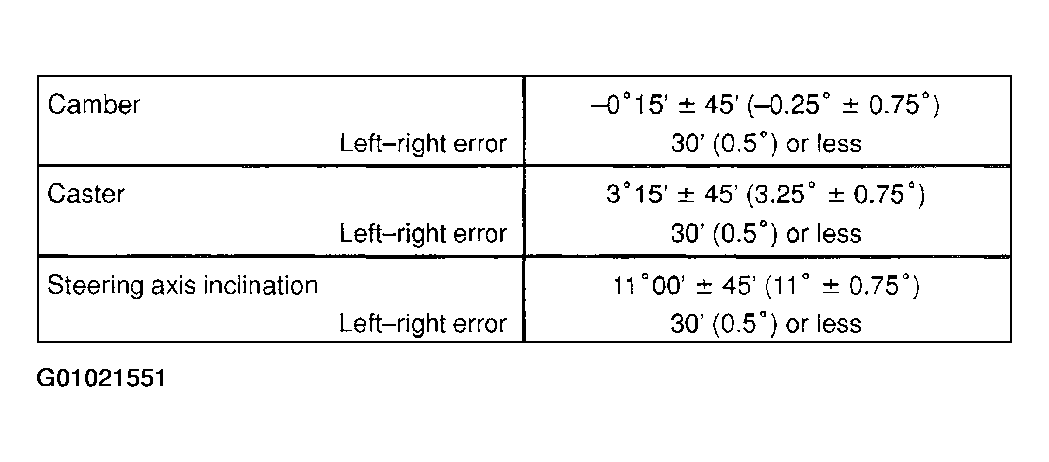

   Fig 5: Identifying Camber, Caster & Steering Axis Inclination Specifications (2WD)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. 4WD:
   Fig 6: Identifying Camber, Caster & Steering Axis Inclination Specifications (4WD)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the steering axis inclination is not within the specification, after the camber and caster have correctly adjusted, recheck the steering knuckle front wheel for bearing or looseness.

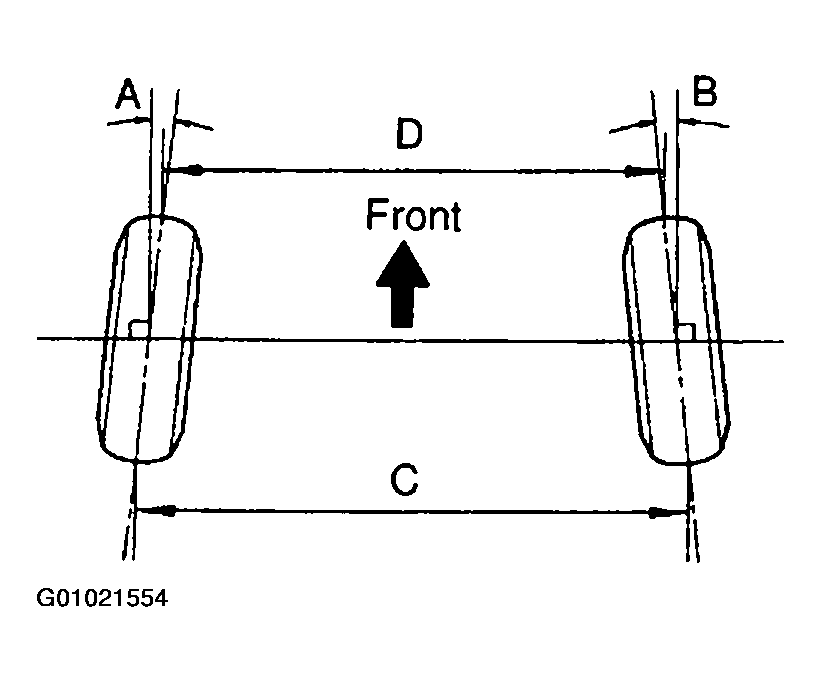

Fig 7: Identifying Toe-In Measurements

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

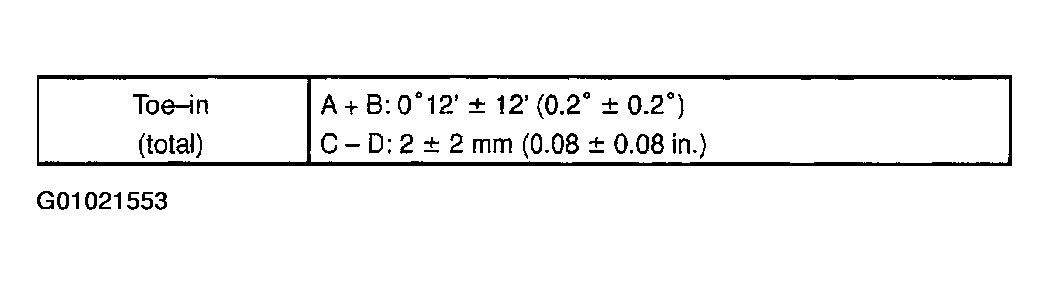

Fig 8: Identifying Toe-In Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. If the toe-in is not within the specification, adjust the rack ends.

1. Loosen the front and/or rear adjusting cam nuts.

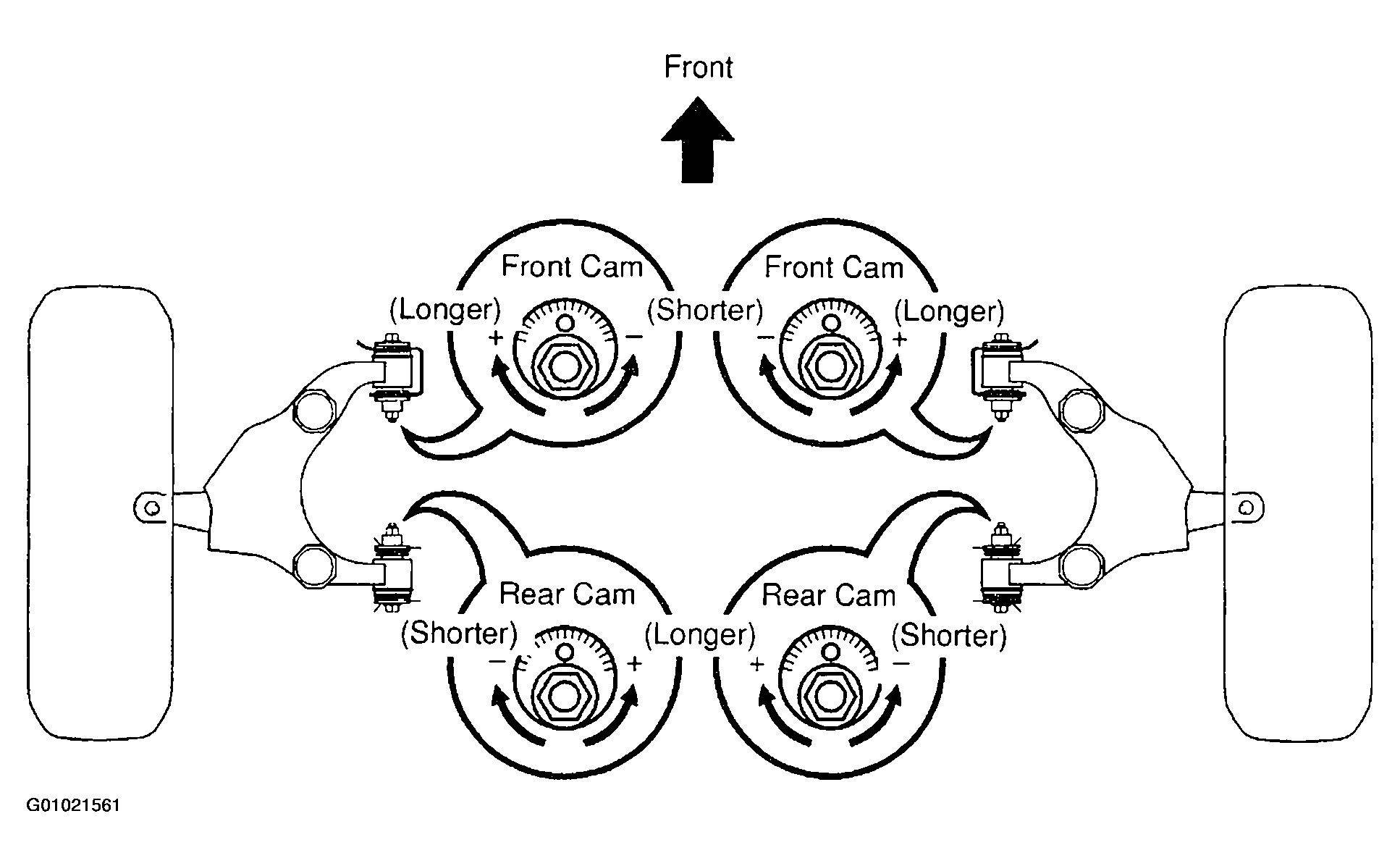

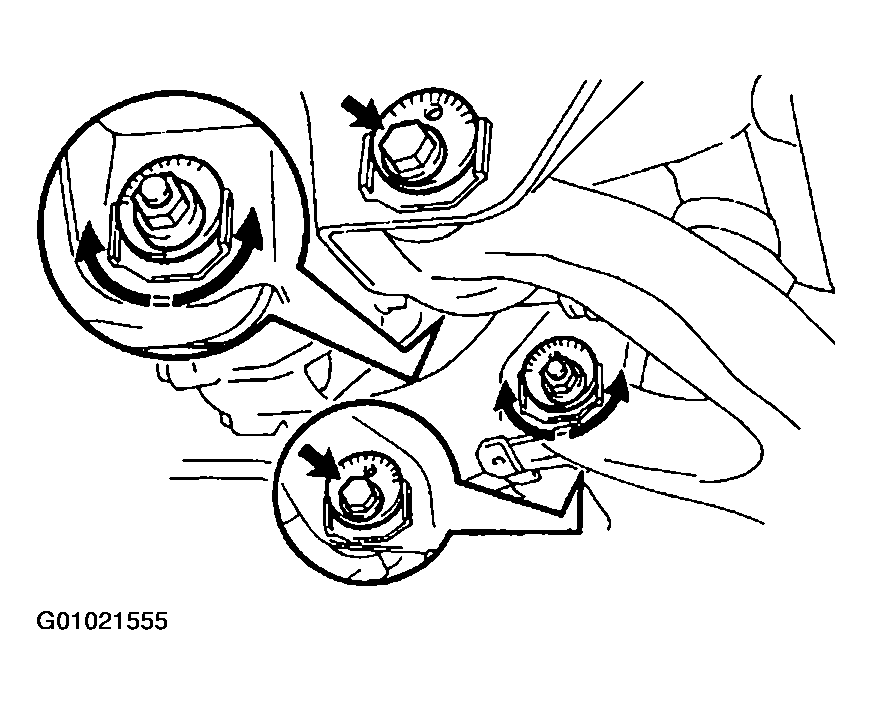

   Fig 9: Locating Front & Rear Adjusting Cams

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the camber and caster by front and/or rear adjusting cams (See adjustment chart).
   NOTE: Try to adjust the camber and caster to the center value.
3. Torque the front and/or rear adjusting cam nuts.
   1. Torque: 130 N.m (1,325 kgf.cm, 96 ft.lbf)

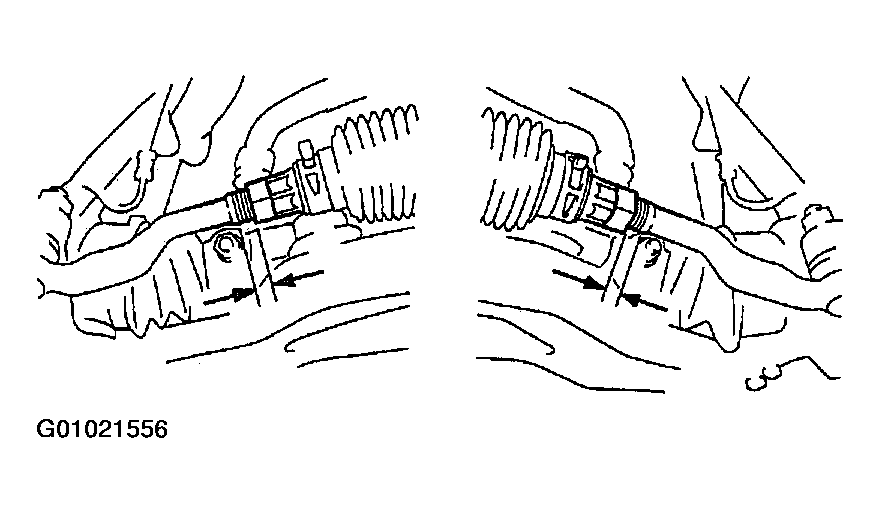

Fig 10: Checking For Equal Rod End Lengths

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tie rod end length left-right error: 1.5 mm (0.059 in.) or less

1. Remove the boot clamps.
2. Loosen the rack end lock nuts.
3. Turn the left and right rack ends an equal amount to adjust the toe-in.

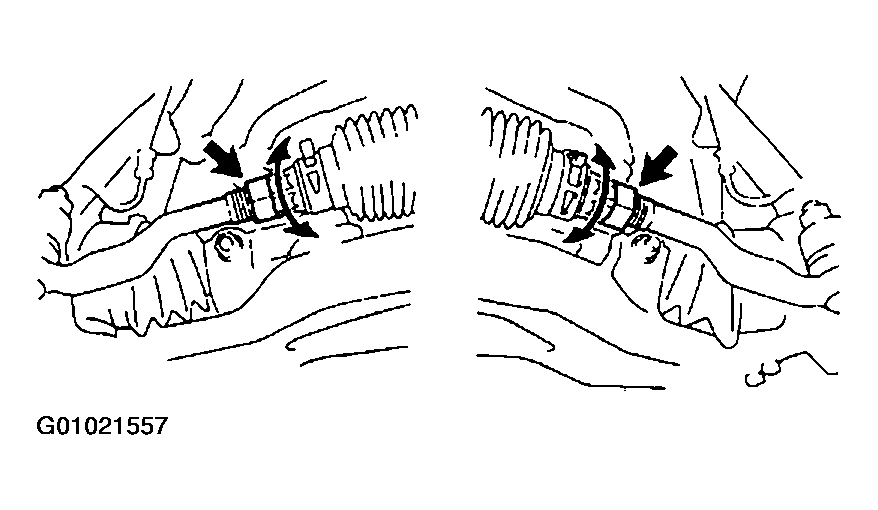

   Fig 11: Using Rack Ends To Adjust Toe Setting

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Try to adjust the toe-in the center value.
4. Tighten the rack end lock nuts.
   1. Torque: 55 N.m (560 kgf.cm, 41 ft.lbf)
5. Place the boot on the seat and clip it.
   NOTE: Make sure that the boots are not twisted.

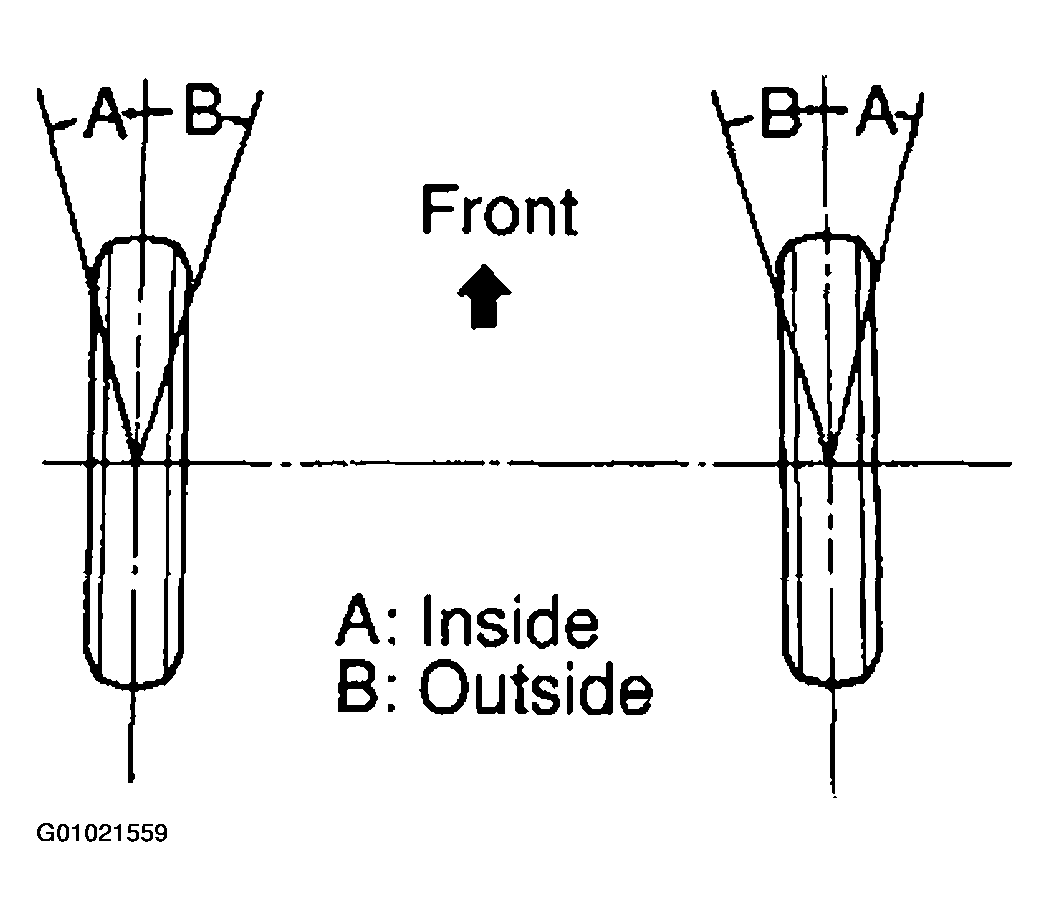

Fig 12: Identifying Wheel Turning Angles
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn the steering wheel fully, and measure the turning angle.

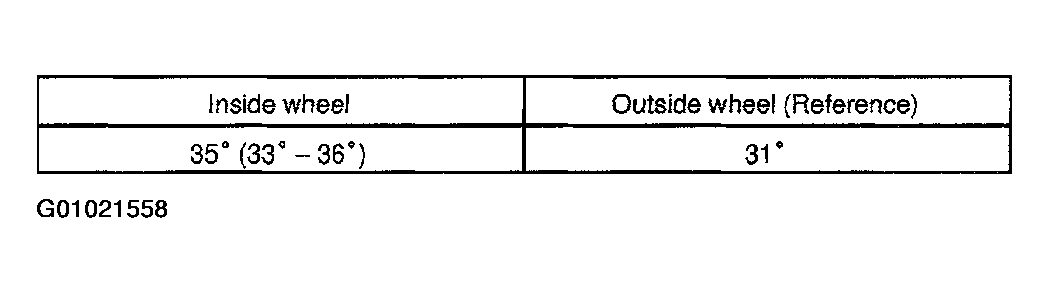

   Fig 13: Identifying Wheel Turning Angle Specifications

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If wheel angle deviates from the specifications, readjust the toe-in and wheel angle within the specifications. At this time, the lengths of the tie rod end may be within less than 1.5 mm (0.059 in.).

1. Find the wheel alignment standard value applicable for the tire size.

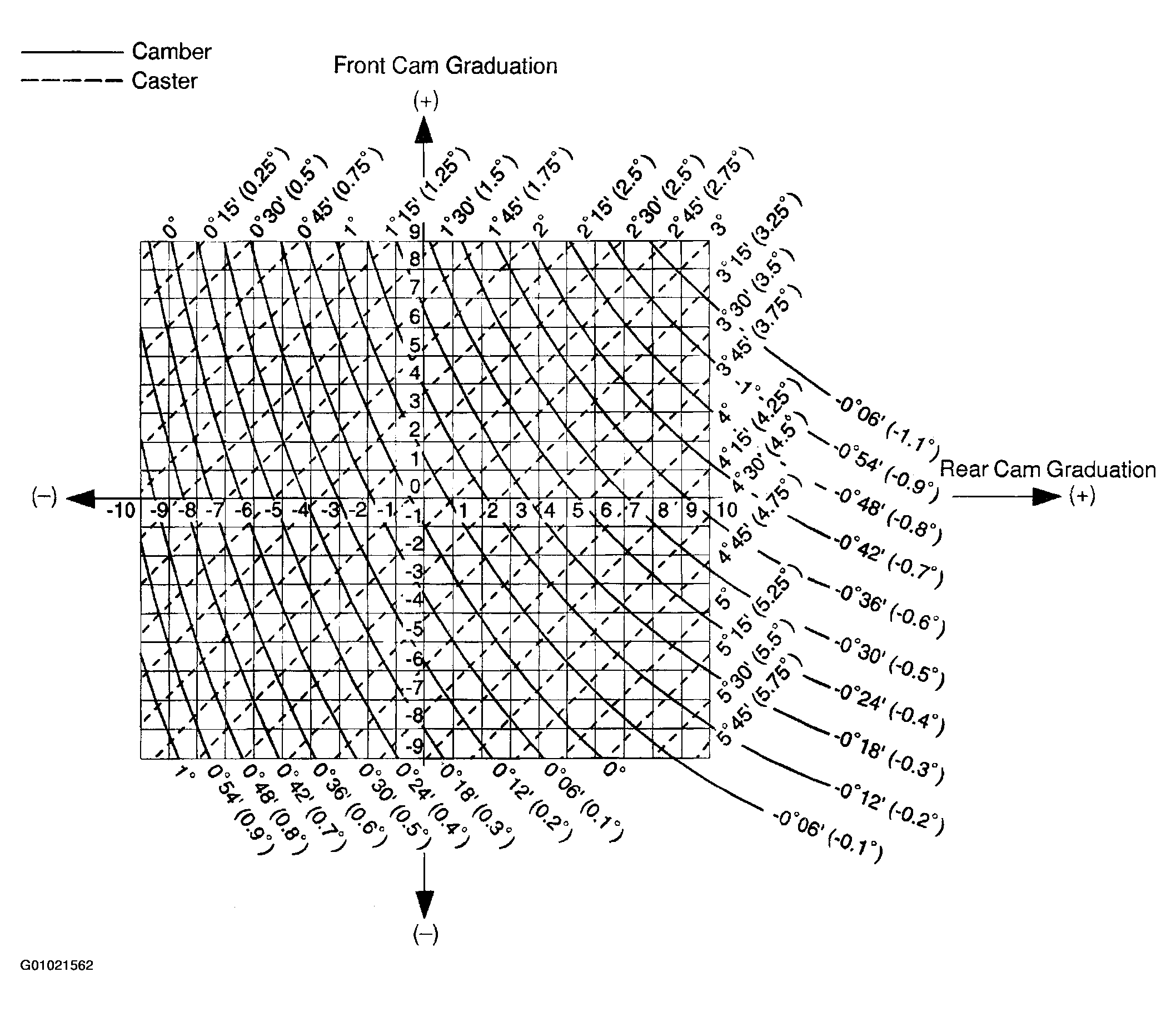

   Fig 14: Identifying Adjustment Chart Example

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Mark the selected standard value on the adjustment chart in Fig 14.

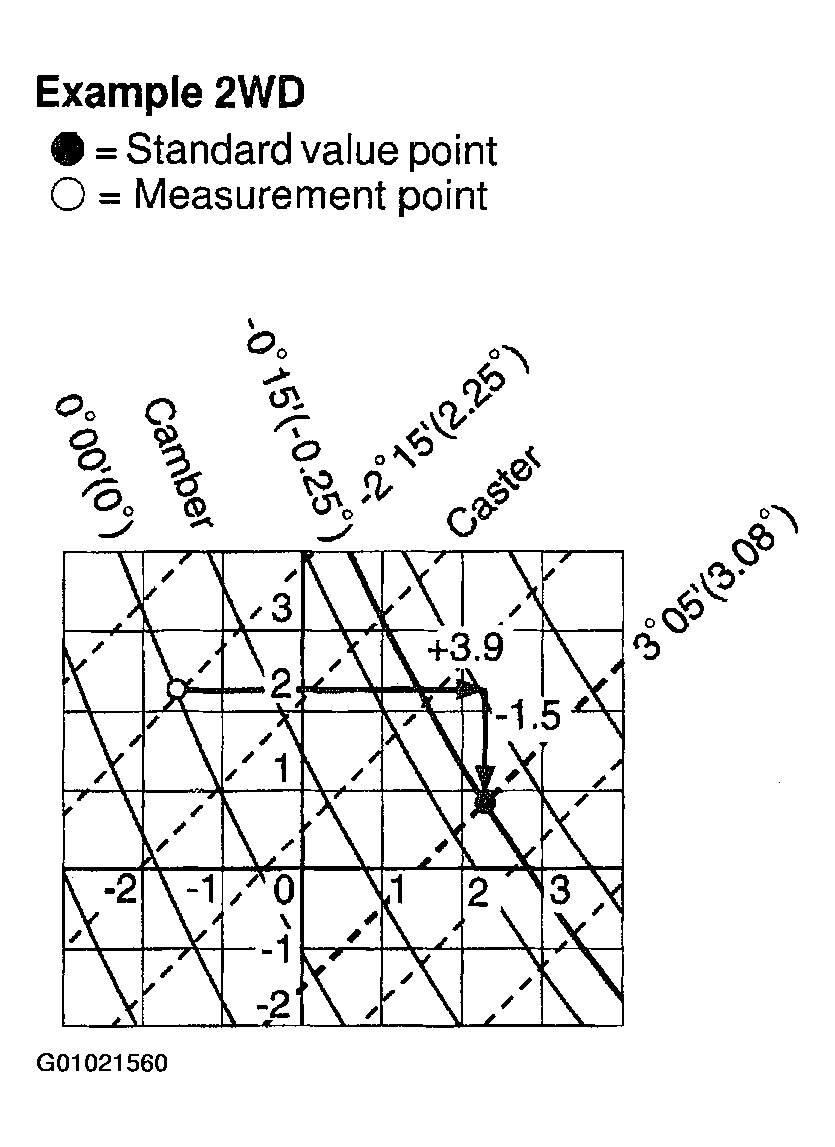

   Example 2WD:

   1. Camber -0°15' (-0.25°)
   2. Caster 3°05' (3.08°)

3. Mark on the adjustment chart in Fig 14 the alignment values measured at the vehicle height.

   Example:

   1. Camber 0°00' (0°)
   2. Caster 2°15' (2.25°)

4. As shown in the illustration in Fig 14, read the distance from the standard value to the measured value, and adjust the front and/or rear adjusting cams accordingly.
   1. Example:
   2. Front cam -(shorter) 1.5
   3. Rear cam +(longer) 3.9
