Wheel Alignment Specifications & Adjustment Procedures: 4RUNNER: Specifications

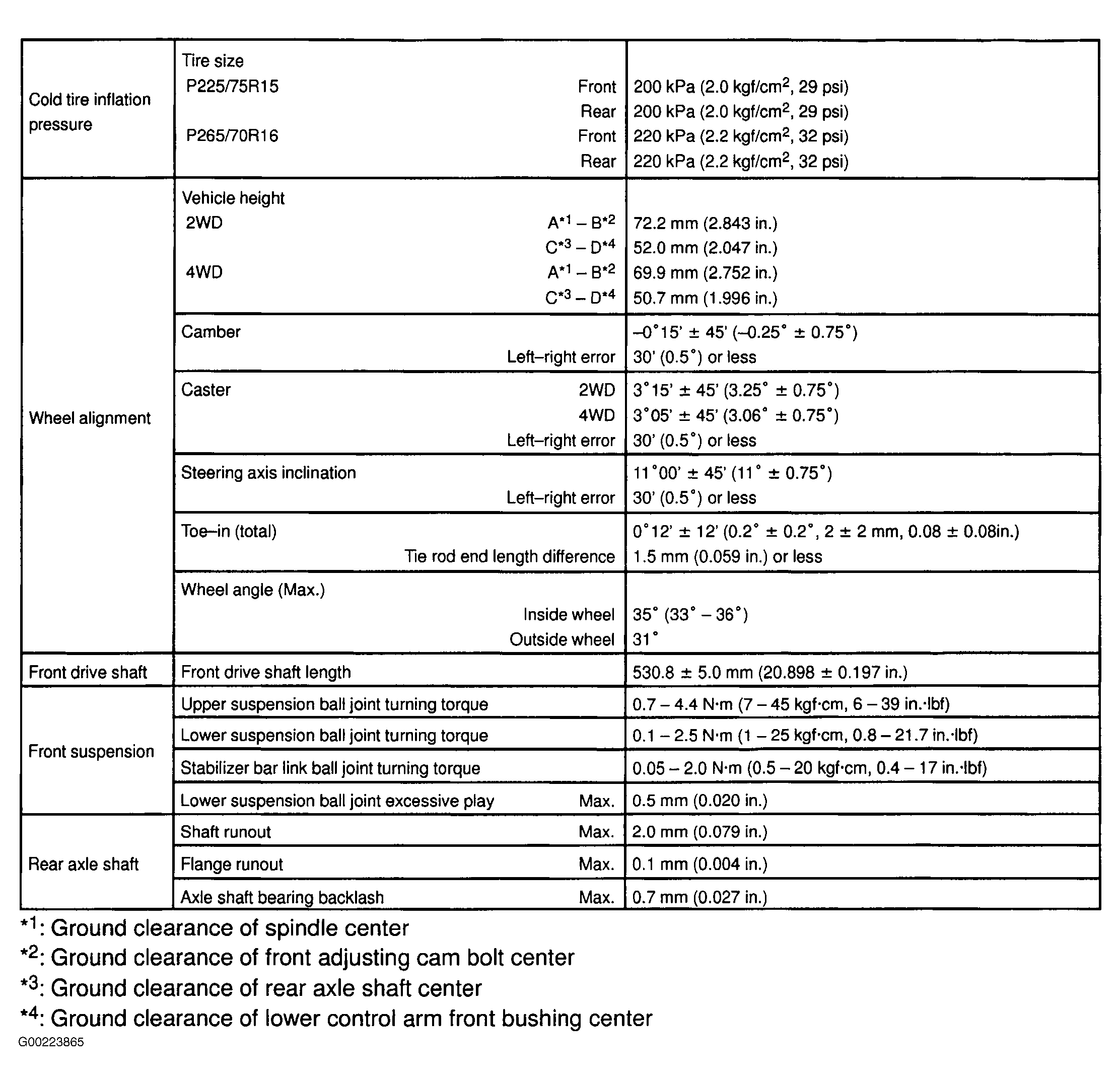

Fig 1: Wheel Alignment Specifications (4Runner)
G00223865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
