Front Wheel Alignment

NOTE: w/VSC:

Be sure to perform the steering angle sensor zero point calibration after adjusting the front wheel alignment (See STEP 3 - STEERING ANGLE SENSOR ZERO POINT CALIBRATION ).

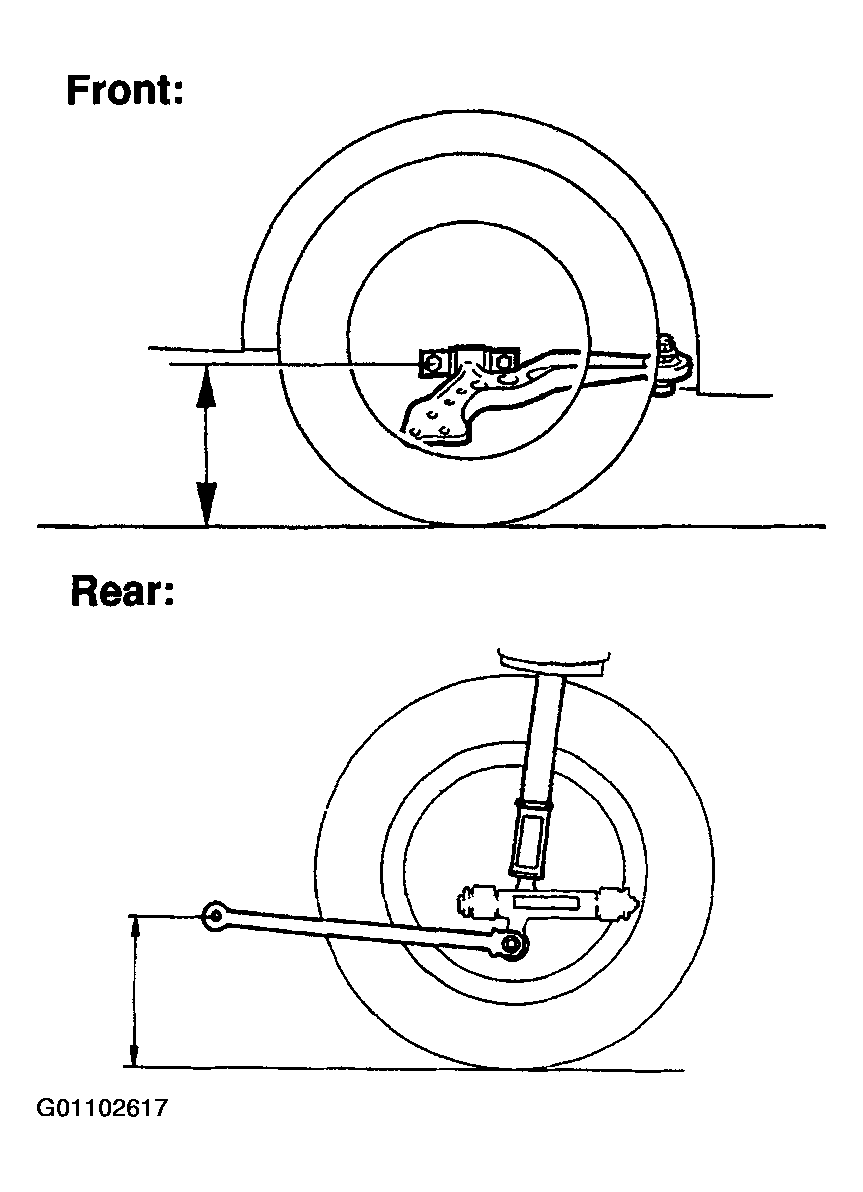

Measure vehicle height .
1. Vehicle height:

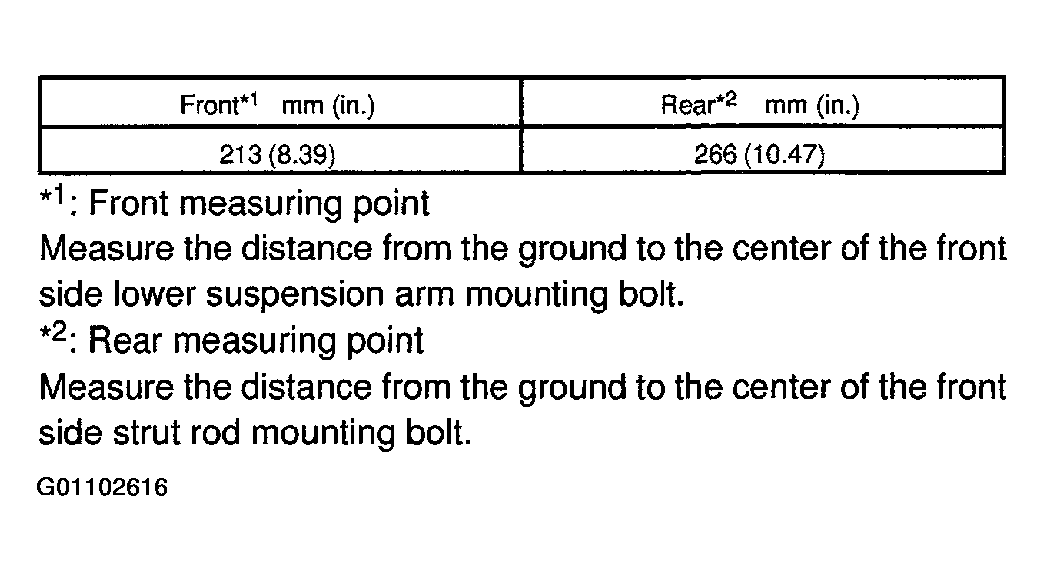

  Fig 2: Identifying Vehicle Height Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

  If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

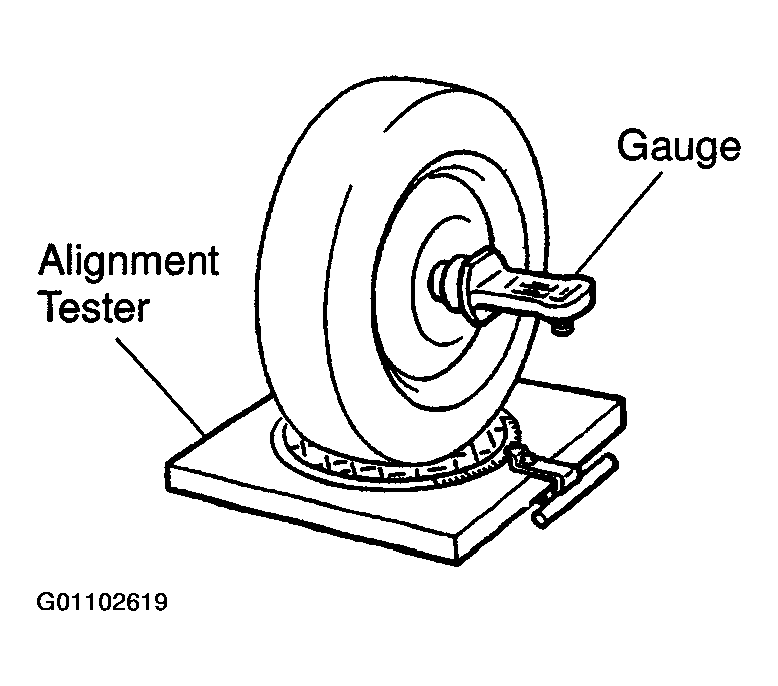

Install camber/caster/kingpin gauge or position vehicle on wheel alignment tester .
1. Follow the specific instructions of the equipment manufacturer.
Inspect camber, caster and steering axis inclination .
1. Camber, caster and steering axis inclination:

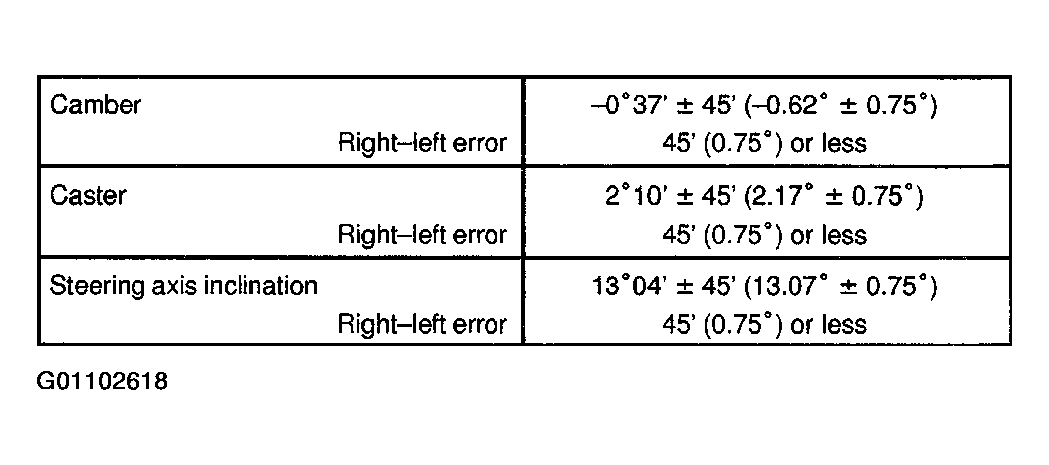

  Fig 4: Identifying Camber, Caster & Steering Axis Inclination Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the caster and steering axis inclination are not within the specified values, after the camber has been correctly adjusted, recheck the suspension parts for damaged and/or worn out parts.
Adjust camber .
NOTE: After the camber has been adjusted, inspect the toe-in.
1. Remove the front wheel and ABS speed sensor clamp.
2. Remove the 2 nuts on the lower side of the shock absorber.

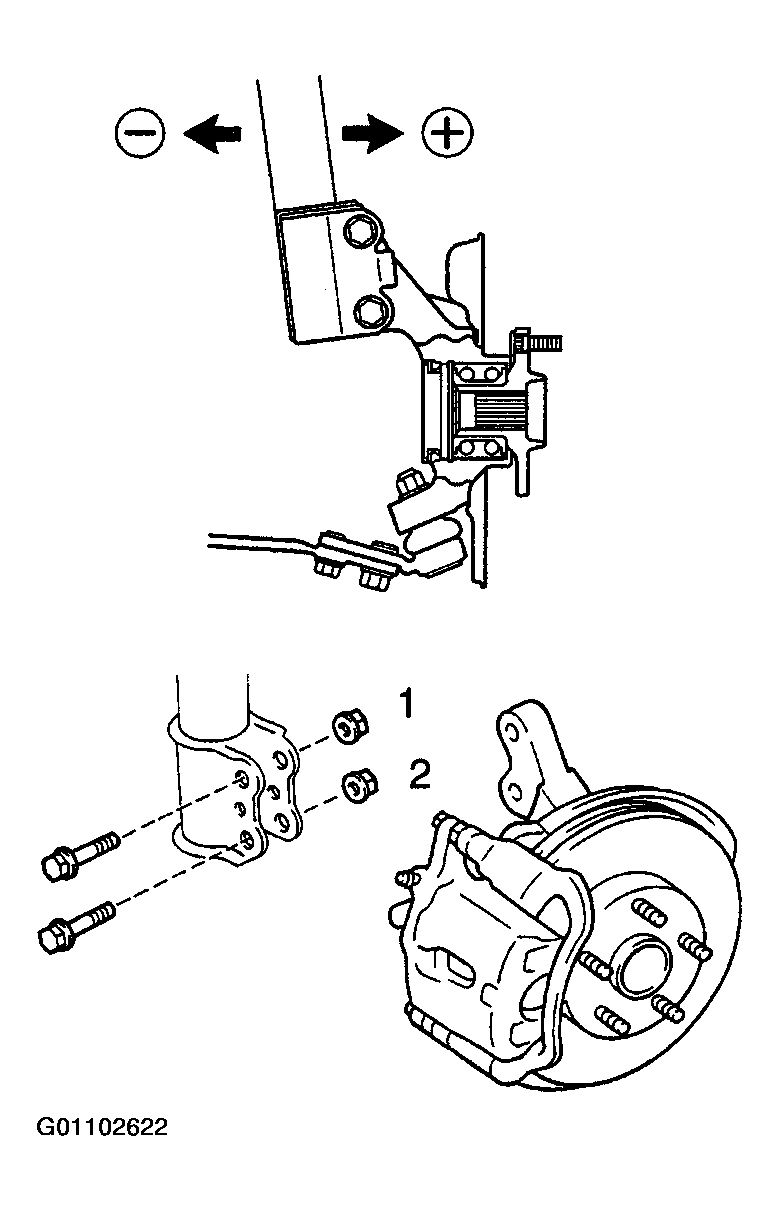

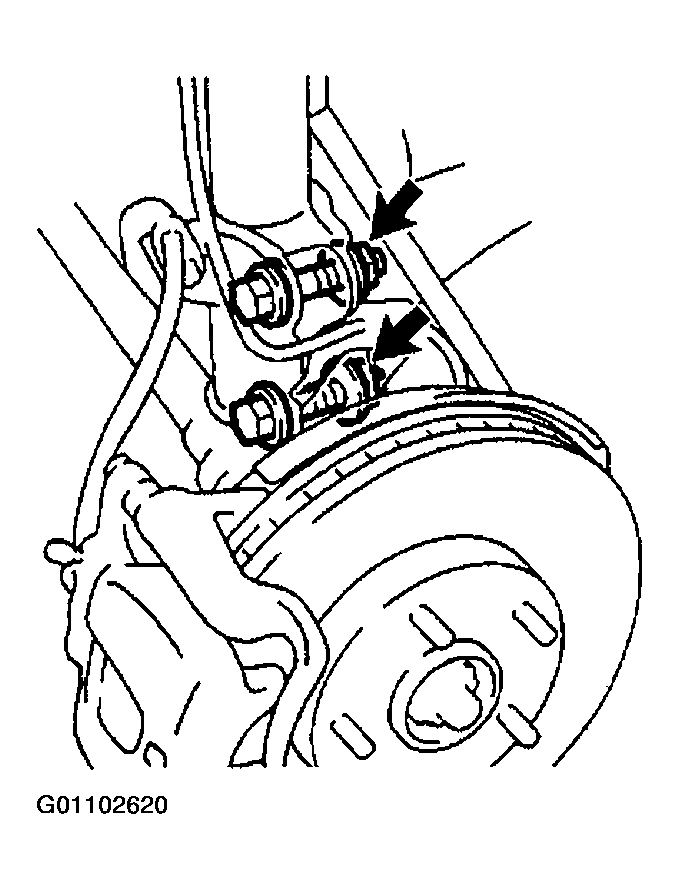

  Fig 5: Locating Nuts For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Coat the threads of the nuts with engine oil.
4. Temporarily install the 2 nuts.
5. Adjust the camber by pushing or pulling the lower side of the shock absorber in the direction in which the camber adjustment is required.

  Fig 6: Adjusting Camber In Direction In Which Adjustment Is Required
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Tighten the nuts.
  1. Torque: 211 N.m (2,150 kgf.cm, 156 ft.lbf)
7. Install the ABS speed sensor clamp and front wheel.
  1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
8. Check the camber.
  NOTE:
  - Try to adjust the camber to the center of the specified value.
  - Adjusting value for the set bolts is 6'-30' (0.1° - 0.5°).
  If the camber is not within the specified value, use the table in Fig 7 to estimate how much additional camber adjustment will be required, and select the camber adjusting bolt.

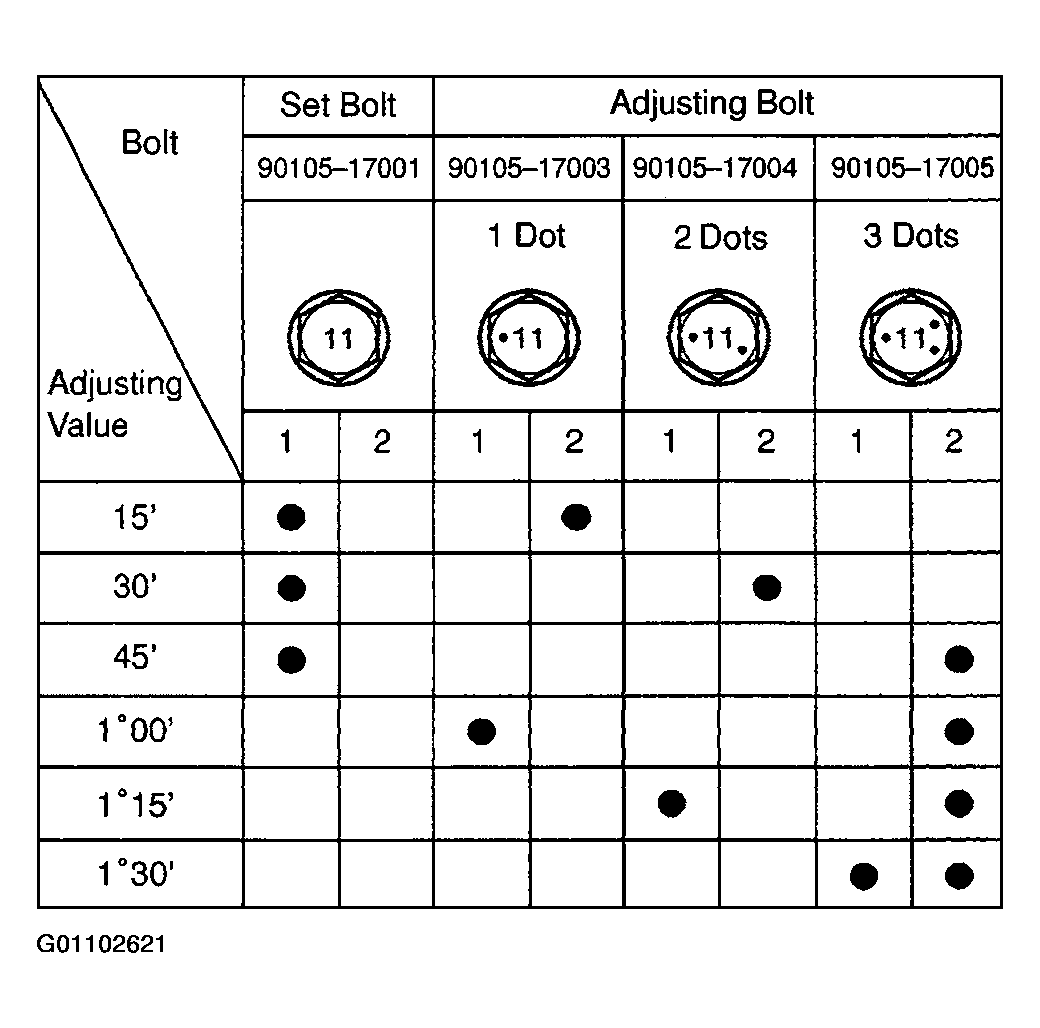

  Fig 7: Displaying Camber Adjusting Bolt Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Do steps a through h again. Between steps b and c, replace 1 or 2 selected bolts.
NOTE: When replacing the 2 bolts, replace 1 bolt for each time.

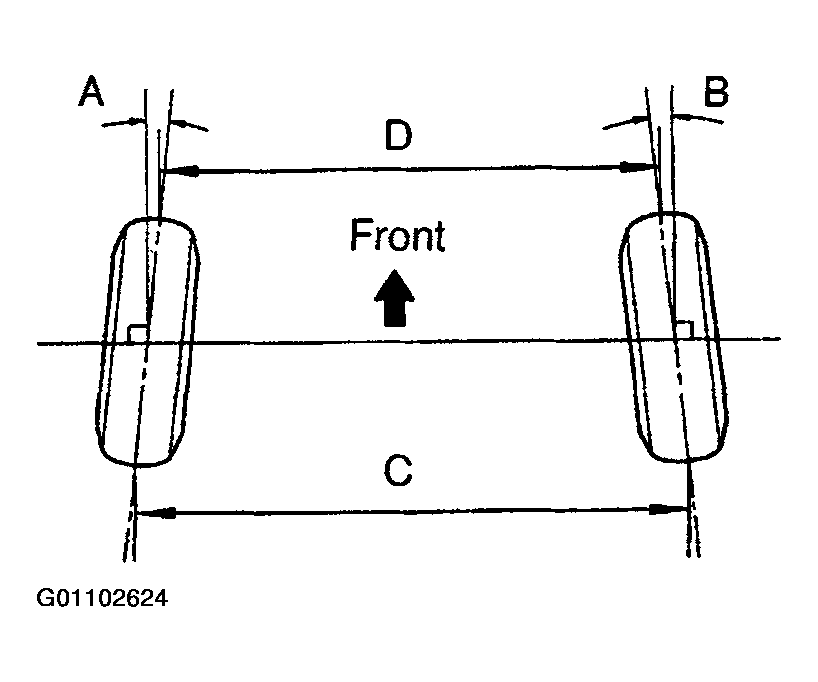

Inspect toe-in .
1. Toe-in:

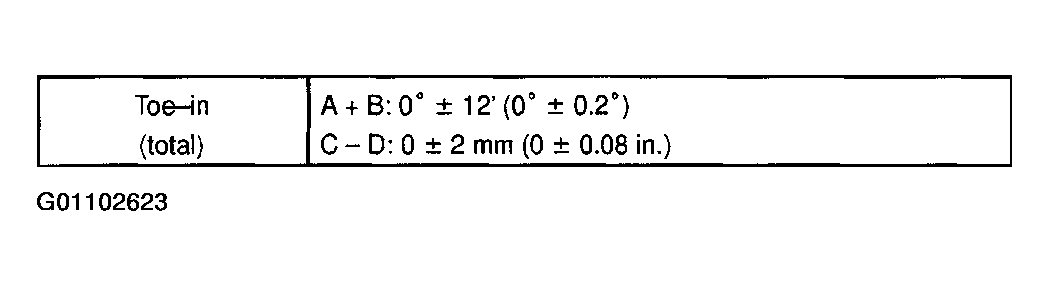

  Fig 9: Identifying Toe-In Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the toe-in is not within the specified value, adjust it at the rack ends.
Adjust toe-in .
1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.

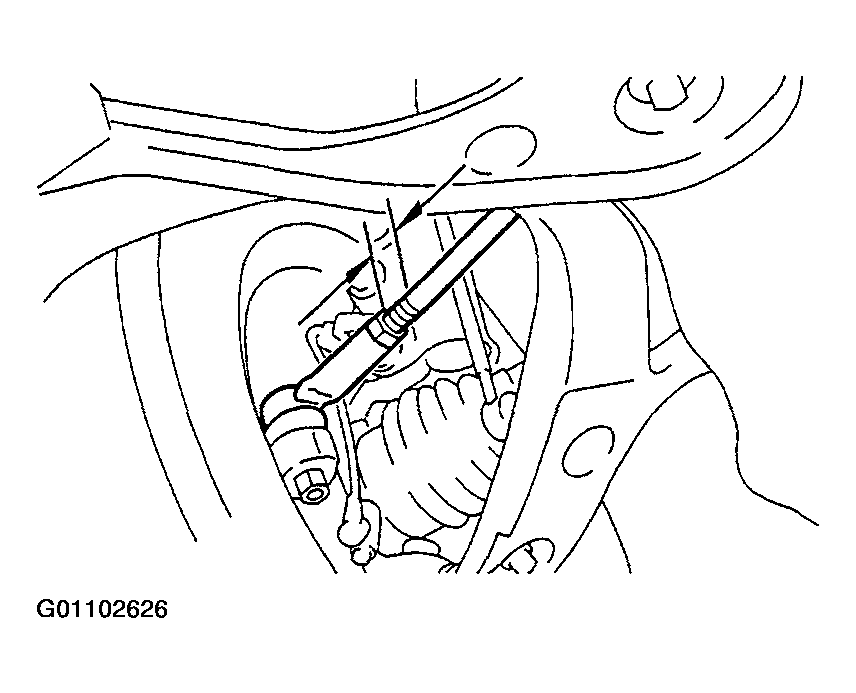

  Fig 10: Loosening Tie Rod End Lock Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

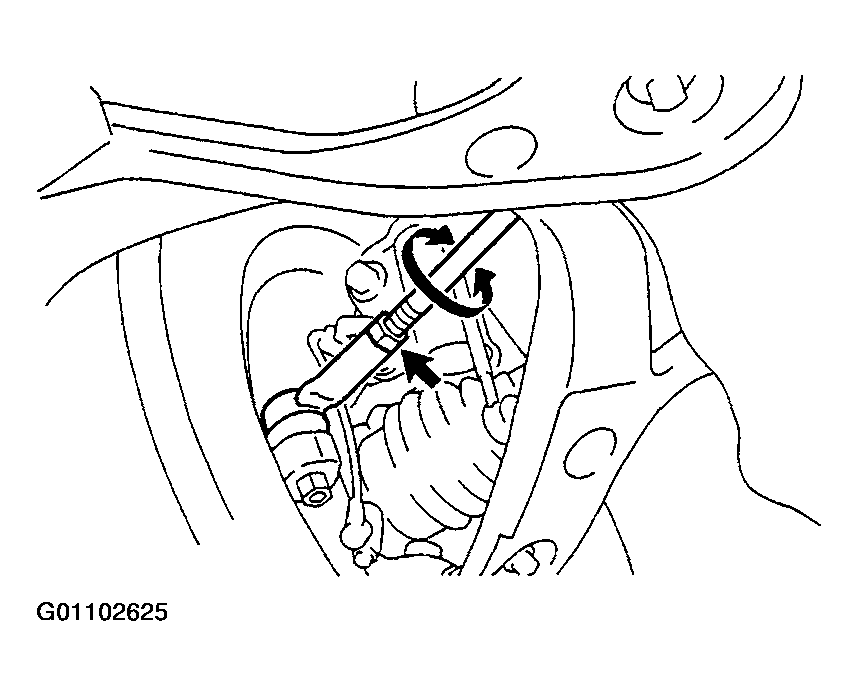

3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
  NOTE: Try to adjust the toe-in to the center of the specified value.
4. Make sure that the lengths of the right and left rack ends are the same.
  1. Rack end length difference: 1.5 mm (0.059 in.) or less

    Fig 11: Checking Rack End Lengths Are Equal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Torque the tie rod end lock nuts.
  1. Torque: 74 N.m (750 kgf.cm, 54 ft.lbf)
6. Place the boots on the seats and install the clips.
  NOTE: Make sure that the boots are not twisted.
Inspect wheel angle .
1. Turn the steering wheel fully, and measure the turning angle.

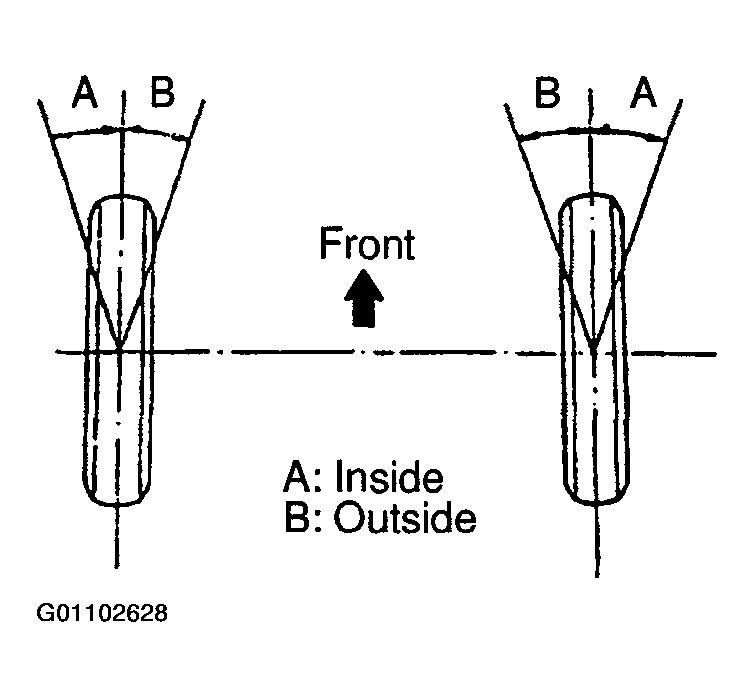

  Fig 12: Identifying Wheel Turning Angle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Wheel turning angle:

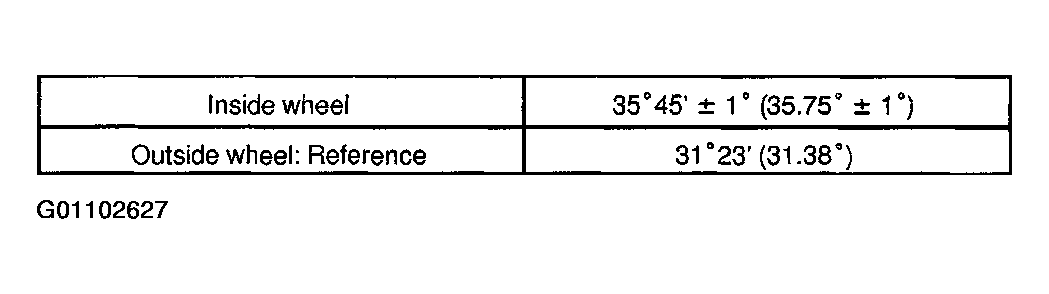

  Fig 13: Identifying Wheel Angle Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the right and left inside wheel angles differ from the specified value, check the right and left rack end lengths.
