Front Wheel Alignment

Fig 1: Measuring Vehicle Height (Front)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Measuring Vehicle Height (Rear)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Vehicle height:

1MZ-FE COMFORT:

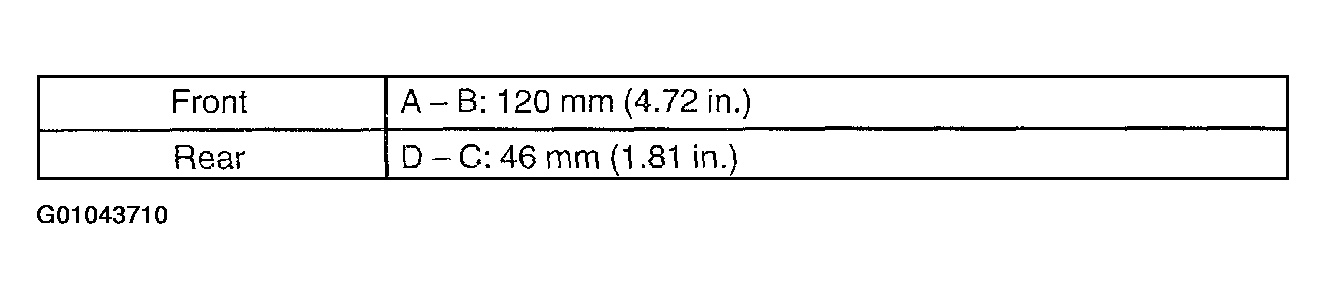

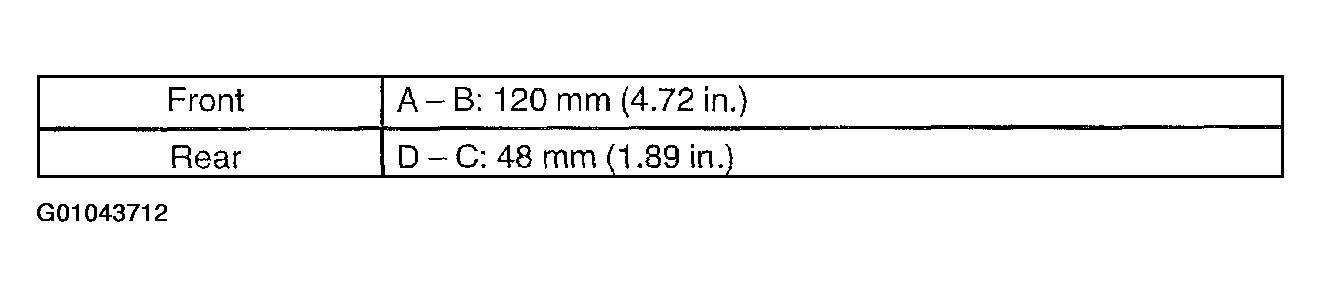

Fig 3: Identifying Vehicle Height Measurements (1MZ-FE Comfort)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1MZ-FE PREMIUM:

Fig 4: Identifying Vehicle Height Measurements (1MZ-FE Premium)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1MZ-FE SPORT:

Fig 5: Identifying Vehicle Height Measurements (1MZ-FE Sport)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

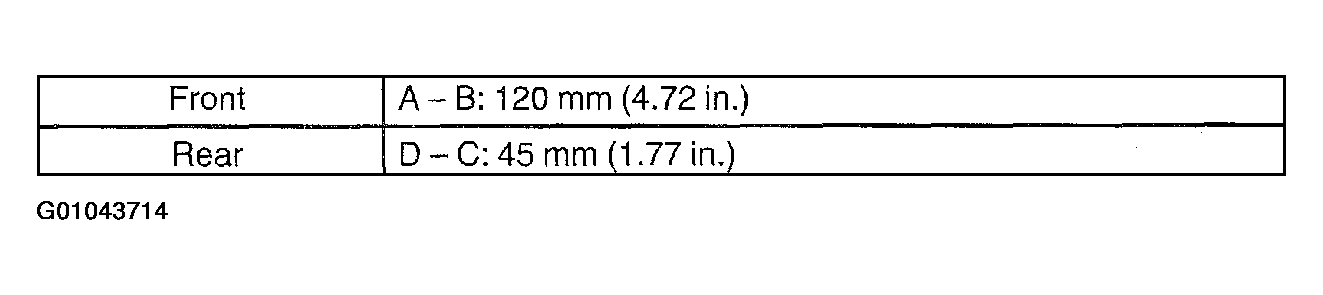

2AZ-FE COMFORT:

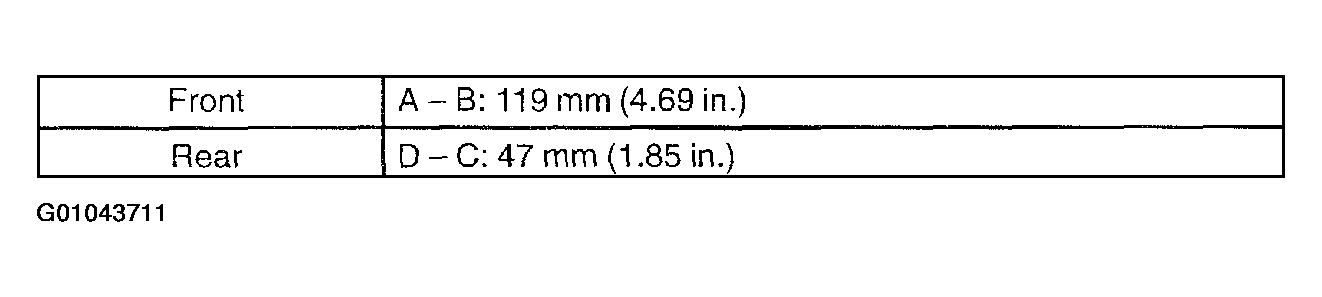

Fig 6: Identifying Vehicle Height Measurements (2AZ-FE Comfort)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2AZ-FE PREMIUM:

Fig 7: Identifying Vehicle Height Measurements (2AZ-FE Premium)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2AZ-FE SPORT:

Fig 8: Identifying Vehicle Height Measurements (2AZ-FE Sport)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measuring points:

1. A: Ground clearance of front wheel center
2. B: Ground clearance of lower suspension arm No. 2 set bolt center
3. C: Ground clearance of strut rod set bolt center
4. D: Ground clearance of rear wheel center

If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

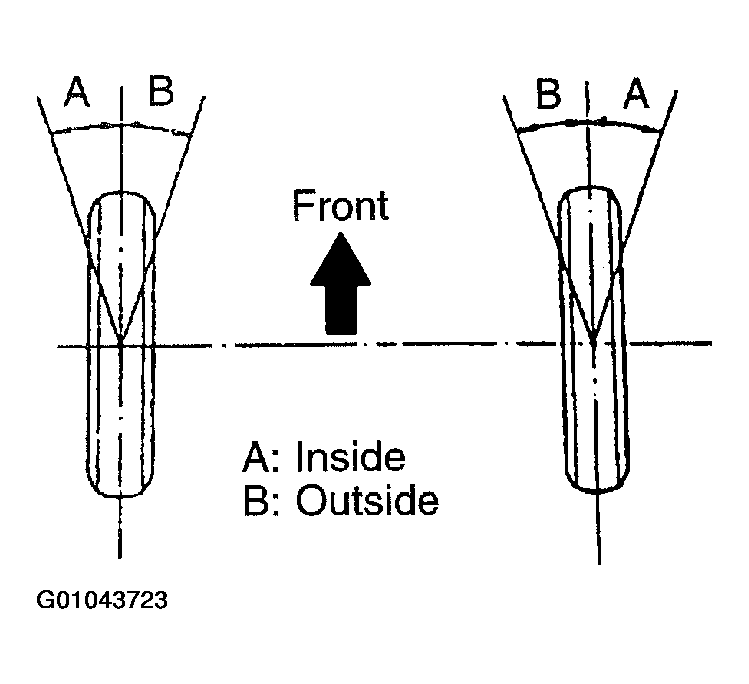

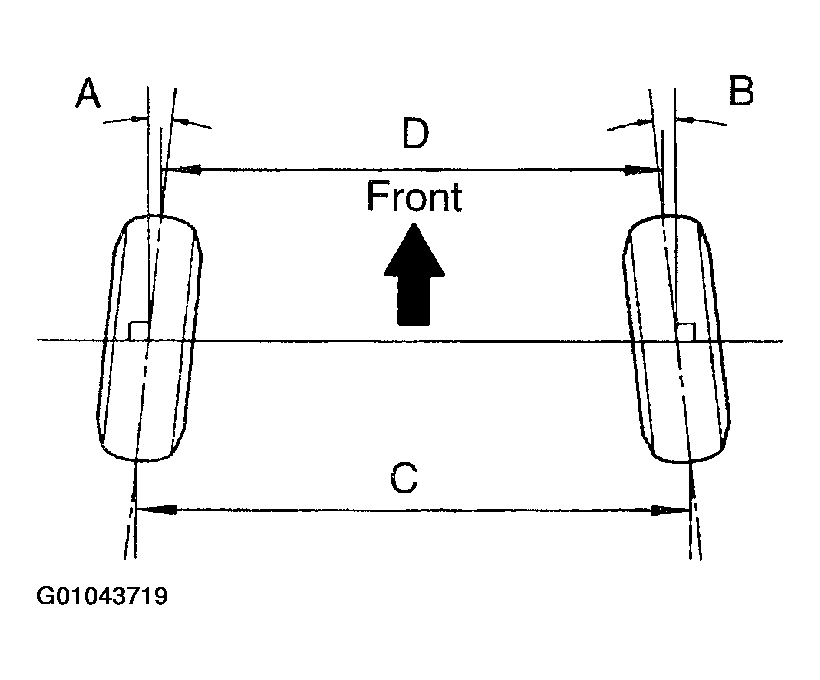

Fig 9: Identifying Toe-In Measurements

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Toe-in:

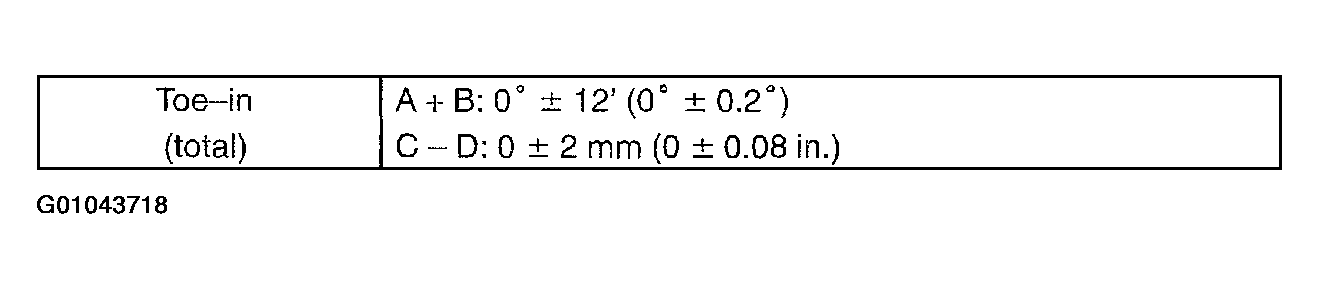

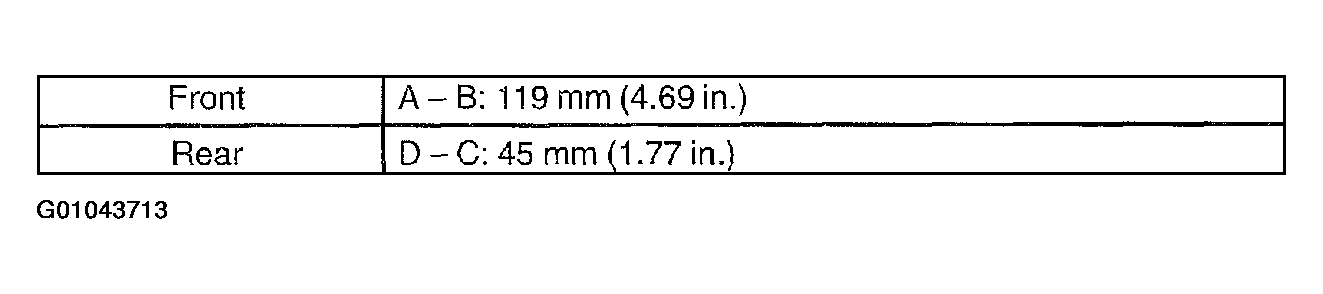

   Fig 10: Identifying Toe-In Equation Specifications

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the toe-in is not within the specified value, adjust it at the rack ends.

1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
   NOTE: Try to adjust the toe-in to the center of the specified value.
4. Make sure that the lengths of the right and left rack ends are the same.

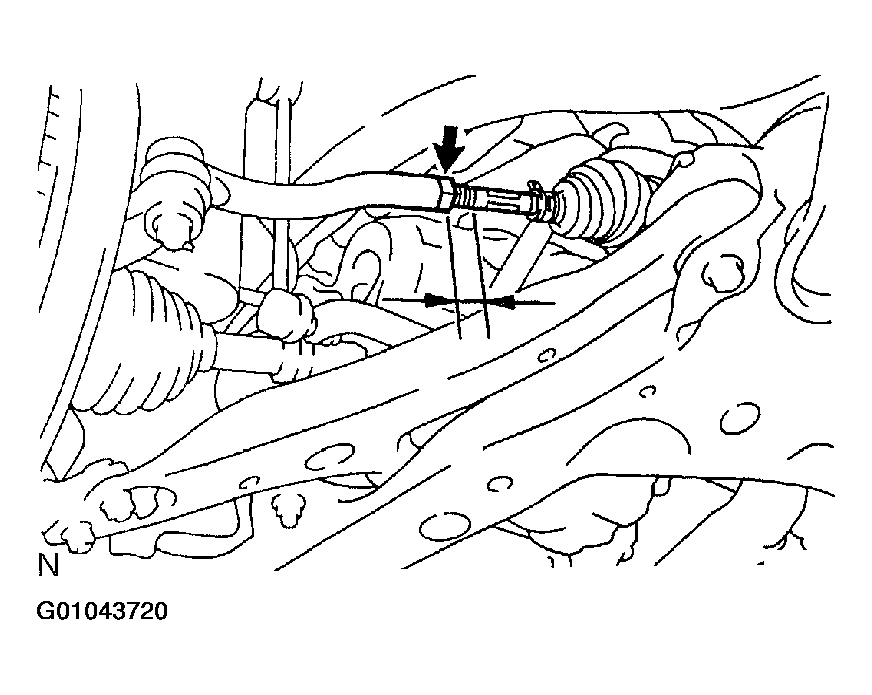

   Fig 11: Checking For Equal Length Rack Ends

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Torque the tie rod end lock nuts.
   1. Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)
6. Place the boots on the seats and install the clips.
   NOTE: Make sure that the boots are not twisted.

1. Turn the steering wheel fully and measure the turning angle.
   Fig 12: Identifying Wheel Turning Angles

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Wheel turning angle:

      15 inch:

      See Fig 13.

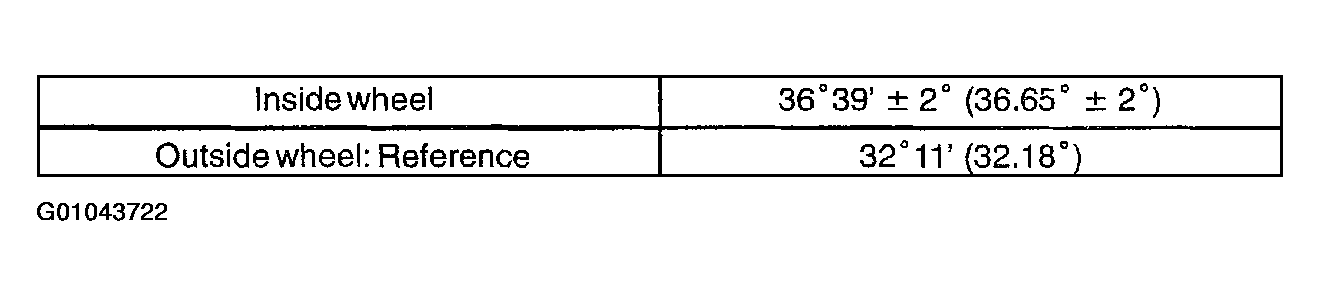

      Fig 13: Identifying Wheel Turning Angle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      16 inch:

      See Fig 14.

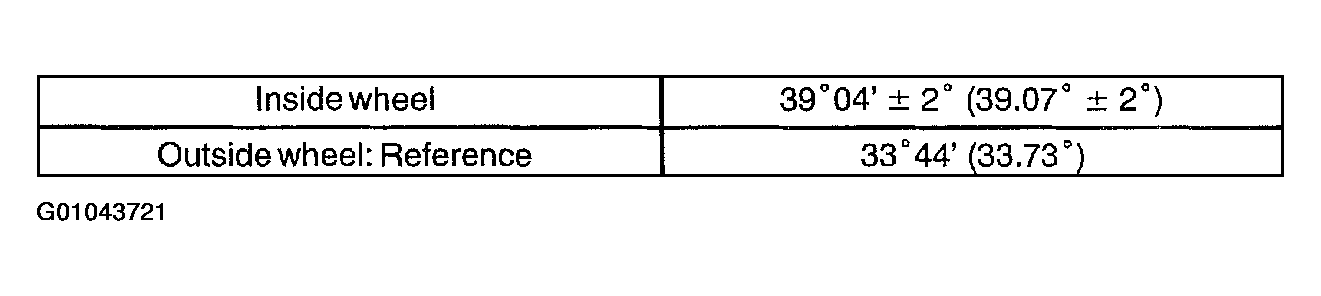

      Fig 14: Identifying Wheel Turning Angle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the right and left inside wheel angles differ from the specified value, check the right and left rack end lengths.

1. Install the camber/caster/kingpin gauge or position vehicle on wheel alignment tester.

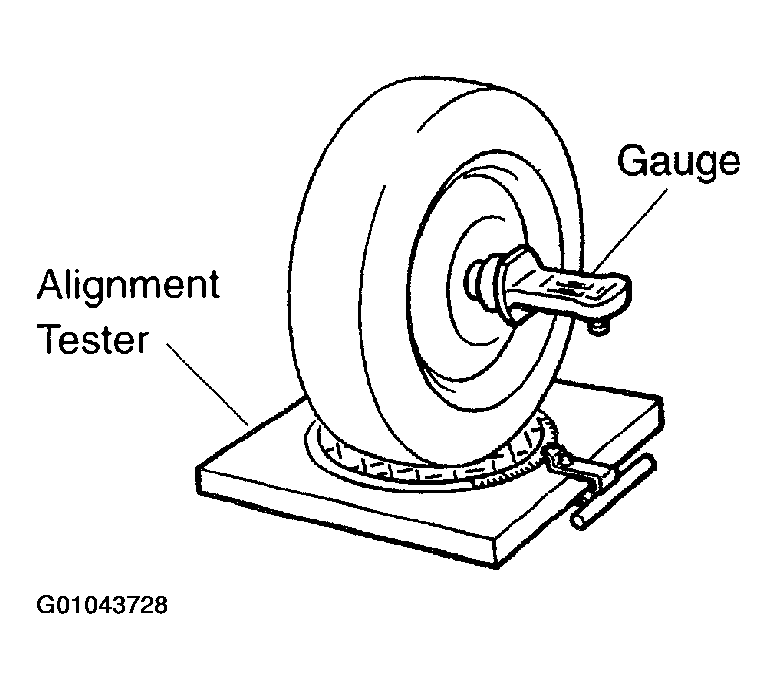

   Fig 15: Installing Camber/Caster/Kingpin Gauge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the camber, caster and steering axis inclination.
   1. Camber and steering axis inclination:

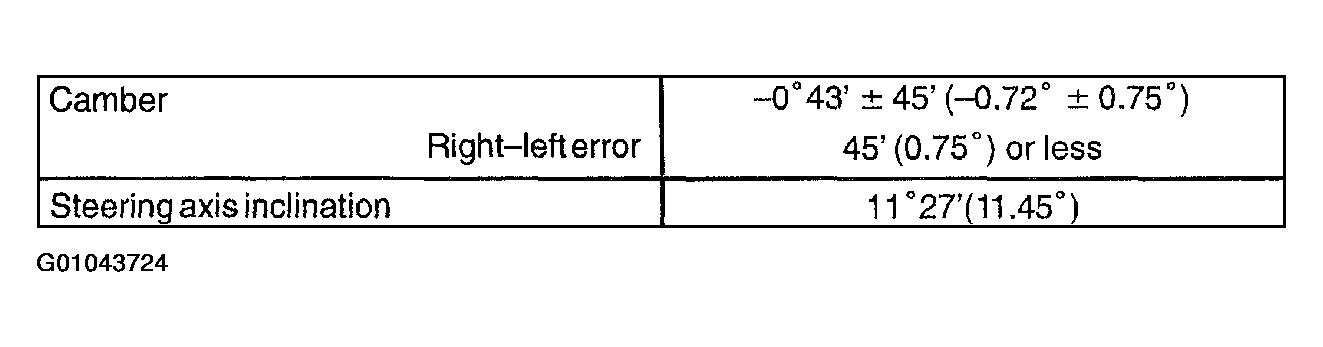

      Fig 16: Displaying Camber & Steering Axis Inclination Specifications

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Caster

      1MZ-FE SPORT:

      Fig 17: Displaying Caster Specifications (1MZ-FE Sport)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

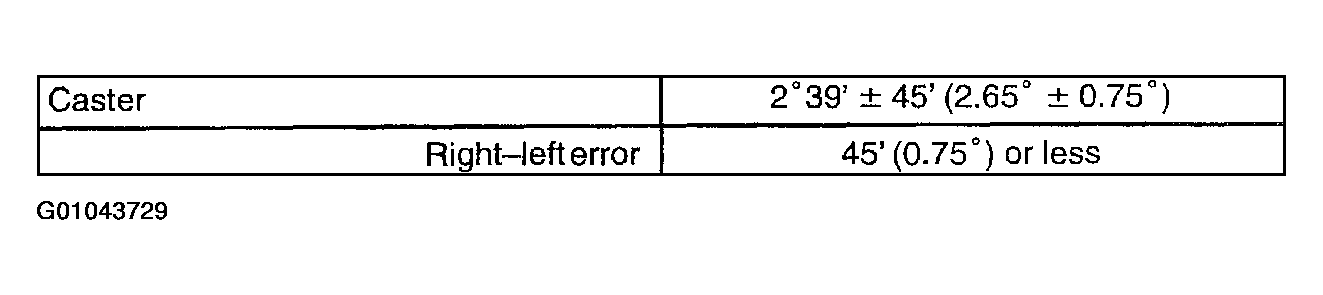

      1 MZ-FE Except SPORT:

      Fig 18: Displaying Caster Specifications (1 MZ-FE Except Sport)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

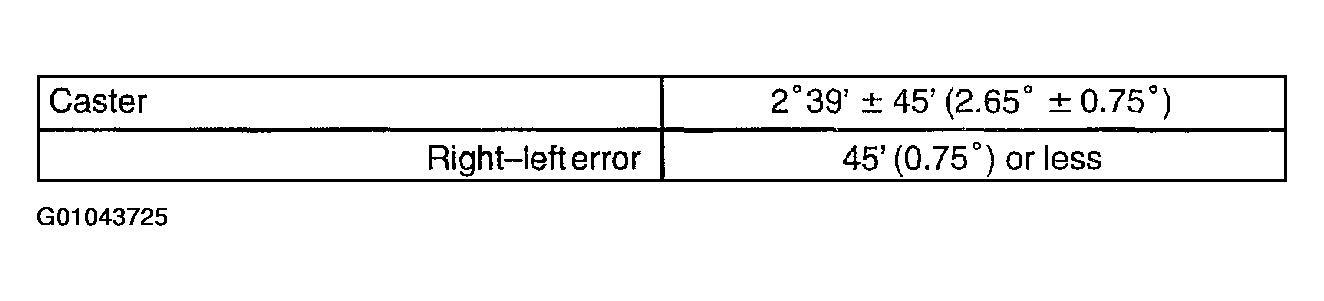

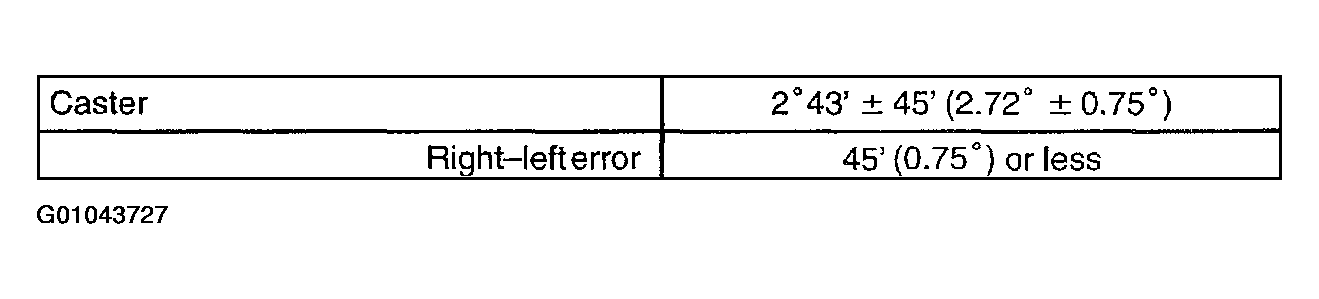

      2AZ-FE SPORT:

      Fig 19: Displaying Caster Specifications

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

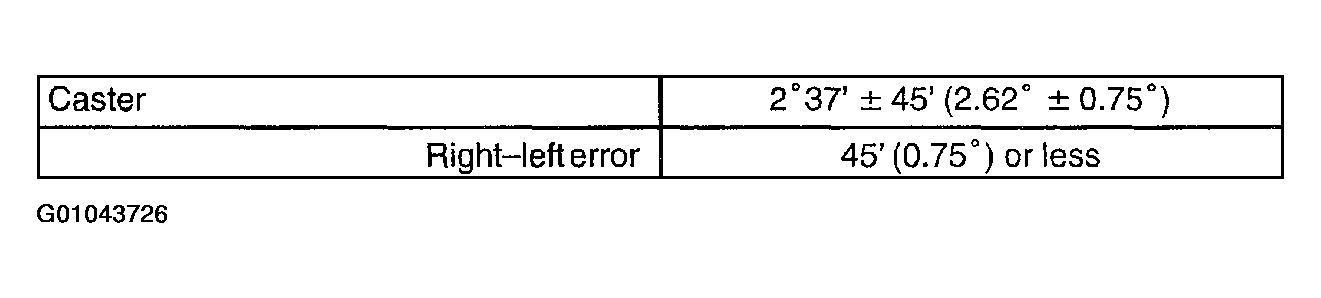

      2AZ-FE Except SPORT:

      Fig 20: Displaying Caster Specifications

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the caster and steering axis inclination are not within the specified values, after the camber has been correctly adjusted, re-check the suspension parts for damaged and/or worn out parts.

1. Remove the front wheel.
2. Remove the 2 nuts on the lower side of the shock absorber.

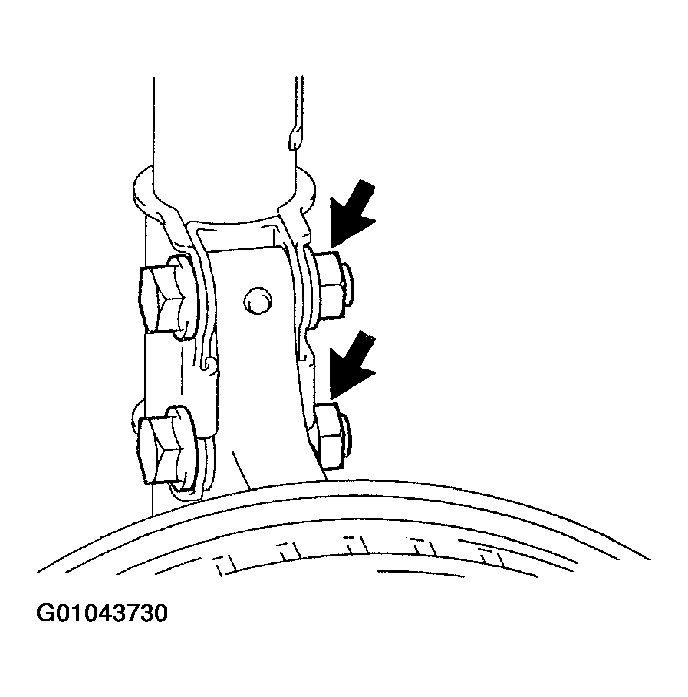

   Fig 21: Locating Lower Shock Absorber Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: When removing nut, stop the bolt from rotating and loosen the nut.
3. Clean the installation surfaces of the shock absorber and the steering knuckle.
4. Temporarily install the 2 nuts.
5. Adjust the camber by pushing or pulling the lower side of the shock absorber in the direction in which the camber adjustment is required.

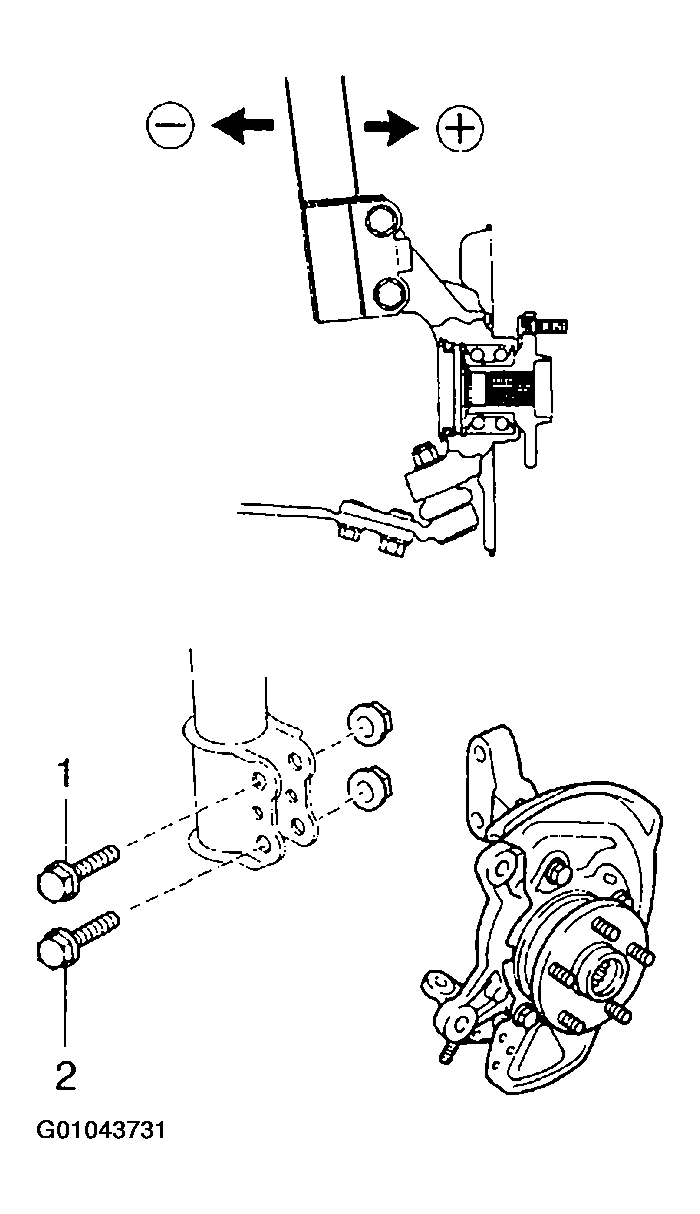

   Fig 22: Moving Shock Absorber In Or Out To Adjust Camber

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Tighten the nuts.
   1. Torque: 210 N.m (2,141 kgf.cm, 155 ft.Ibf)
      NOTE: When installing nut, stop the bolt from rotating and torque the nut.
7. Install the front wheel.
   1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.Ibf)
8. Check the camber.
   NOTE:

   • Try to adjust the camber to the center of the specified value.
   • Adjusting value for the set bolts is 6' - 30' (0.1° - 0.5°).

   If the camber is not within the specified value, using the following table, estimate how much additional camber adjustment will be required, and select the camber adjusting bolt.

   NOTE: Tighten the adjusting bolt with a washer and a new nut.

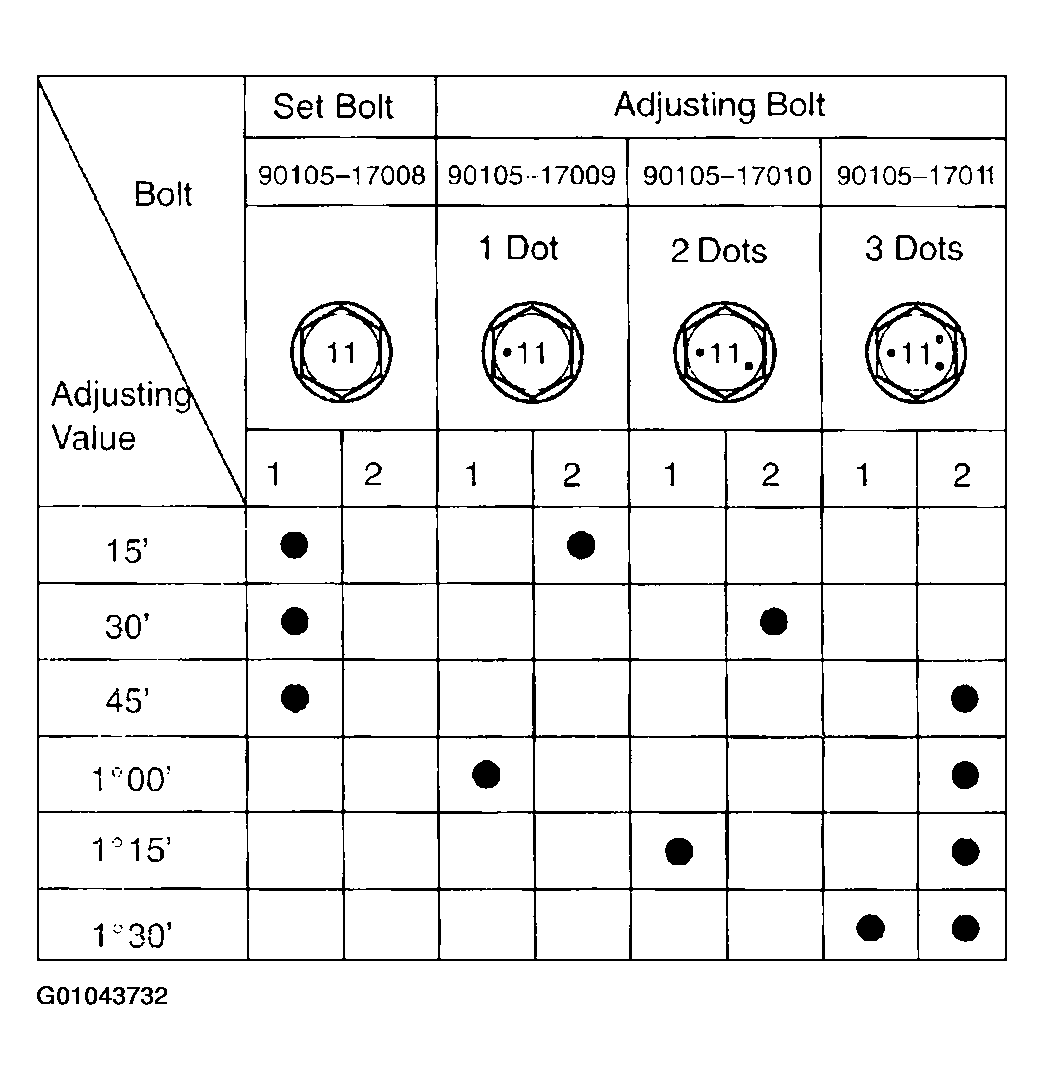

   Fig 23: Displaying Camber Adjustment Bolt Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Do steps  a through  h again. At step  b, replace 1 or 2 selected bolts.
   NOTE: When replacing the 2 bolts, replace 1 bolt for each time.
