Rear Wheel Alignment

Measure vehicle height (see MEASURE VEHICLE HEIGHT ) .
Install camber/caster/kingpin gauge or position vehicle on wheel alignment tester .
1. Follow the specific instructions of the equipment manufacturer.
Inspect camber .
Camber:

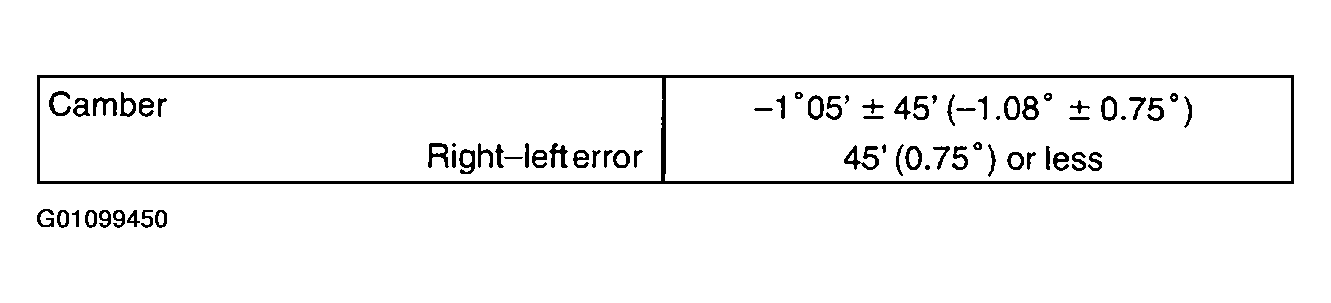

Fig 1: Identifying Camber Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the camber is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary because camber is not adjustable.
Inspect toe-in .
1. Toe-in:

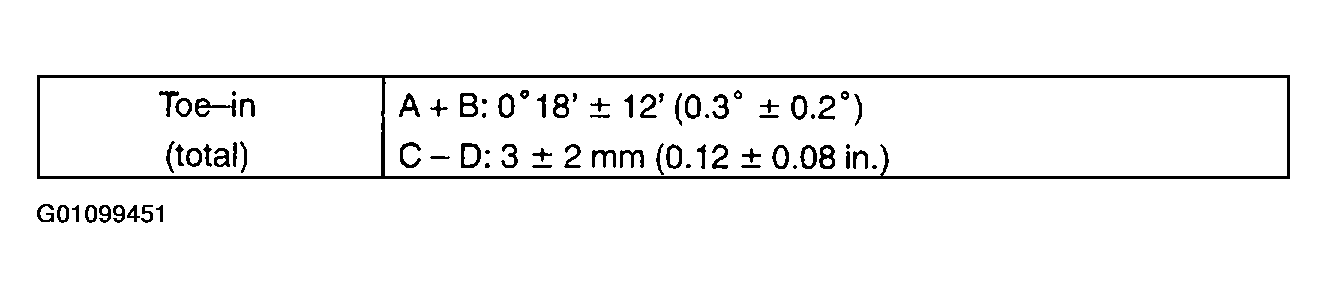

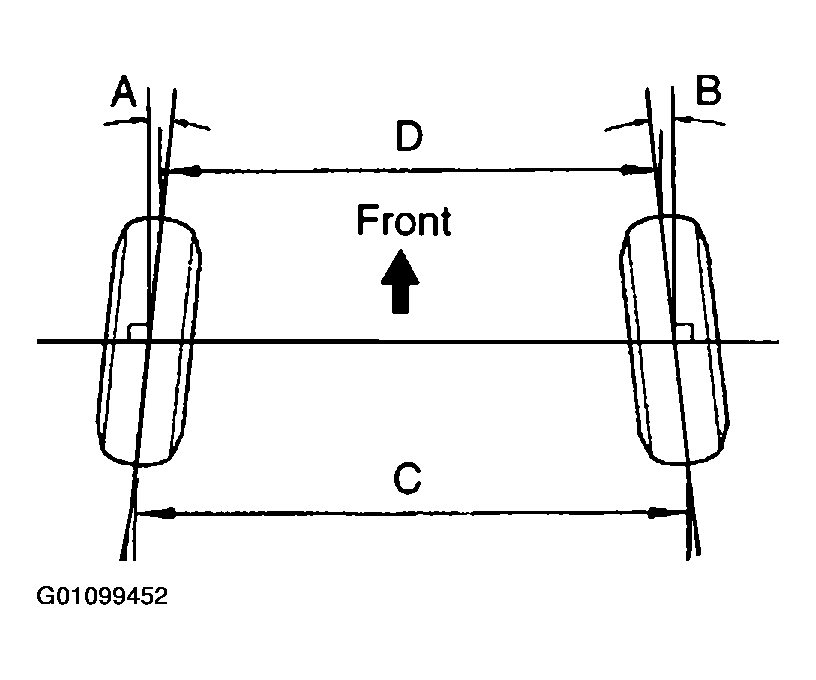

  Fig 3: Identifying Toe-In Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the toe-in is not within the specified value, adjust it at the adjusting cam.
1. Loosen the lower arm adjusting cam set nut.

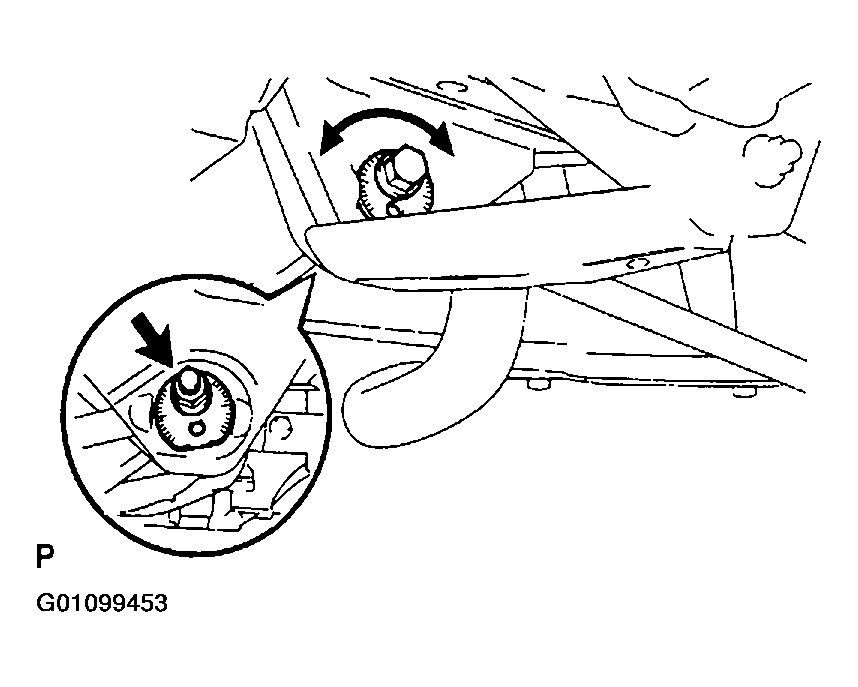

  Fig 4: Loosening Lower Arm Adjusting Cam Set Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the toe-in by turning the adjusting cam.
  1. Right-left error: 0.3 mm (0.012 in.) or less
  NOTE:
  - Try to adjust the toe-in to the center of the specified value.
  - Control value toe changes about 1.7 mm per 1 scale.
3. Torque the lower arm adjusting cam set nut.
  1. Torque: 87 N.m (887 kgf.cm, 64 ft.lbf)
