Front Wheel Alignment

Measure vehicle height .
1. Vehicle height:

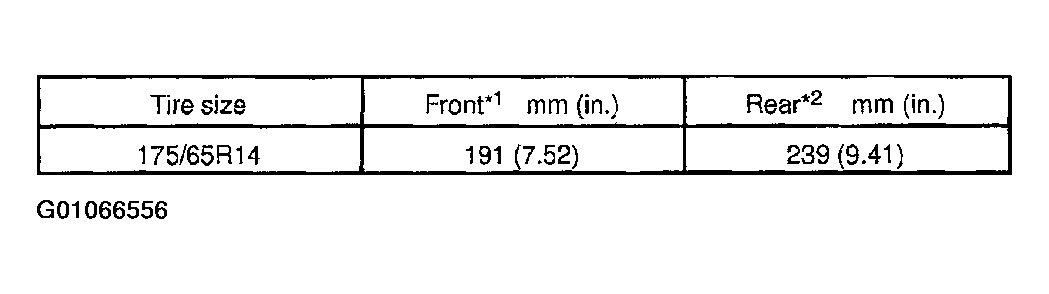

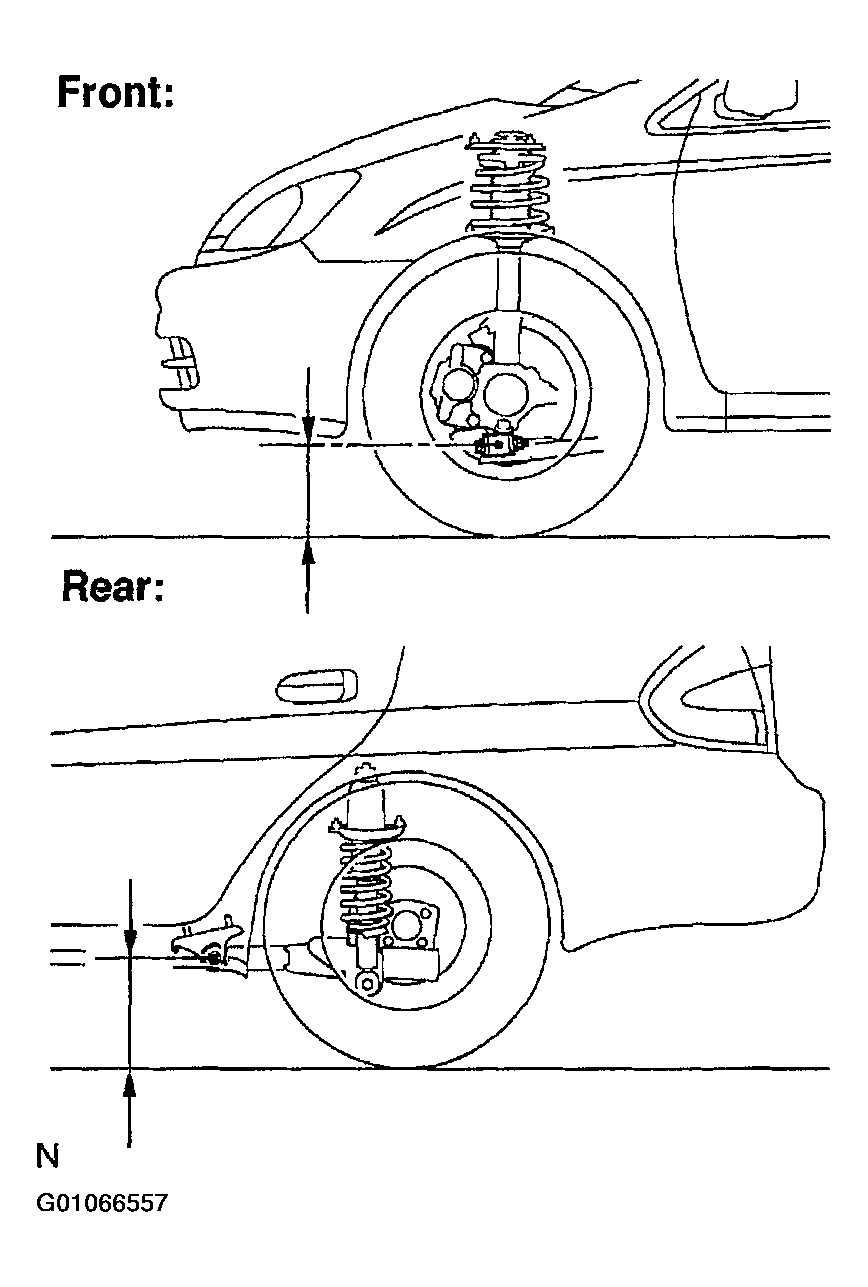

  Fig 2: Identifying Vehicle Height Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  ^* 1: Front measuring point

  Measure the distance from the ground to the head center of the front side lower suspension arm mounting bolt.

  ^* 2: Rear measuring point

  Measure the distance from the ground to the center of the rear axle beam mounting bolt.

  NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

  If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

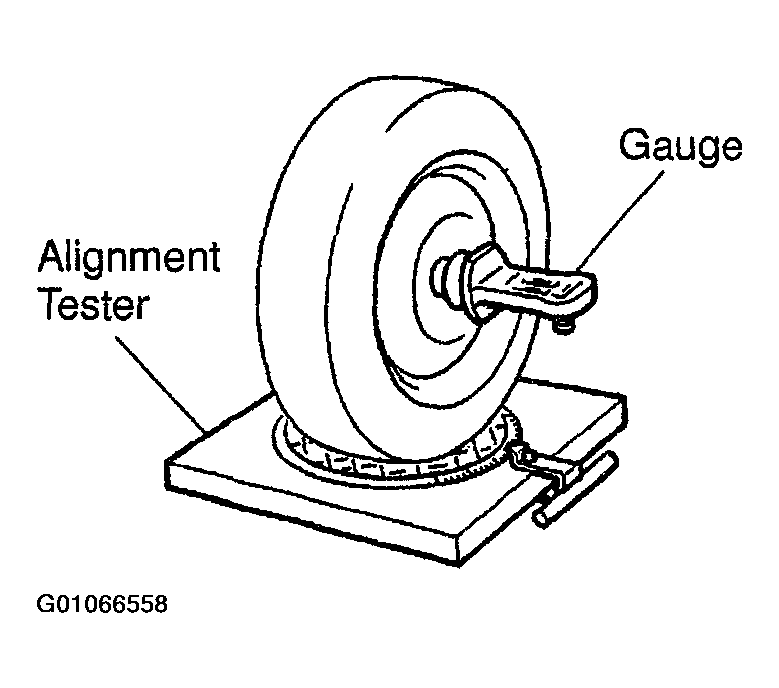

Install camber/caster/kingpin gauge or position vehicle on wheel alignment tester .
1. Follow the specific instructions of the equipment manufacturer.
Inspect camber, caster and steering axis inclination .
1. Camber, caster and steering axis inclination:

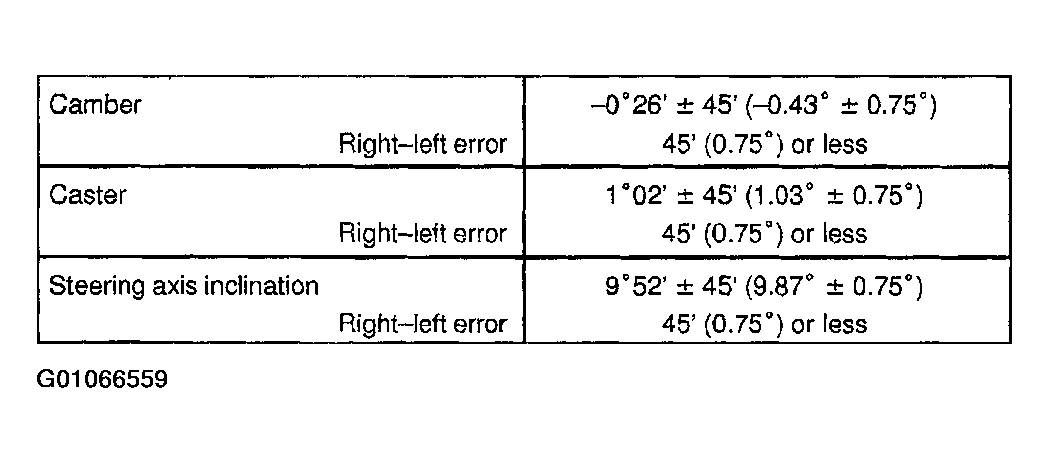

  Fig 4: Identifying Camber, Caster & Steering Axis Inclination Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the caster and steering axis inclination are not within the specified values, after the camber has been correctly adjusted, recheck the suspension parts for damaged and/or worn out parts.
Adjust camber .
NOTE: After the camber has been adjusted, inspect the toe-in.
1. Remove the front wheel.

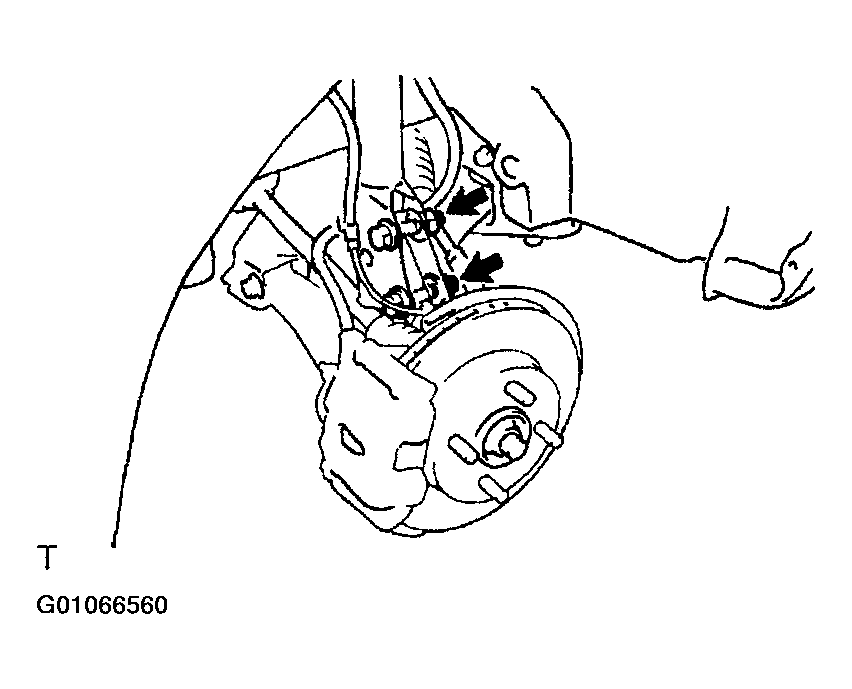

2. Remove the 2 nuts on the lower side of the shock absorber.
  1. If reusing the bolts and/or nuts, coat the threads of nuts with engine oil.
3. Clean the installation surfaces of the shock absorber and the steering knuckle.
4. Temporarily install the 2 nuts.
5. Adjust the camber by pushing or pulling the lower side of the shock absorber in the direction in which the camber adjustment is required.

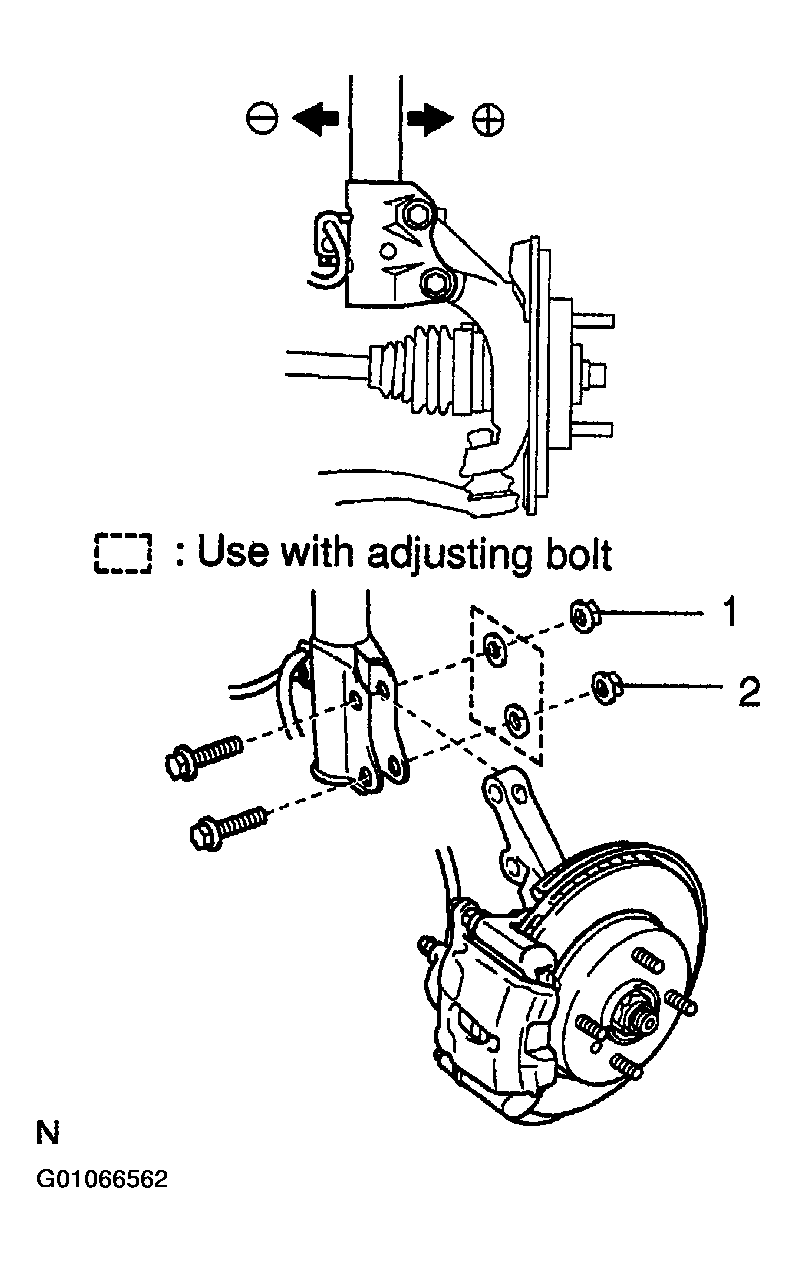

  Fig 6: Using Shock Absorber To Adjust Camber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Tighten the nuts.
  1. Torque: 153 N.m (1,560 kgf.cm, 113 ft.lbf)
7. Install the front wheel.
  1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
8. Check the camber.
  NOTE:
  - Try to adjust the camber to the center of the specified value.
  - Adjusting value for the set bolts is 6' - 30' (0.1° - 0.5°).
  If the camber is not within the specified value, using the following table, estimate how much additional camber adjustment will be required, and select the camber adjusting bolt.

  NOTE: Tighten the adjusting bolt with a washer and a new nut.

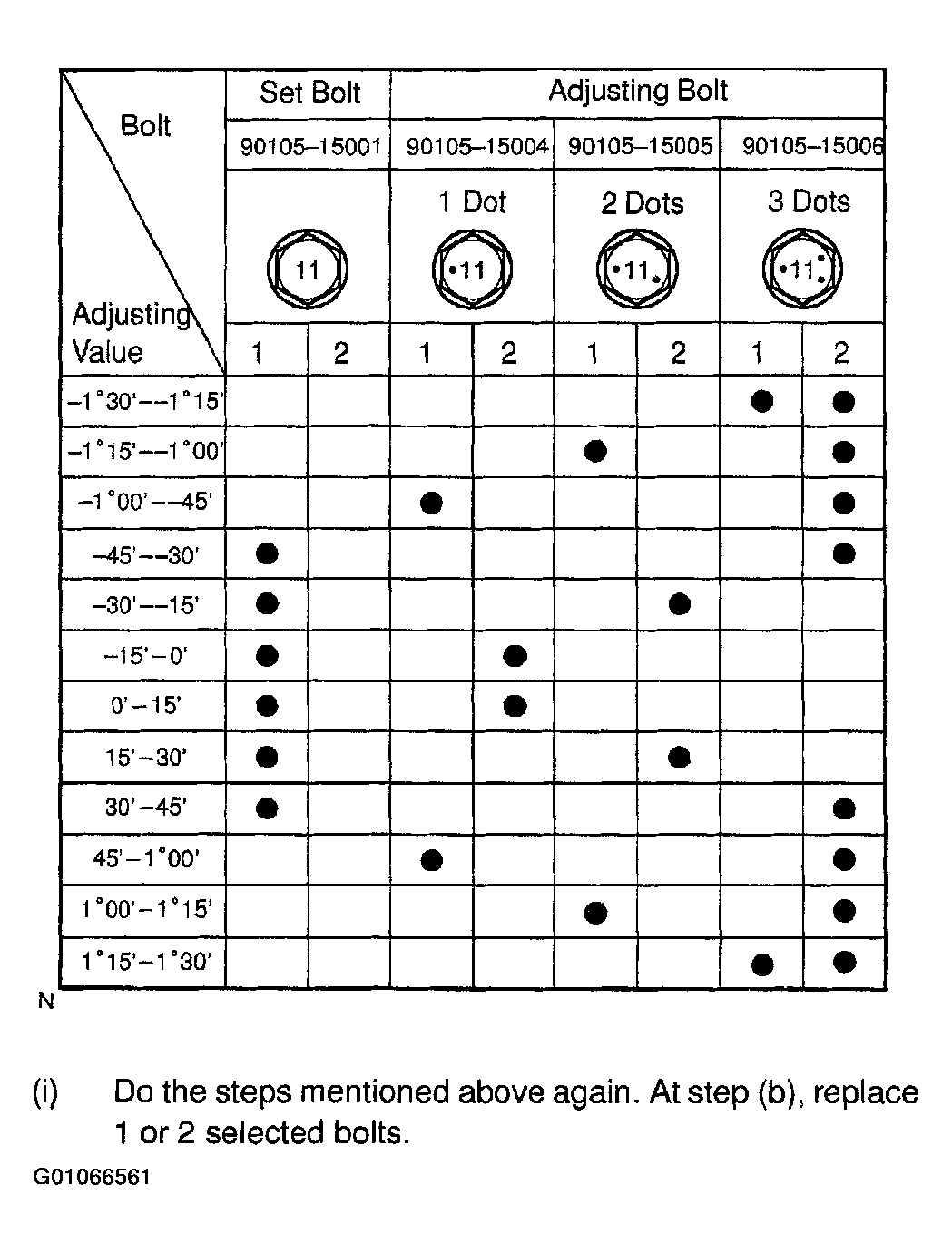

  Fig 7: Displaying Camber Adjusting Bolt Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Do steps a through h again. At step b, replace 1 or 2 selected bolts.
  NOTE: When replacing the 2 bolts, replace 1 bolt for each time.
Inspect toe-in .

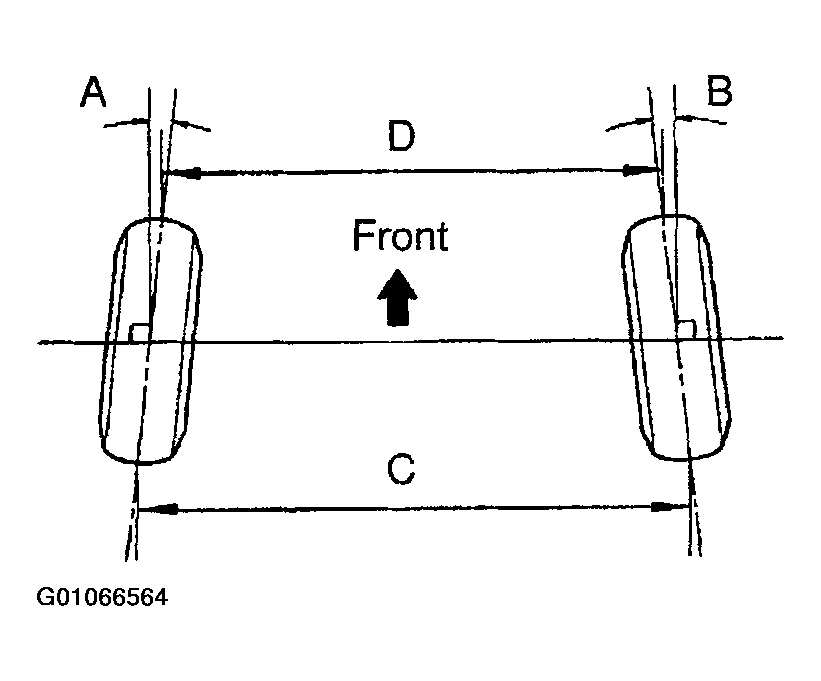

1. Toe-in:

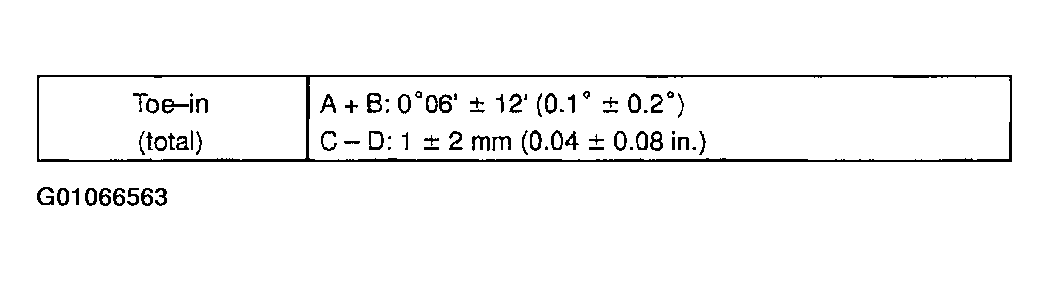

  Fig 9: Identifying Toe-In Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the toe-in is not within the specified value, adjust it at the rack ends.
Adjust toe-in .
1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.

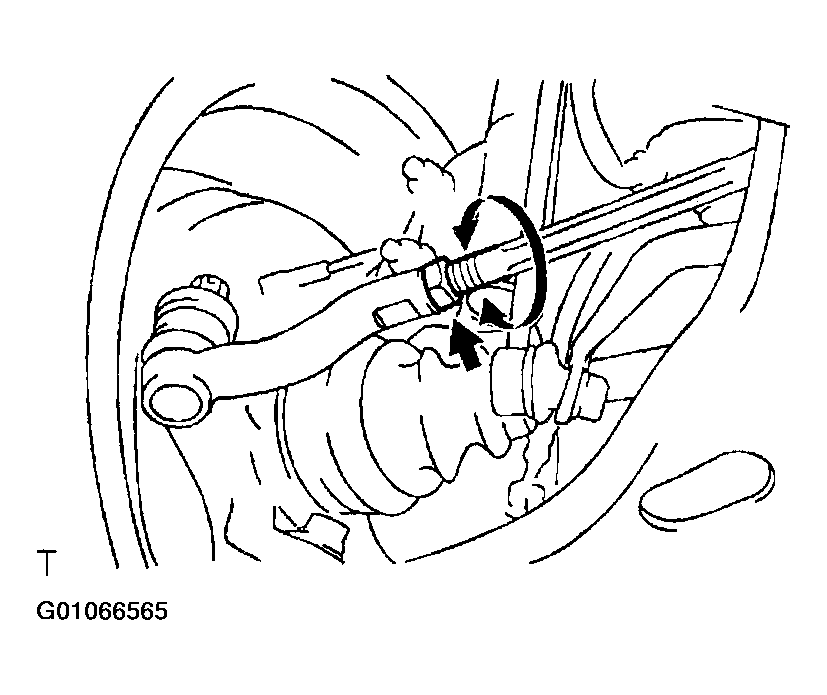

  Fig 10: Adjusting Tie Rod Ends
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
  NOTE: Try to adjust the toe-in to the center of the specified value.

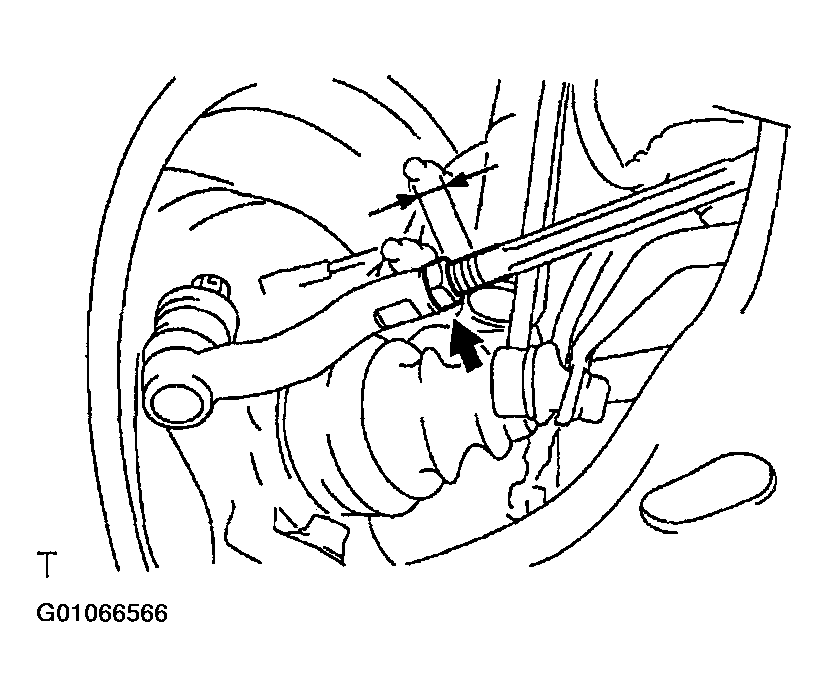

4. Make sure that the lengths of the right and left rack ends are the same.
  1. Rack end length difference: 1.5 mm (0.059 in.) or less
5. Torque the tie rod end lock nuts.
  1. Torque: 74 N.m (750 kgf.cm, 55 ft.lbf)
6. Place the boots on the seats and install the clips.
NOTE: Make sure that the boots are not twisted.
Inspect wheel angle .
1. Turn the steering wheel fully and measure the turning angle.
  Wheel turning angle:

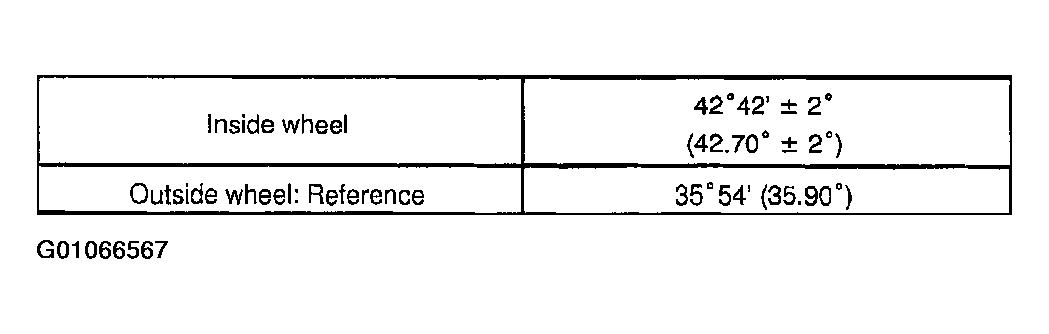

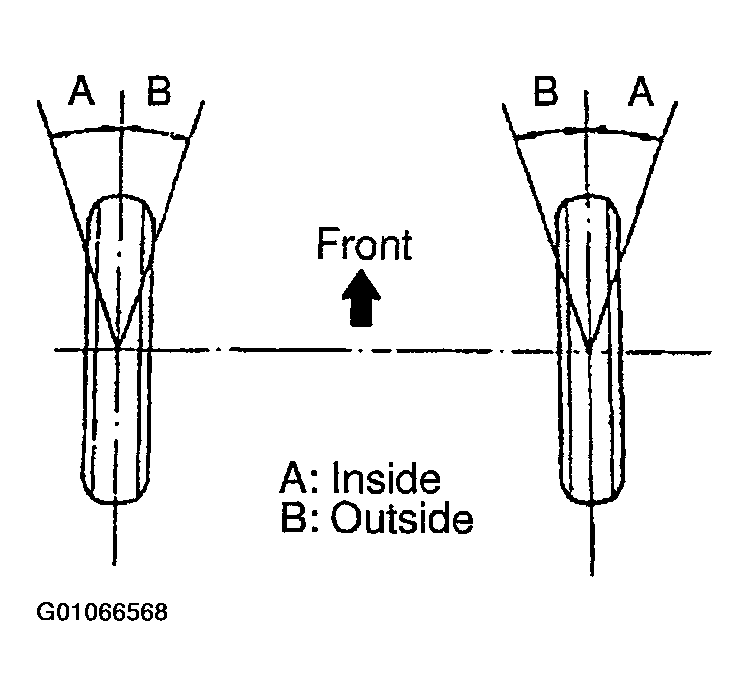

  Fig 13: Identifying Wheel Turning Angle Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the right and left inside wheel angles differ from the specified value, check the right and left rack end lengths.
