Rear Wheel Alignment

Measure vehicle height (see MEASURE VEHICLE HEIGHT ) .
NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
Inspect camber .
1. Camber:

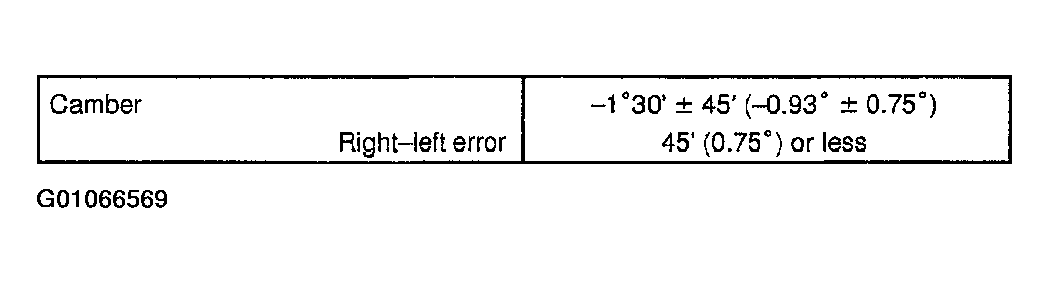

  Fig 1: Identifying Camber Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary because camber is not adjustable.
Inspect toe-in .
1. Toe-in:

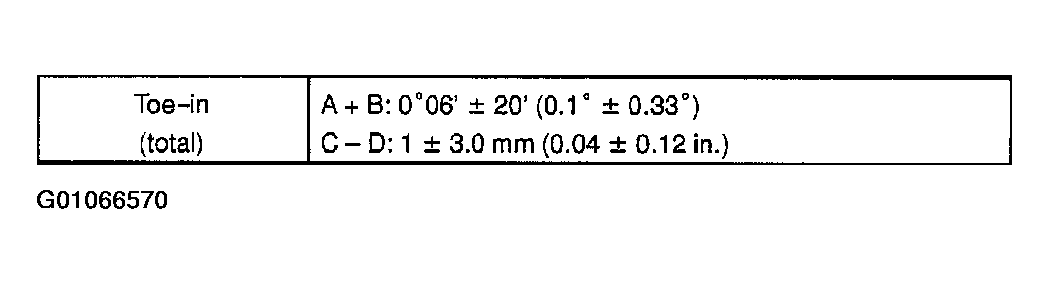

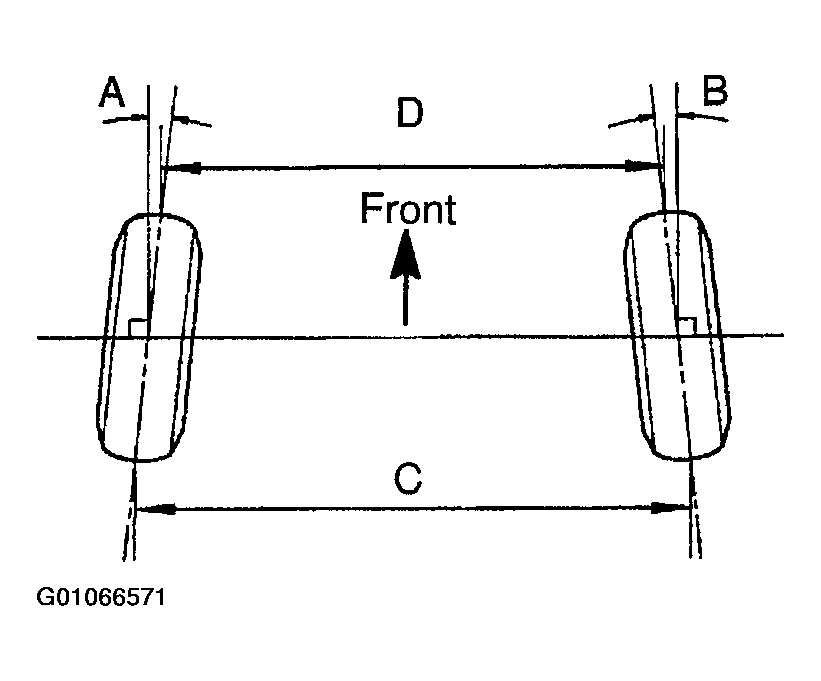

  Fig 3: Identifying Toe-In Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the toe-in is not within the specified value, inspect and replace the suspension parts as necessary.
