Rear Wheel Alignment

Measure vehicle height (see MEASURE VEHICLE HEIGHT ) .
Install camber/caster/kingpin gauge and position vehicle on wheel alignment tester .
1. Follow the specifications of the equipment manufacturer.
Inspect camber .
1. Left-right error: 45' (0.75°) or less:

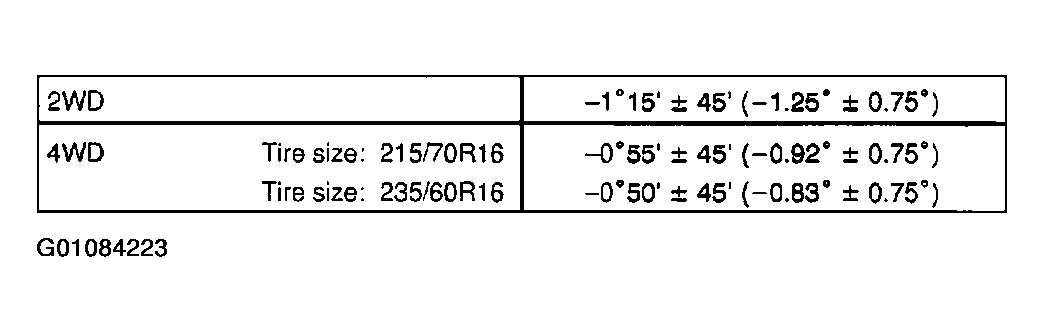

  Fig 1: Identifying Camber Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the camber is not within the specified value, adjust the camber.
Adjust camber .

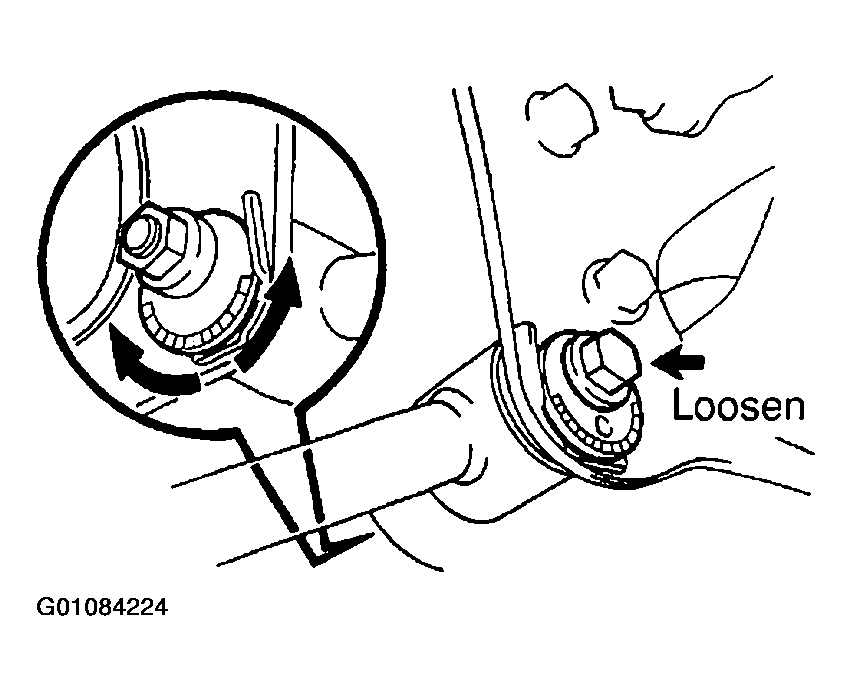

1. Loosen the camber adjust cam lock bolt.
2. Turn the camber adjust cam to adjust the camber.
  NOTE:
  - Try to adjust the camber to the center of the specified value.
  - The camber will change about 16' (0.27°) with each graduation of the cam.
3. Tighten the lock bolt.
  1. Torque: 113 N.m (1,150 kgf.cm, 83 ft.lbf)
Inspect toe-in .

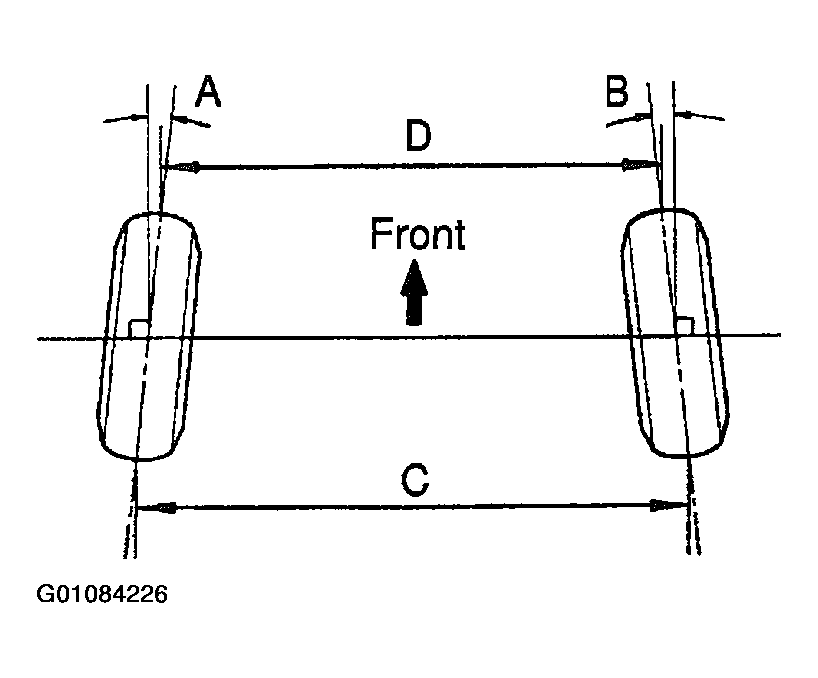

Fig 3: Identifying Toe-In Measurements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

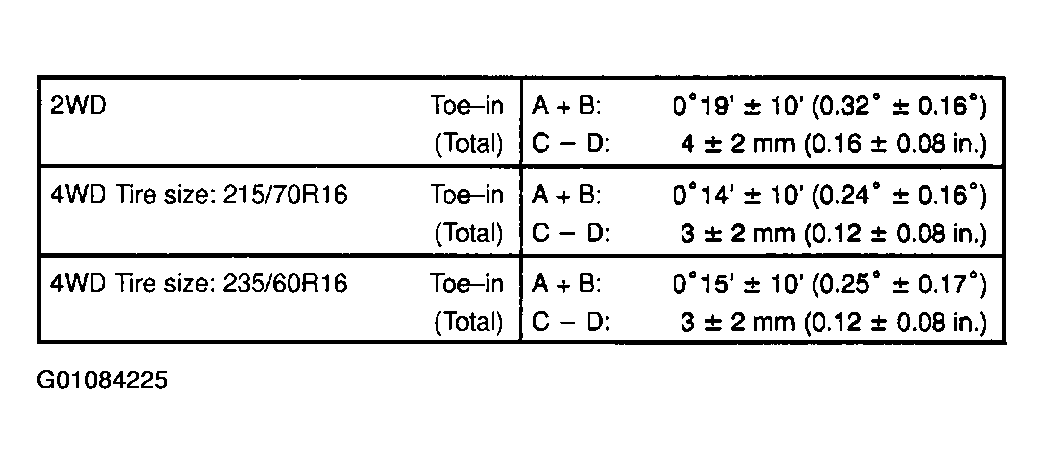

Fig 4: Identifying Toe-In Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified value, adjust it.
Adjust toe-in .

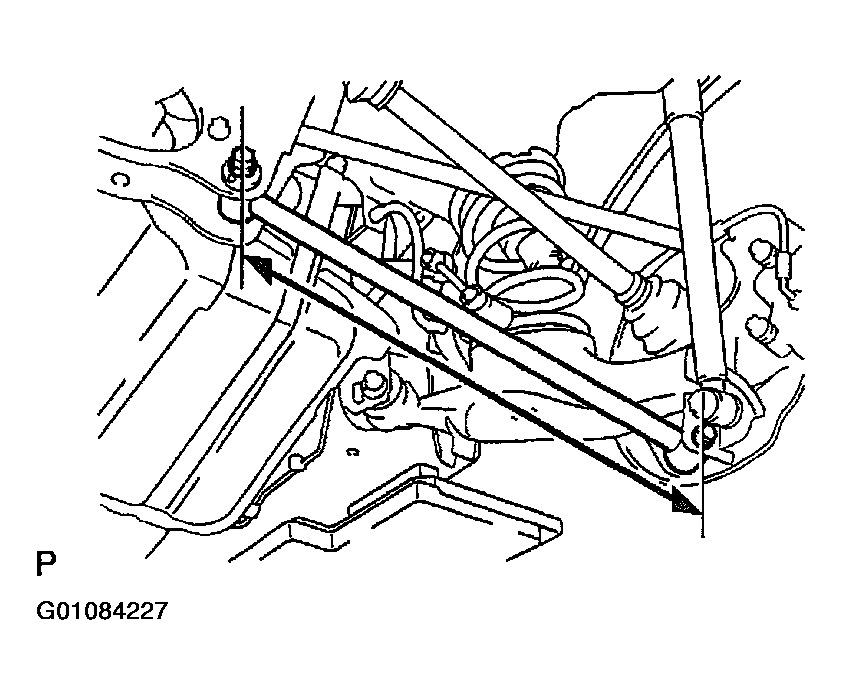

1. Measure the distance between each wheel disc and corner of the cam bracket, then confirm that both are the same.
  1. Lower suspension arm length difference: 1 mm (0.04 in.) or less
    If the difference between the left and right is more than 1 mm (0.04 in.), adjust it by following the step (b) to (d).
2. Loosen the toe-adjust cam lock bolt.

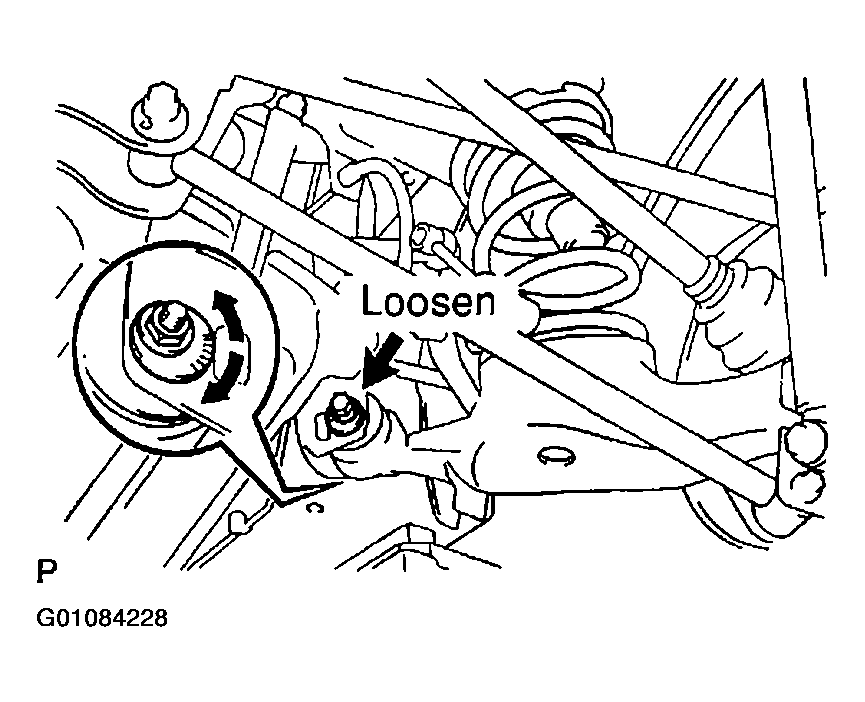

  Fig 6: Loosening Toe-Adjust Cam Lock Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the toe-adjust cam an equal amount to adjust toe-in.
  NOTE:
  - Try to adjust the toe-in to the center value.
  - The toe-in will change about 2.5 mm (0.10 in.) with each graduation of the cam (both side).
4. Torque the lock bolts.
  1. Torque: 132 N.m (1,350 kgf.cm, 97 ft.lbf)
