Front Wheel Alignment

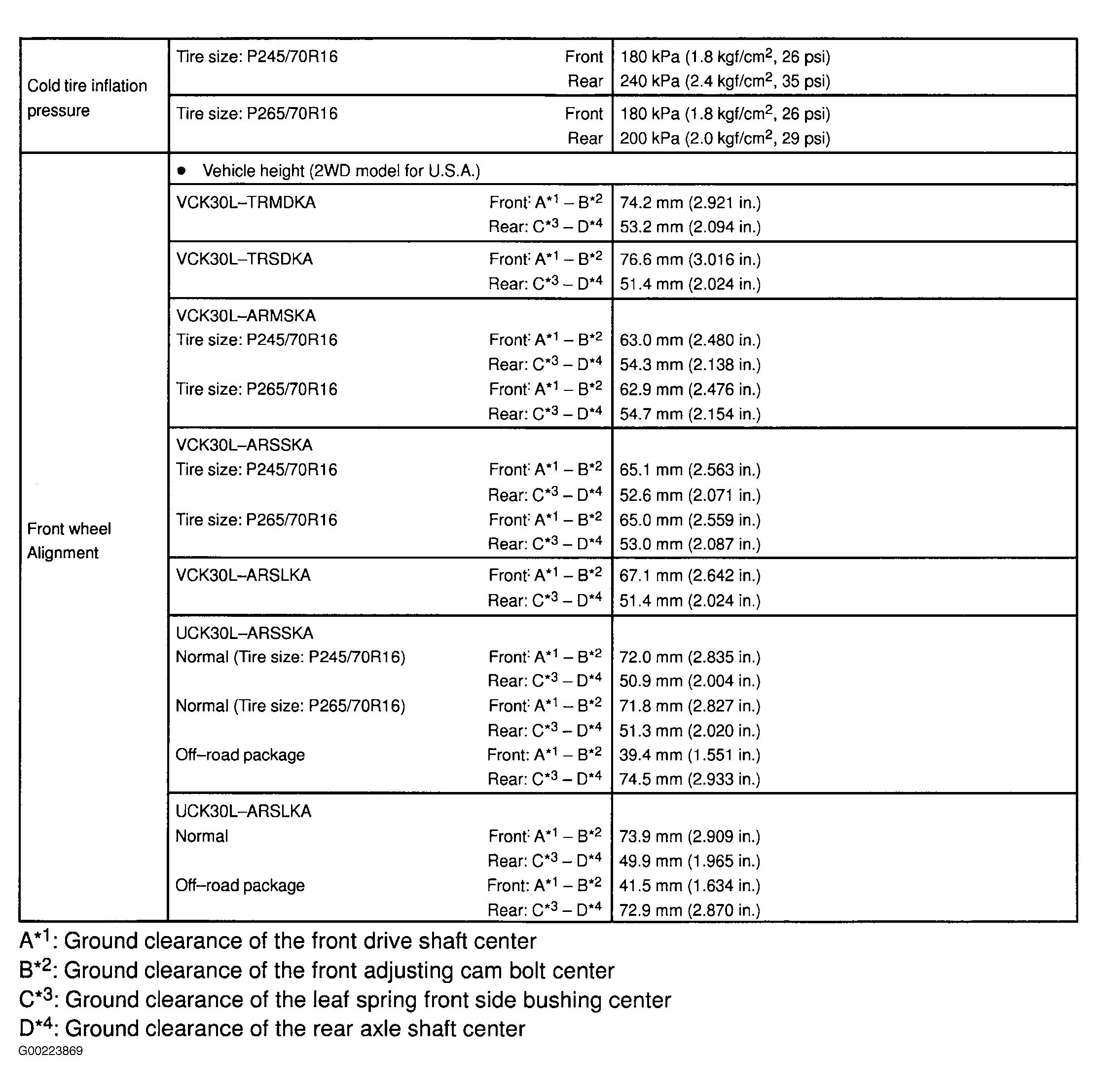

  1. Measure vehicle height (see  Figure )  .
    1. Measuring points:
      1. Ground clearance of the front drive shaft center

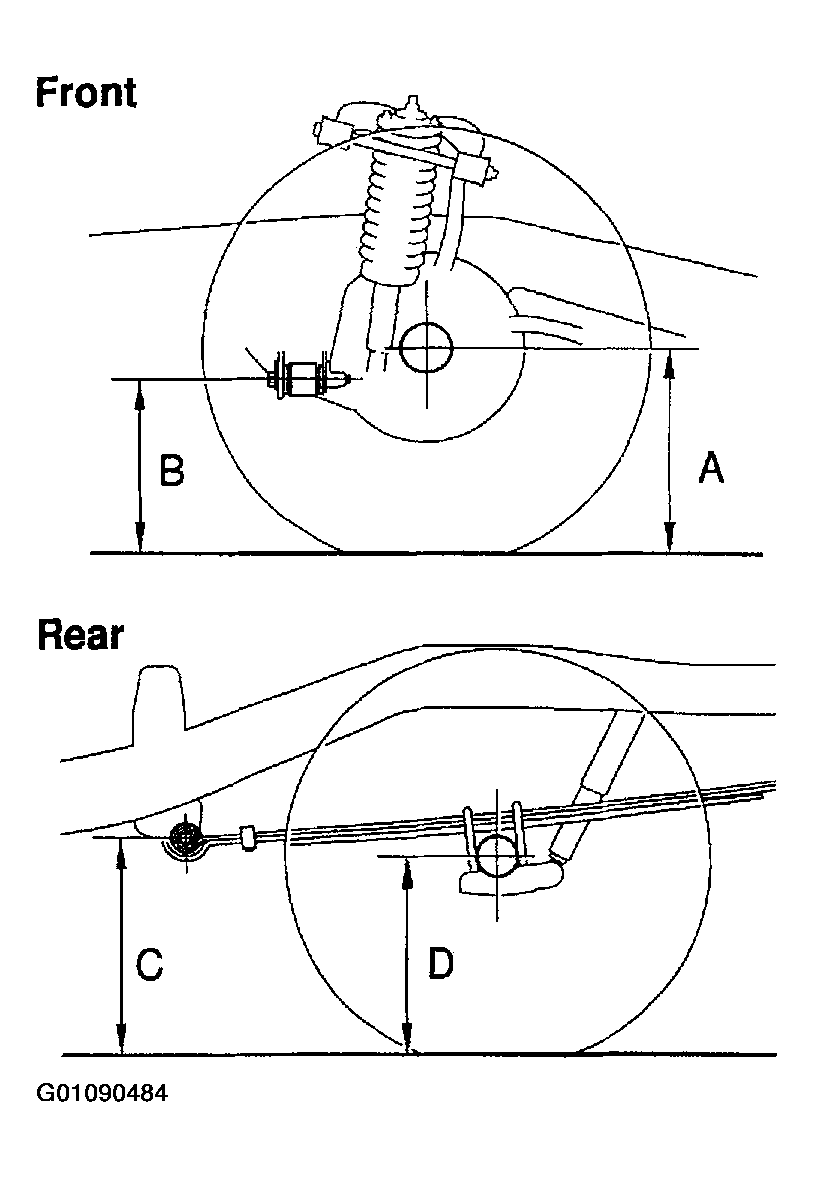

        Fig 1: Identifying Vehicle Height Measuring Points
        G01090484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Ground clearance of the front adjusting cam bolt center
      3. Ground clearance of the leaf spring front side bushing center
      4. Ground clearance of the rear axle shaft center
    1. Vehicle height:
      1. Front: A-B
      2. Rear: C-D
      NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

      If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

  2. Install camber/caster/kingpin gauge or position vehicle on wheel alignment tester  .

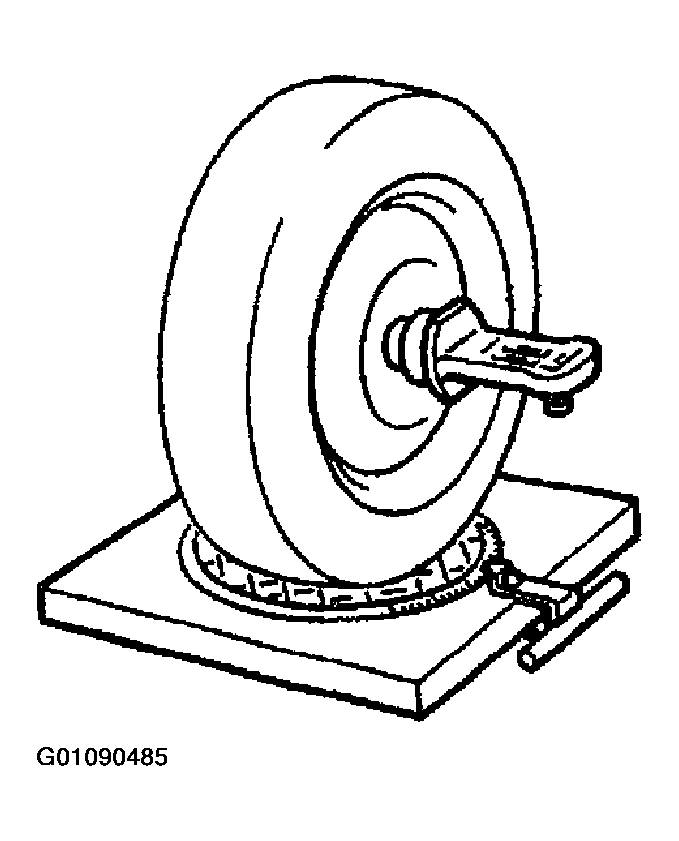

      Fig 2: Installing Camber/Caster/Kingpin Gauge
      G01090485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Follow the specific instructions of the equipment manufacturer.
  3. Inspect camber, caster and steering axis inclination (see  Figure )  .
    1. If the steering axis inclination is not within the specified value, after the camber and caster have been correctly adjusted, re-check the steering knuckle and front wheel for bearing or looseness.
  4. Adjust camber and caster  .
    1. Loosen the front and/or rear adjusting cam set bolts.

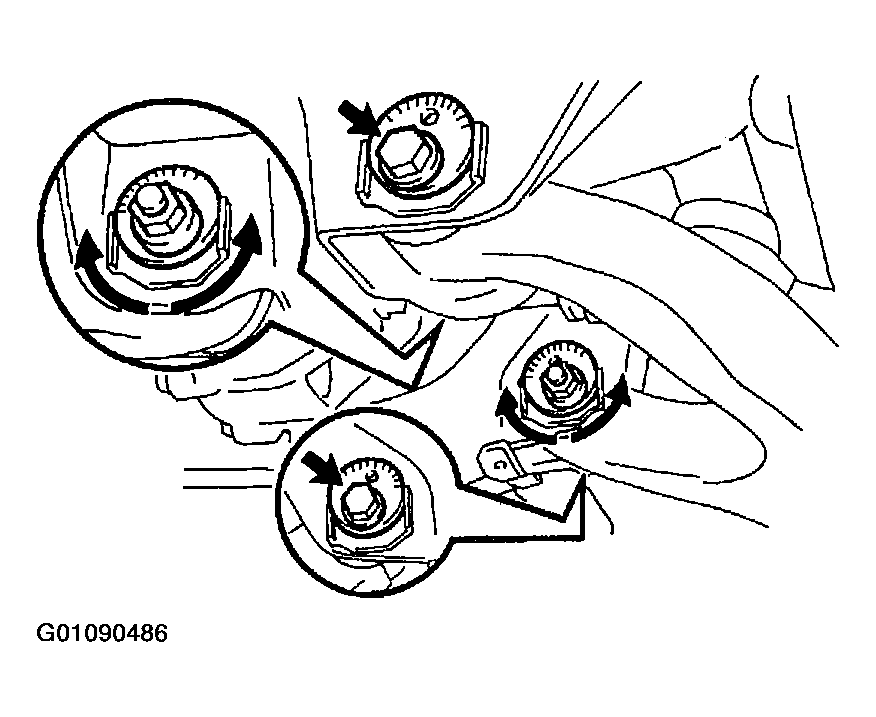

      Fig 3: Locating Front & Rear Adjusting Cams
      G01090486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Adjust the camber and caster by front and/or rear adjusting cams (See adjustment chart).
      NOTE: Try to adjust the camber and caster to the center of the specified values.
    3. How to read adjustment chart (Example).
      1. Find the applicable wheel alignment standard value for the particular model.
      2. Mark the selected standard value on the adjustment chart.

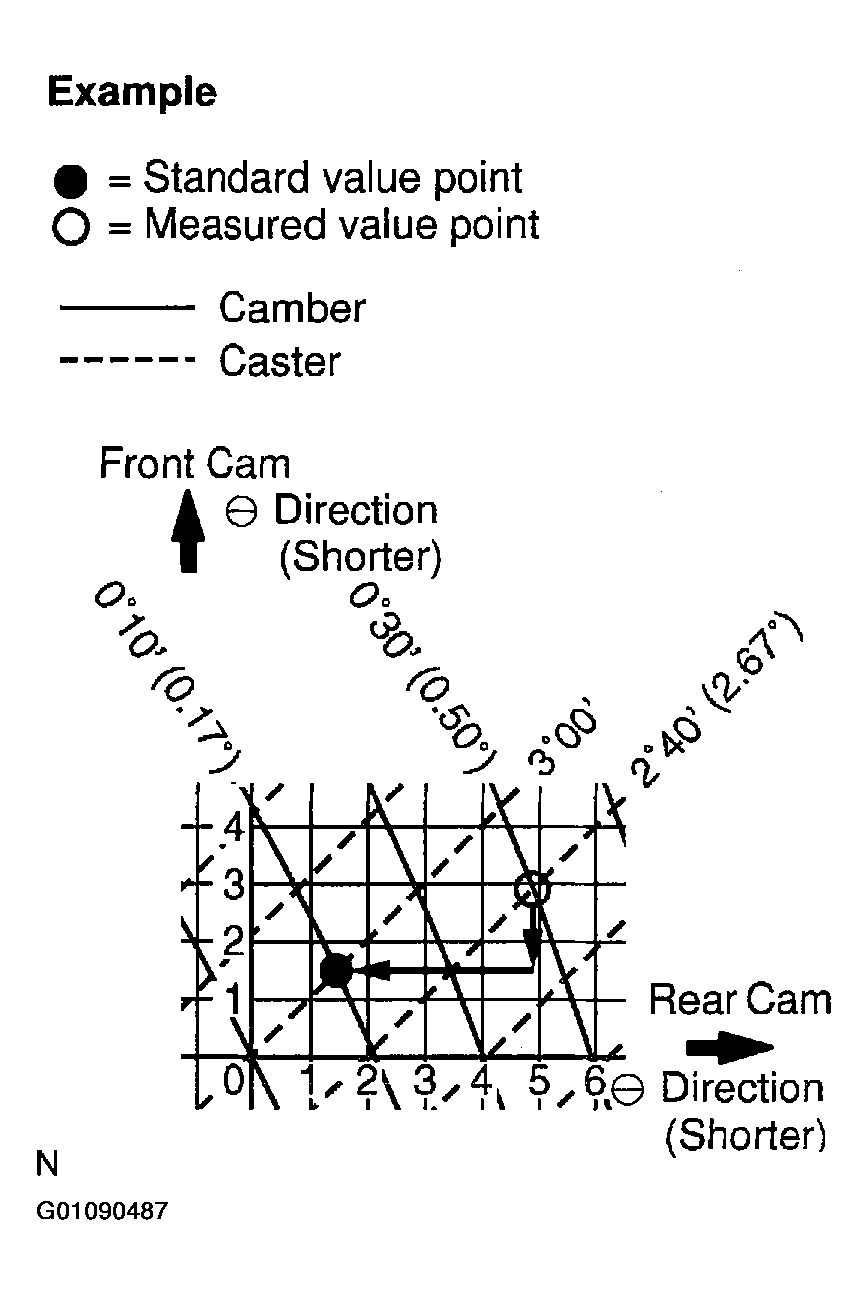

          Fig 4: Example Of Camber/Caster Adjustment Chart
          G01090487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Example:
          1. Camber: 0° 10'(0.17°)
          2. Caster: 3° 00'
      3. Measure the present wheel alignment value with the vehicle in non-loaded condition.
      4. Mark the measured present value on the adjustment chart in Fig 4.
        1. Example:
          1. Camber: 0°30' (0.50°)
          2. Caster: 2°40' (2.67°)
      5. As shown in the example chart in Fig 4, read the distance from the measured value to the standard value, and adjust the front and/or rear adjusting cams accordingly.
        1. Amount to turn adjusting cams (by graduation):
          1. Example:
            1. Front cam: 1.3 + Direction
            2. Rear cam: 3.3 + Direction

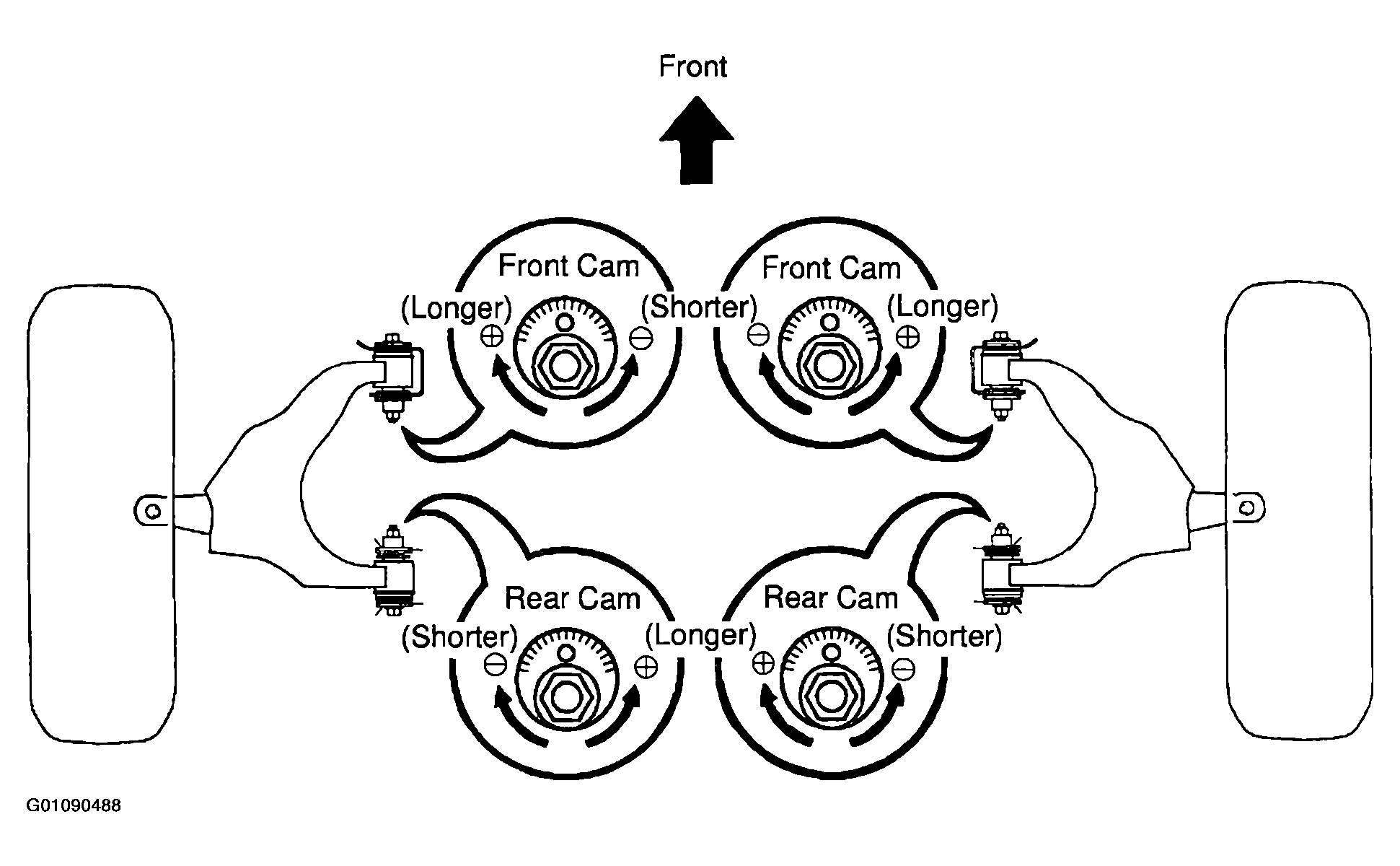

        Fig 5: Identifying Cam Adjustment Directions
        G01090488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

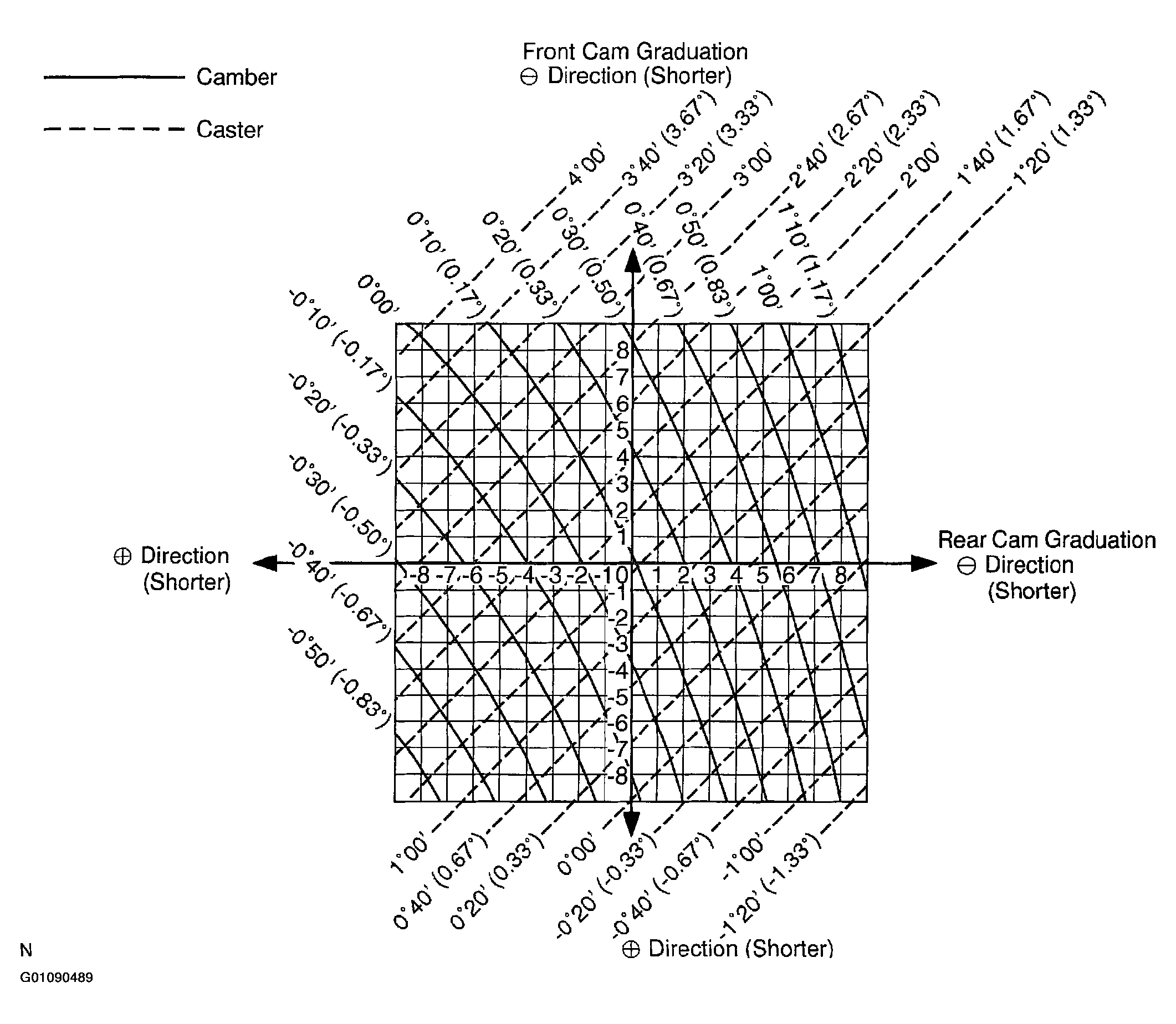

        Fig 6: Displaying Camber/Caster Adjustment Table
        G01090489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Torque the front and/or rear adjusting cam set bolts.
      1. Torque: 130 N.m (1,325 kgf.cm, 96 ft.lbf)
  5. Inspect toe-in (see  Figure )  .
    1. If the toe-in is not within the specified value, adjust the rack ends.
  6. Adjust toe-in and wheel angle  .
    1. Remove the 2 clips.

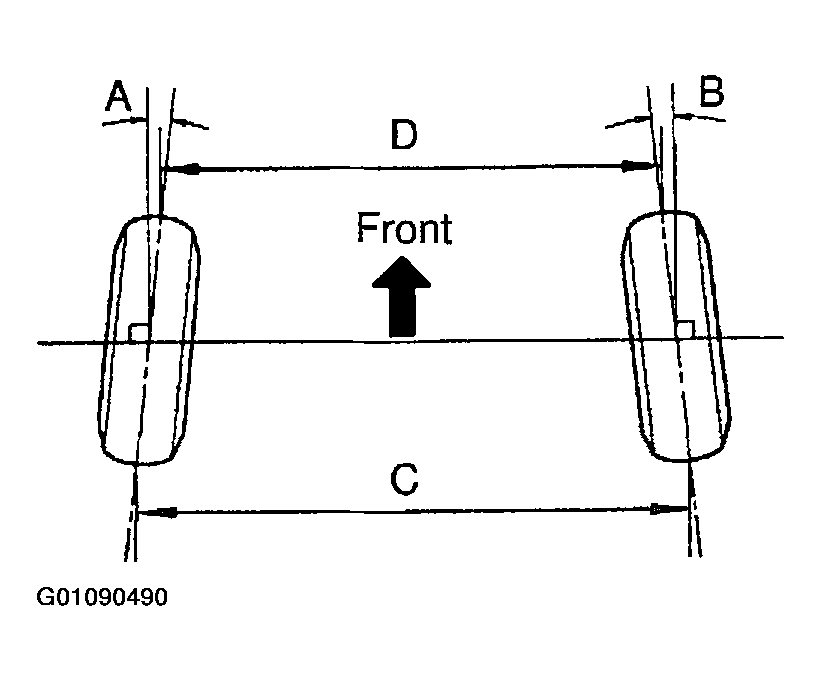

      Fig 7: Identifying Toe-in Measurements
      G01090490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the tie rod end lock nuts.

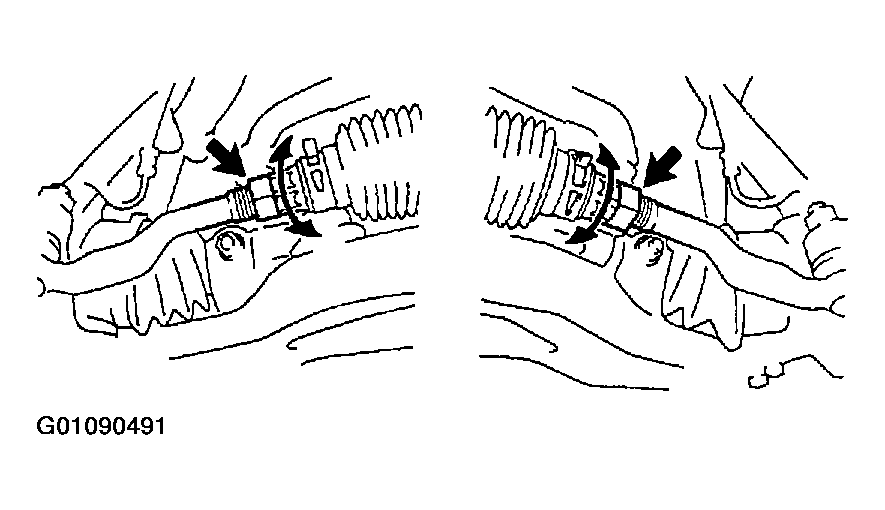

      Fig 8: Loosening Tie Rod End Lock Nuts
      G01090491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
      NOTE: Try to adjust the toe-in to the center of the specified value.
    4. Make sure that the lengths of the right and left rack ends are the same.

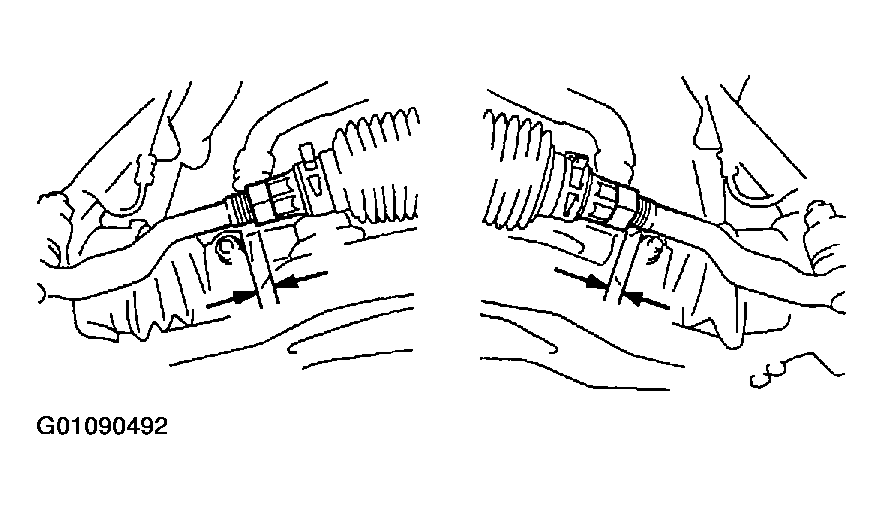

        Fig 9: Checking For Equal Length Rack Ends
        G01090492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Rack end length difference: 1.5 N.m (0.059 in.) or less
    5. Tighten the tie rod end lock nuts.
      1. Torque: 55 N.m (560 kgf.cm, 41 ft.lbf)
    6. Place the boots on the seats and install the clips.
      NOTE: Make sure that the boots are not twisted.
    7. Inspect the wheel angle.
      1. Turn the steering wheel fully and measure the turning angle.

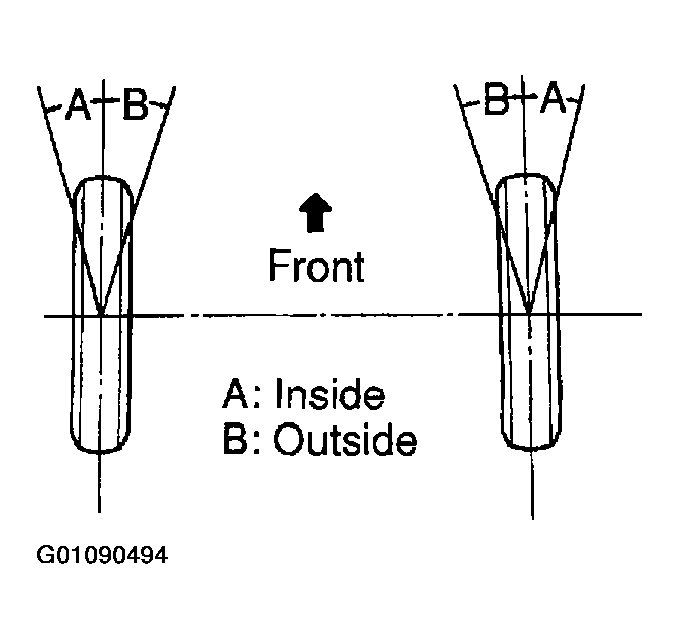

        Fig 10: Identifying Wheel Turning Angles
        G01090494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Wheel turning angle:

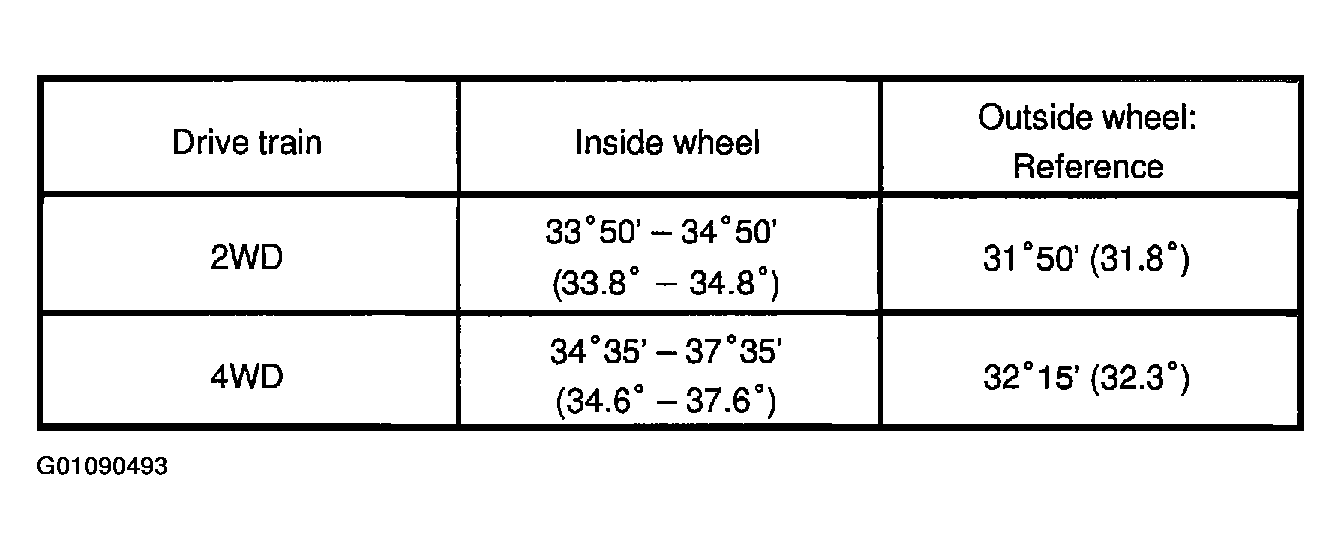

        Fig 11: Identifying Wheel Angle Specifications
        G01090493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the right and left wheel turning angles differ from the specified value, readjust the toe-in and wheel angle within the specified value. At this time, make sure that the lengths of the right and left rack ends are the same.

        Rack end length difference: 1.5 mm (0.059 in.) or less
