Wheel Alignment Specifications & Adjustment Procedures: Tundra: Specifications

Fig 1: Wheel Alignment Specifications (Tundra 1 Of 9)
G00223869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

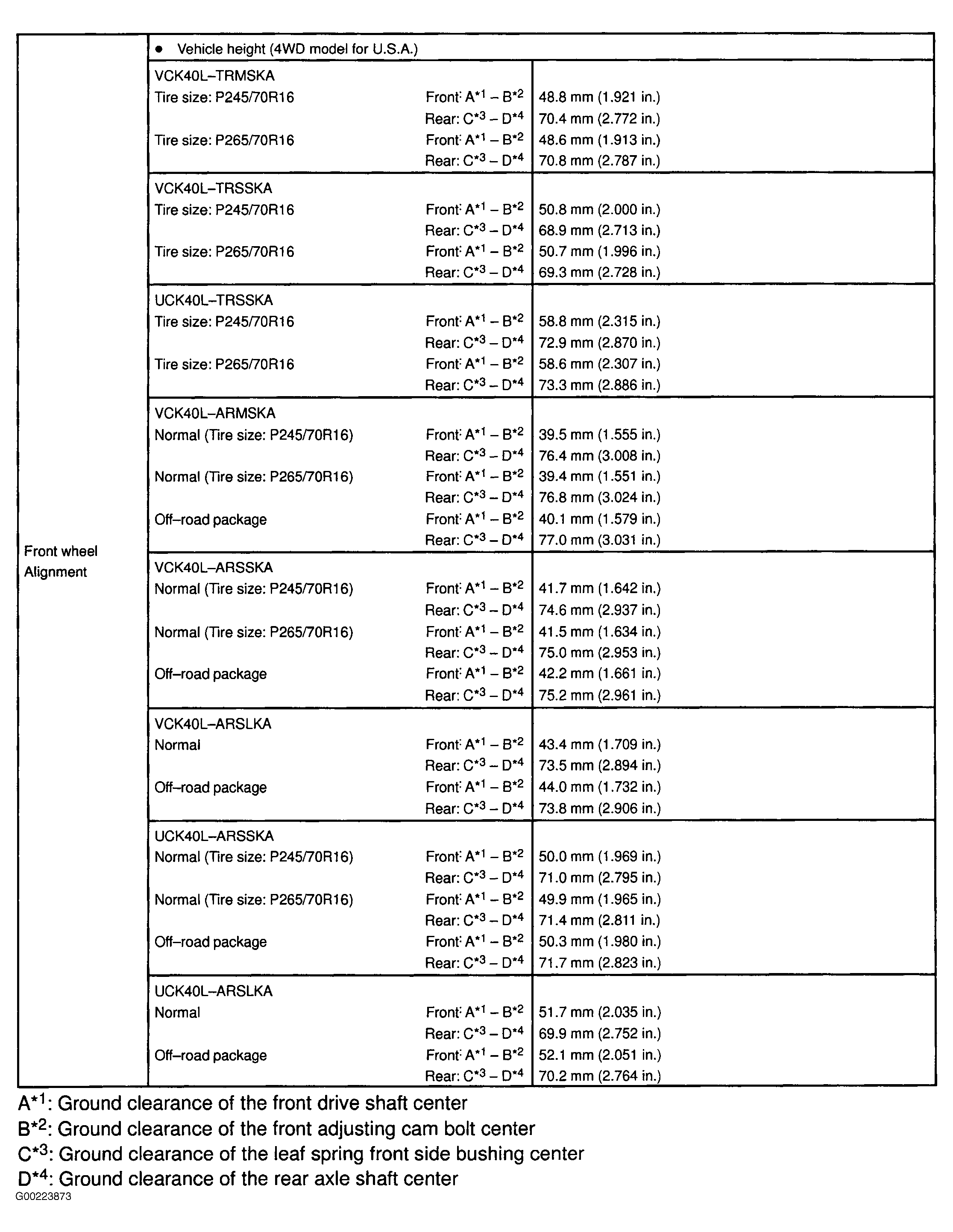

Fig 2: Wheel Alignment Specifications (Tundra 2 Of 9)
G00223873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

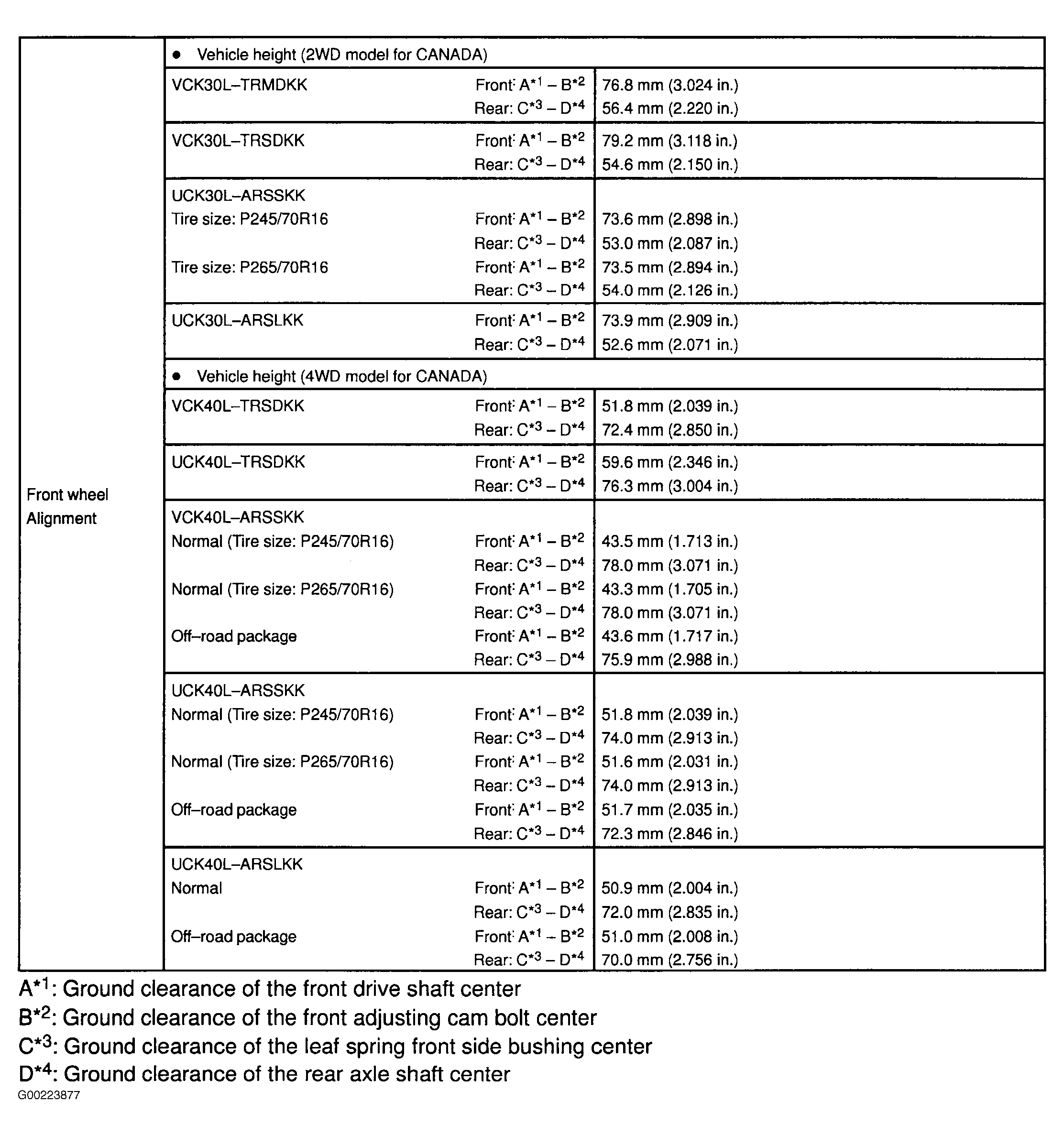

Fig 3: Wheel Alignment Specifications (Tundra 3 Of 9)
G00223877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

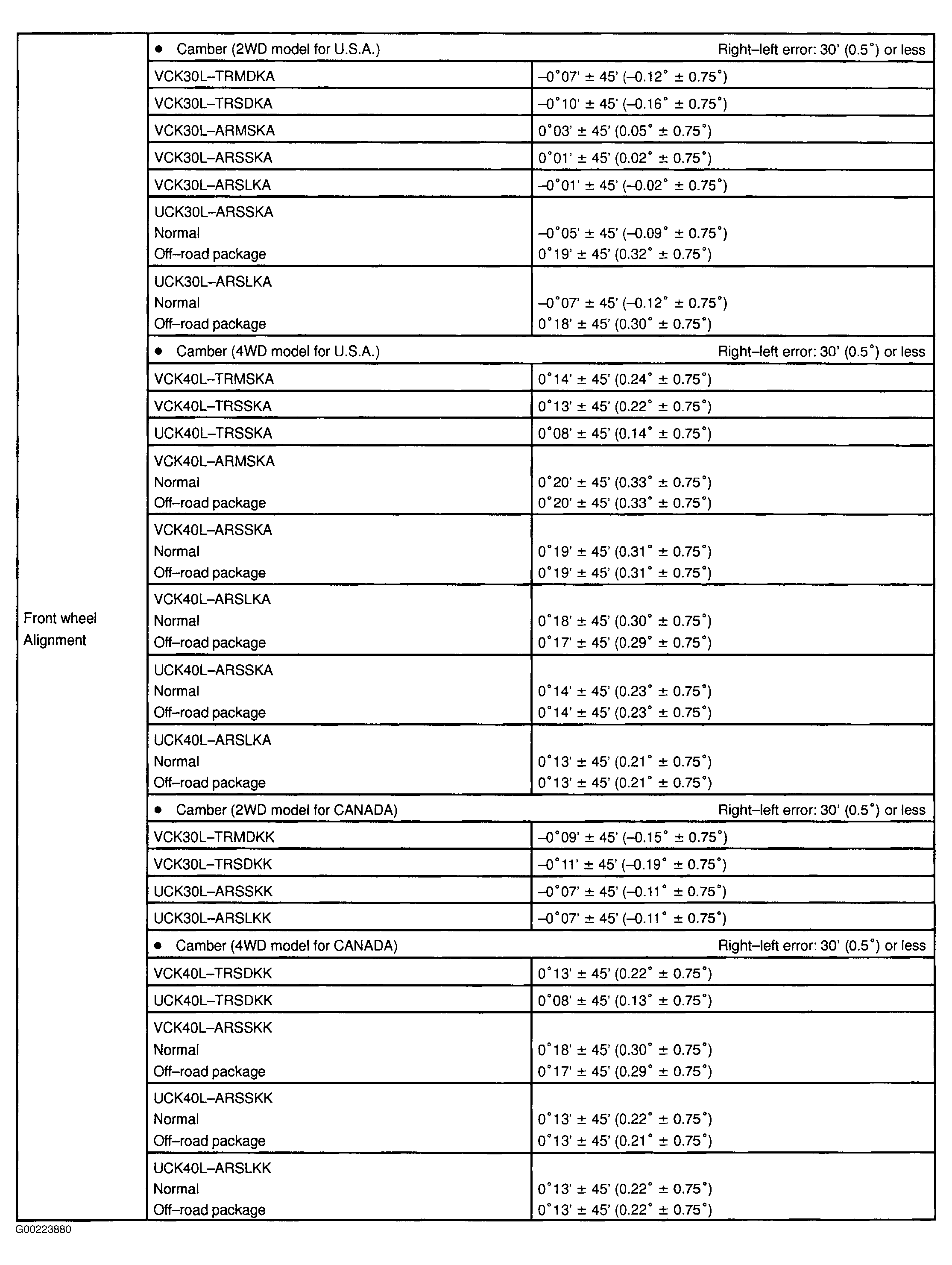

Fig 4: Wheel Alignment Specifications (Tundra 4 Of 9)
G00223880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

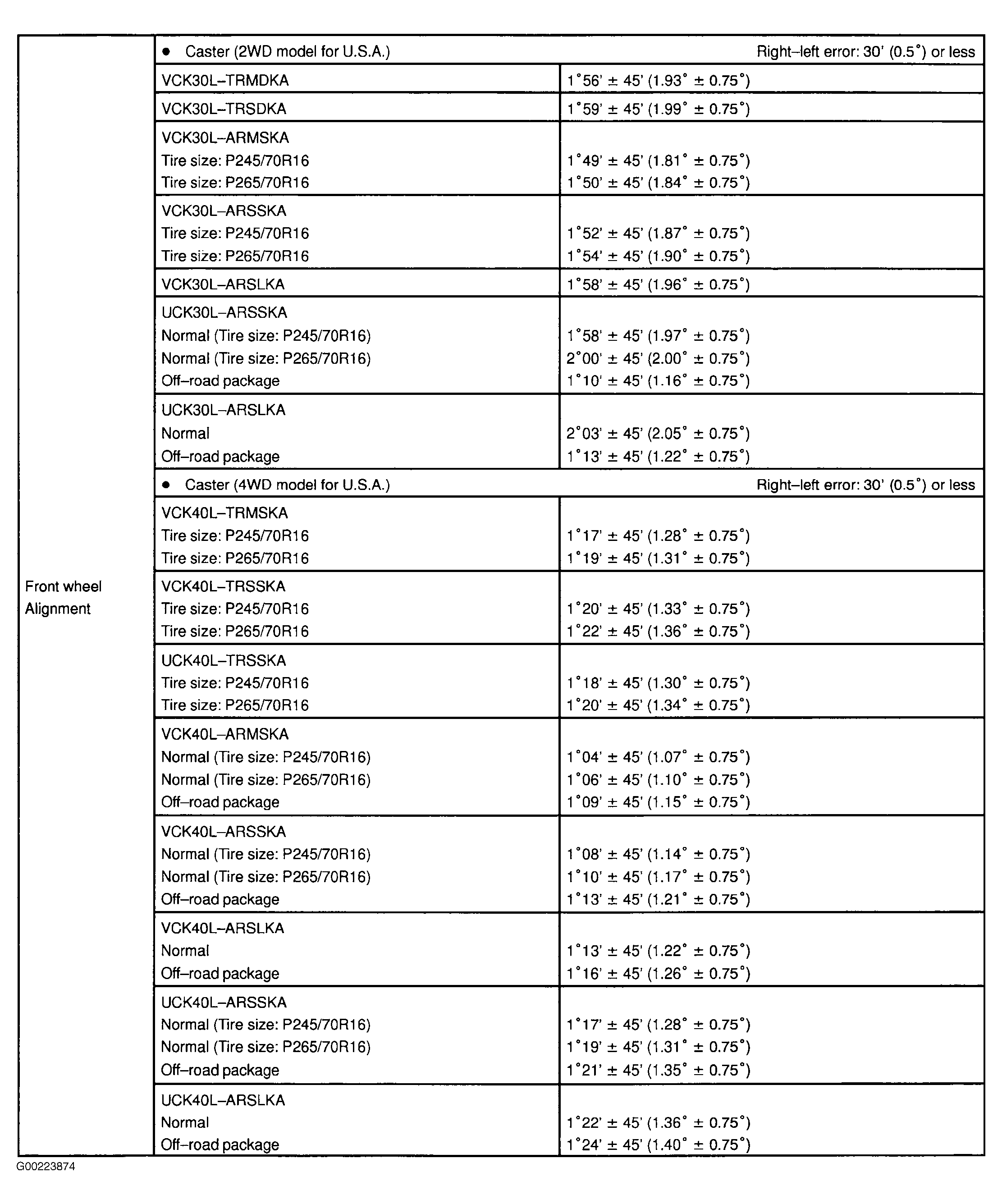

Fig 5: Wheel Alignment Specifications (Tundra 5 Of 9)
G00223874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

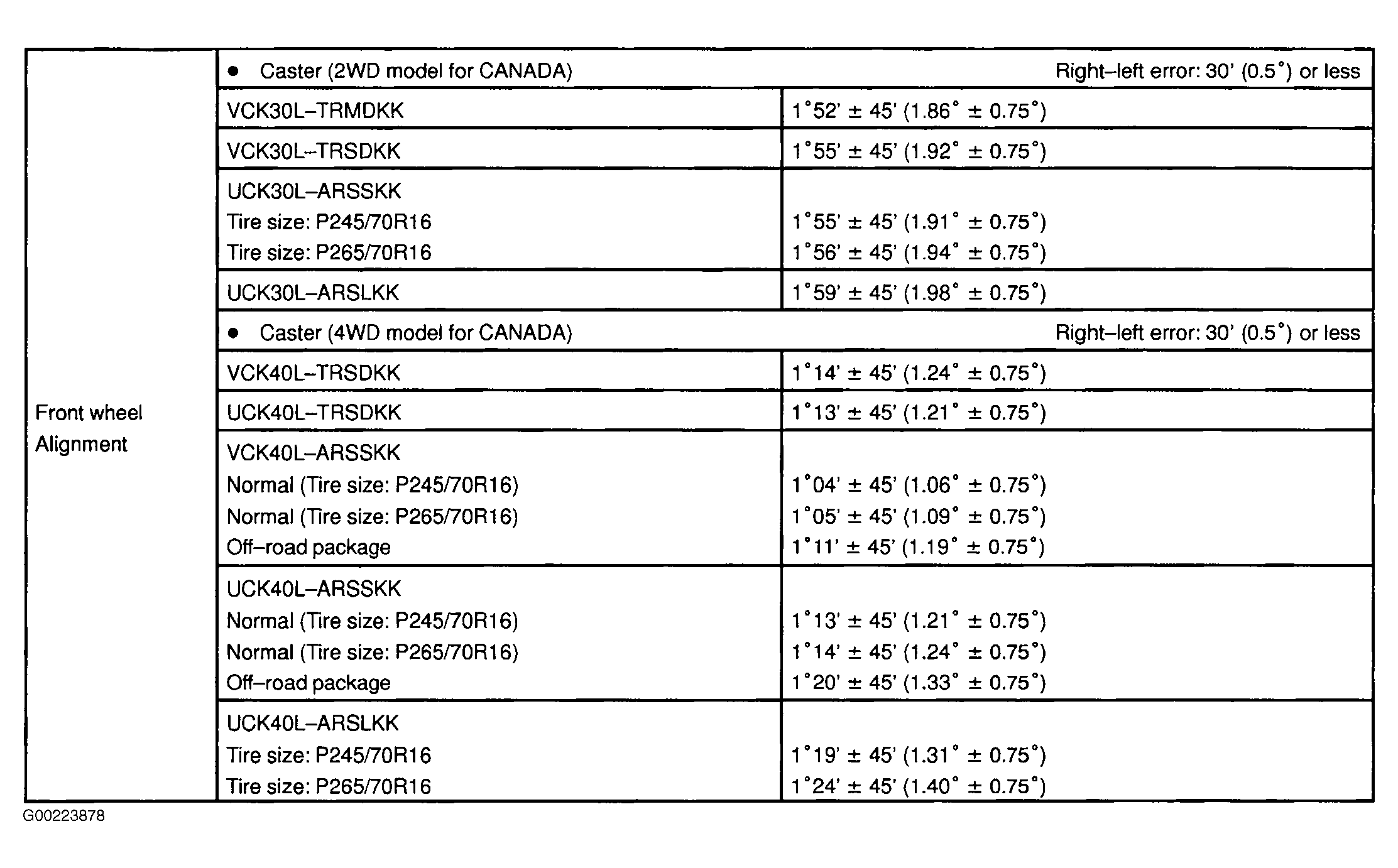

Fig 6: Wheel Alignment Specifications (Tundra 6 Of 9)
G00223878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

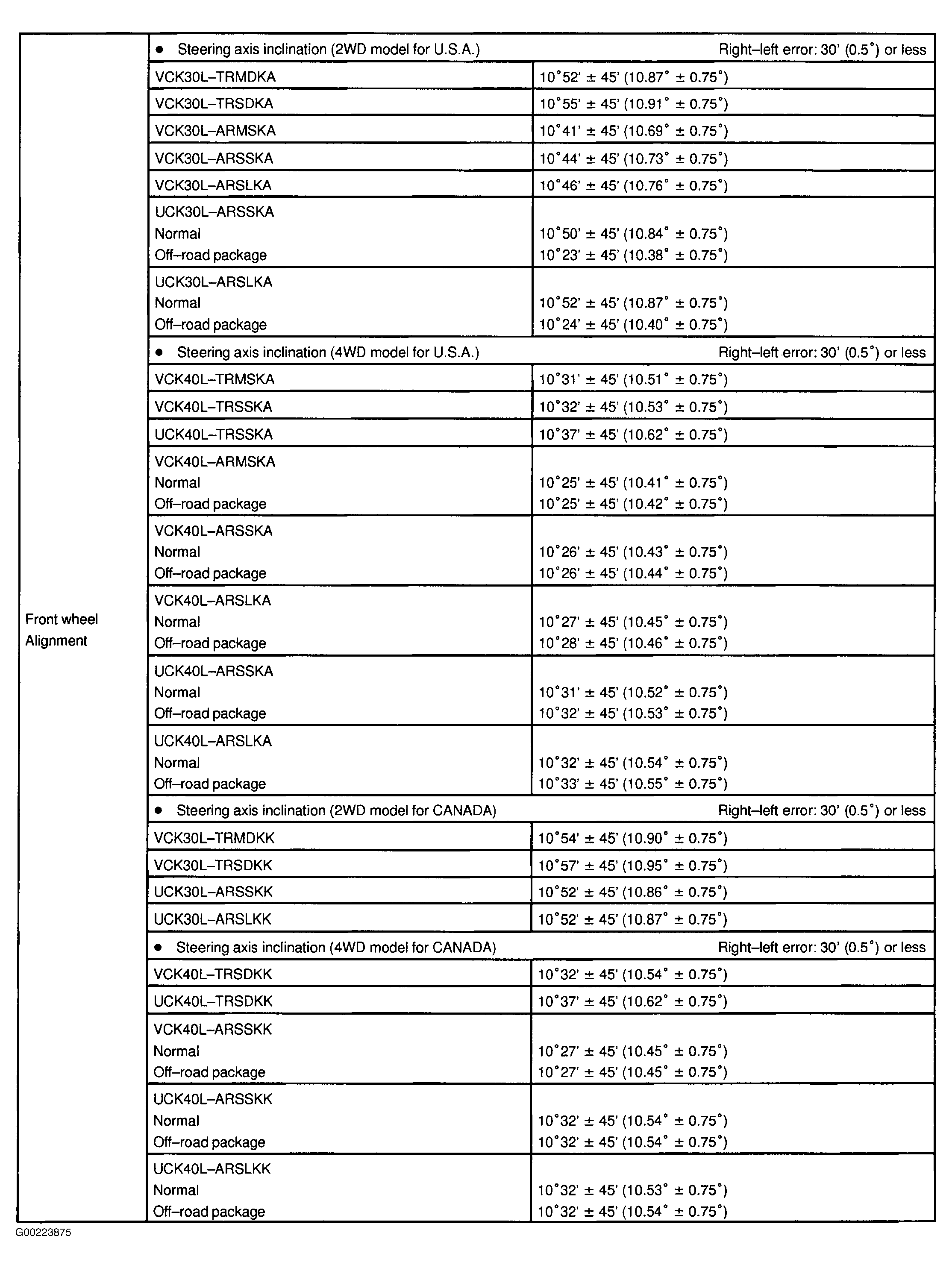

Fig 7: Wheel Alignment Specifications (Tundra 7 Of 9)
G00223875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

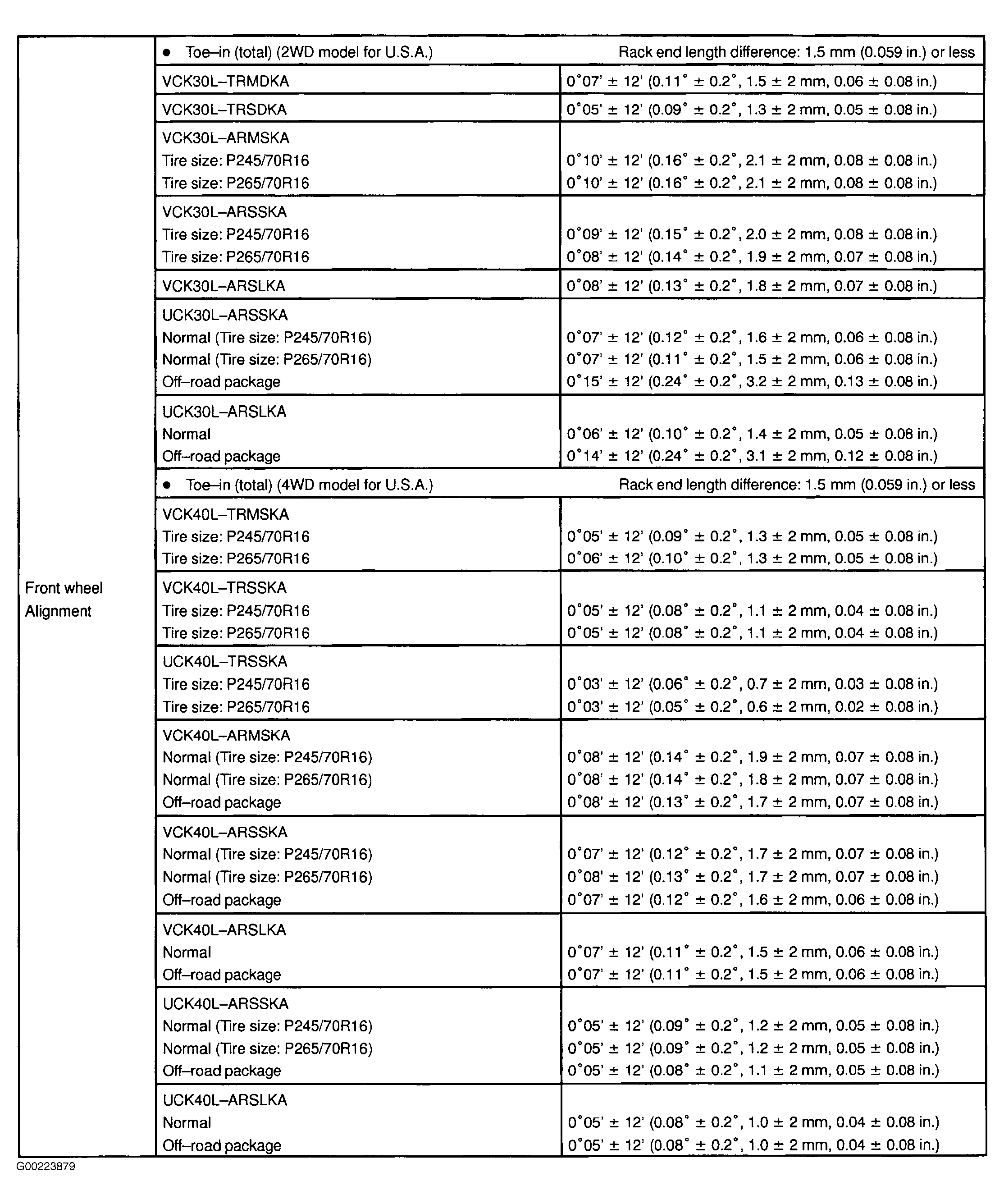

Fig 8: Wheel Alignment Specifications (Tundra 8 Of 9)
G00223879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

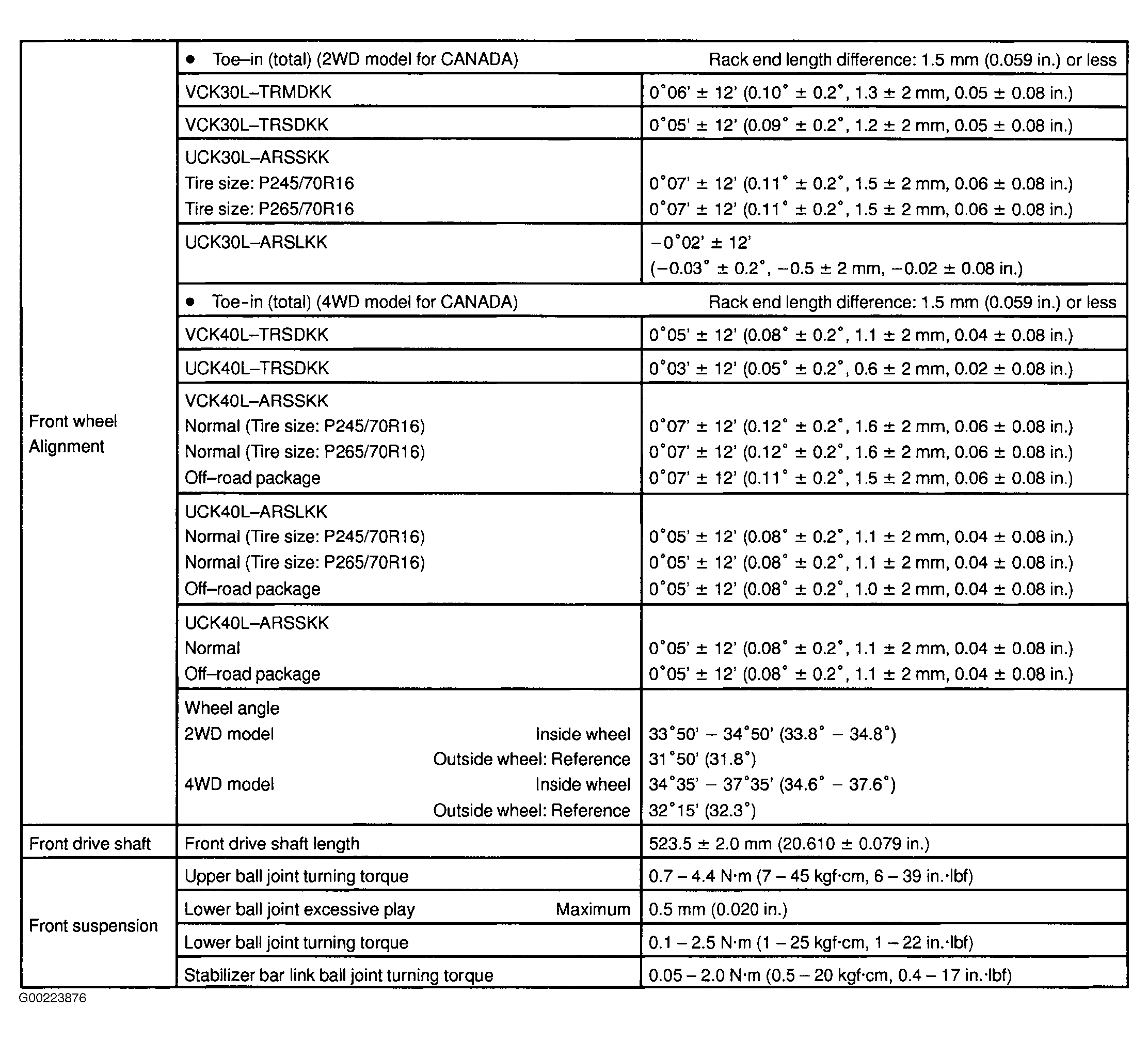

Fig 9: Wheel Alignment Specifications (Tundra 9 Of 9)
G00223876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
