Hybrid Transaxle Removal

  1. Drain Transaxle Oil

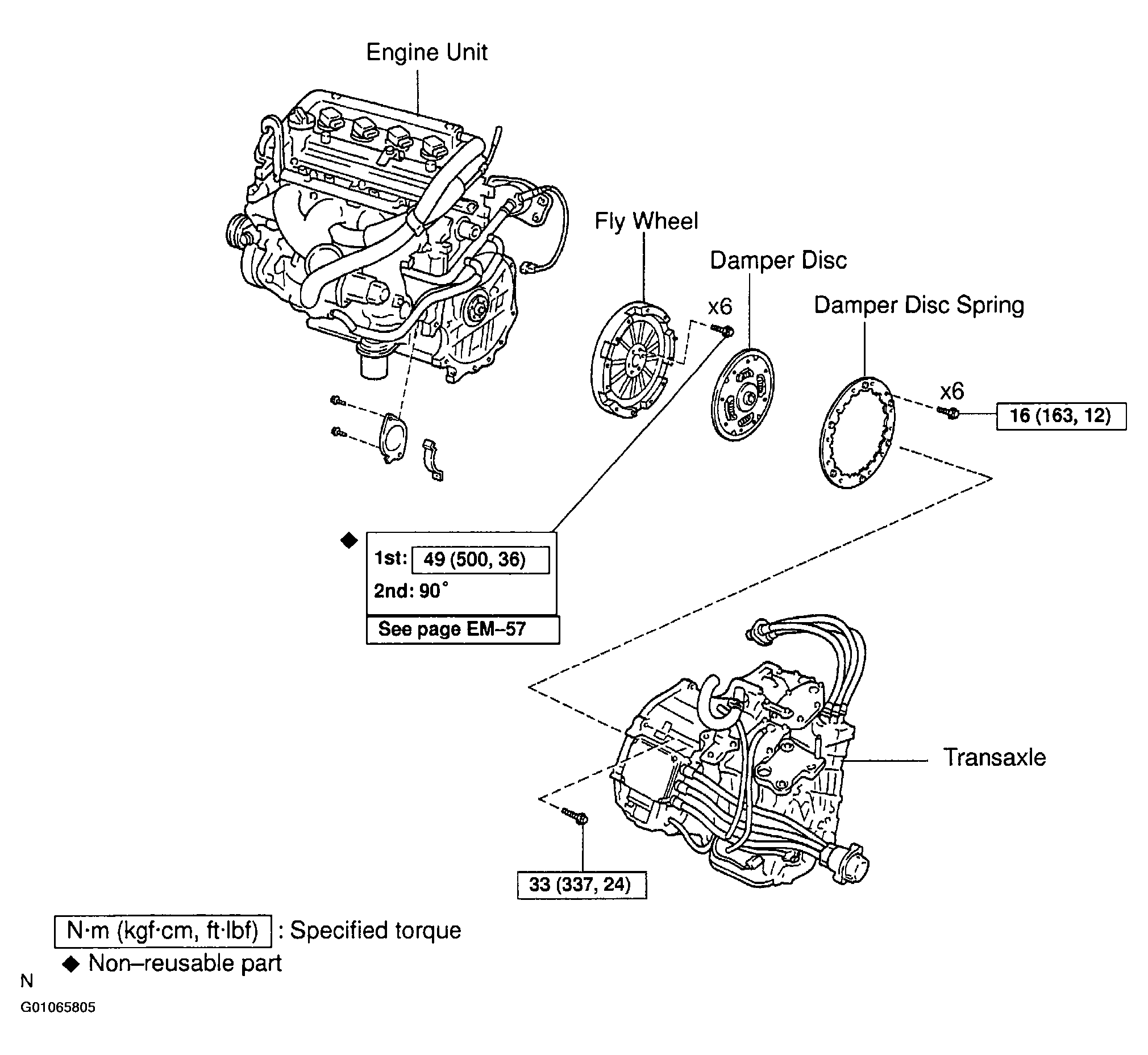

  2. Remove Hybrid Transaxle With Engine  See Figure.
  3. Separate Hybrid Transaxle And Engine
    1. Remove the 8 bolts.

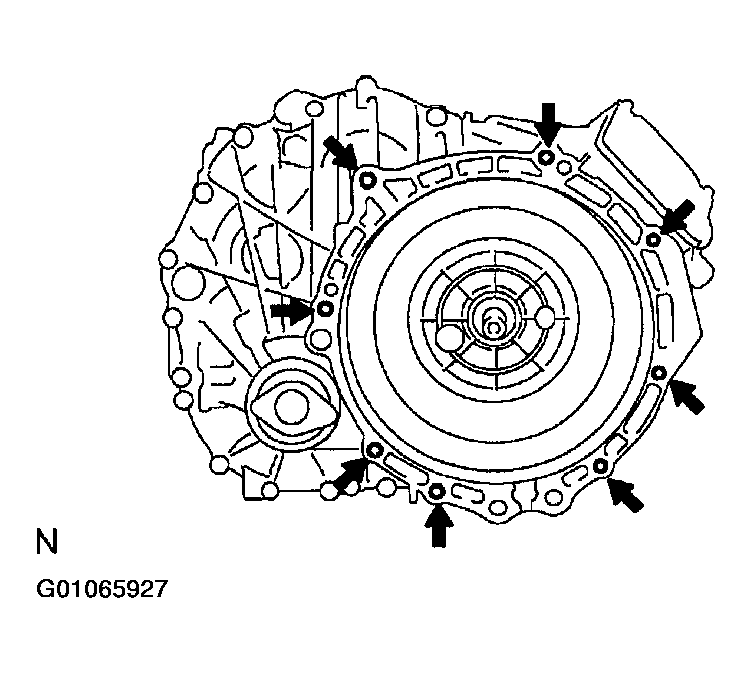

      Fig 1: Identifying Transaxle To Engine Mounting Bolts
      G01065927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 33 N.m (332 kgf.cm, 24 ft.lbf)  .

    2. Separate the hybrid transaxle and the engine.
