CD Player

CD Cannot Be Inserted

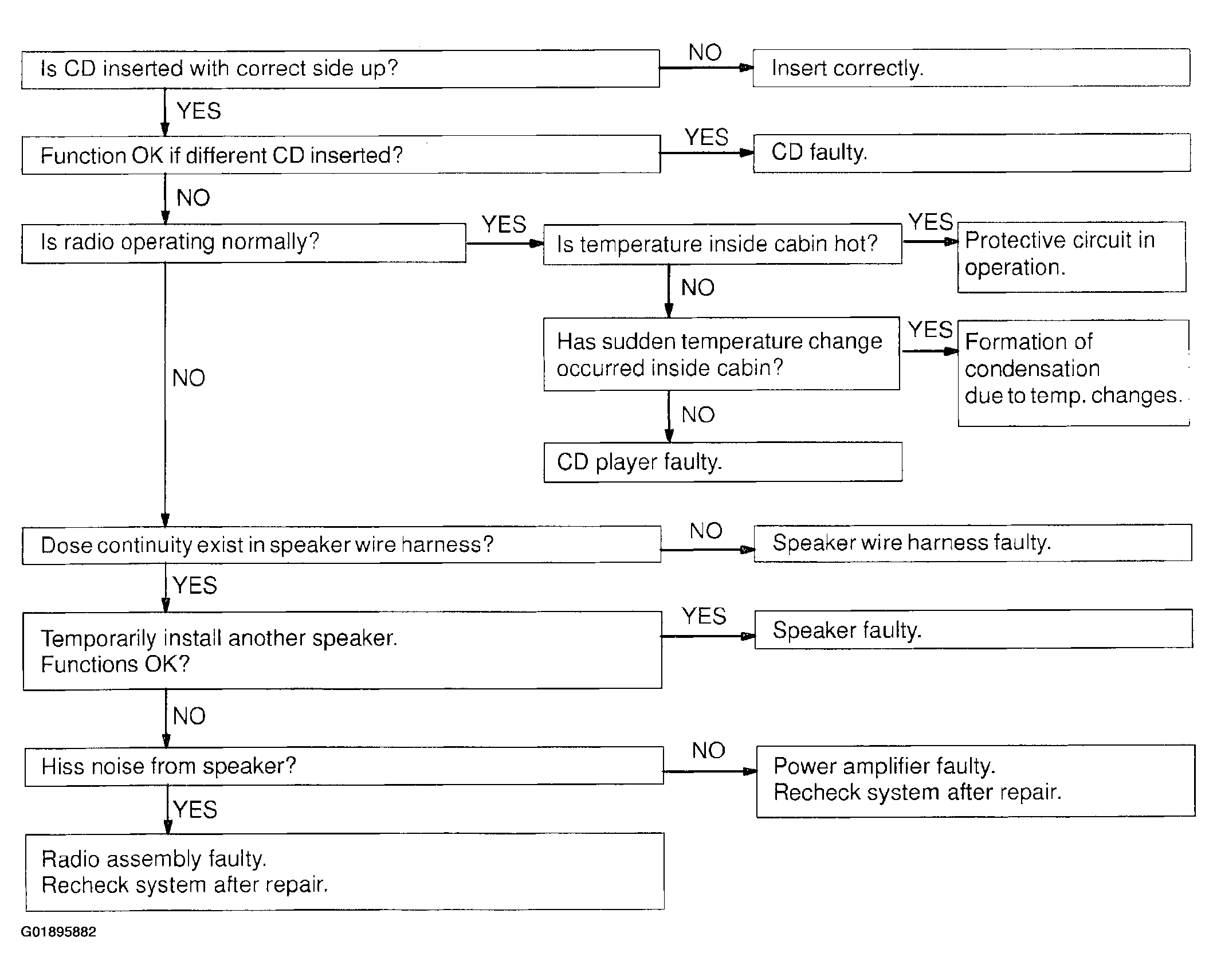

Fig 1: Troubleshooting Cannot Insert CD (CD Player)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CD Inserted, But No Power

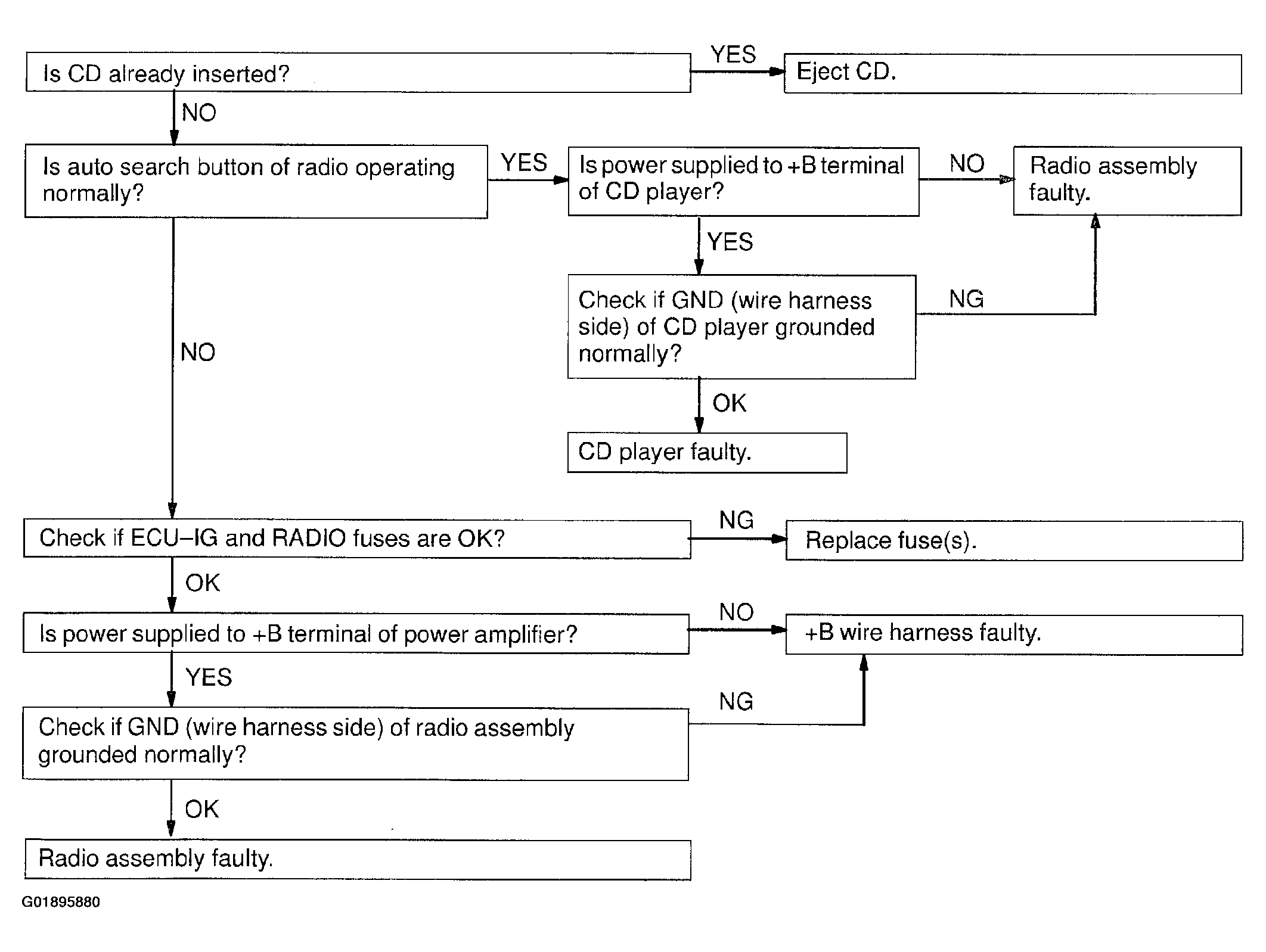

Fig 2: Troubleshooting No Power W/CD Inserted (CD Player)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Power Coming In, But CD Player Not Operating

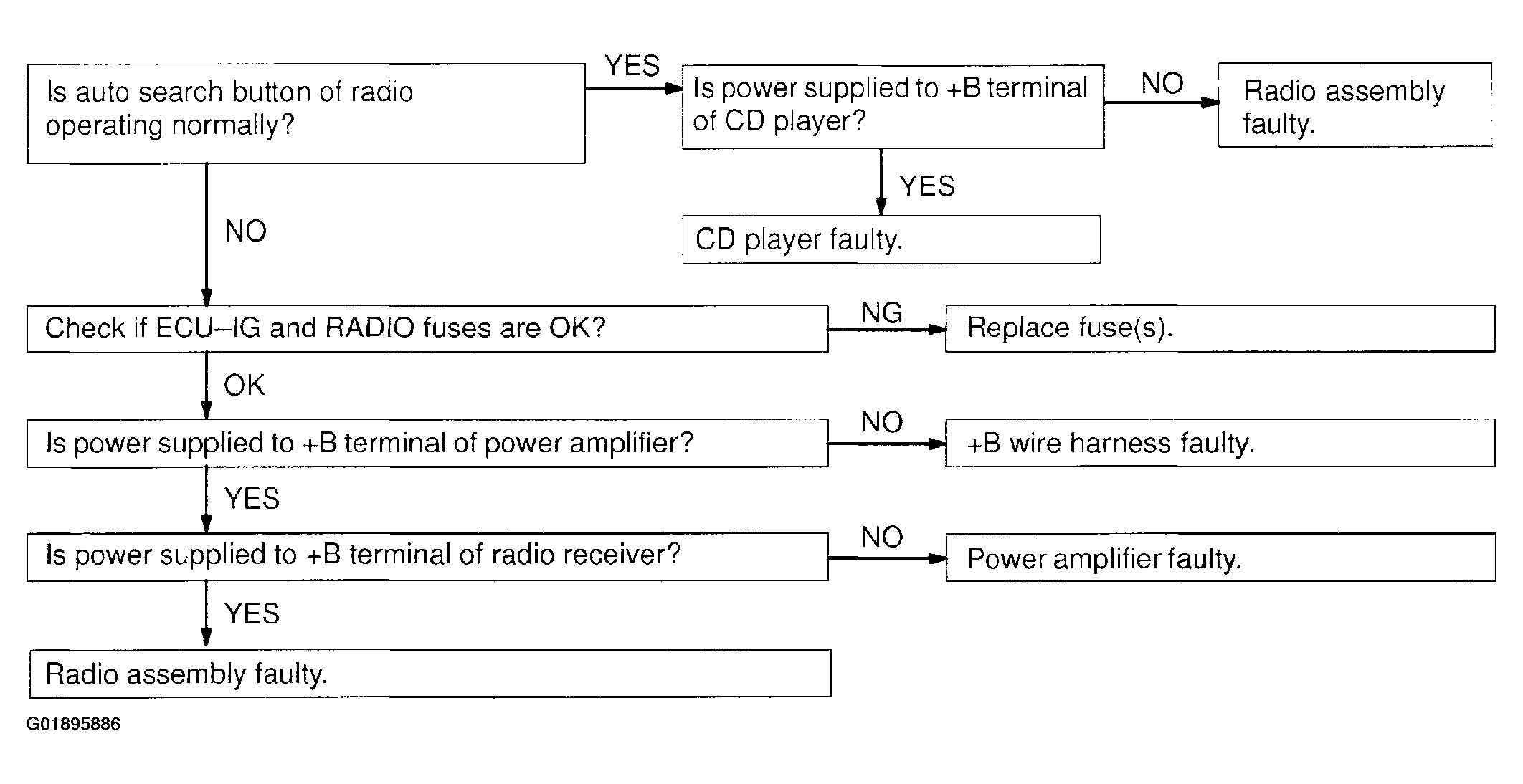

Fig 3: Troubleshooting Not Operating W/Power In (CD Player)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Sound Jumps

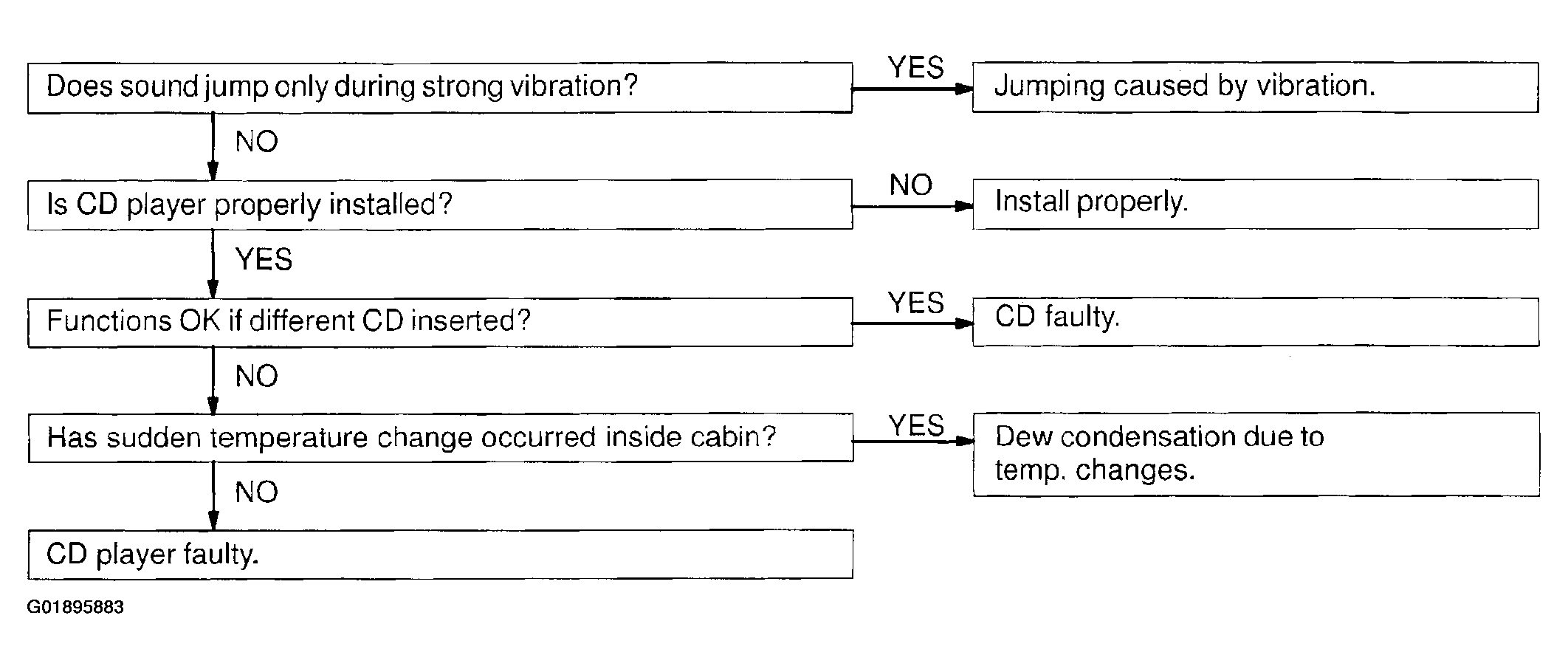

Fig 4: Troubleshooting Sound Skips (CD Player)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Sound Quality Poor (Volume Faint)

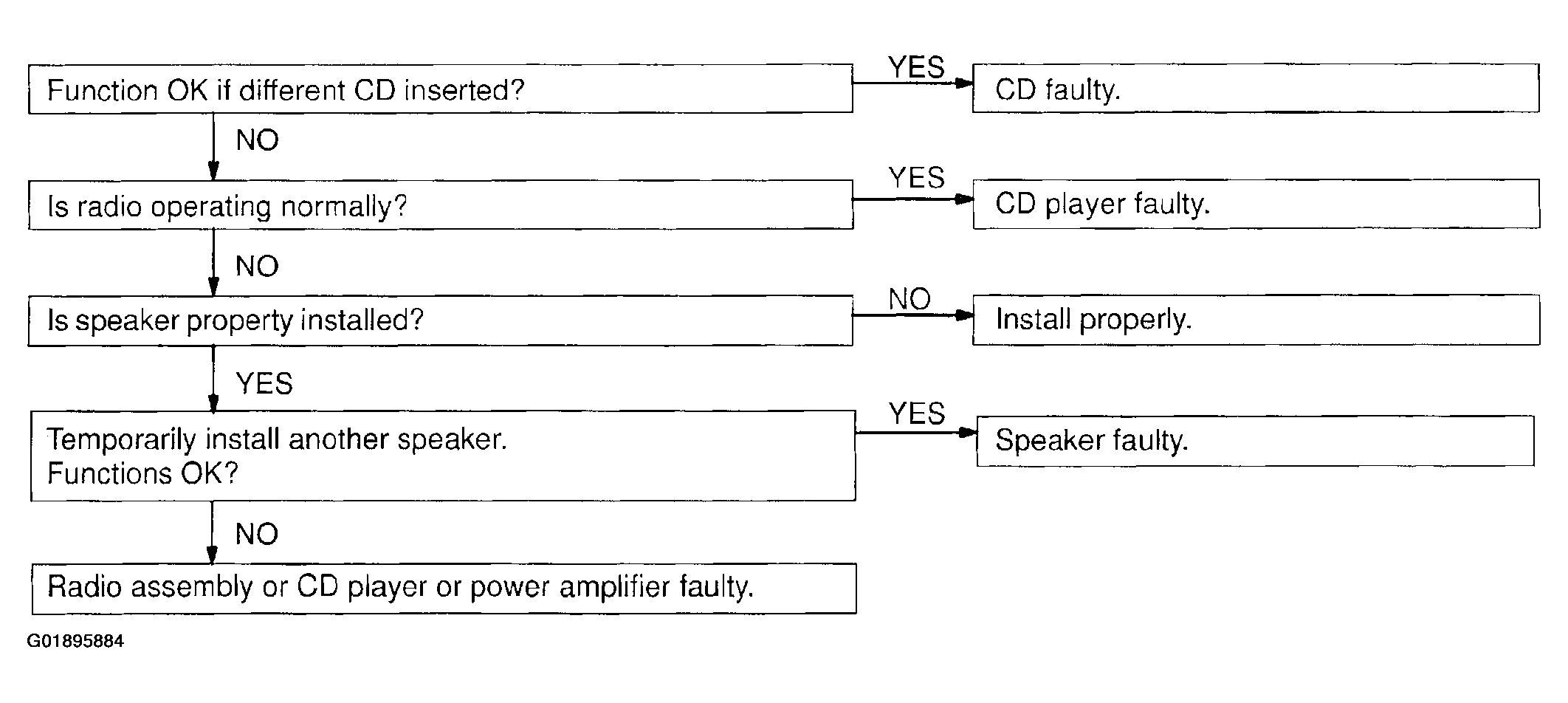

Fig 5: Troubleshooting Poor Sound Quality (CD Player)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Any Speaker Does Not Work

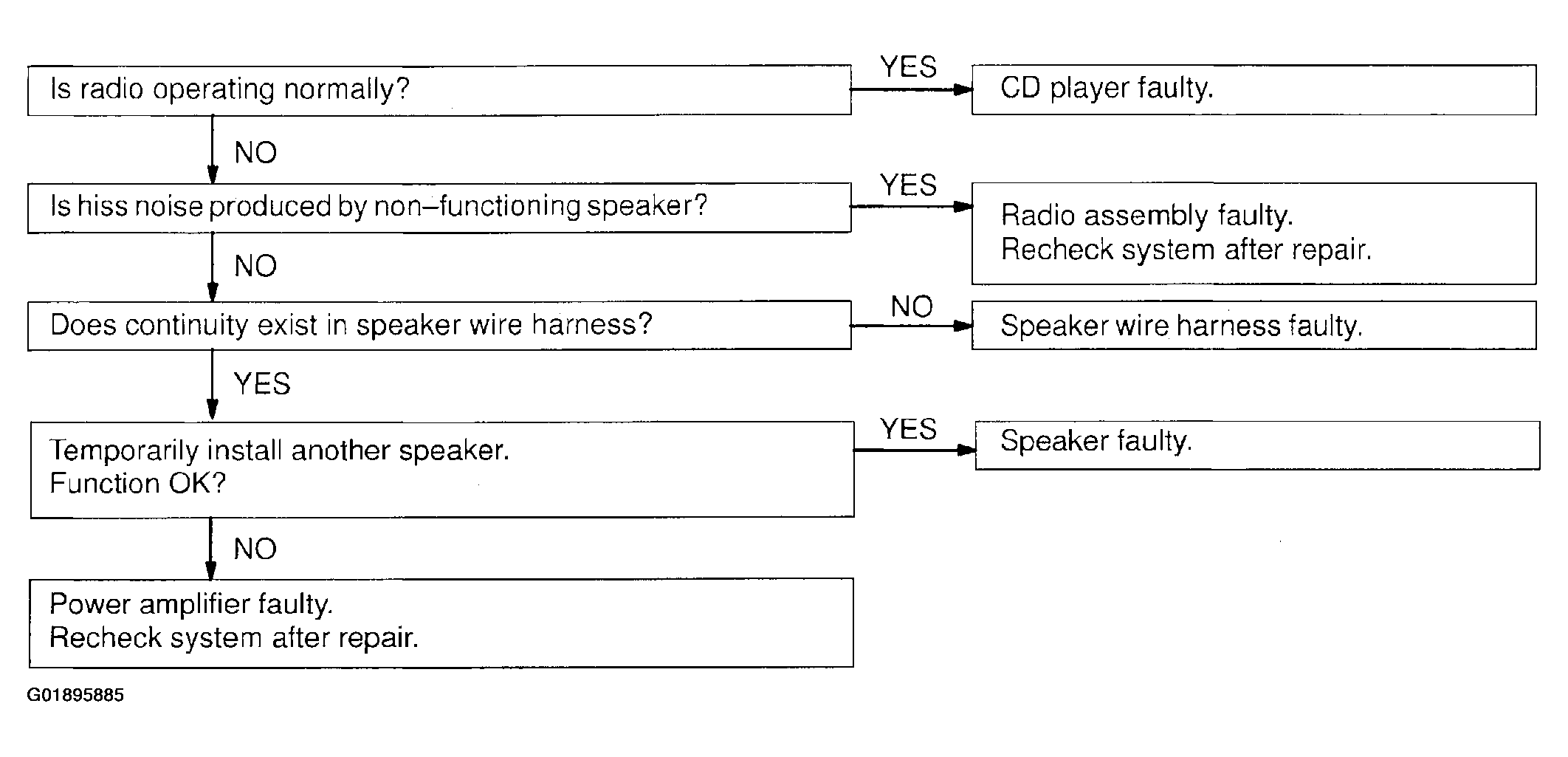

Fig 6: Troubleshooting Speakers Do Not Work (CD Player)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CD Will Not Be Ejected

Fig 7: Troubleshooting Unable To Eject CD (CD Player)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
