Blower Unit: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Remove blower motor :
Remove the 3 screws and blower motor. See Fig 1.

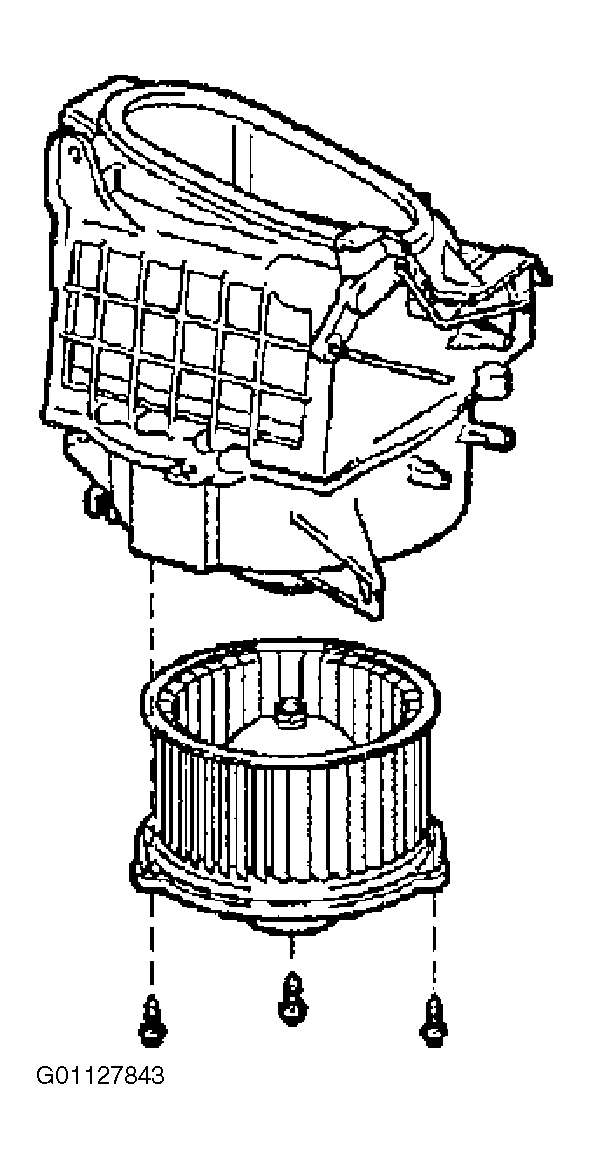

Fig 1: Removing blower motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove air inlet servomotor :
Remove the 3 screws and servomotor. See Fig 2.

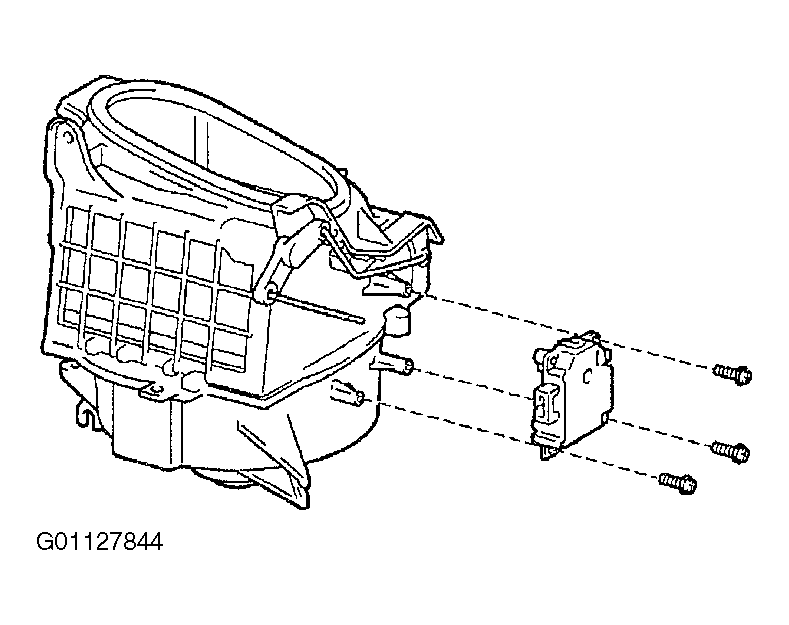

Fig 2: Removing Air Inlet Servomotor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
