Heater Unit: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heater radiator  :
    1. Remove the 3 screws and 3 clamps. See Fig 1.
    2. Pull out the heater radiator.
    3. Remove the 2 screws and 2 clips, then disconnect the heater radiator pipes.
  2. REMOVE AIR VENT DUCT

    Remove the 3 screws and duct.

  3. REMOVE AIR OUTLET SERVOMOTOR

    Remove the 3 screws and servomotor.

  4. REMOVE AIR MIX SERVOMOTOR

    Remove the 3 screws and servomotor.

  5. REMOVE ASPIRATOR HOSE

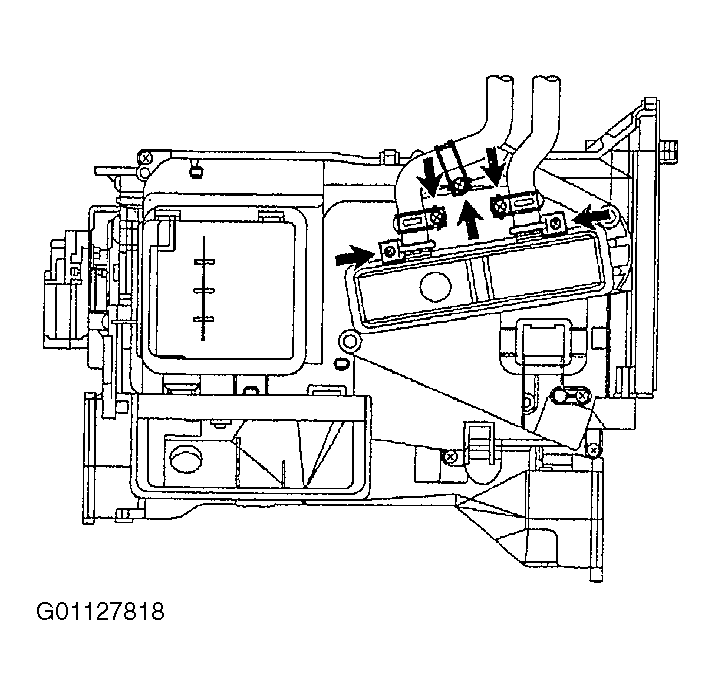

    Fig 1: Disassembling Heater Unit
    G01127818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
