Section 249 (HVAC - General Servicing): Receiver: Removal

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

At the time of the installation, please refer to the following item. Evacuate air from refrigeration system.

Charge system with refrigerant and inspect for leakage of refrigerant.

Specified amount:

Single A/C: 750 +/- 50 g (26.45 +/- 1.76 oz.)

Dual A/C: 1050 +/- 50 g (37.03 +/- 1.76 oz.)

Discharge refrigerant from refrigeration system .
Disconnect 2 liquid tubes from receiver .
Remove the 2 bolts and disconnect the both tubes.

Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT:

At the time of the installation, please refer to the following item. Lubricate 2 new O-rings with compressor oil and install them to the tubes.

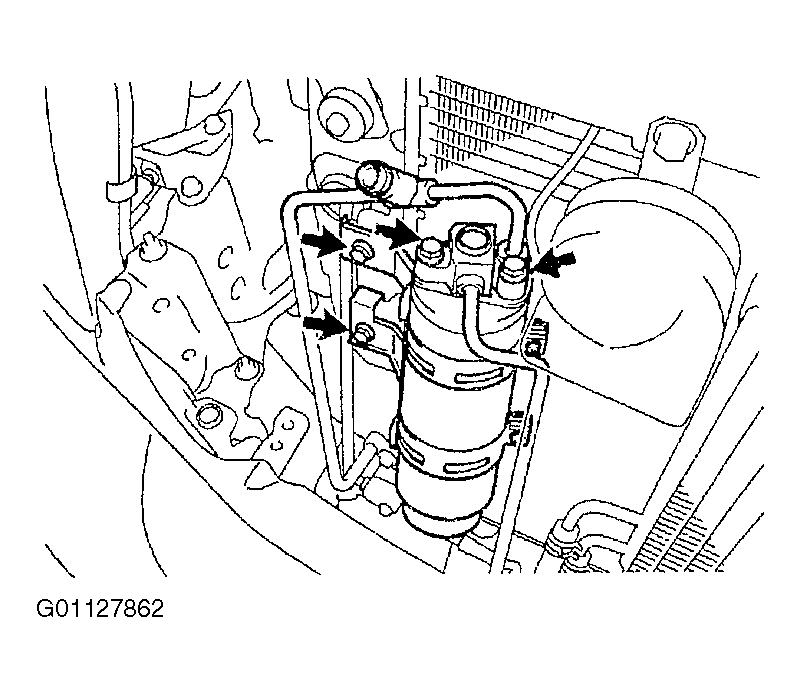

Fig 1: Locating Receiver & Tube Mounting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAUTION:

At the time of the installation, please refer to the following item. If receiver is replaced, add compressor oil to compressor.

Add 20 cc (0.71 fl.oz.)

Compressor oil: ND-OIL 8 or equivalent

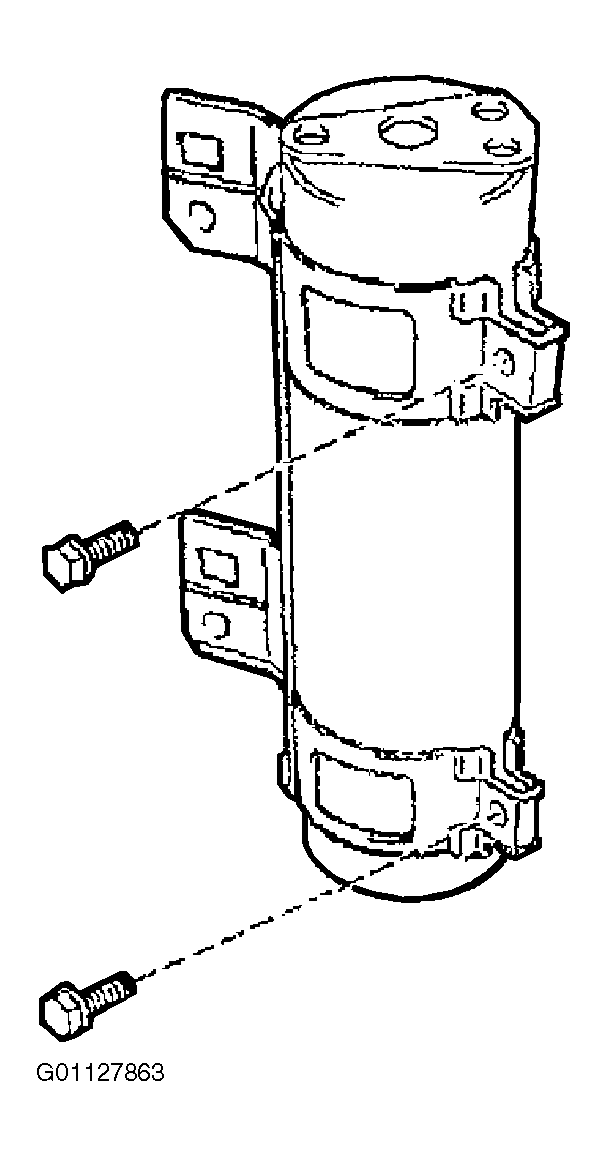

Fig 2: Locating Receiver Retaining Bolts

REMOVE RECEIVER
1. Remove 2 bolts and receiver.
2. Remove the 2 bolts and holder. See Fig 2.
