Combination Meter: Circuit

WARNING: This page is about a different car, the 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

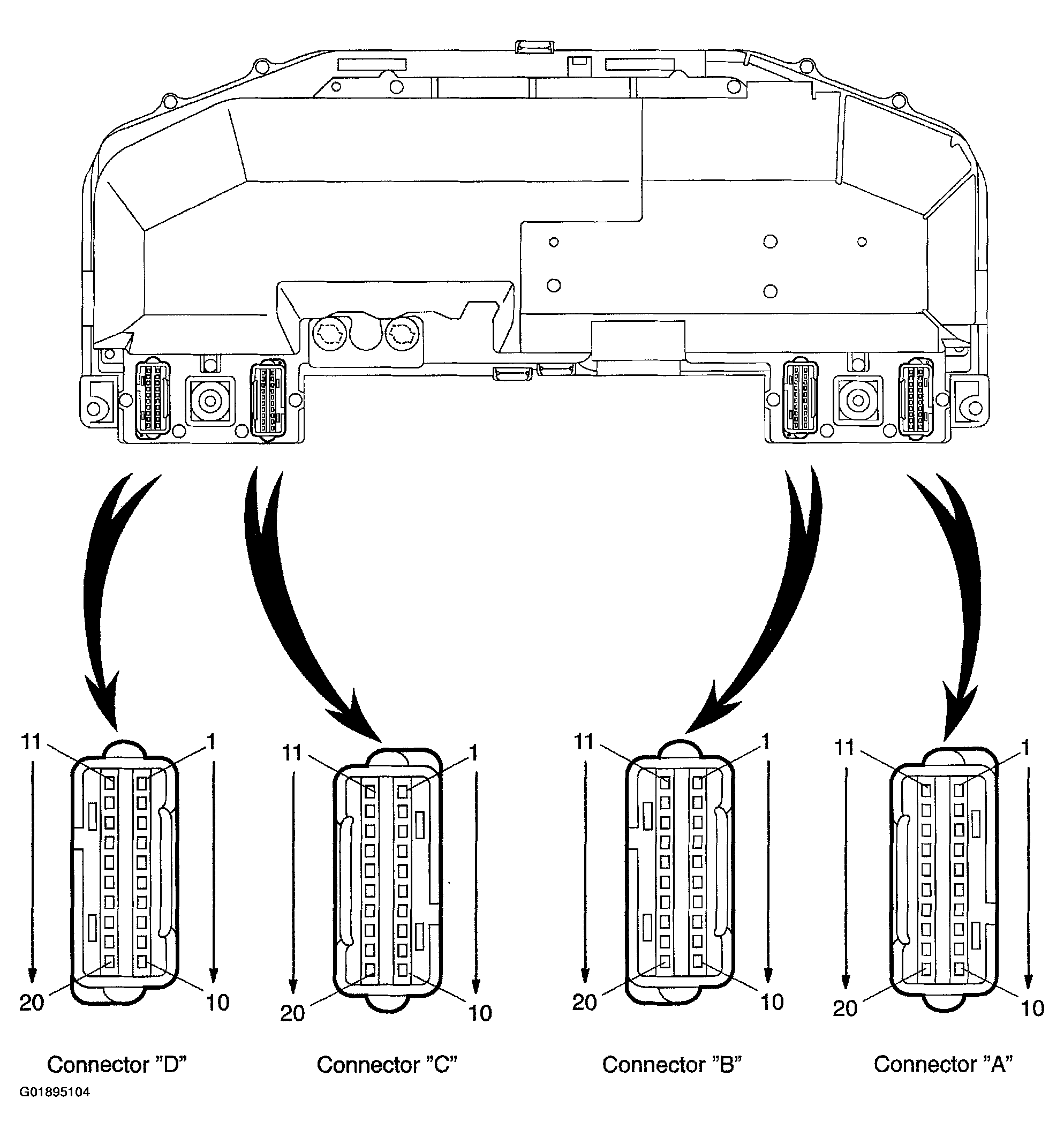

Fig 1: Identifying Combination Meter Connectors & Terminals
G01895104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

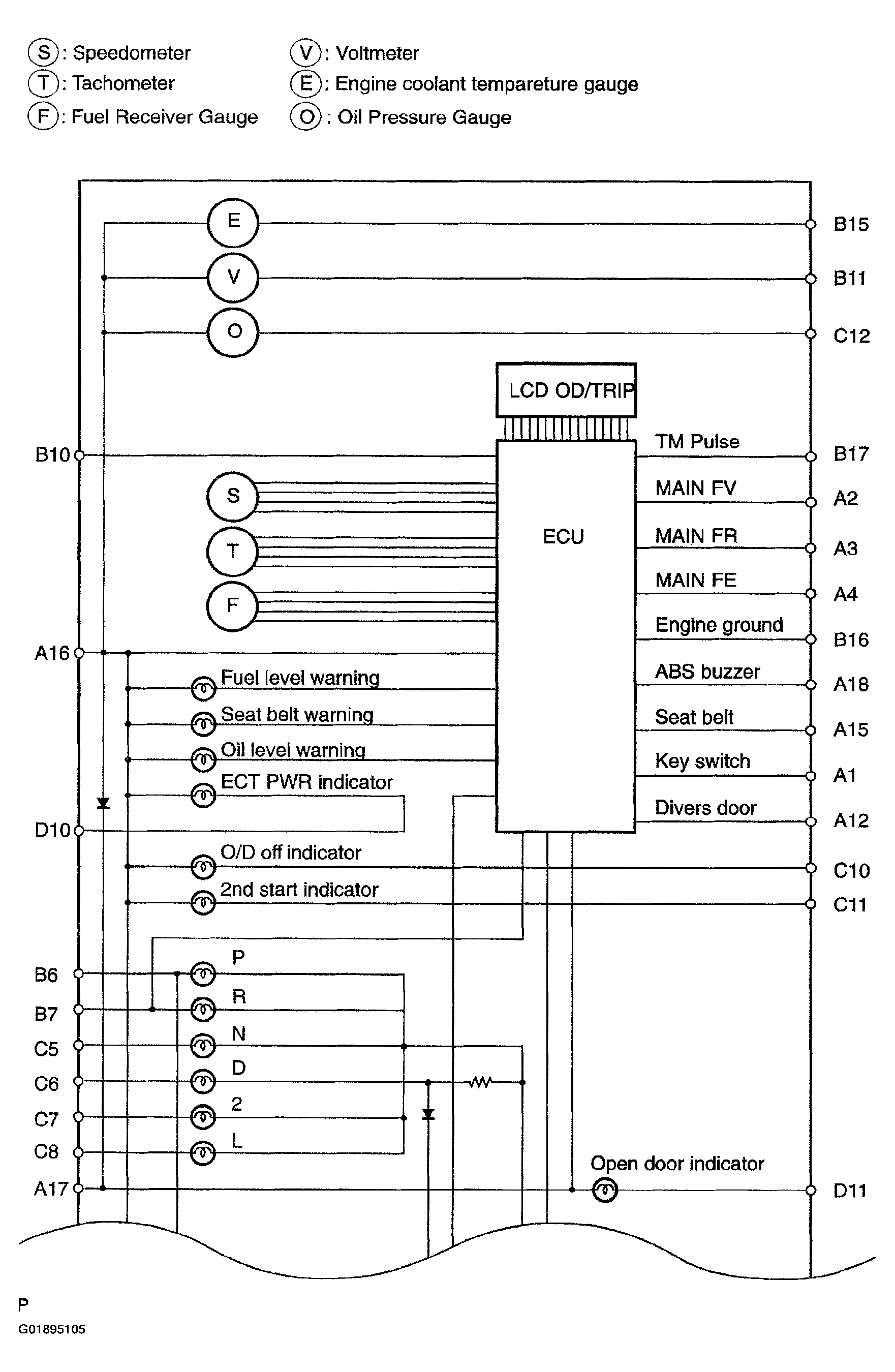

Fig 2: Identifying Combination Meter Circuitry (1 Of 3)
G01895105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

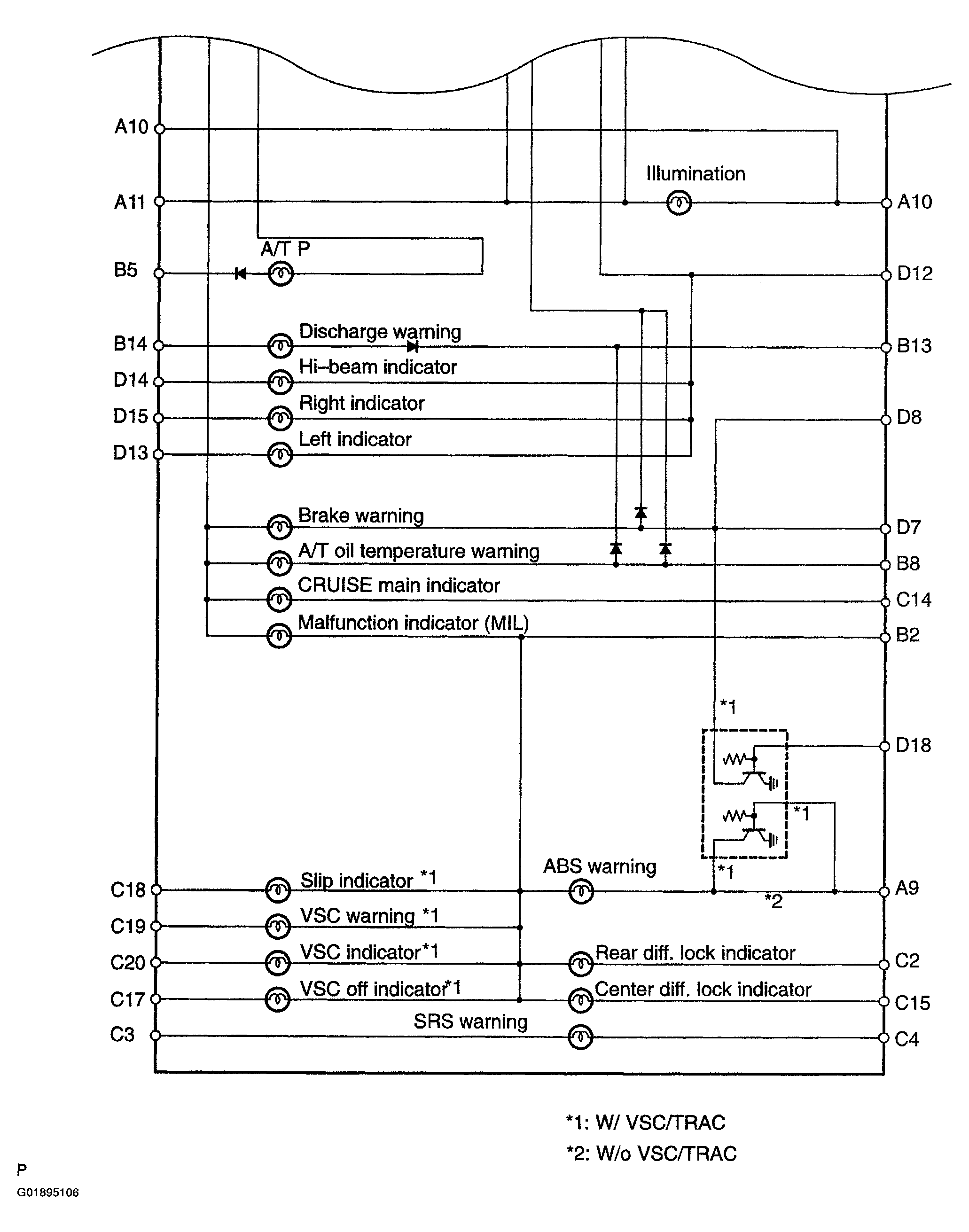

Fig 3: Identifying Combination Meter Circuitry (2 Of 3)
G01895106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

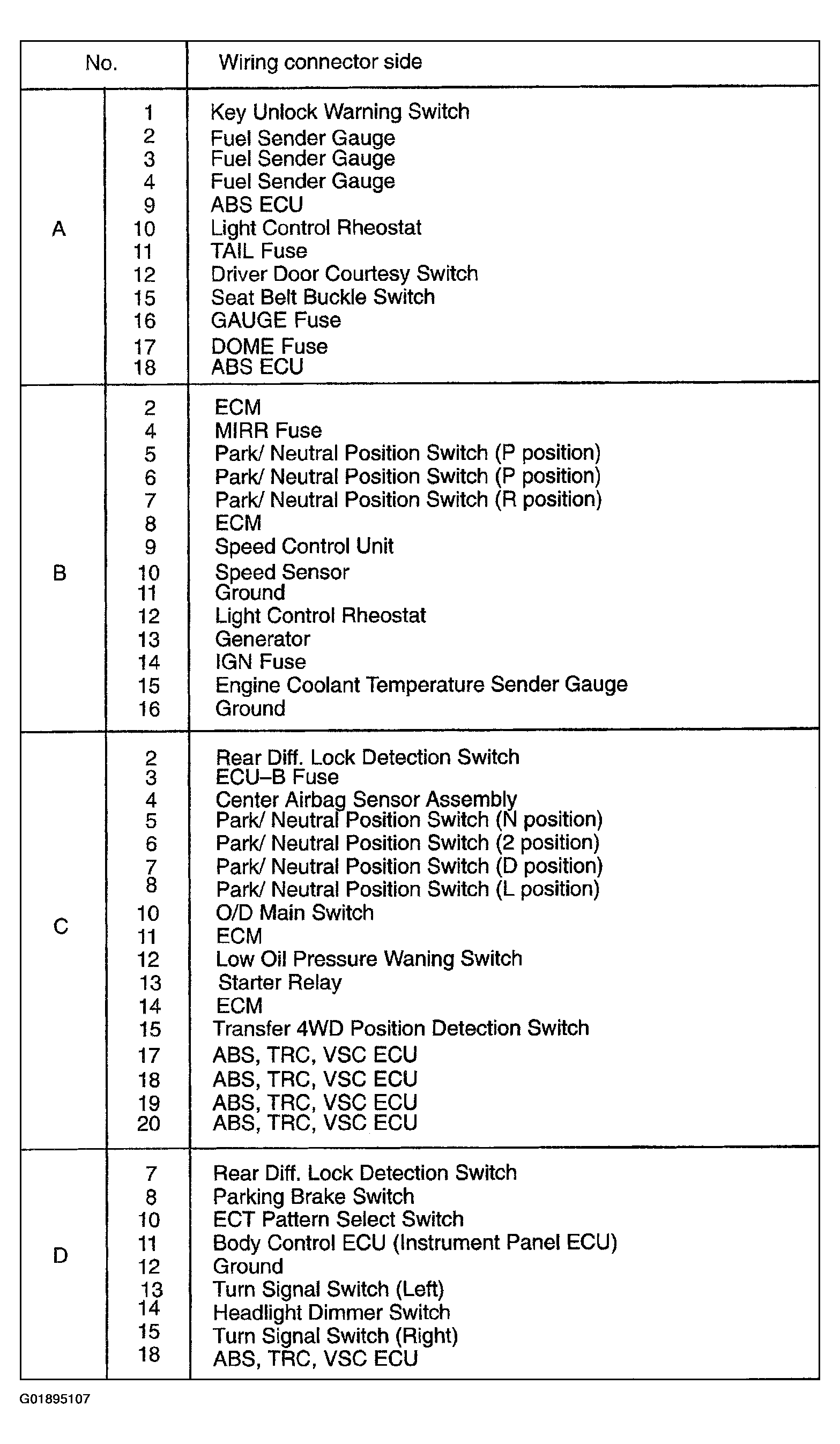

Fig 4: Identifying Combination Meter Circuitry (3 Of 3)
G01895107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
