How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Troubleshoot in accordance with the procedure on the following pages.

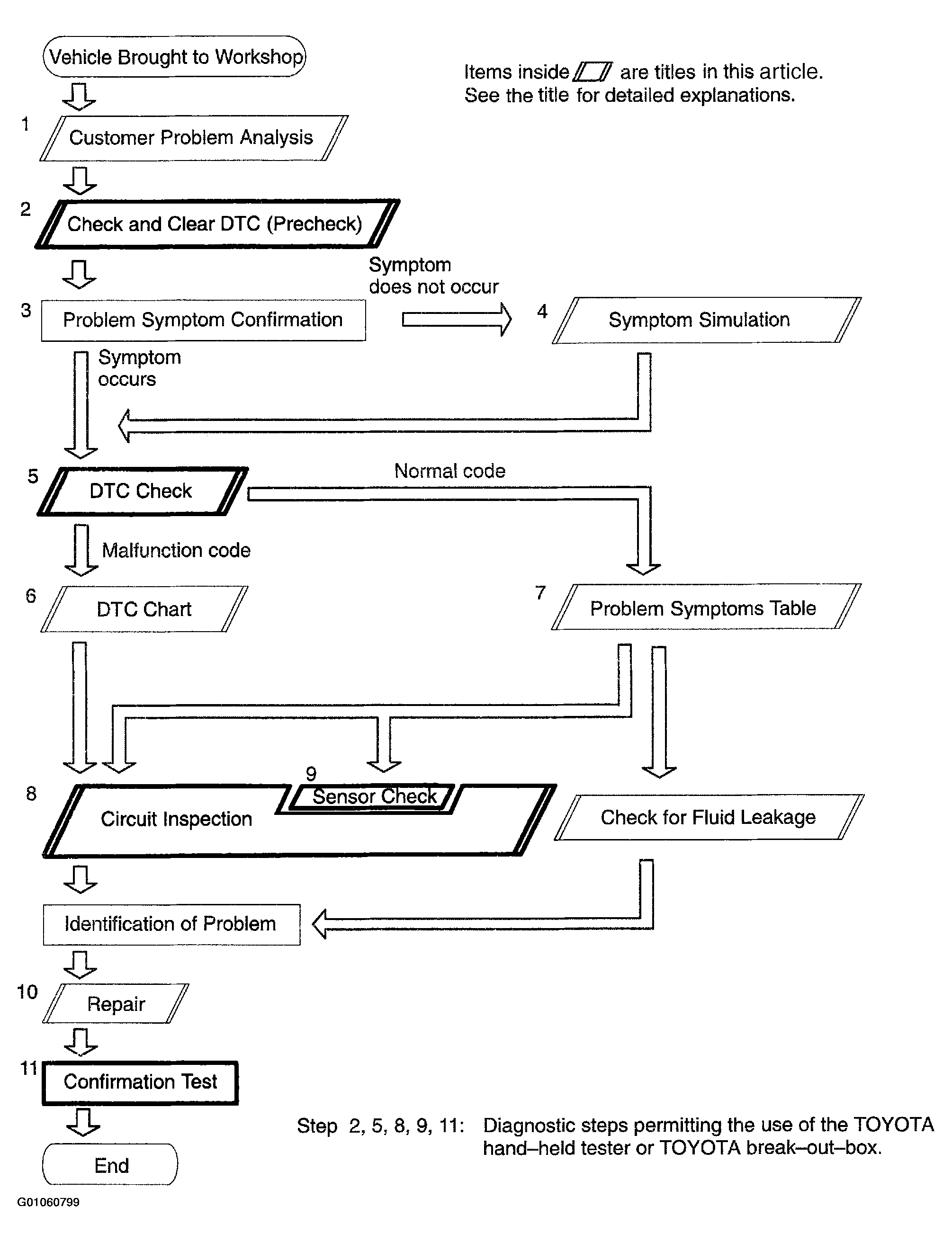

Fig 1: Troubleshooting Flow Chart
G01060799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fail safe function: When a failure occurs in the ABS system, the ABS warning light is lit and the ABS operation is prohibited.
