Camshaft Position Sensor: Removal

  1. Drain engine coolant  .
  2. Remove DRIVE BELT  .
  3. Remove LH No. 3 TIMING BELT COVER  .
  4. Remove the bolt, stud bolt and camshaft position sensor.

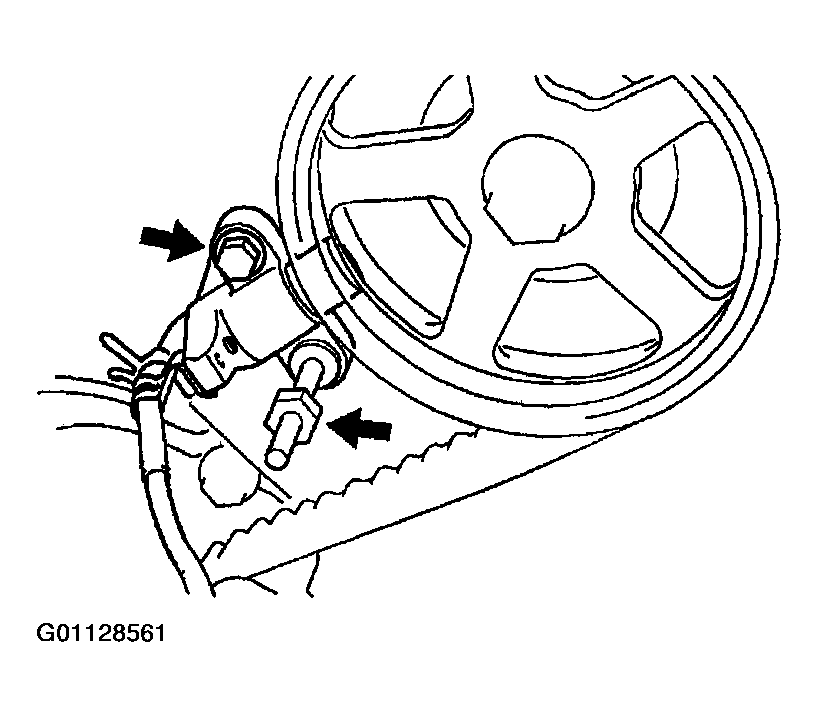

    Fig 1: Locating Camshaft Position Sensor Bolts
    G01128561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
