Ignition Coil: Installation

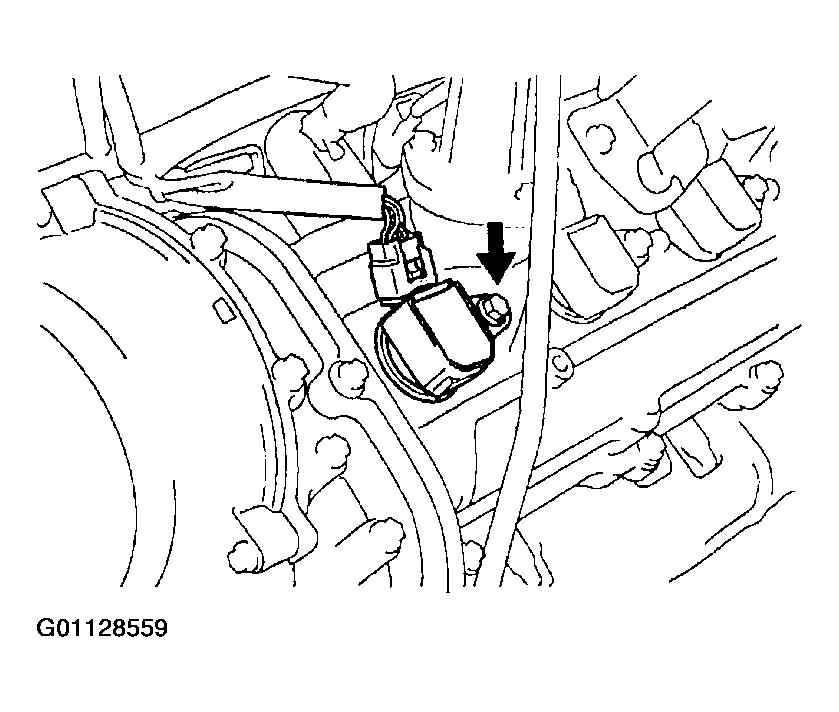

- Install ignition coils (with igniter) to spark plugs
.
Install the ignition coil (with igniter) with the bolt. Install the 8 ignition coils (with igniter).
Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf) .
- Connect ignition coil (with igniter) connectors .
