Unlock Detection Switch Circuit: Wiring Diagram

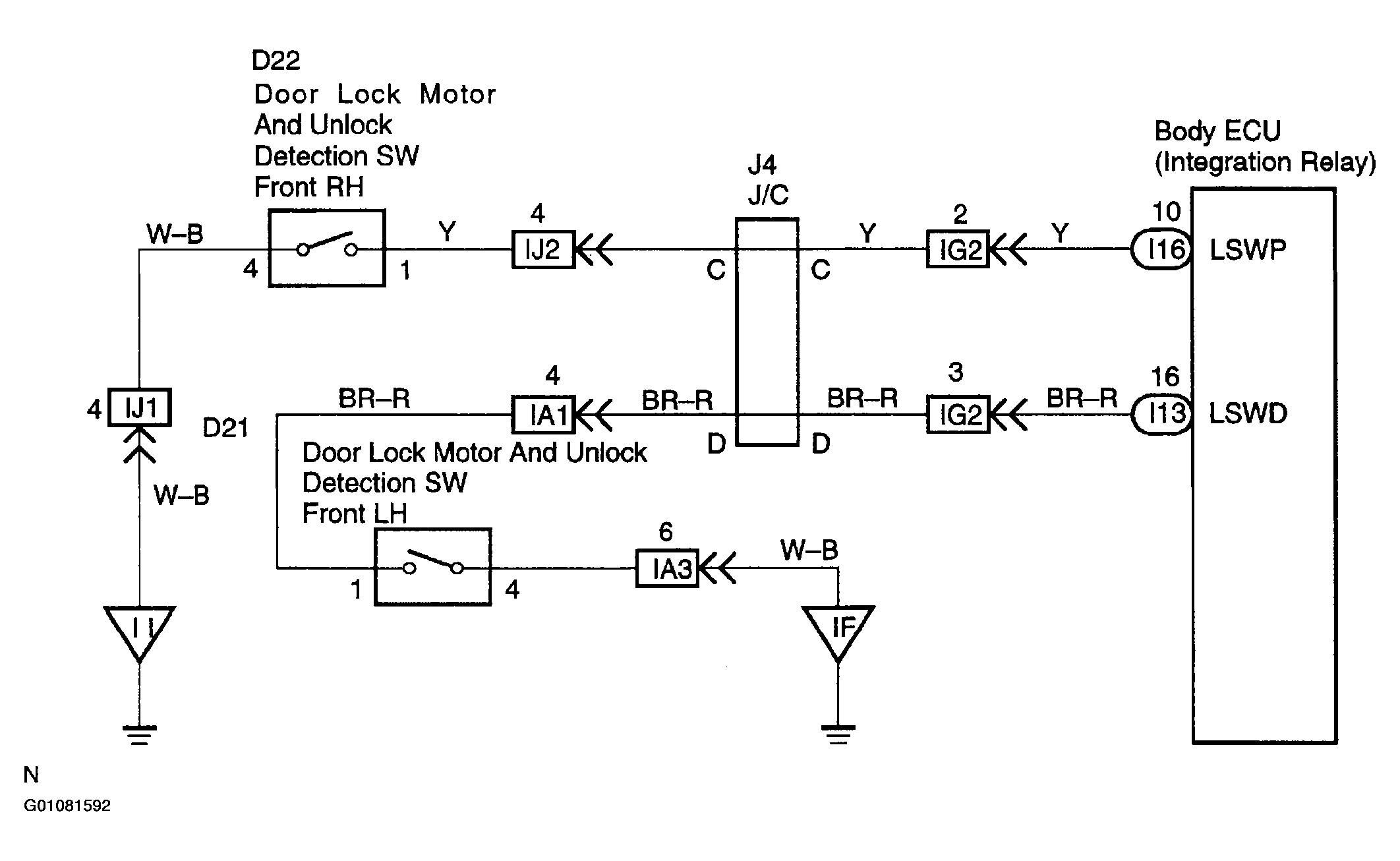

Fig 1: Unlock Detection Switch Circuit
G01081592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
