W/ Door Lock Control

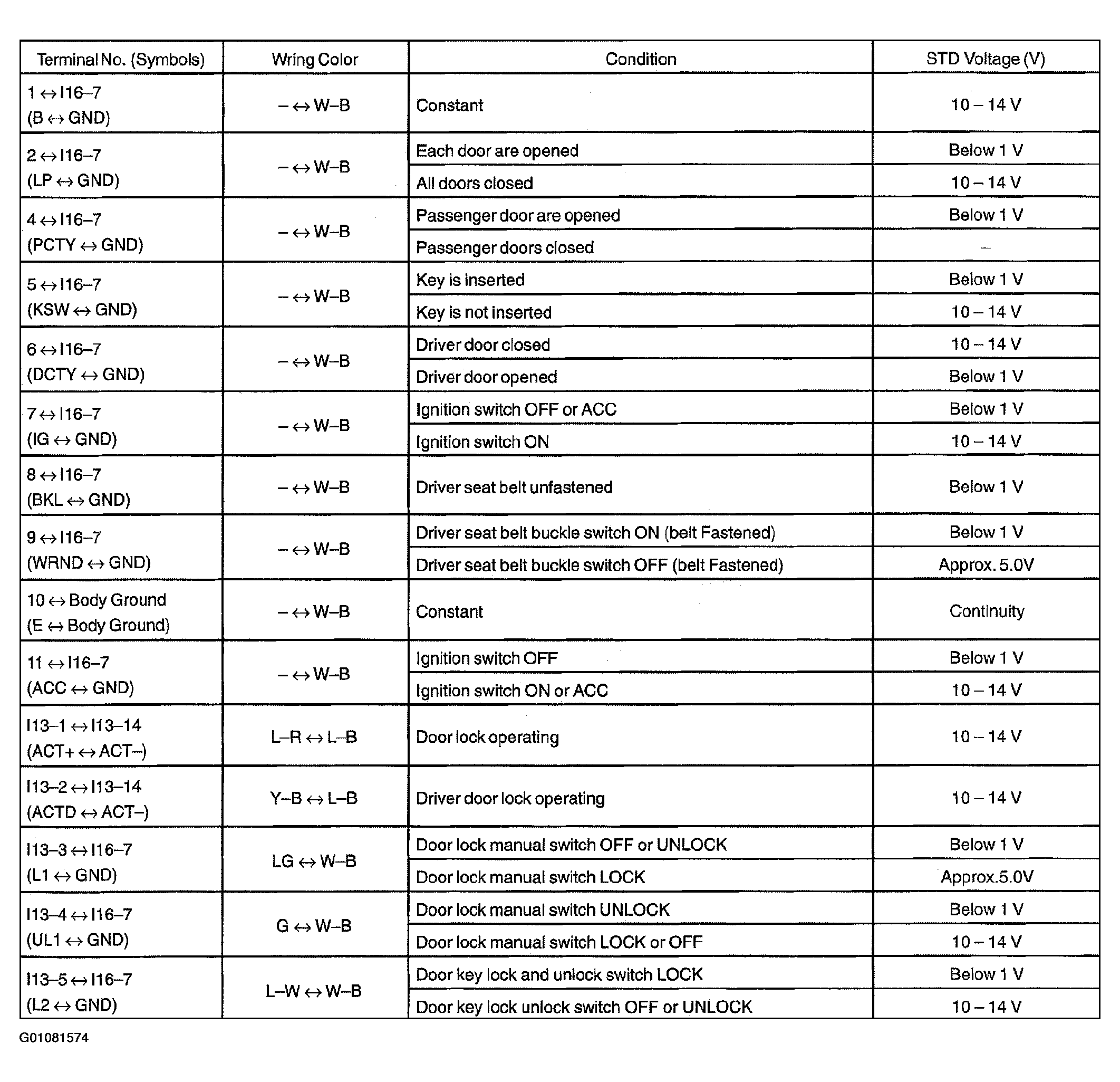

Fig 1: ECU Terminal Specifications (1 Of 2)
G01081574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

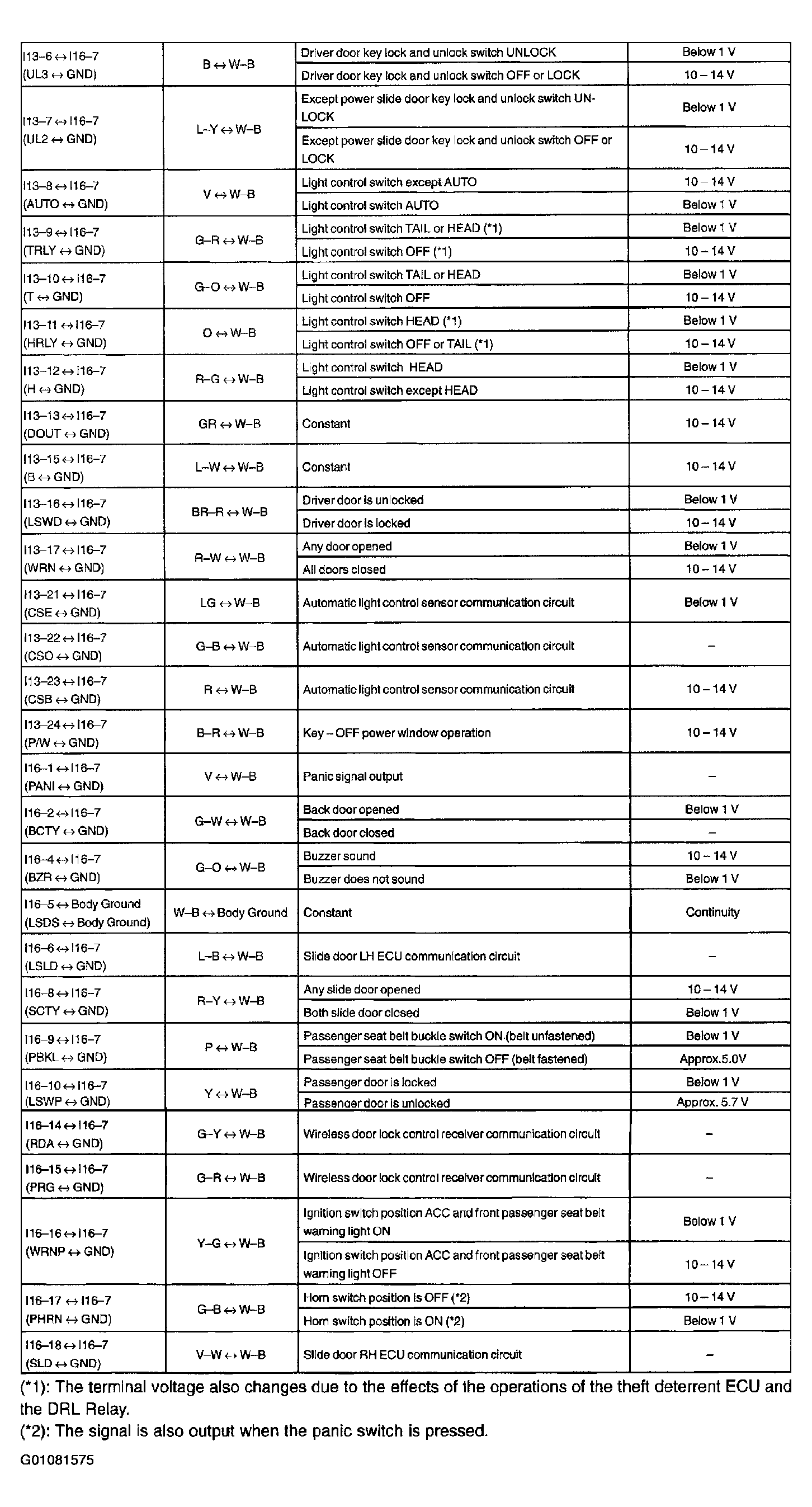

Fig 2: ECU Terminal Specifications (1 Of 2)
G01081575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
