Problem Symptoms Table
NOTE:
When replacing skid control ECU, sensor, etc., turn the IG switch OFF.

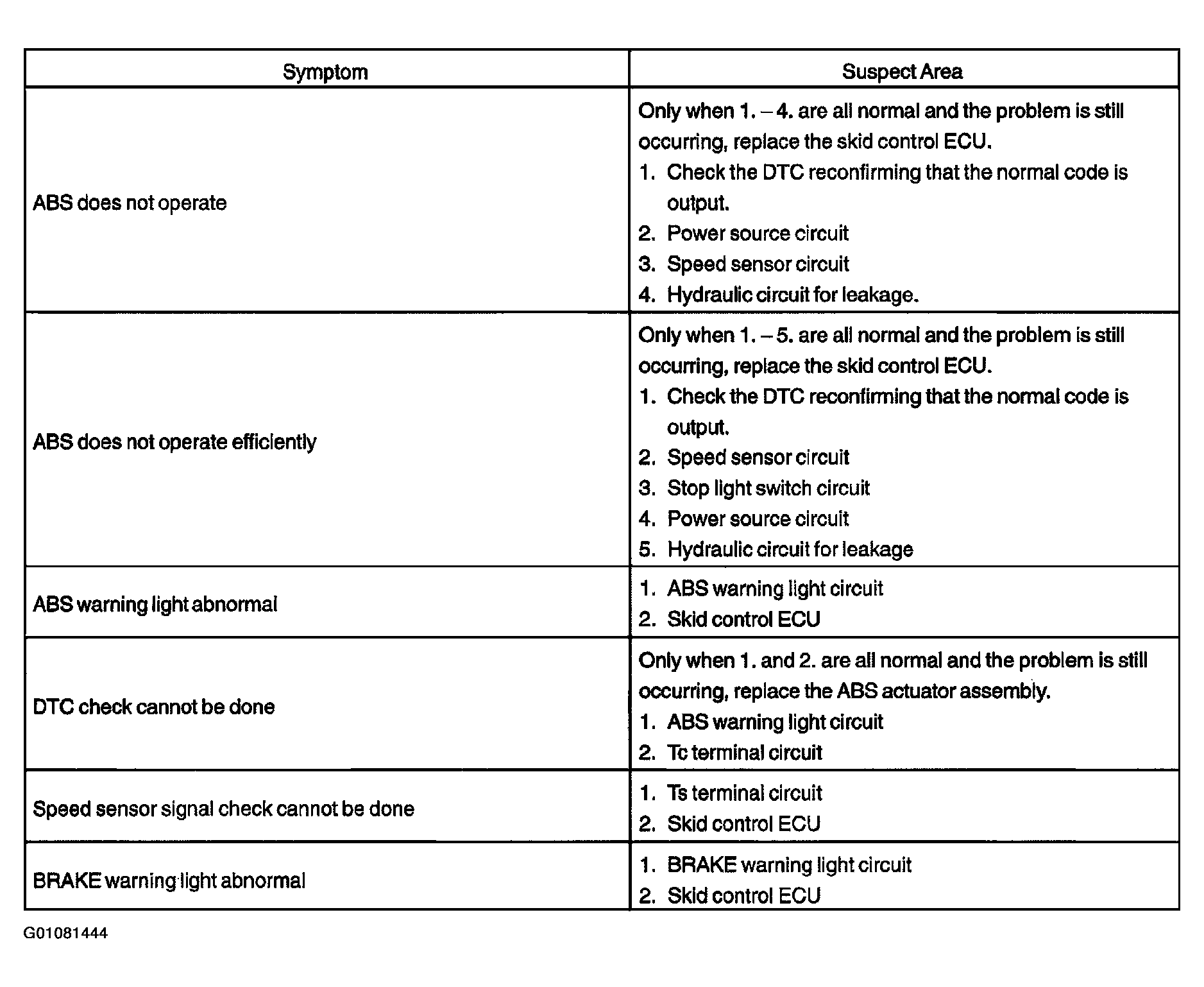

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in Fig 1 and proceed to the relevant troubleshooting procedure.
