Power Door Lock Control System: Inspection

  1. Inspect driver's door lock control switch continuity  .

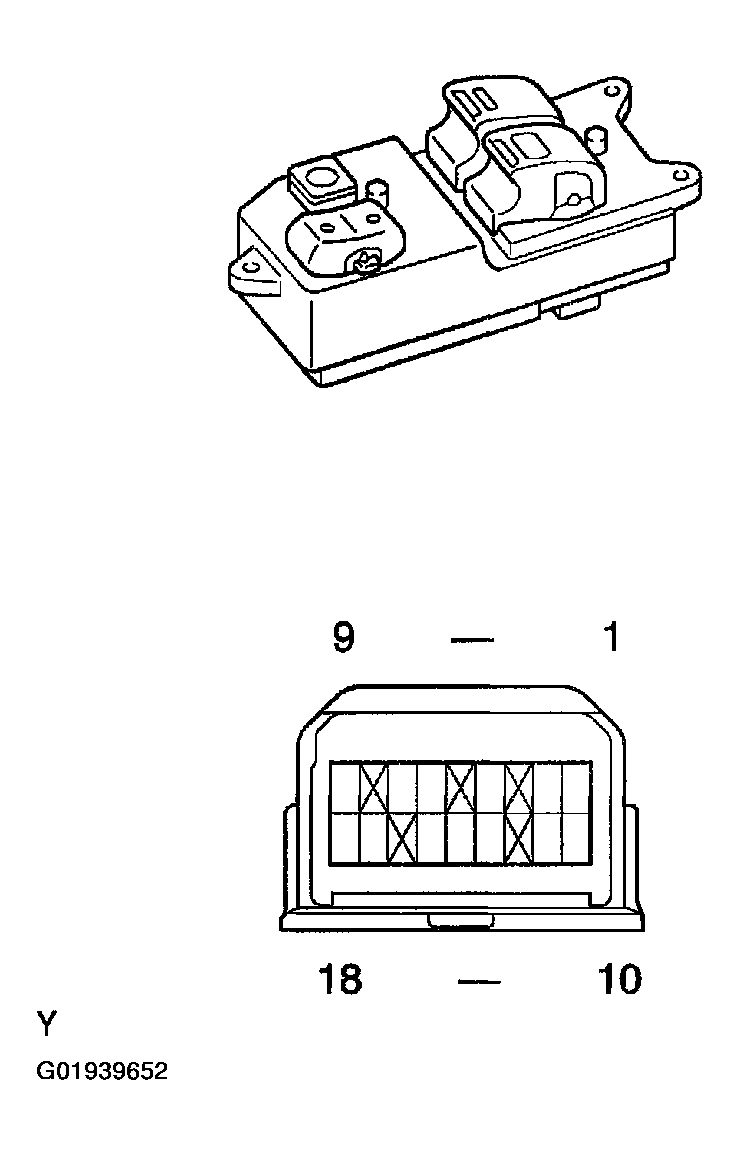

    Fig 1: Driver's Door Lock Control Switch & Terminals
    G01939652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Driver's Door Lock Control Switch Specifications
    G01939651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  2. Inspect passenger's door lock control switch continuity  .
    Fig 3: Identifying Passenger's Door Lock Control Switch & Terminals
    G01939654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 4: Passenger's Door Lock Control Switch Specifications
    G01939653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  3. Inspect front door key lock and unlock switch continuity  .
    Fig 5: Identifying Front Right Door Key Lock & Unlock Switch Terminals
    G01939656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 6: Front Right Door Key Lock & Unlock Switch Specifications
    G01939655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  4. Inspect back door key lock and unlock switch continuity  .
    Fig 7: Identifying Back Door Key Lock & Unlock Switch Terminals
    G01939658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 8: Front Back Door Key Lock & Unlock Switch Specifications
    G01939657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  5. Inspect front door unlock detection switch continuity  .

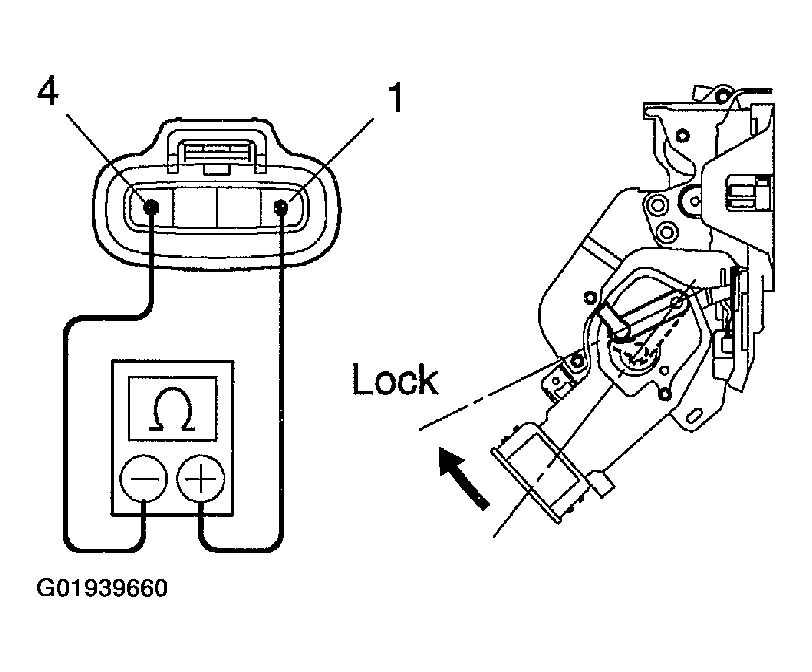

    Fig 9: Identifying Front Door Unlock Detection Switch Terminals
    G01939660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 10: Front Door Unlock Detection Switch Specifications
    G01939659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  6. With Theft Deterrent System

    Inspect back door unlock detection switch continuity  .

    Fig 11: Identifying Back Door Unlock Detection Switch Terminals
    G01939662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

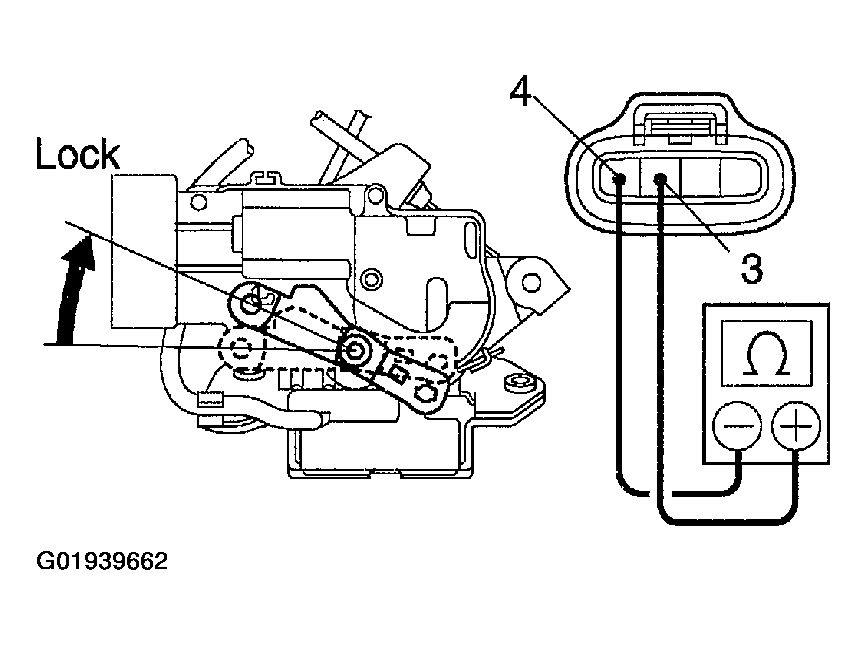

    Fig 12: Back Door Unlock Detection Switch Specifications
    G01939661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  7. Inspect front door lock motor operation  .
    1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

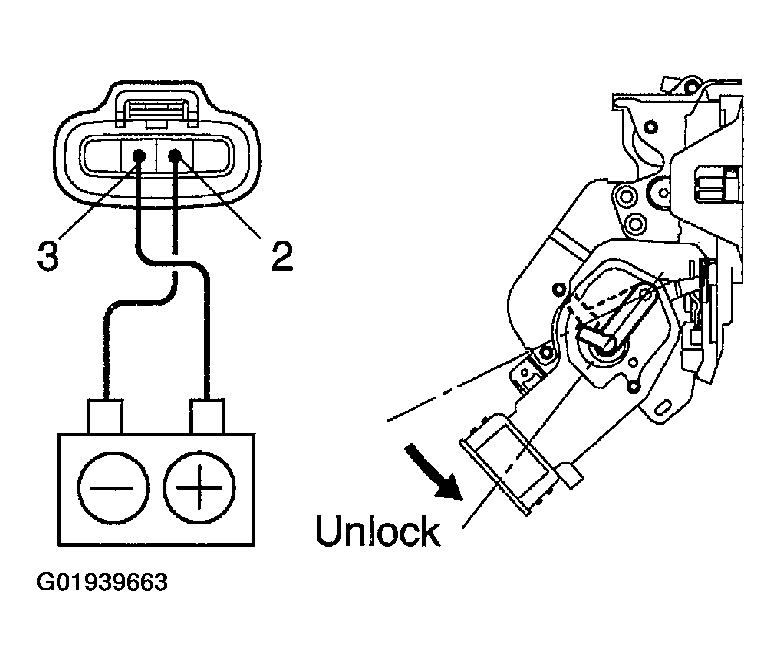

      Fig 13: Testing Front Door Lock Motor (1 Of 2)
      G01939663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

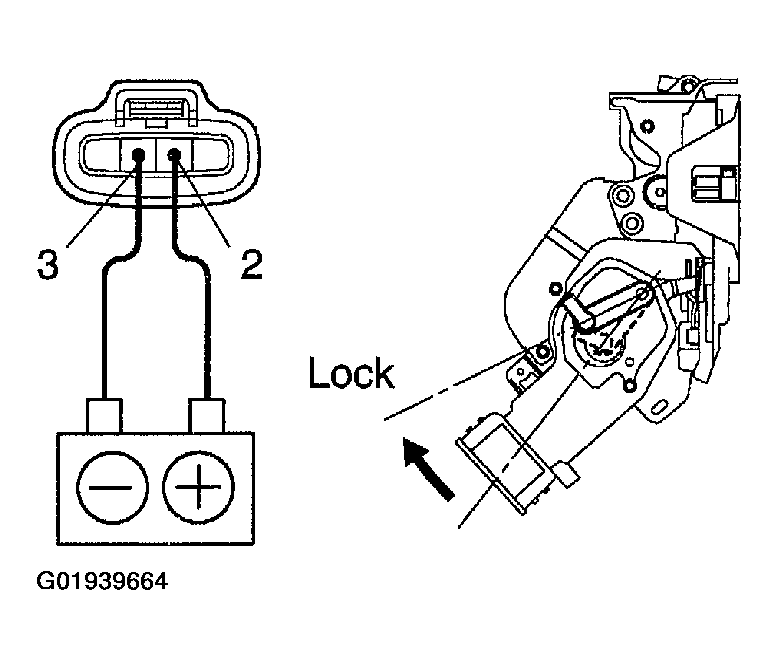

      Fig 14: Testing Front Door Lock Motor (2 Of 2)
      G01939664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  8. W/Theft deterrent system at LH side door

    Inspect slide door lock motor operation  .

    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

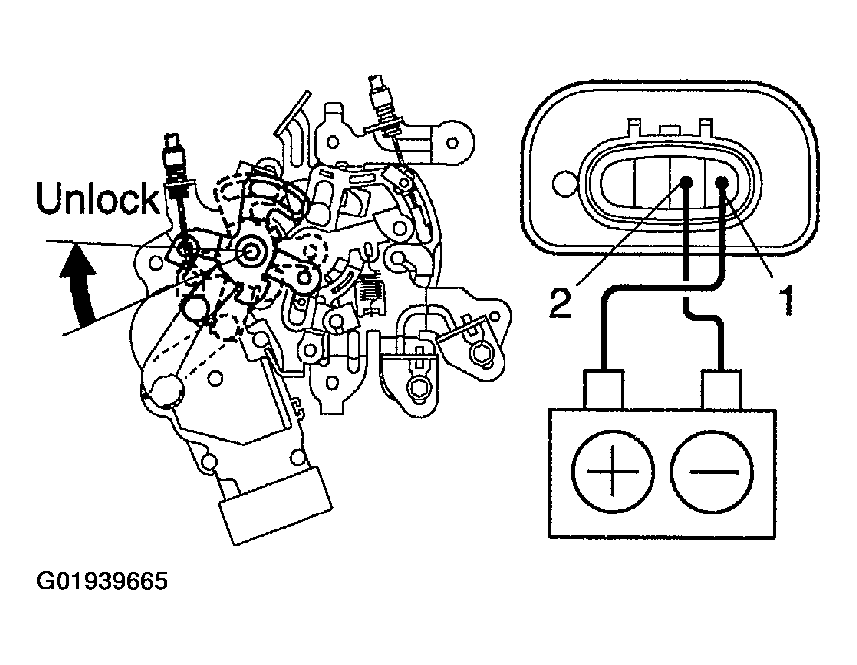

      Fig 15: Testing Left Side Sliding Door Lock Motor (1 Of 2)
      G01939665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

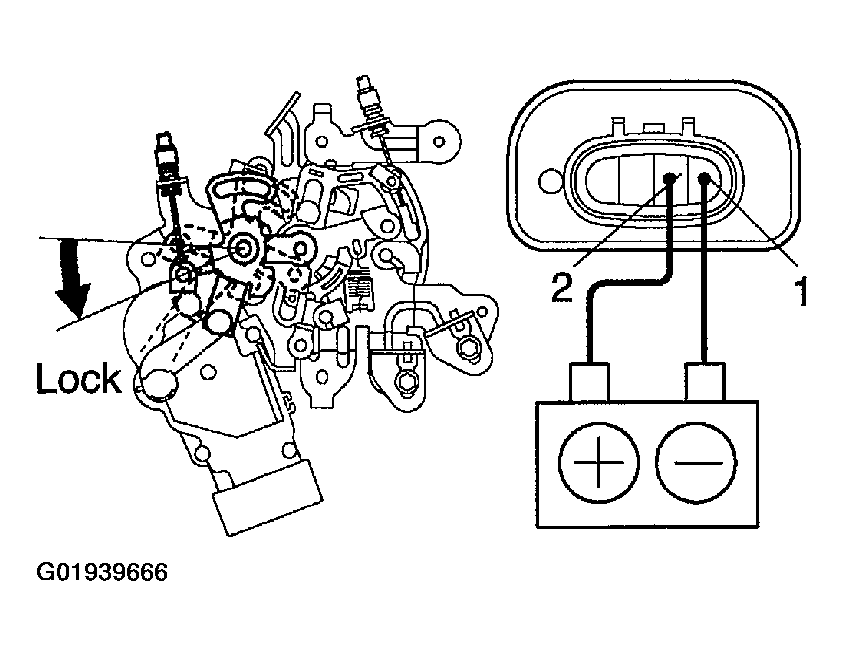

      Fig 16: Testing Left Side Sliding Door Lock Motor (2 Of 2)
      G01939666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  9. W/O Theft Deterrent System at RH side door

    Inspect slid door lock motor operation  .

    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position

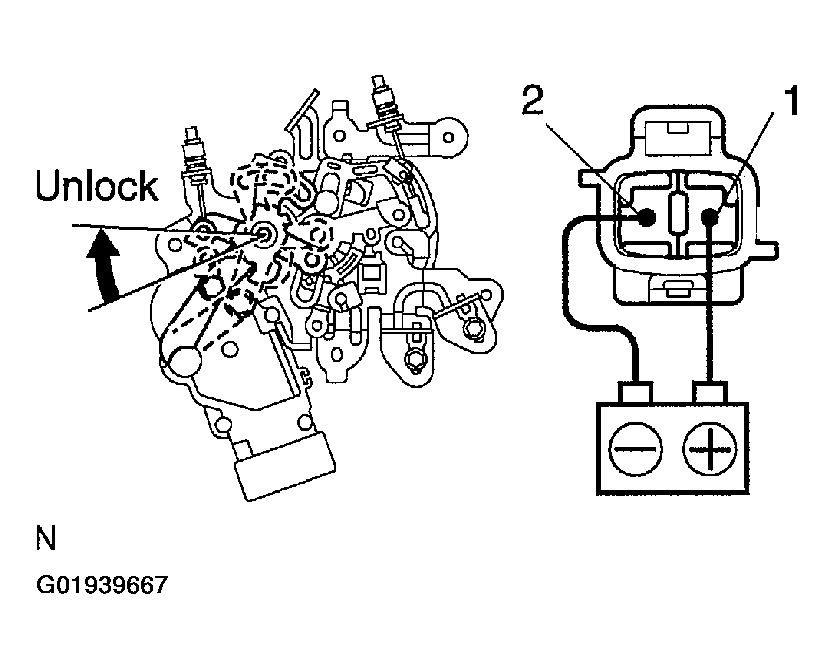

      Fig 17: Testing Right Side Sliding Door Lock Motor (1 Of 2)
      G01939667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

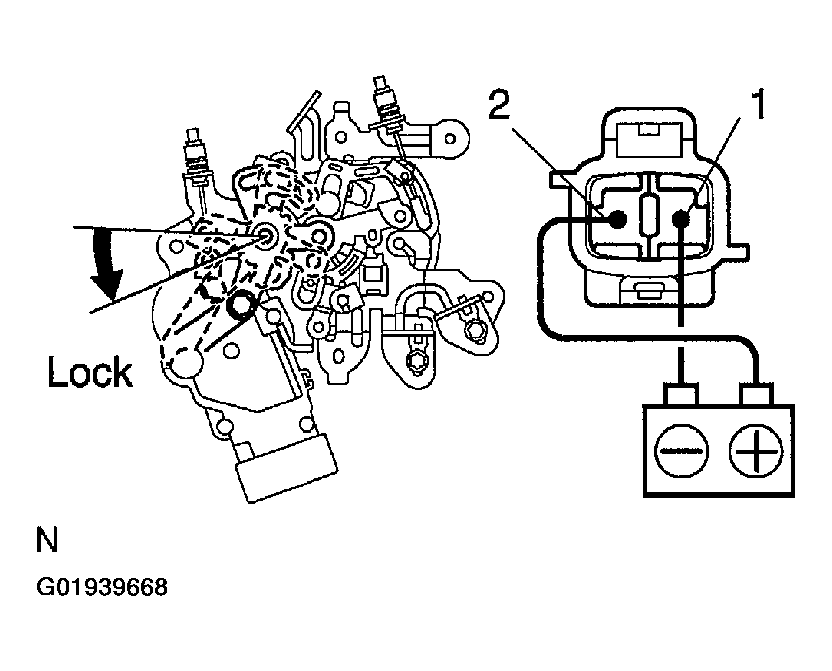

      Fig 18: Testing Right Side Sliding Door Lock Motor (2 Of 2)
      G01939668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  10. W/O Theft Deterrent System

    Inspect back door lock motor operation  .

    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

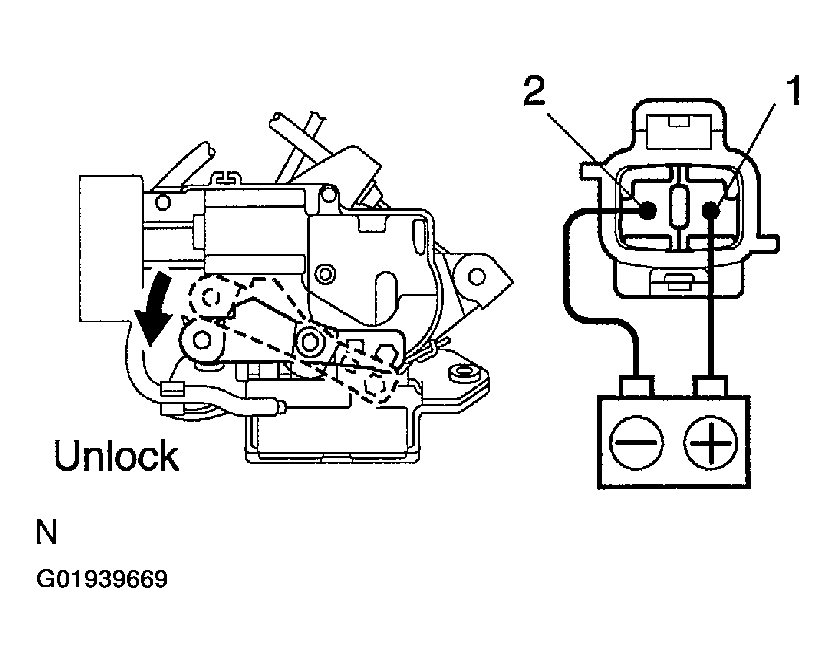

      Fig 19: Testing Back Door Lock Motor (W/O Theft Deterrent System 1 Of 2)
      G01939669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

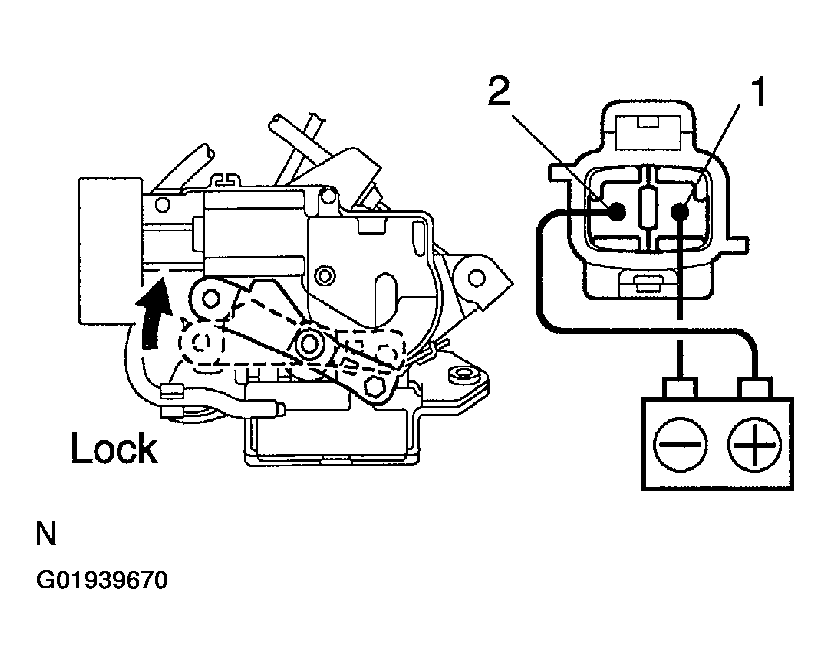

      Fig 20: Testing Back Door Lock Motor (W/O Theft Deterrent System 2 Of 2)
      G01939670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly  .

  11. With Theft Deterrent System

    Inspect back door lock motor operation  .

    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

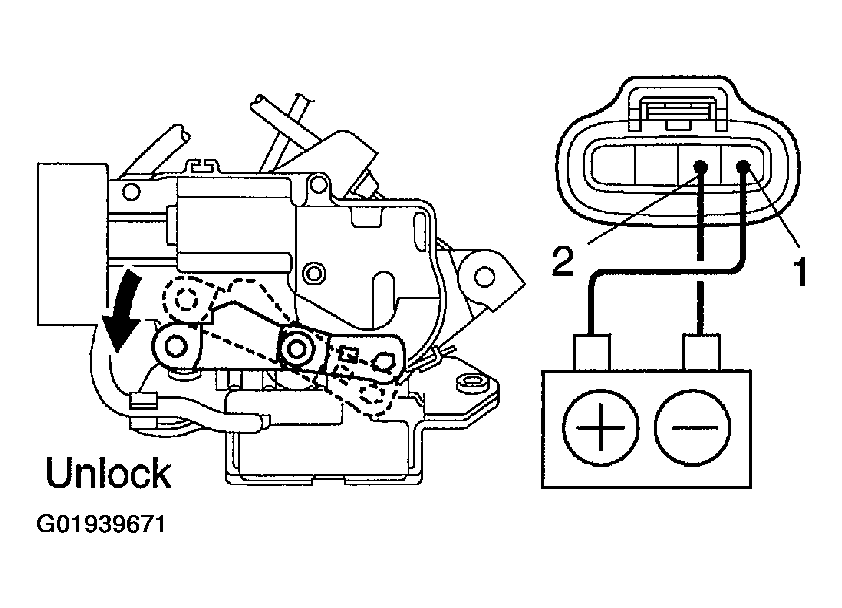

      Fig 21: Testing Back Door Lock Motor (W/Theft Deterrent System 1 Of 2)
      G01939671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

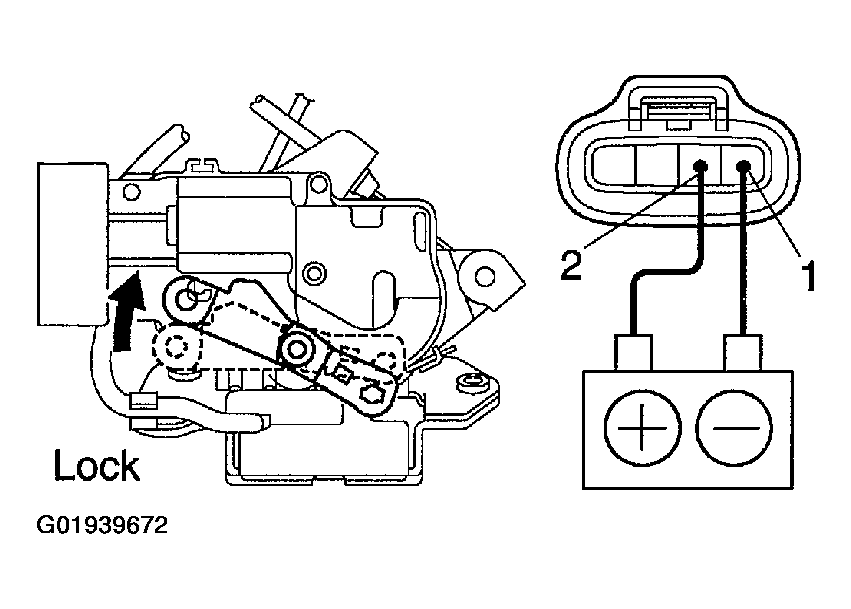

      Fig 22: Testing Back Door Lock Motor (W/Theft Deterrent System 2 Of 2)
      G01939672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  12. Inspect integration relay operation  .
    NOTE: When the relay circuit is as specified, inspect the door lock signal.
    1. Connect the positive (+) lead from the voltmeter to terminal 1 and the negative (-) lead to terminal 9.
    2. Set the door lock control switch to UNLOCK and check that the voltage rises from 0 V to battery positive voltage for approximately 0.2 seconds.
      Fig 23: Testing Integration Relay (1 Of 2)
      G01939673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reverse the polarity of the voltmeter leads.
    4. Set the door lock control switch to LOCK and check that the voltage rises from 0 V to battery positive voltage for approximately 0.2 seconds.
      Fig 24: Testing Integration Relay (2 Of 2)
      G01939674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the relay.
