Light Control Switch Circuit: Wiring Diagram

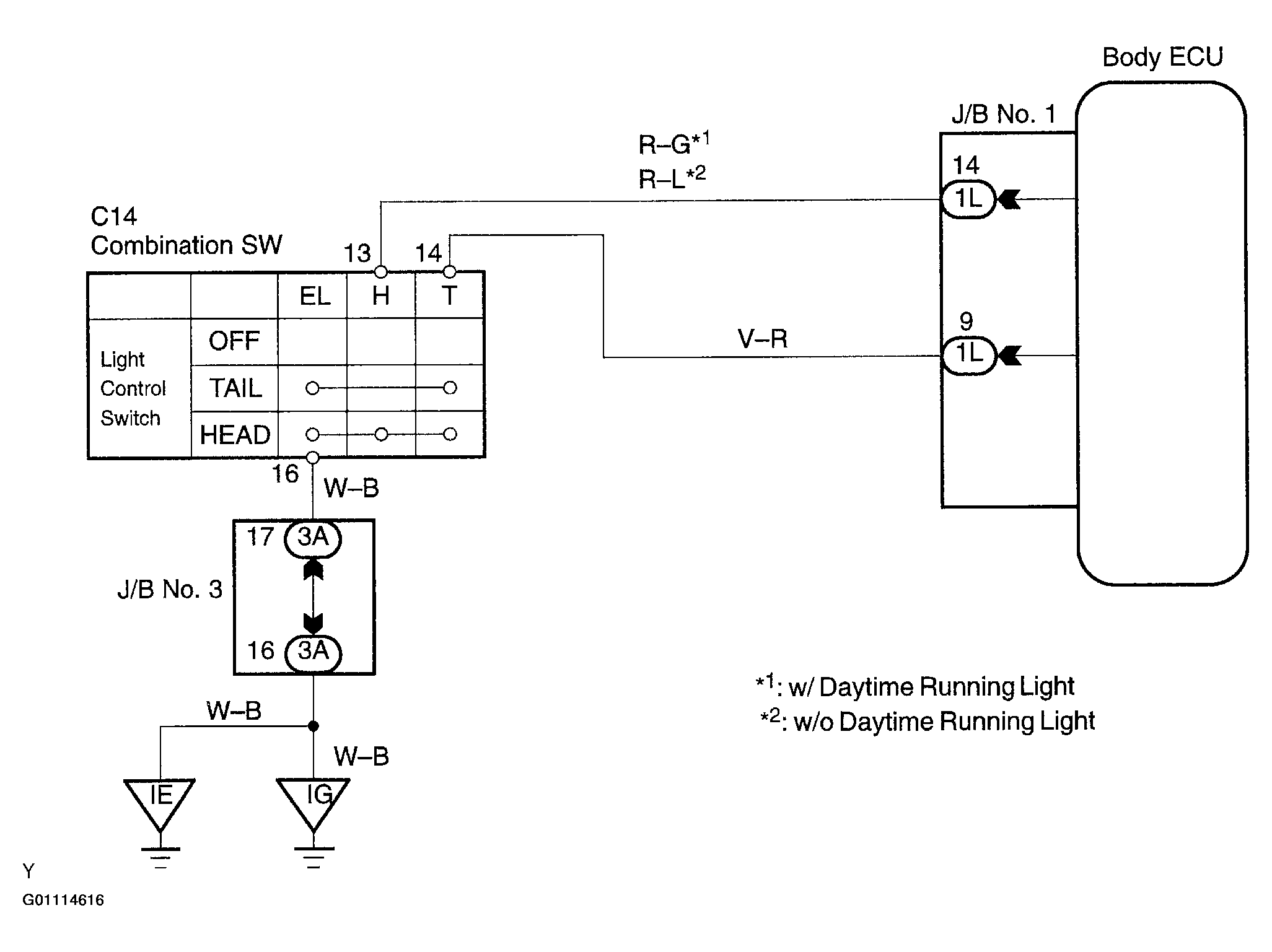

Fig 1: Wiring Diagram

G01114616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
