Power Mirror Control System: Inspection

INSPECT OUTER MIRROR SWITCH ASSY

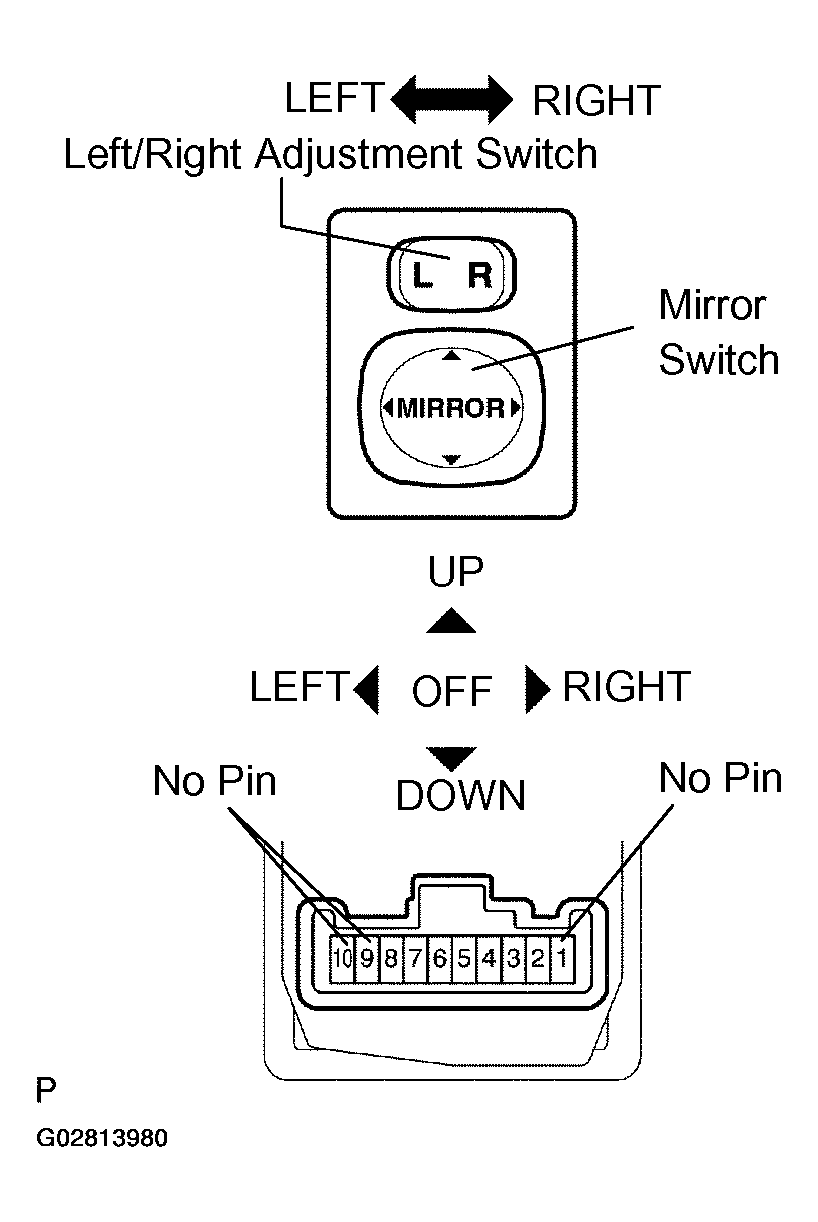

Fig 1: Inspecting Mirror Switch Continuity (Left/Right Adjustment Switch)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. L side of left/right adjustment switch: Inspect the mirror switch continuity.

  Fig 2: Mirror Switch Continuity Table (Left Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch assy.
2. R side of left/right adjustment switch:
  Inspect the mirror switch continuity.

  Fig 3: Mirror Switch Continuity Table (Right Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch assy.
INSPECT OUTER REAR VIEW MIRROR ASSY LH
1. Disconnect the mirror connector.
2. Apply battery voltage and inspect operation of the mirror face, as shown in Fig 4 and Fig 5.

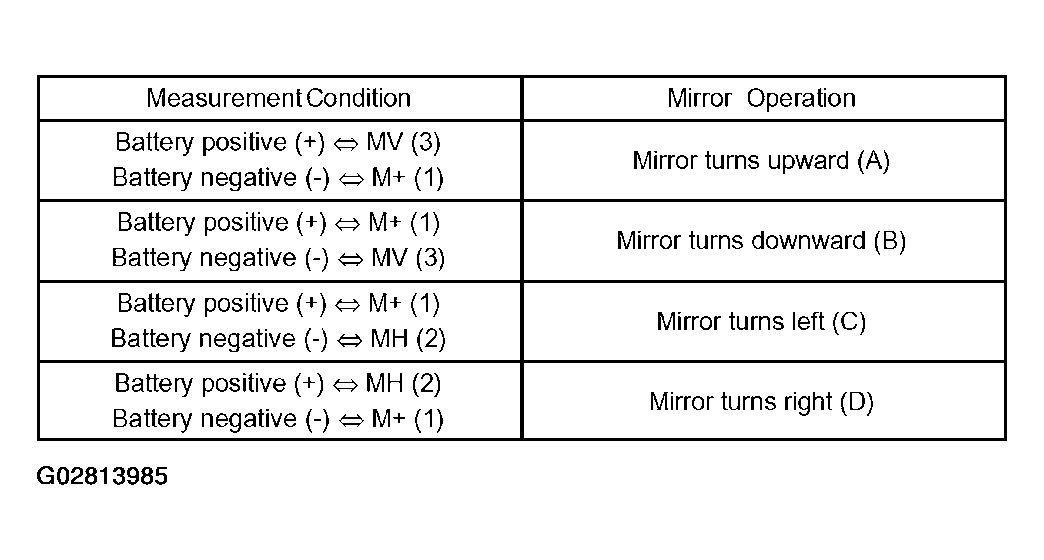

  Fig 4: Mirror Operation Specification (LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

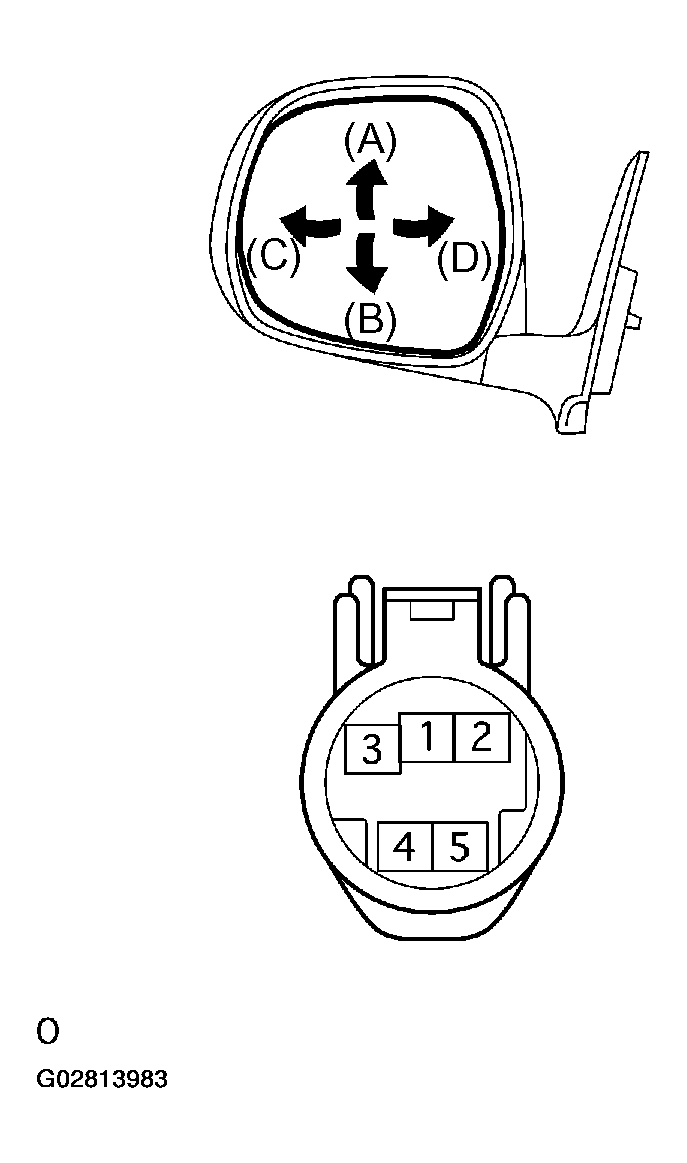

  Fig 5: Applying Battery Voltage And Inspecting Operation Of Mirror Face (LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the mirror assy.
INSPECT OUTER REAR VIEW MIRROR ASSY RH
1. Disconnect the mirror connector.
2. Apply battery voltage and inspect operation of the mirror face, as shown in Fig 6 and Fig 7.

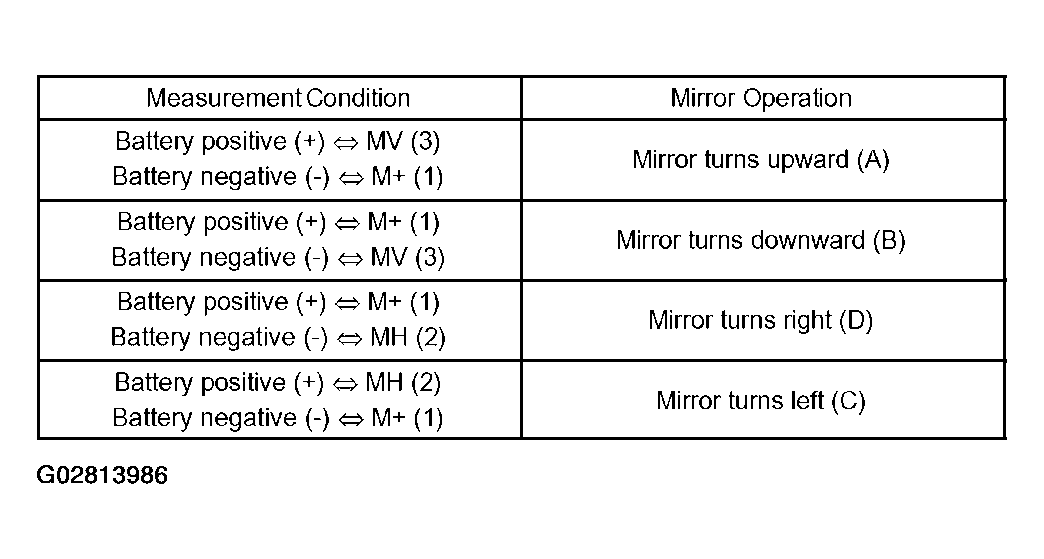

Fig 6: Mirror Operation Specification (RH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

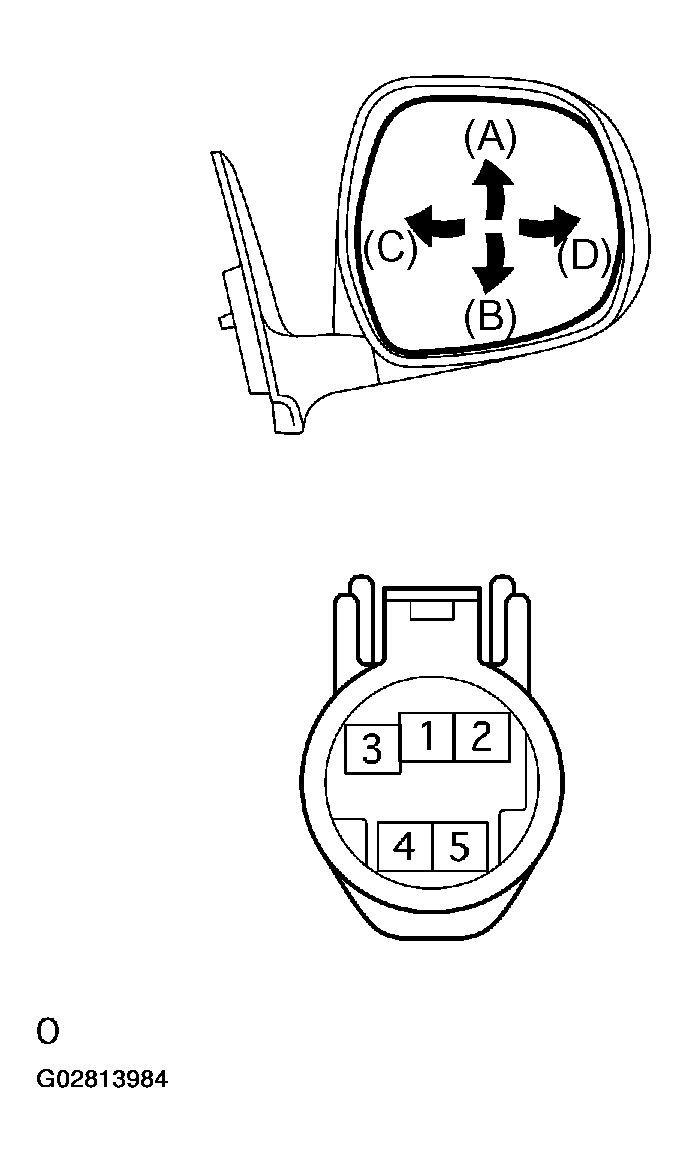

Fig 7: Applying Battery Voltage And Inspecting Operation Of Mirror Face (RH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the mirror assy.
