How To Proceed With Troubleshooting

Perform troubleshooting in accordance with the procedure on the following page.

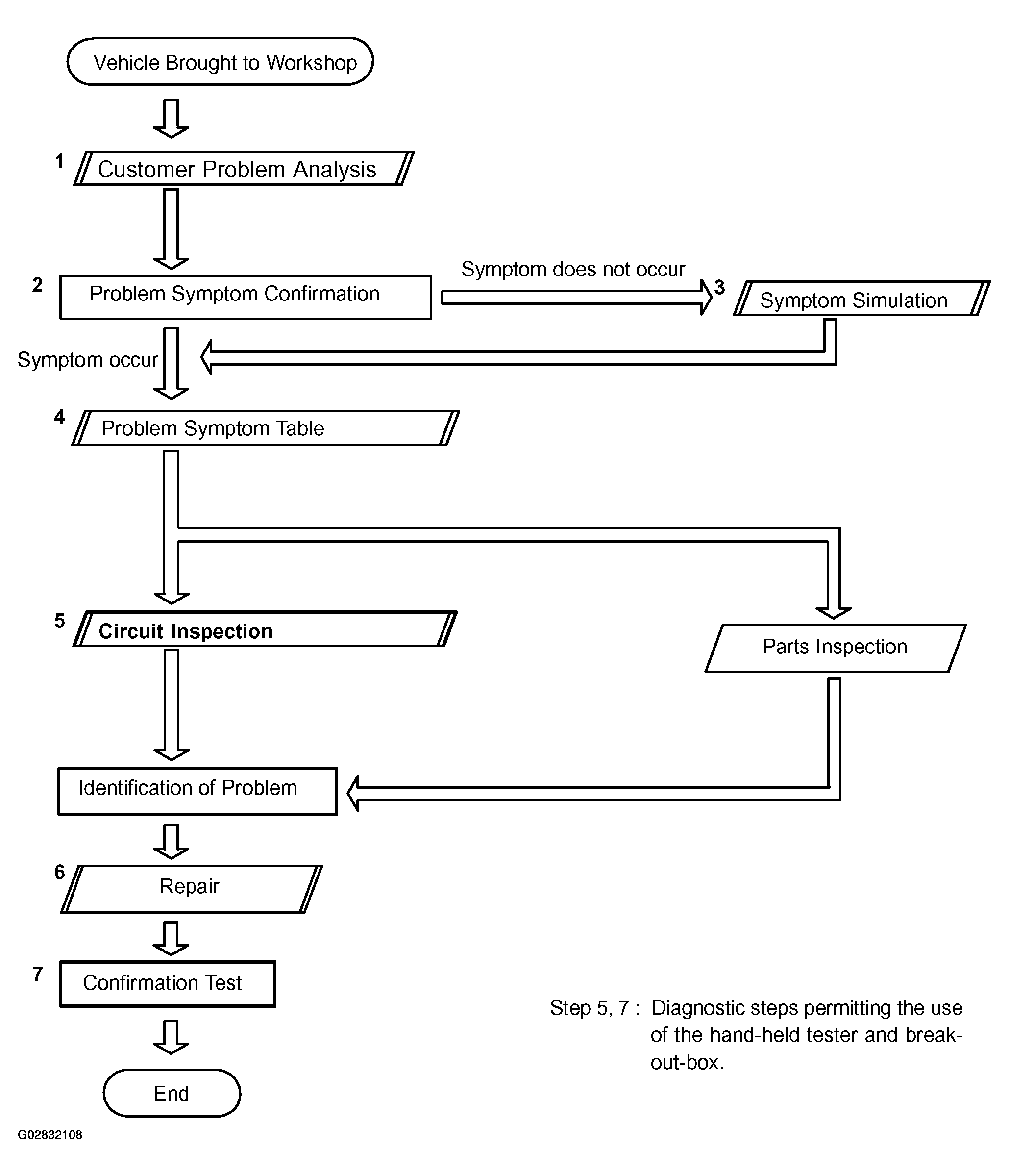

Fig 1: Power Seat Control System (W/Driving Position Memory) Troubleshooting Flow Chart
G02832108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
