Power Seat Control System (W/O Driving Position Memory: Location

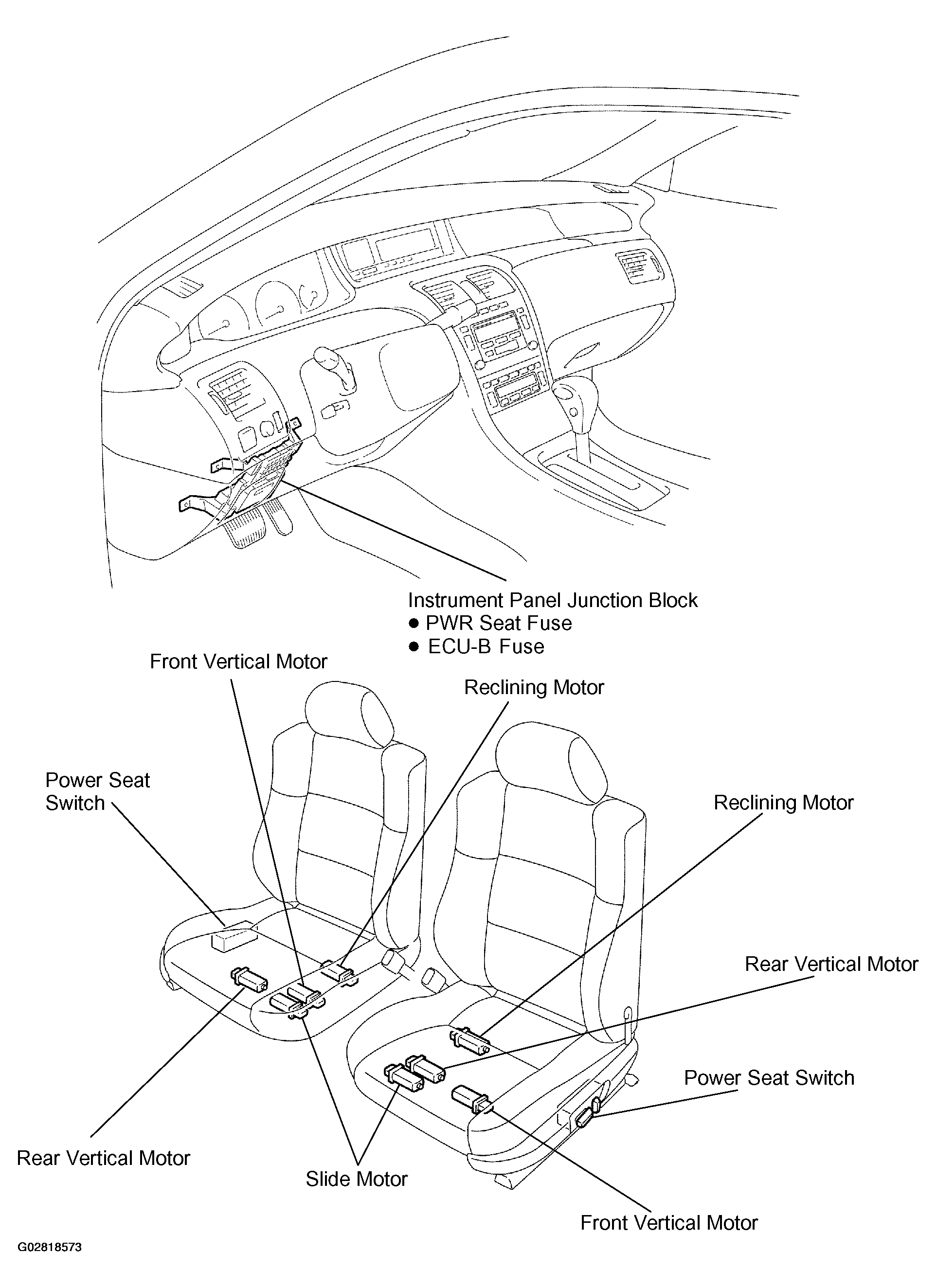

Fig 1: Identifying Power Seat Control System - W/O Driving Position Memory
G02818573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
