Combination Meter: Components

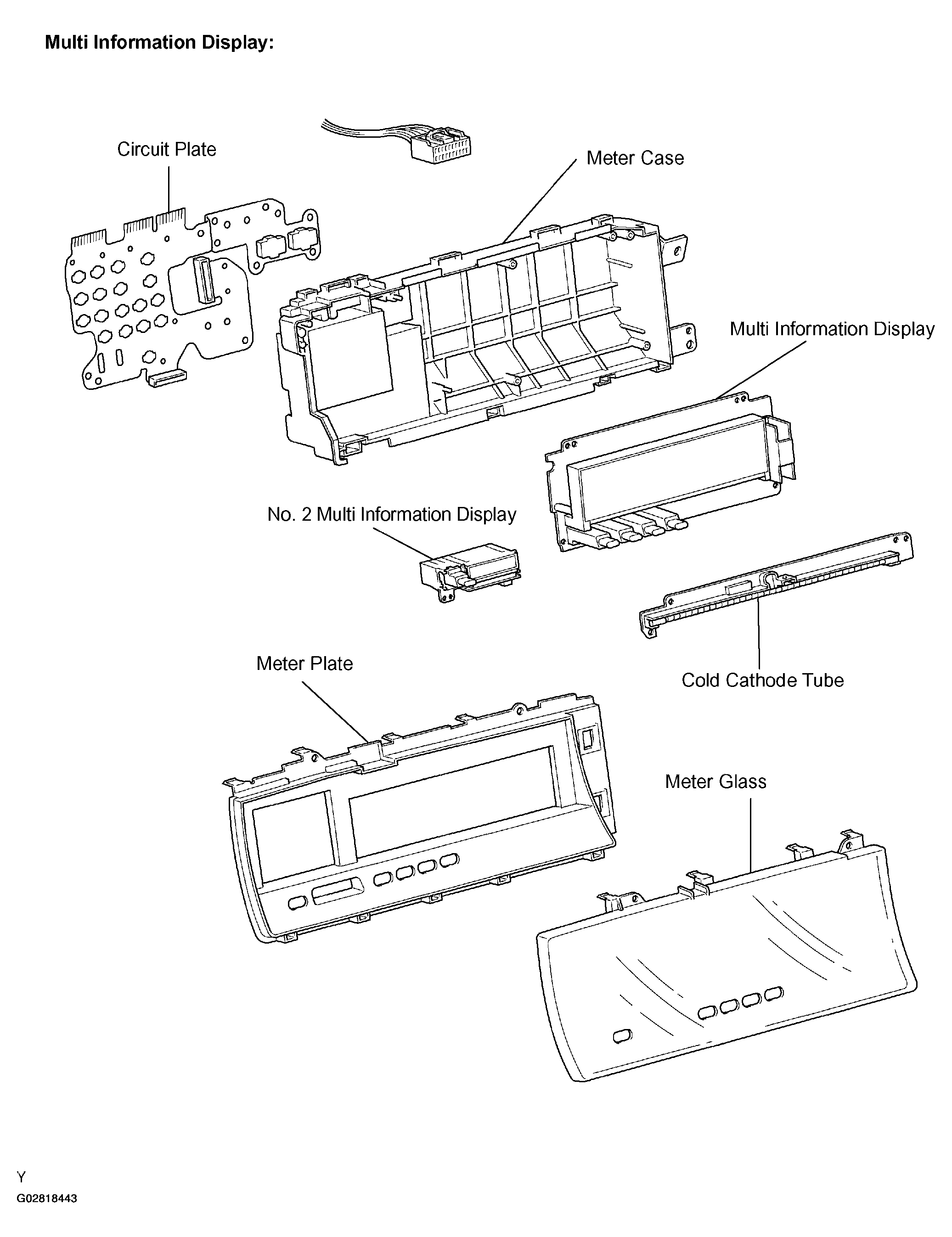

Fig 1: Exploded View Of Multi Information Display (1 Of 2)
G02818443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

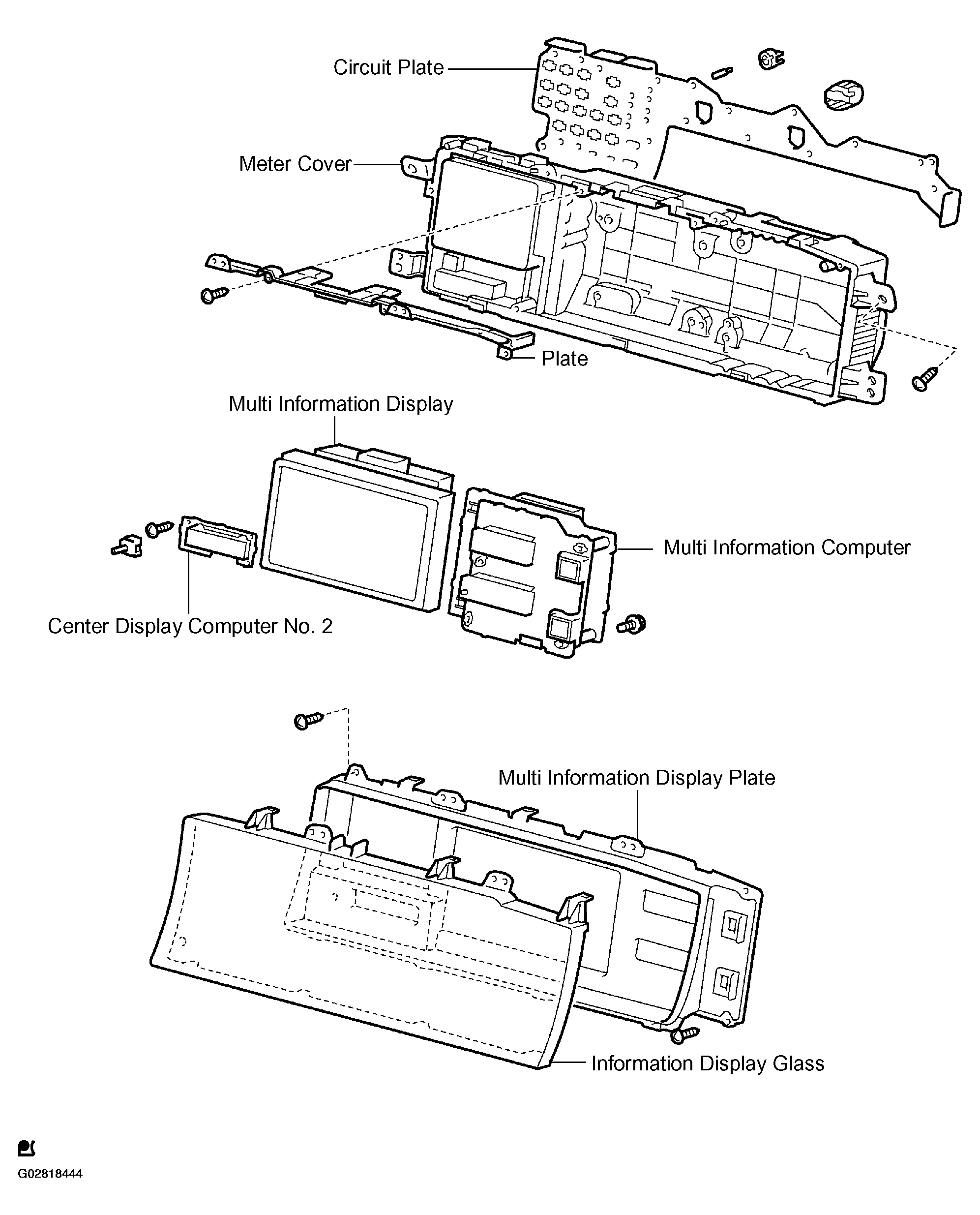

Fig 2: Exploded View Of Multi Information Display (2 Of 2)
G02818444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

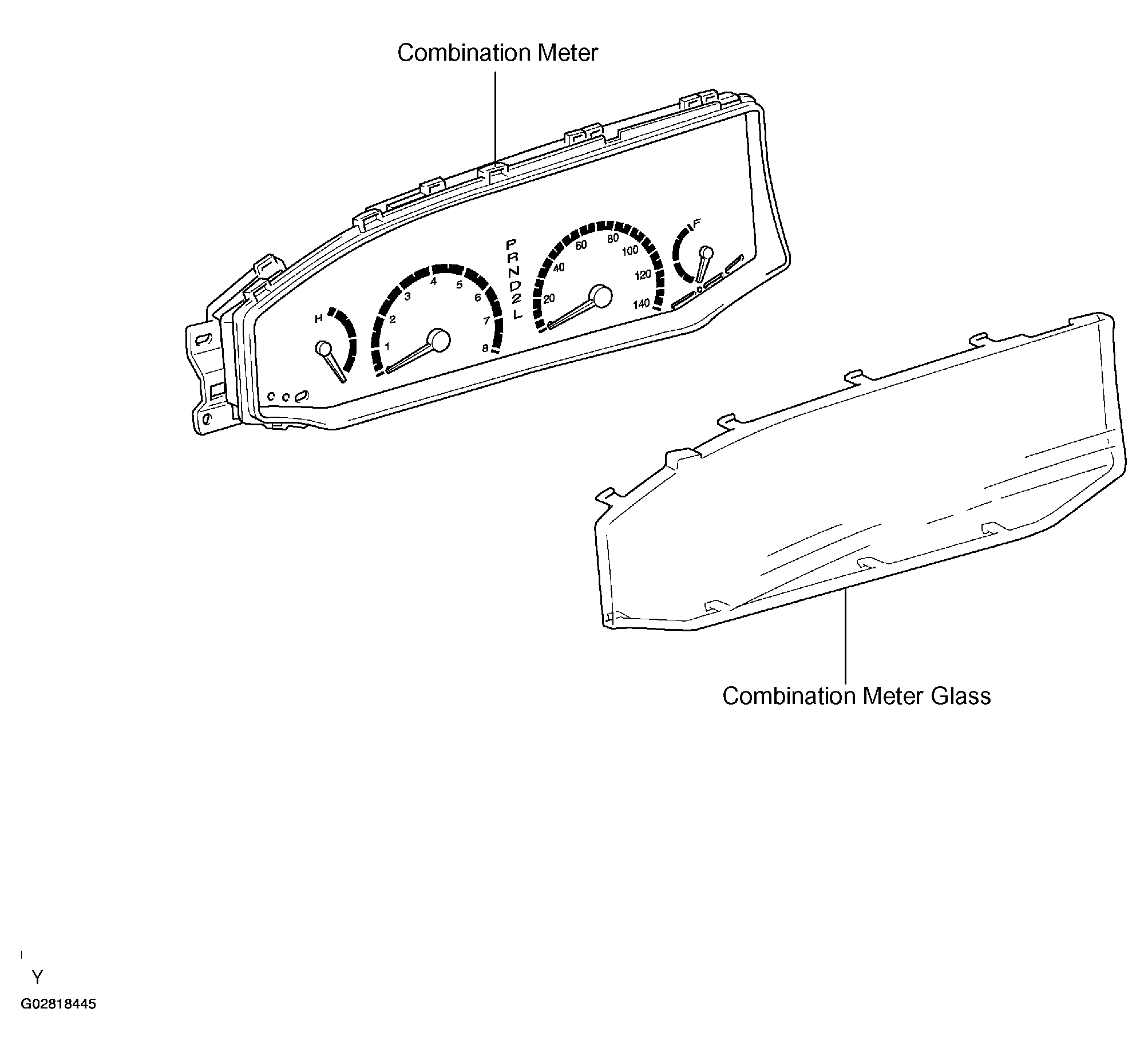

Fig 3: Exploded View Of Combination Meter
G02818445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
