Stop Light System: Inspection

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Inspect stop light switch continuity :

Fig 1: Identifying Stop Light Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

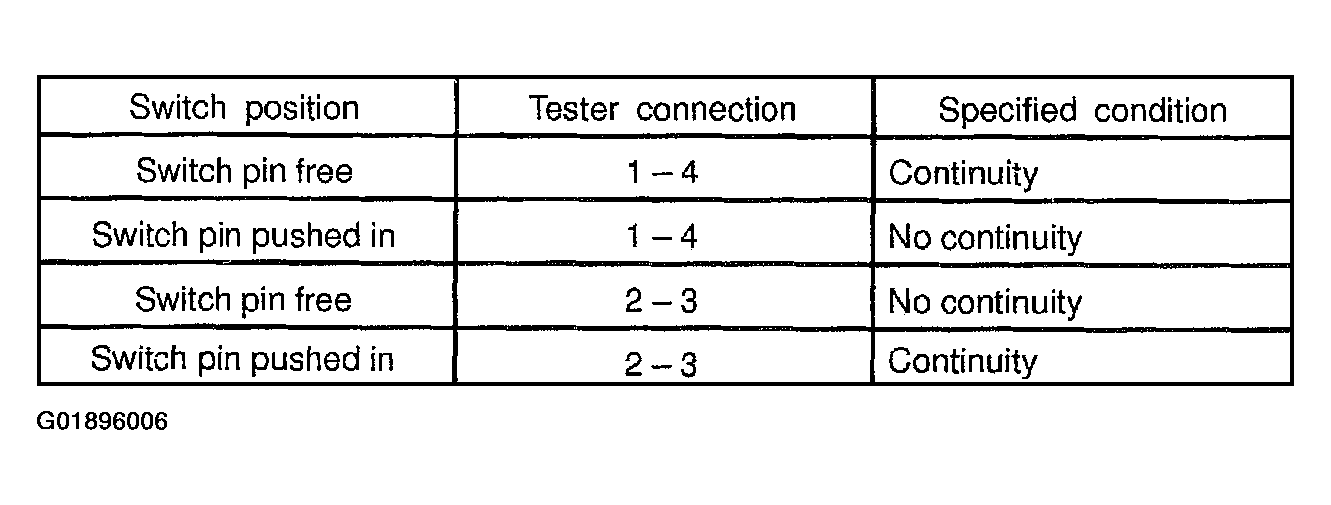

Fig 2: Stop Light Switch Terminal Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
W/Rear Spoiler , inspect hi-mounted stop light assembly continuity:
Using the ohmmeter, check that continuity exists between terminal 1 and terminal 2.

Fig 3: Identifying Hi-Mounted Stop Light Terminals (W/Rear Spoiler)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the light assembly or bulb.
W/O Rear Spoiler, inspect hi-mounted stop light assembly continuity :
Using the ohmmeter, check that continuity exists between terminal 1 and terminal 2.

If continuity is not as specified, replace the light assembly or bulb.

Fig 4: Identifying Hi-Mounted Stop Light Terminals (W/O Rear Spoiler)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
