How To Proceed With Troubleshooting

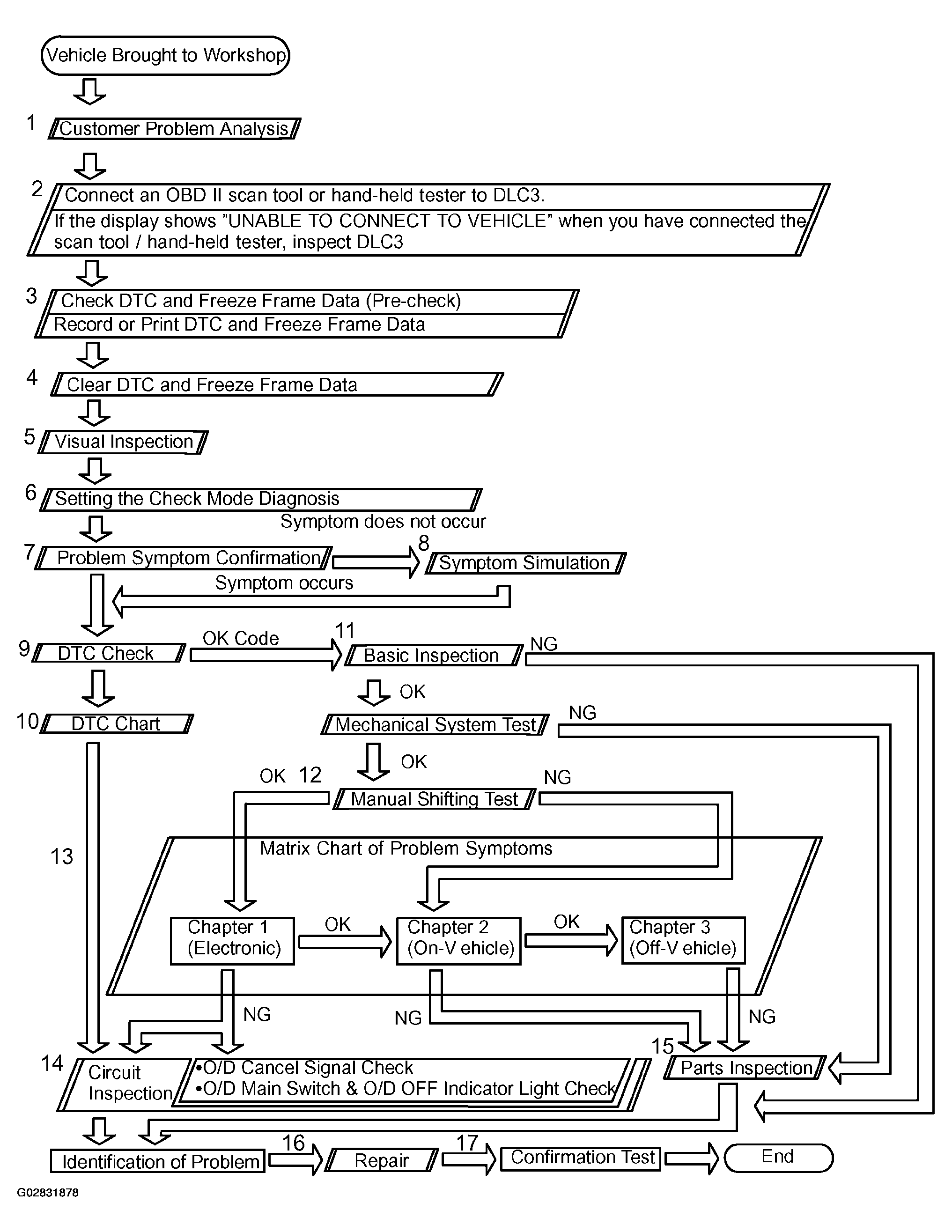

Fig 1: Automatic Transaxle Troubleshooting Flow Chart
G02831878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
