Torque Specifications

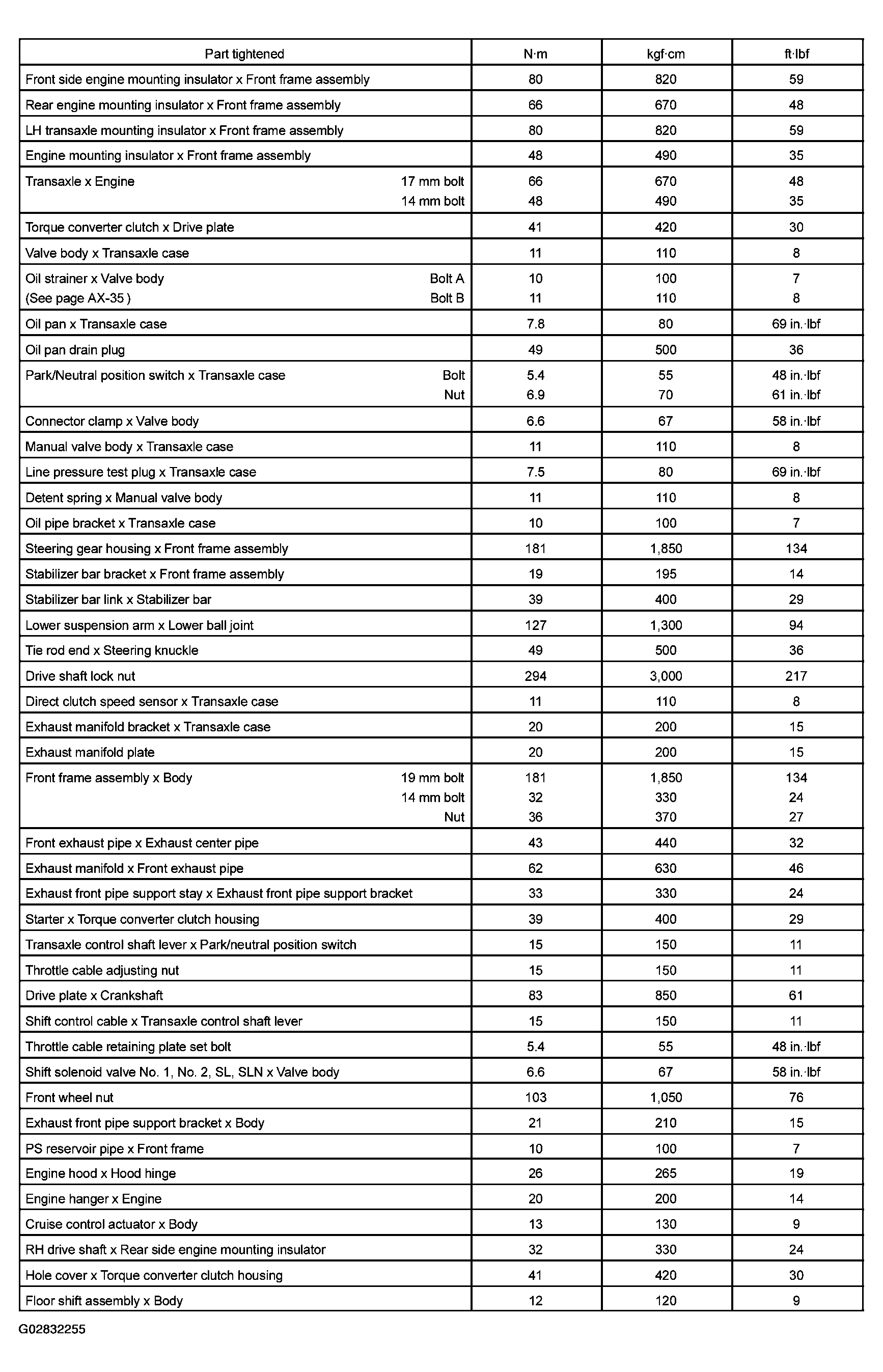

Fig 1: Automatic Transaxle Torque Specifications
G02832255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
