Back Window Glass: Components

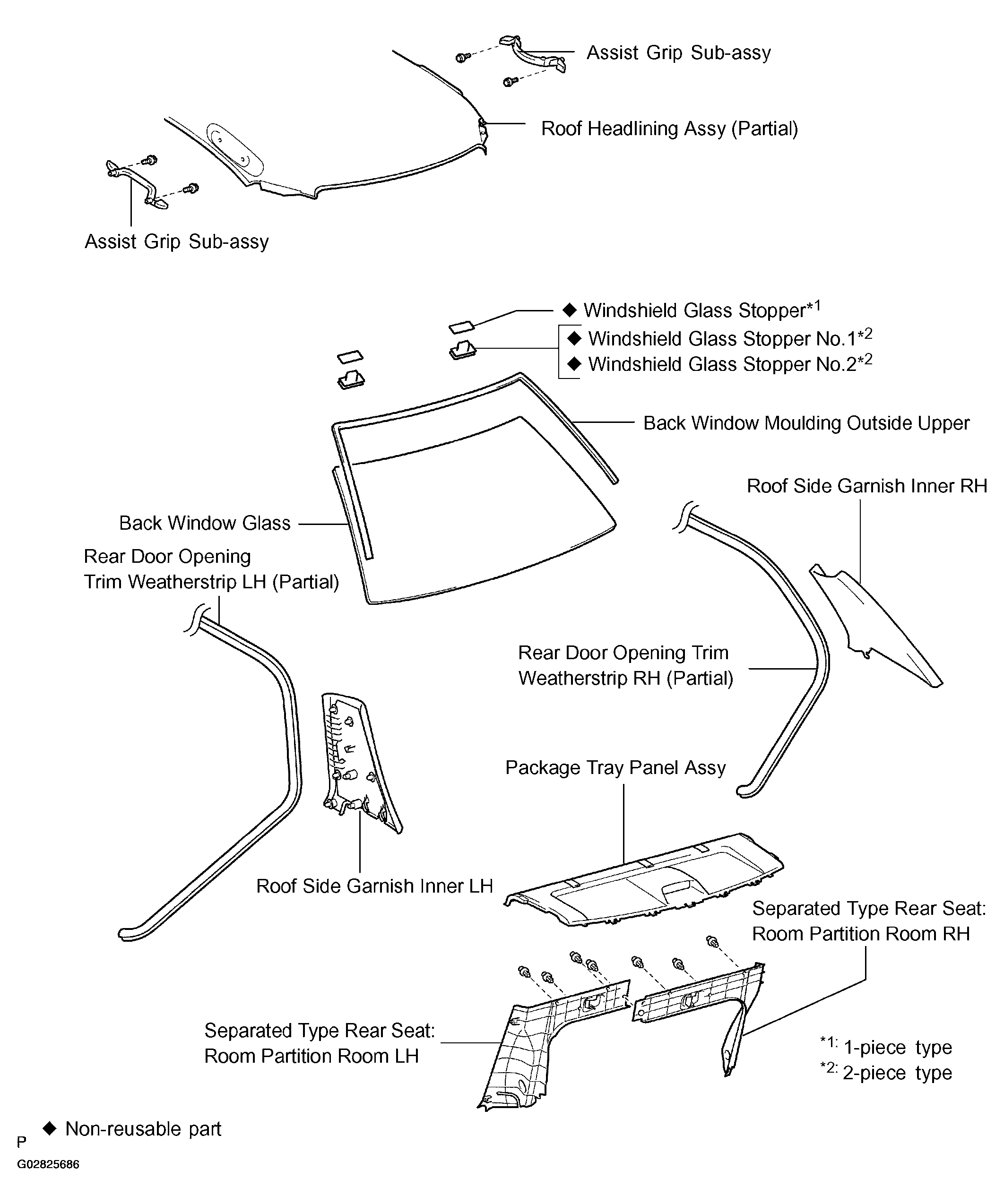

Fig 1: Locating Back Window Glass Components
G02825686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
