Manual Trans: Components

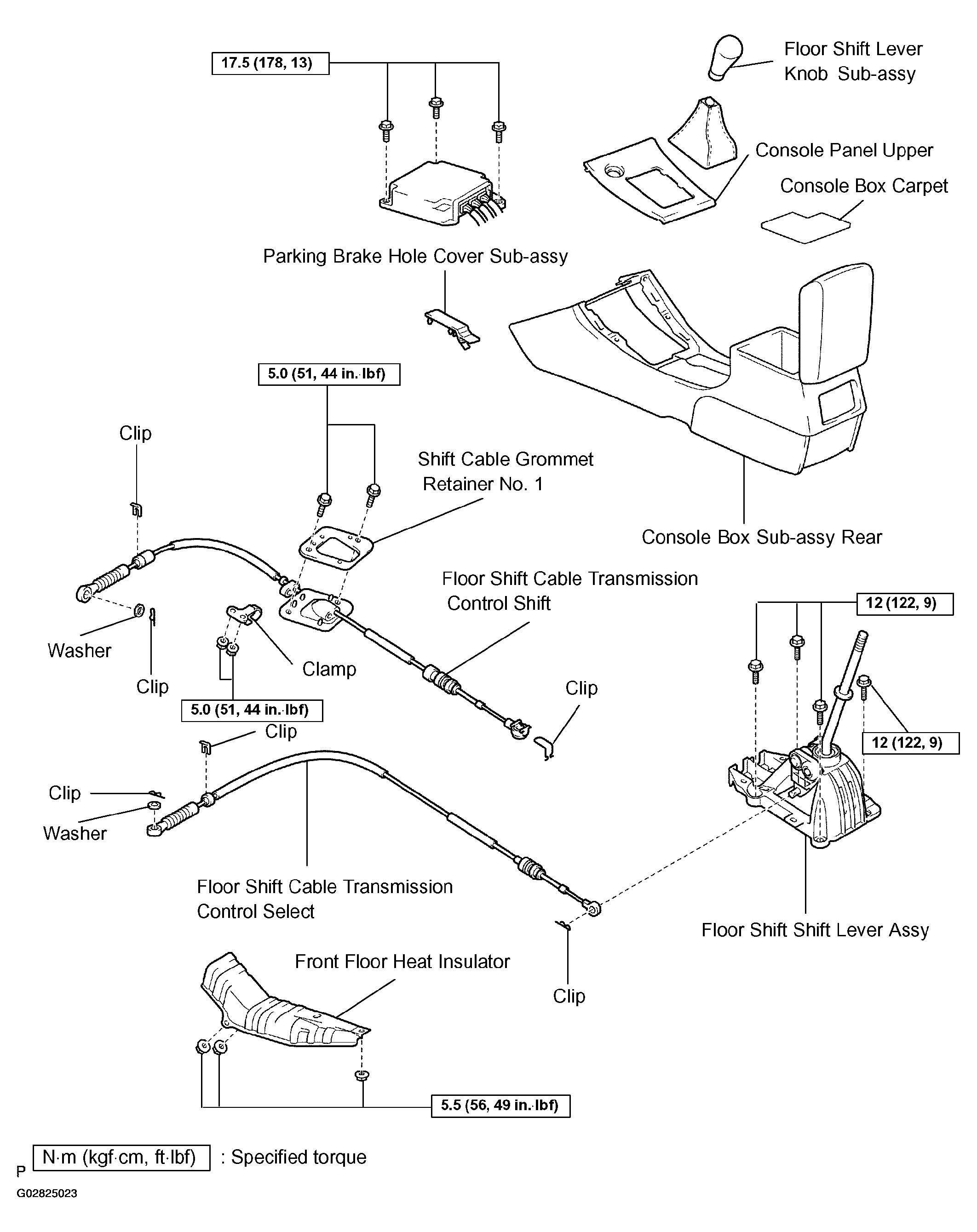

Fig 1: Locating Floor Shift Lever Assembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

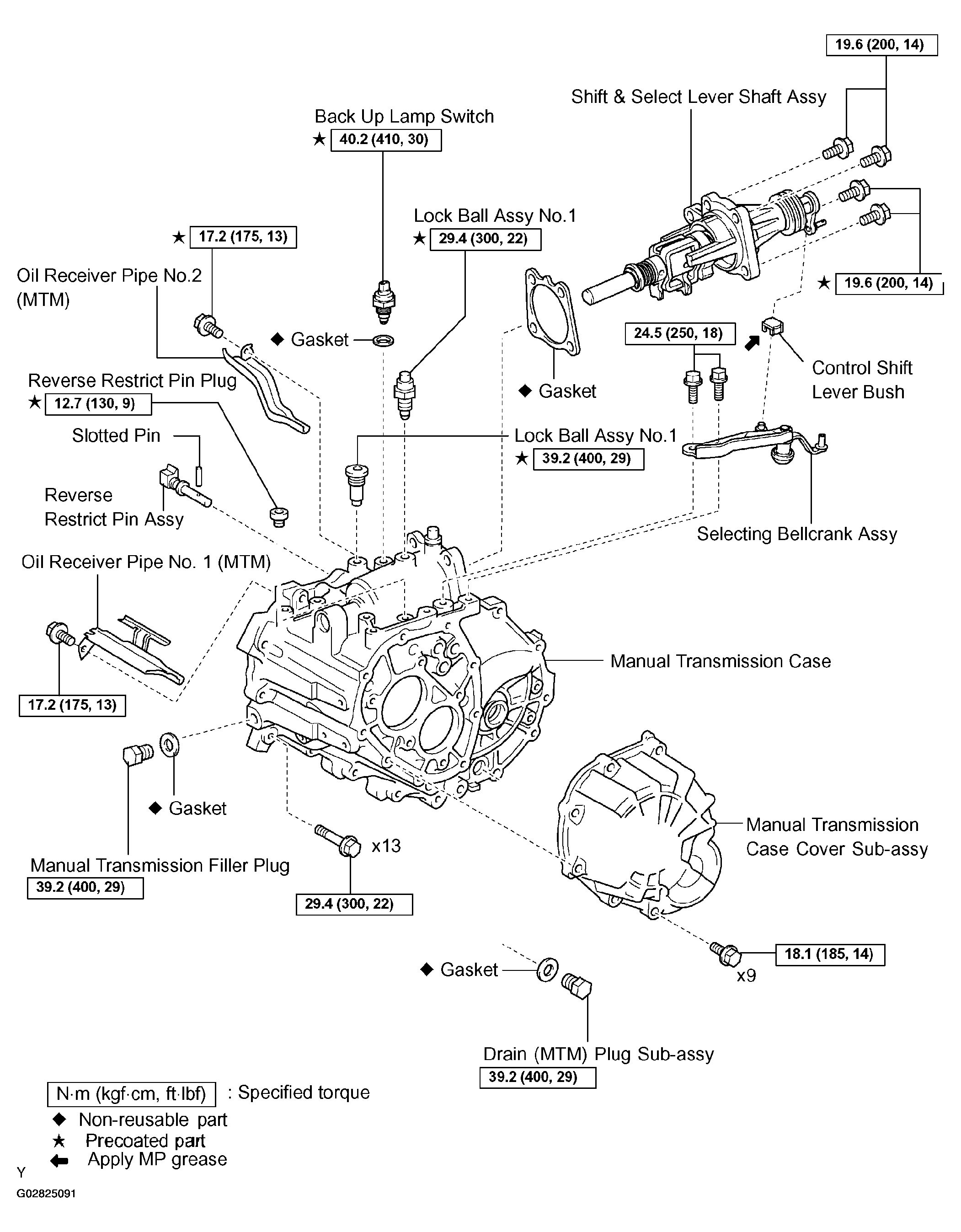

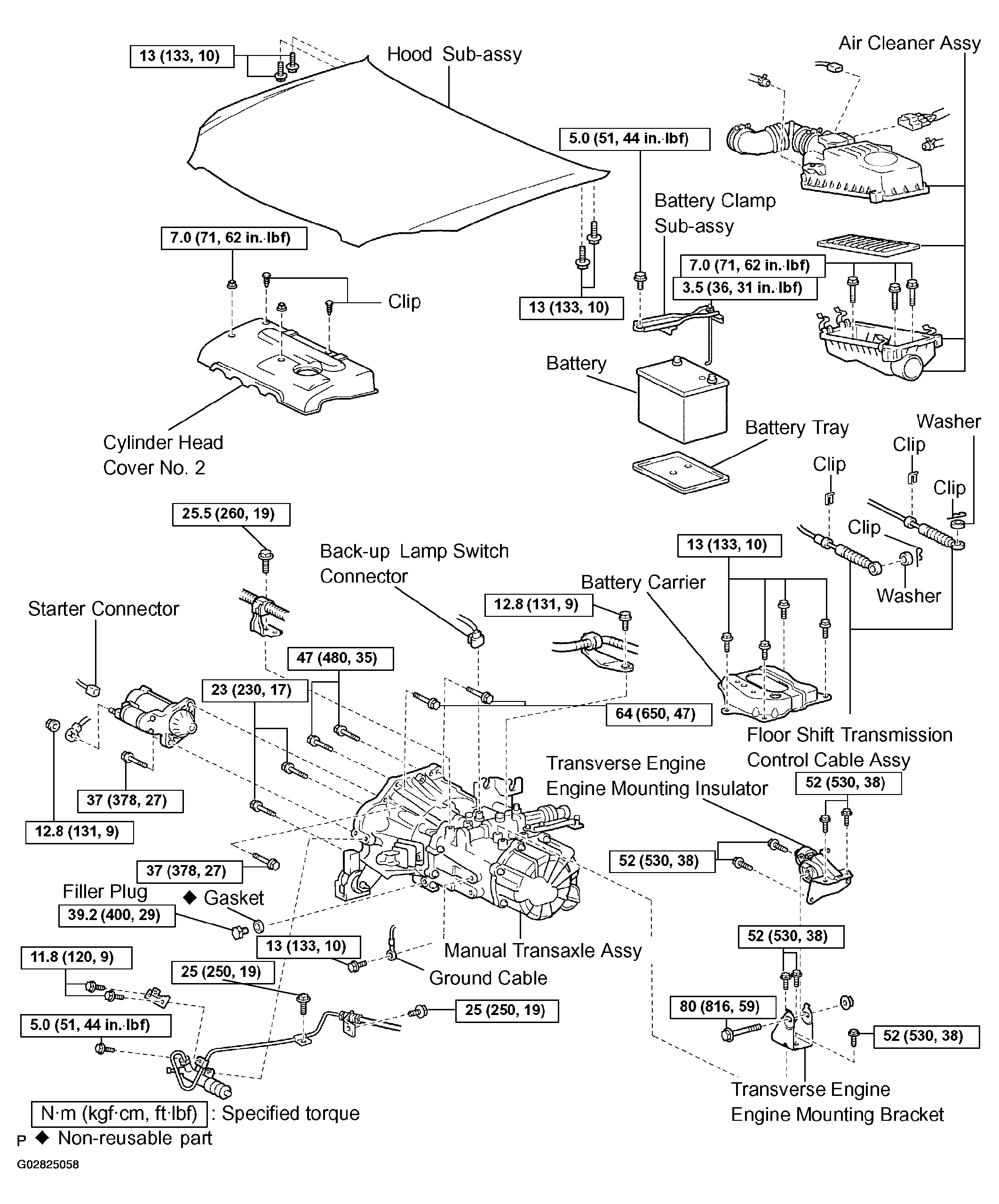

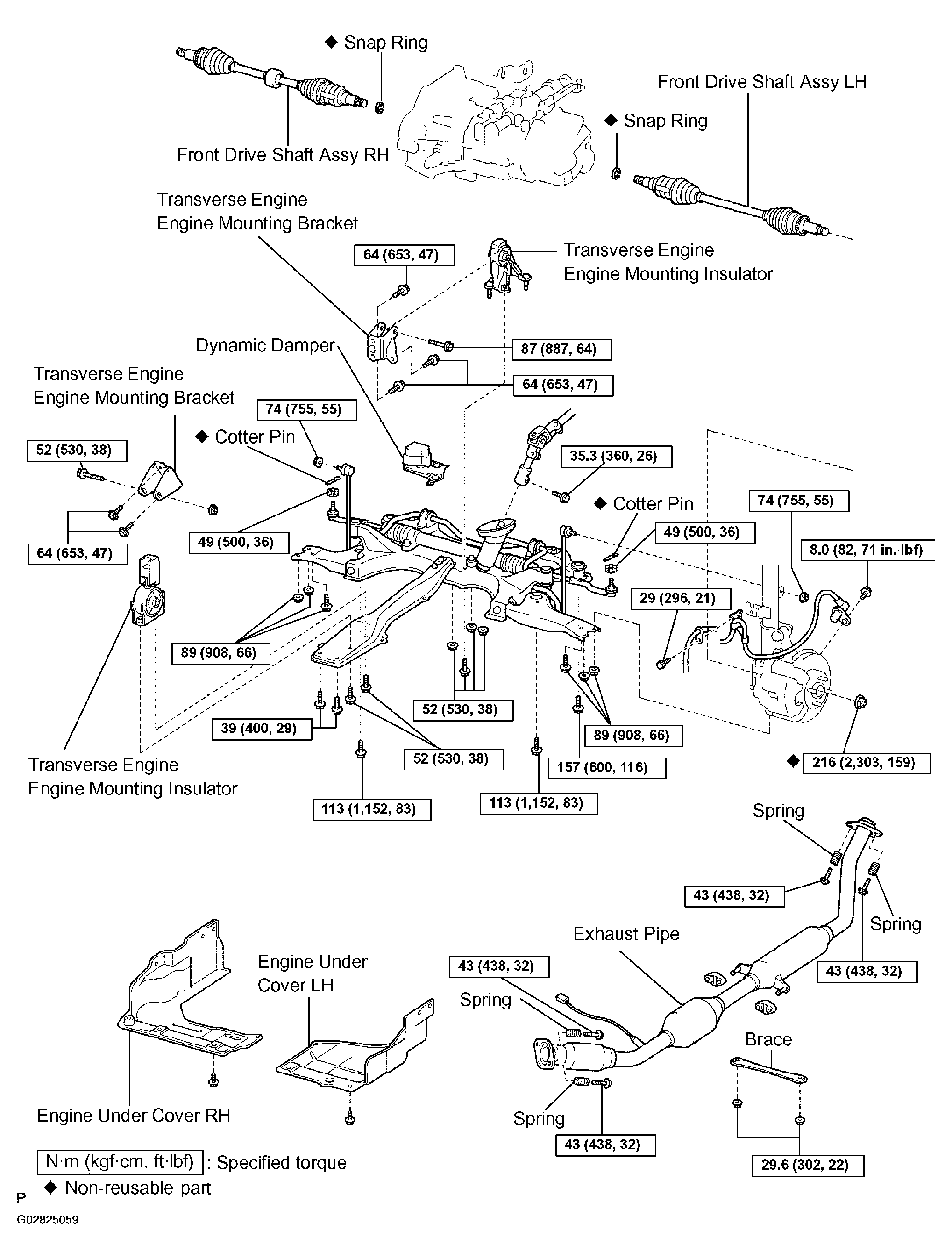

Fig 1: Locating Manual Transaxle Assembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

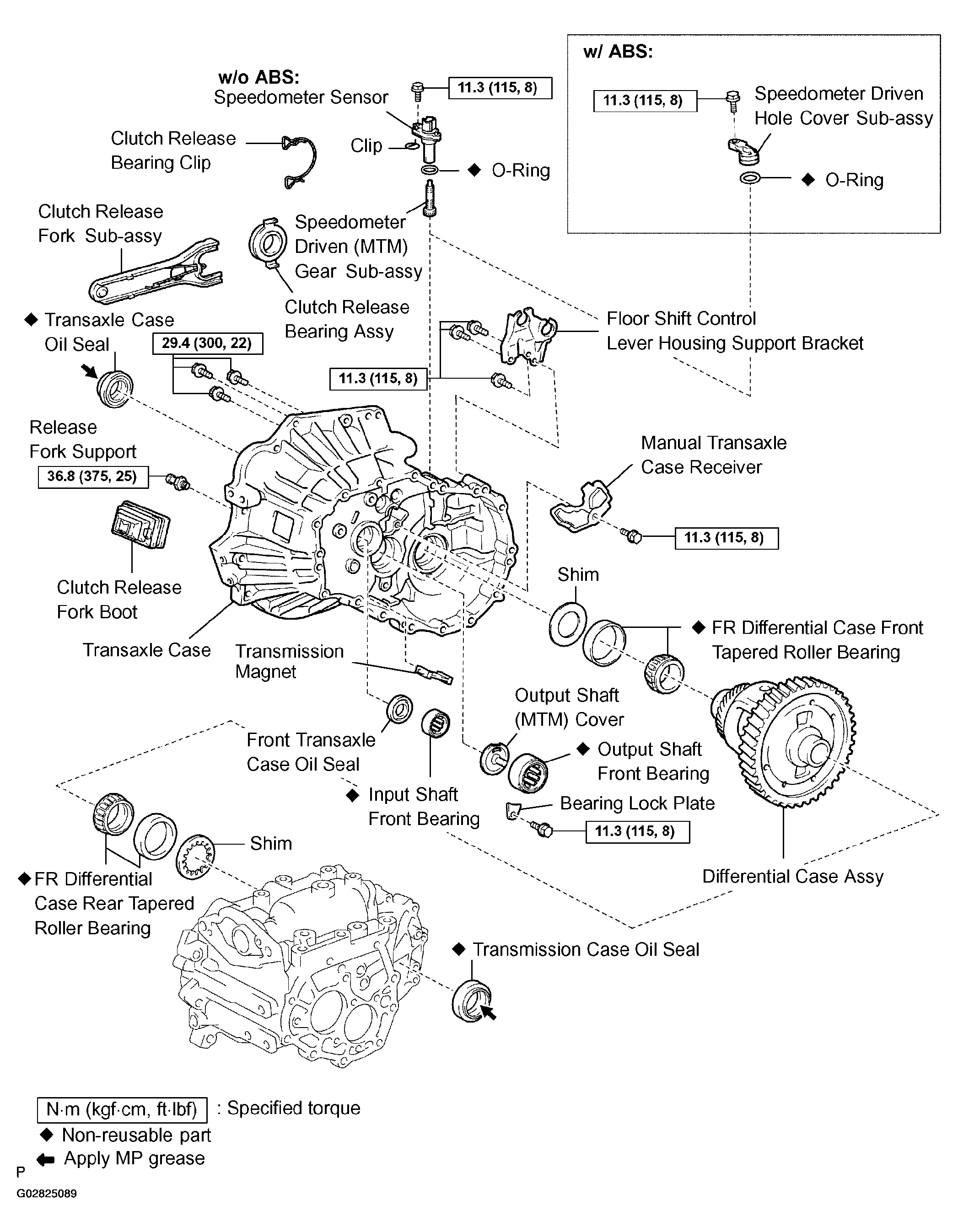

Fig 2: Locating Manual Transaxle Assembly Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

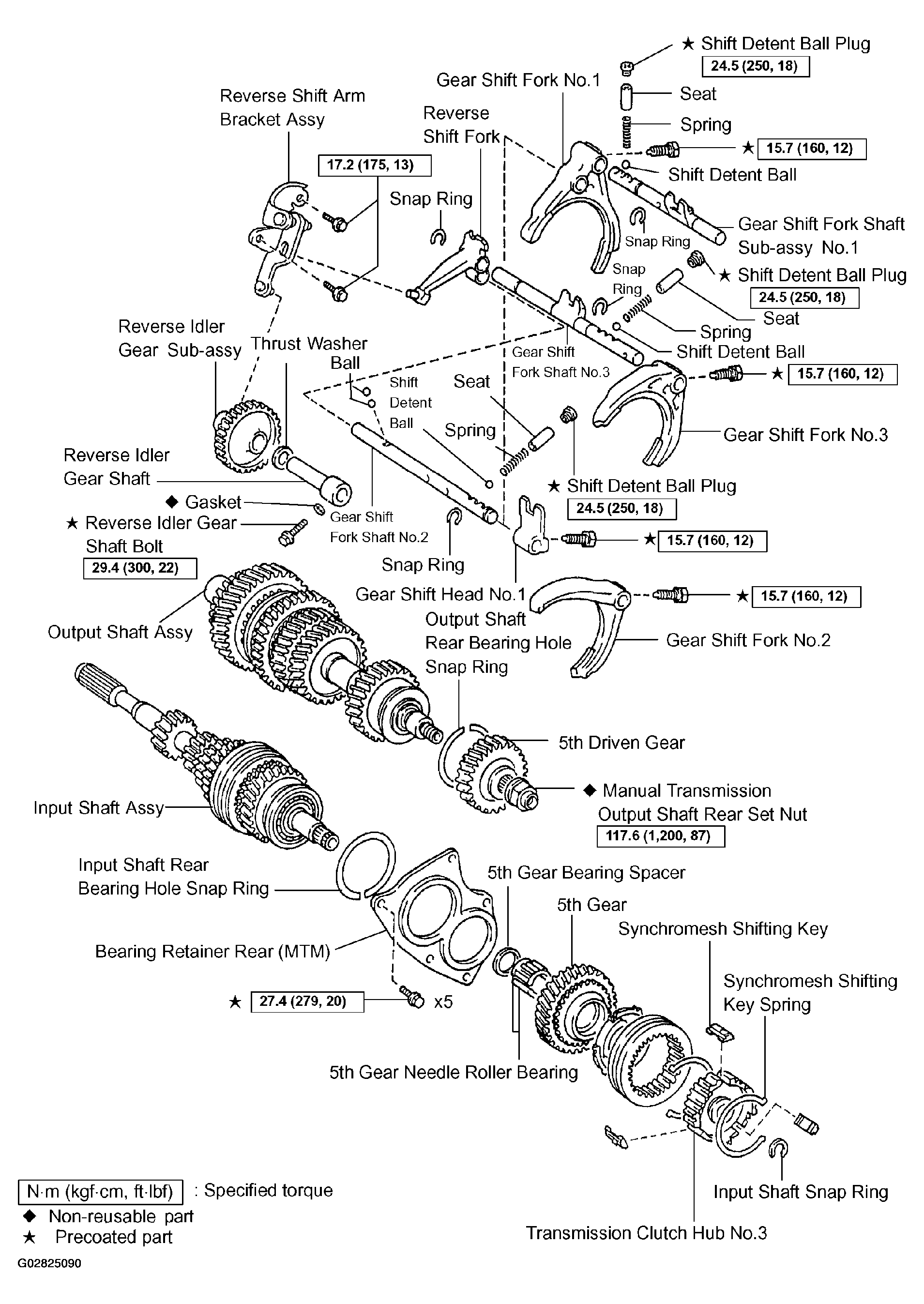

Fig 1: Locating Manual Transaxle Assembly Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Manual Transaxle Assembly Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

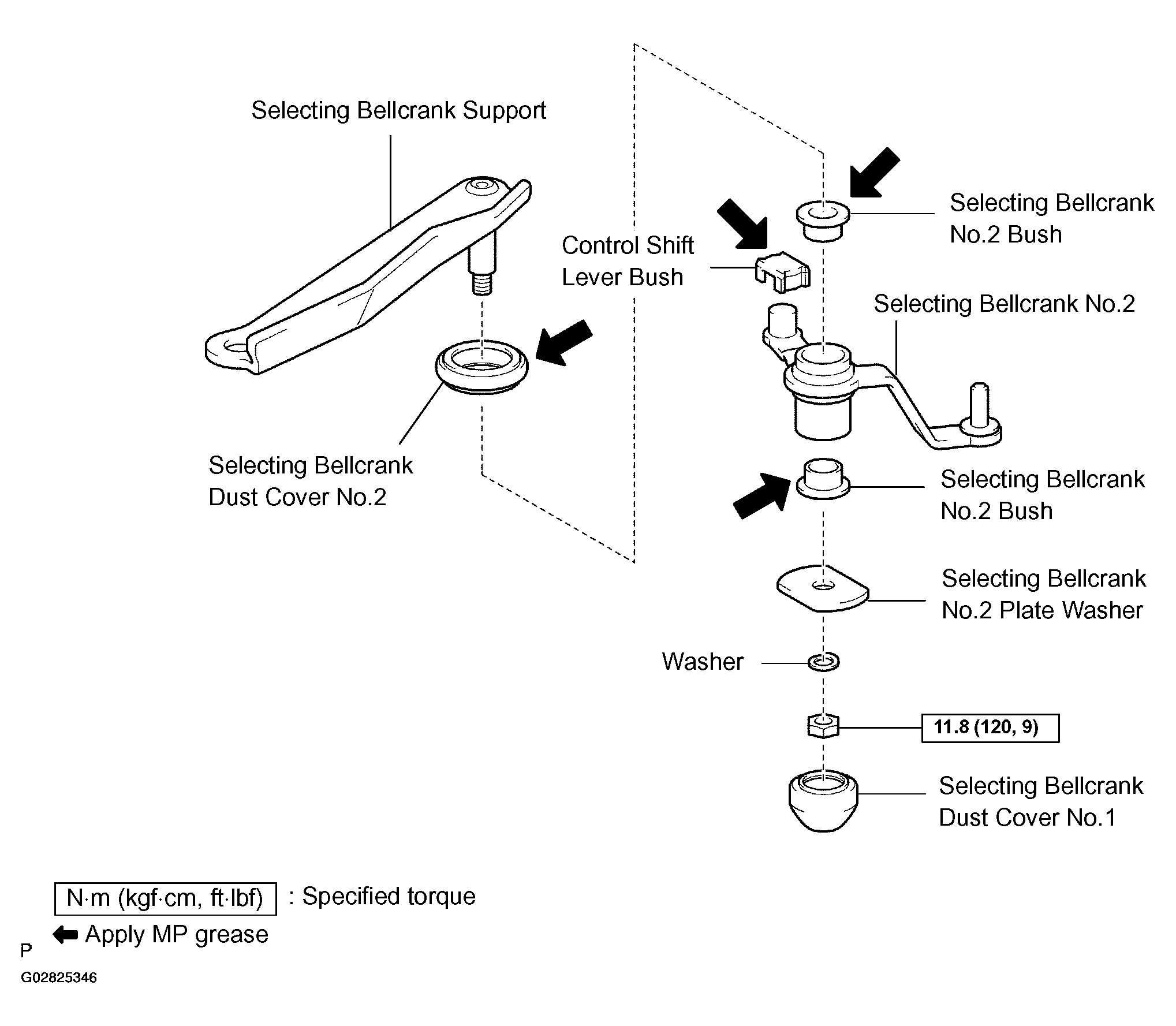

Fig 3: Locating Manual Transaxle Assembly Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

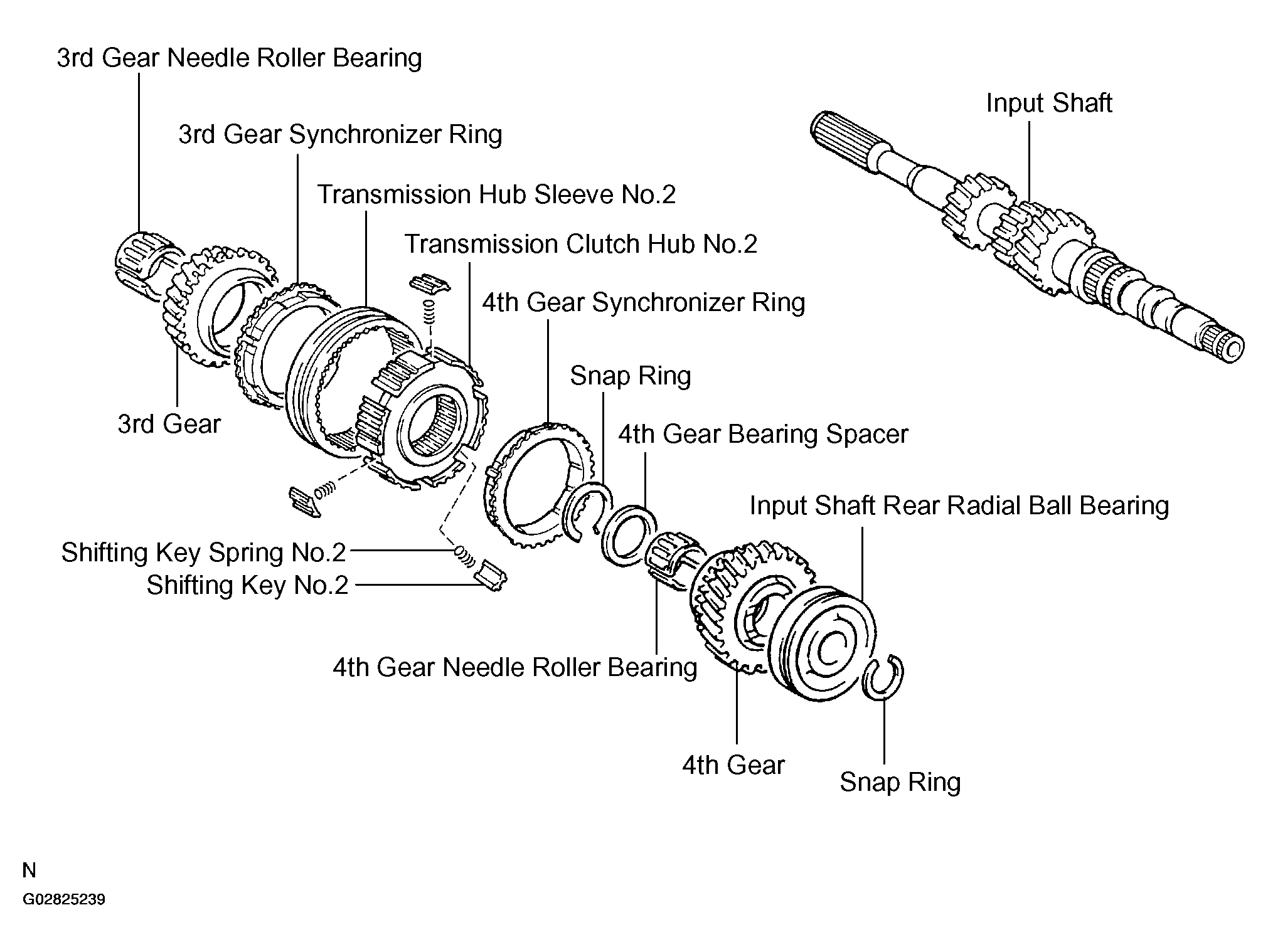

Fig 1: Locating Input Shaft Assembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

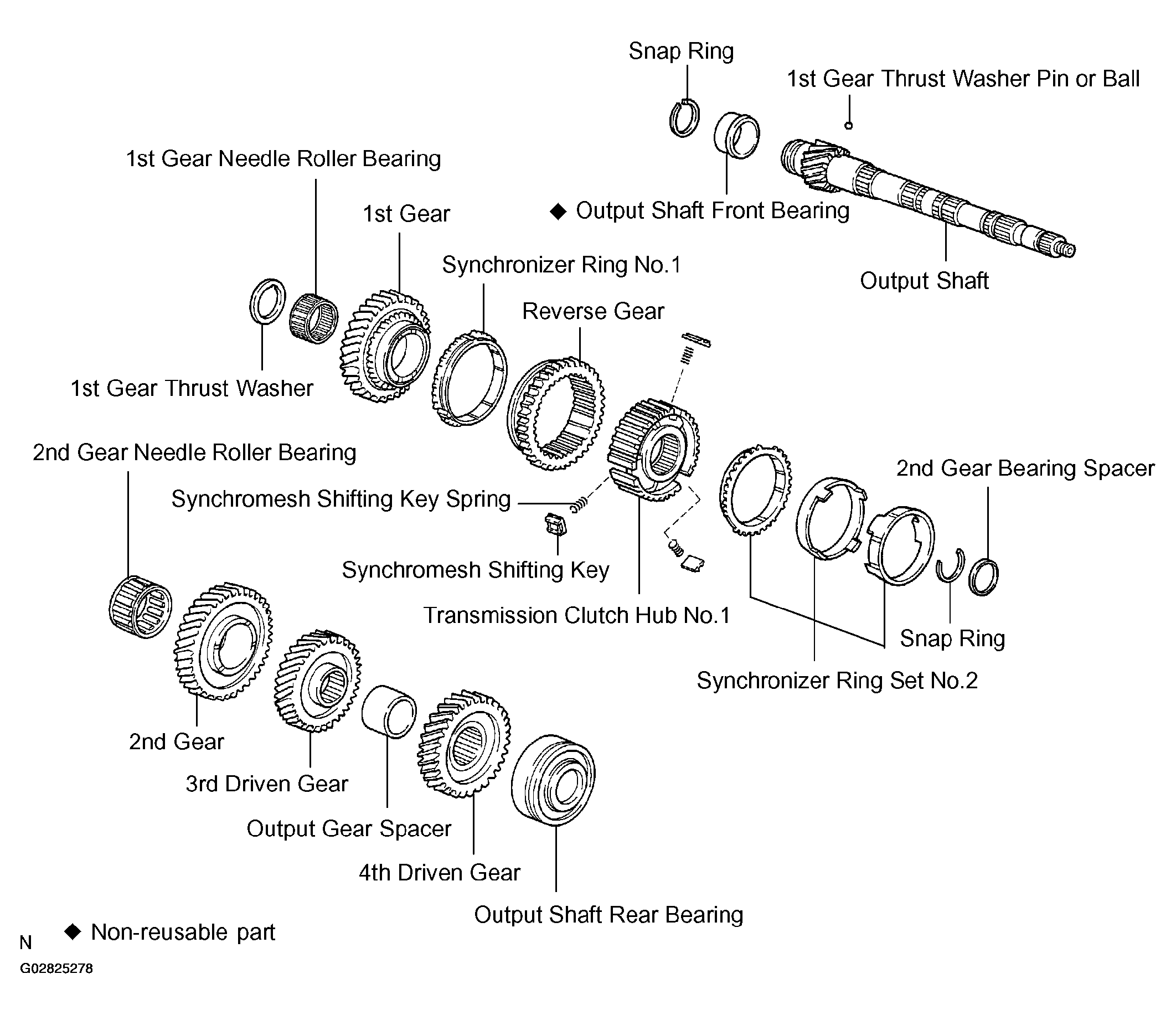

Fig 1: Locating Output Shaft Assembly Components

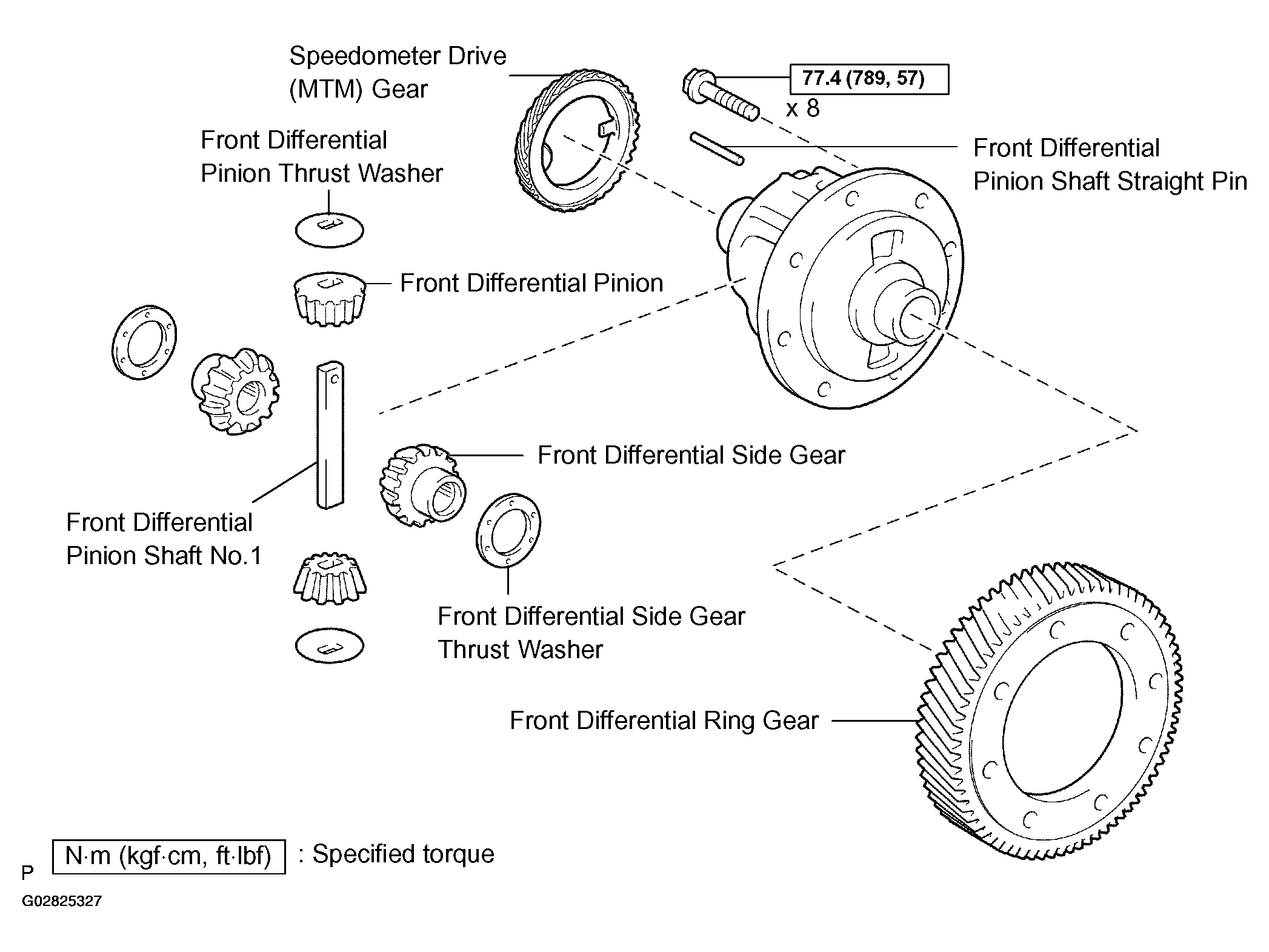

Fig 1: Locating Differential Case Assembly Components

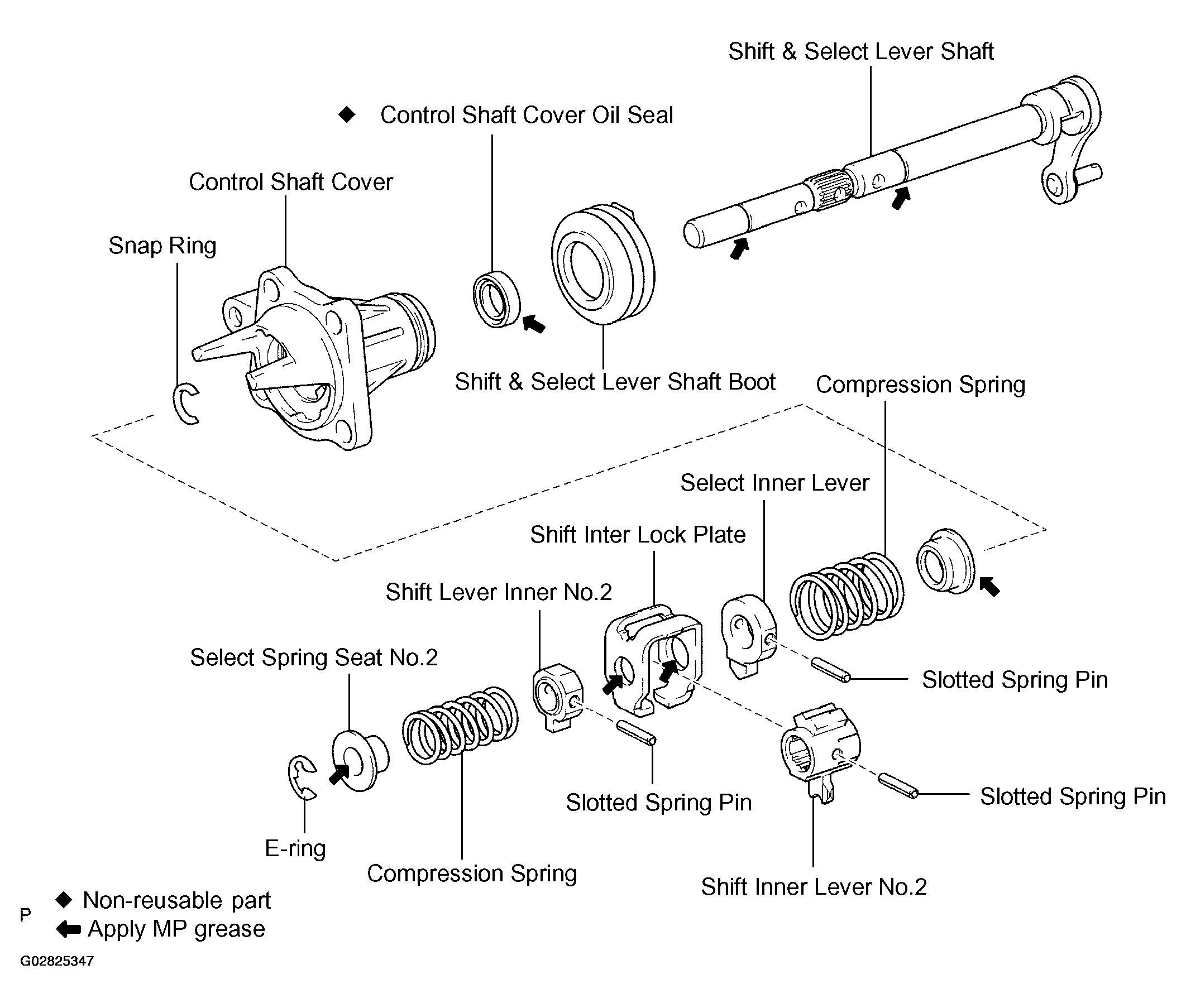

Fig 1: Locating Shift & Select Lever Shaft Assembly Components

Fig 2: Locating Shift & Select Lever Shaft Assembly Components
