Power Mirror Control System: Inspection

INSPECT OUTER MIRROR SWITCH ASSY
1. Inspect the mirror switch continuity.
  1. Left side for left/right adjustment switch:
    Inspect the mirror switch continuity.

    Standard (Left side):

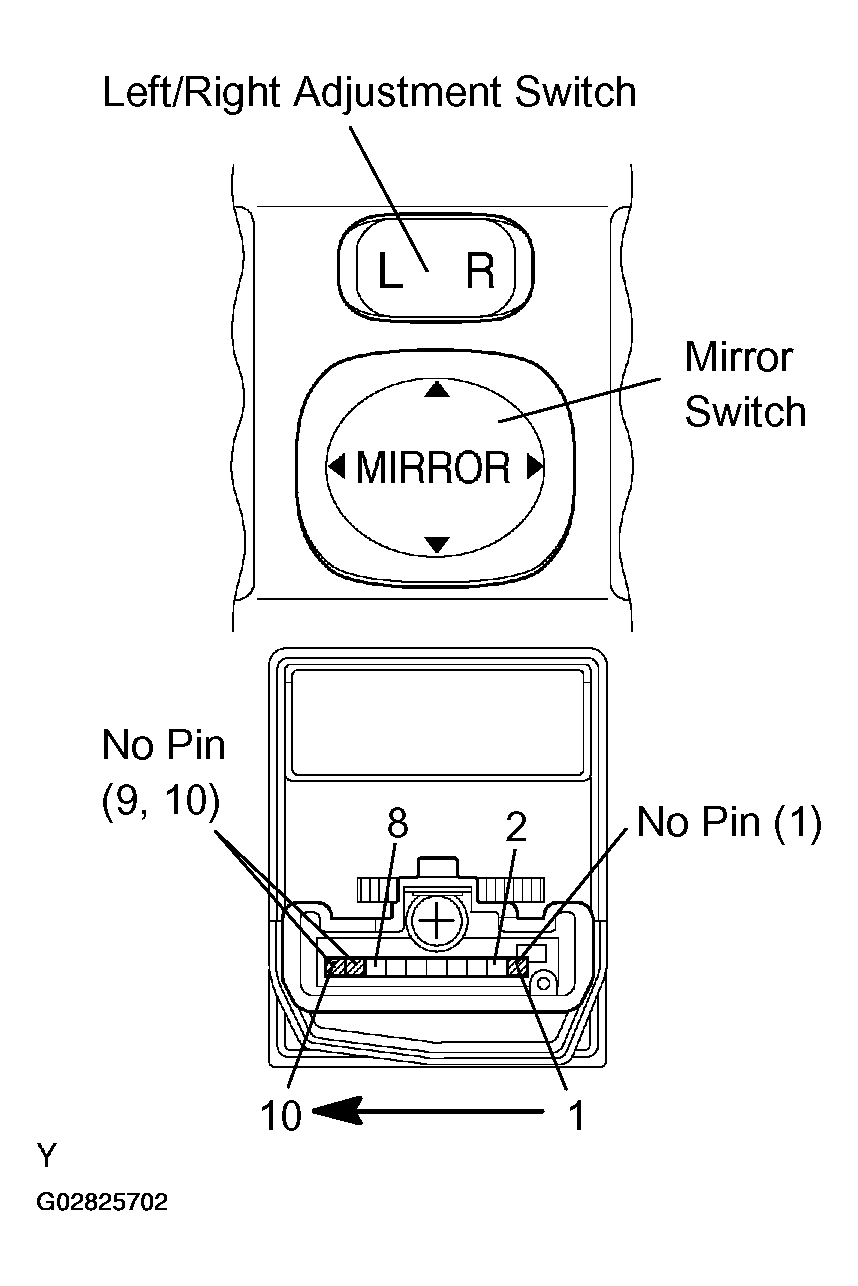

    Fig 1: Identifying Outer Mirror Switch Assembly Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

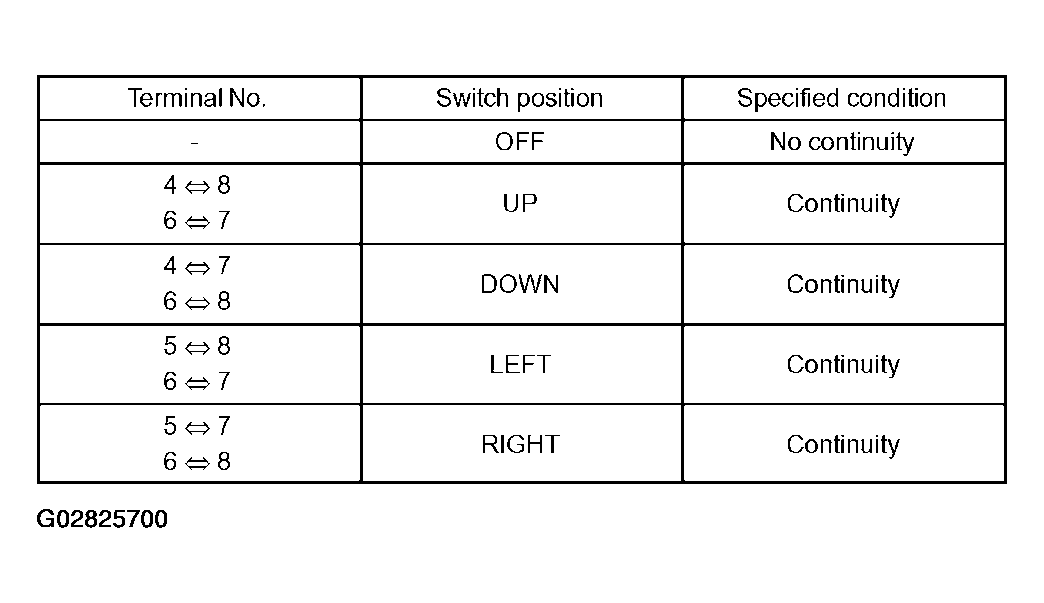

    Fig 2: Left/Right Side Mirror Adjustment Switch Continuity Table (Left Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the switch assembly.
  2. Right side for left/right adjustment switch:
    Inspect the mirror switch continuity.

    Standard (Right side):

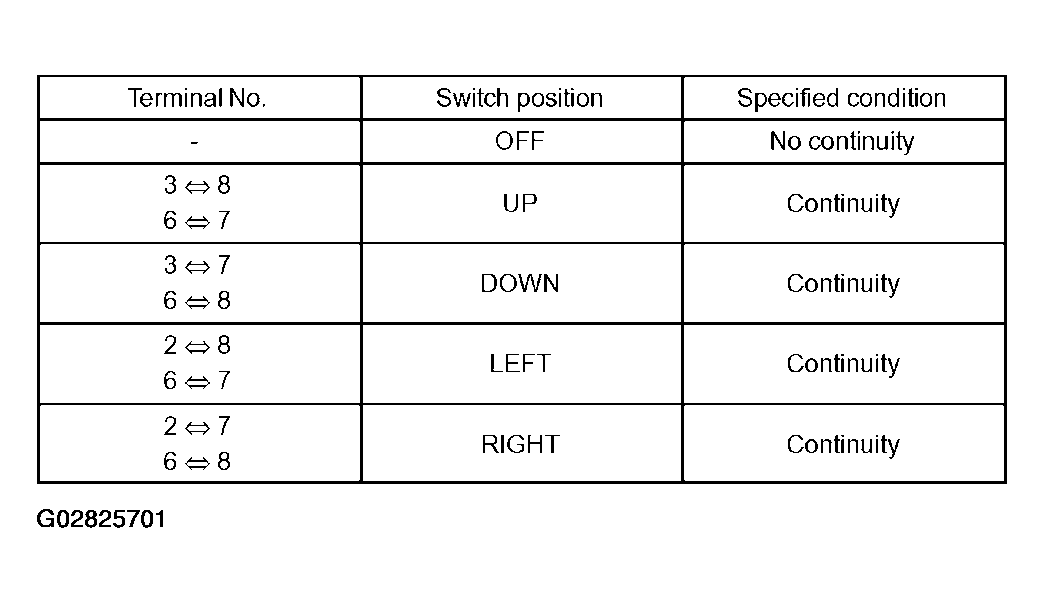

    Fig 3: Left/Right Side Mirror Adjustment Switch Continuity Table (Right Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the switch assembly.
INSPECT OUTER REAR VIEW MIRROR ASSY LH
1. Disconnect the outer rear view mirror assembly LH connector.
2. Inspect the mirror motor operation.
  1. Apply battery voltage as shown in the table.
  Standard:

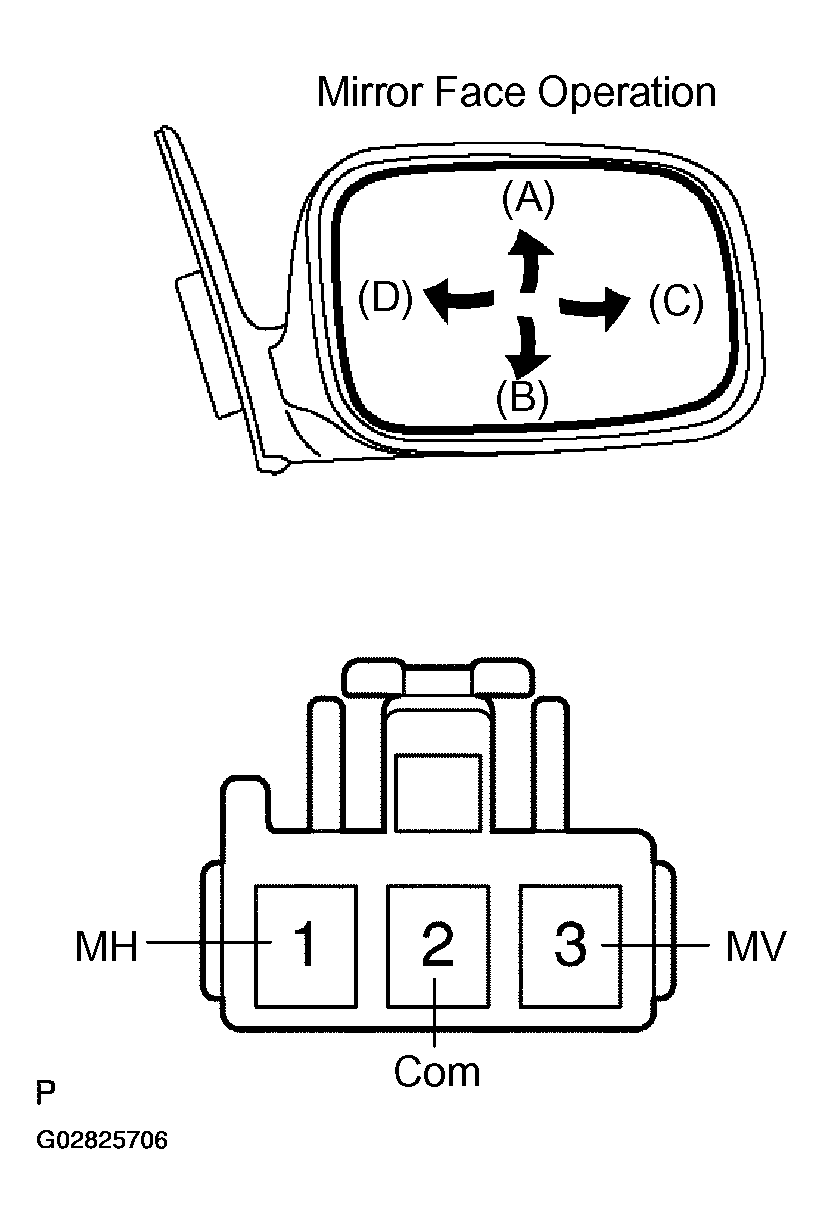

  Fig 4: Identifying Outer Rear View Mirror Assembly LH Operation And Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

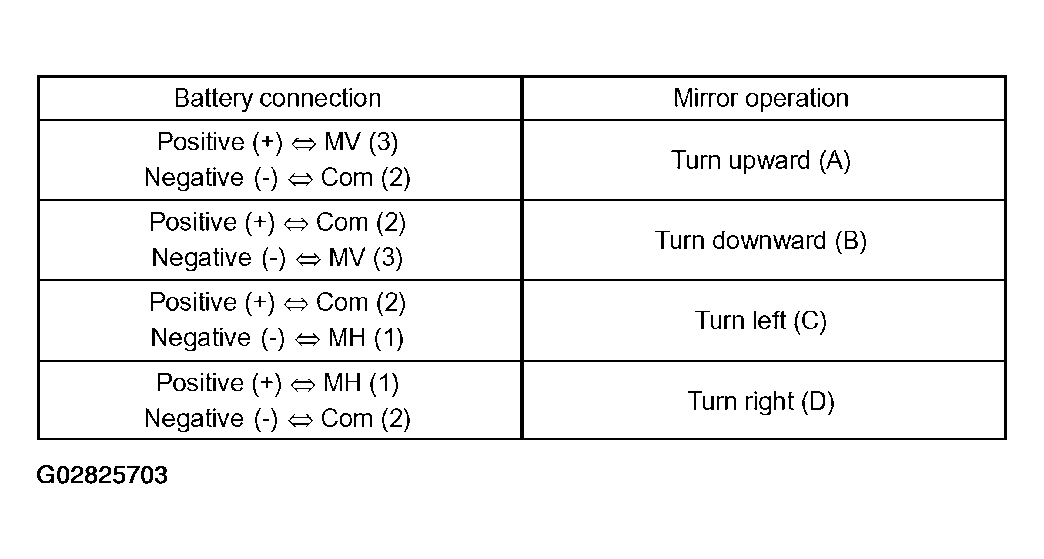

  Fig 5: Outer Rear View Mirror Assembly LH Operation Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the mirror assembly.
INSPECT OUTER REAR VIEW MIRROR ASSY RH
1. Disconnect the outer rear view mirror assembly RH connector.
2. Inspect the mirror motor operation.
  1. Apply battery voltage as shown in the table.
  Standard:

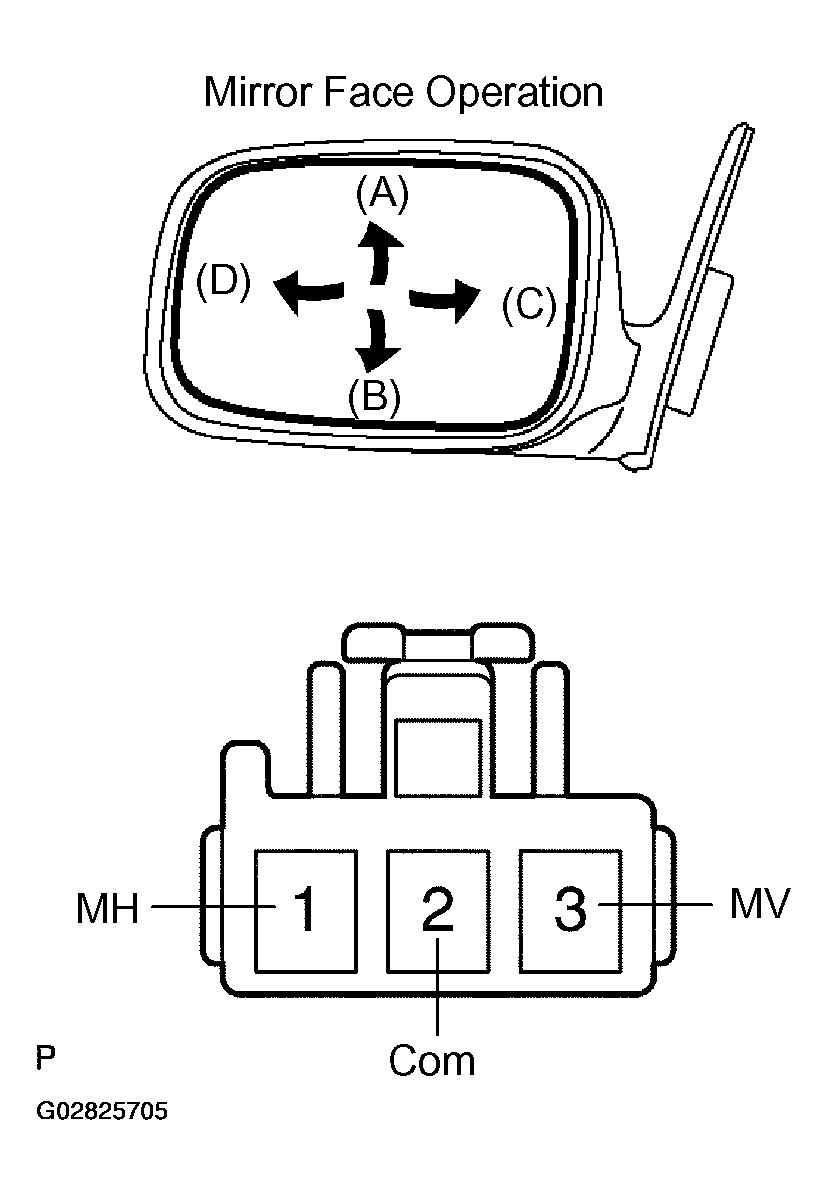

  Fig 6: Identifying RH Outer Rear View Mirror Operation And Mirror Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 7: Identifying Outer Rear View Mirror Assembly RH Operation And Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the mirror assembly.
