Brake Actuator Assembly: Replacement

DRAIN BRAKE FLUID
NOTE: Wash the brake fluid off immediately if it comes into contact with any painted surface.
REMOVE FRONT WHEEL RH
REMOVE FRONT FENDER LINER RH
REMOVE BRAKE ACTUATOR WITH BRACKET
1. Turn the latch of the actuator connector to disconnect the connector.
2. Using SST, disconnect the 6 brake tubes from the brake actuator.
  SST 09023-00100

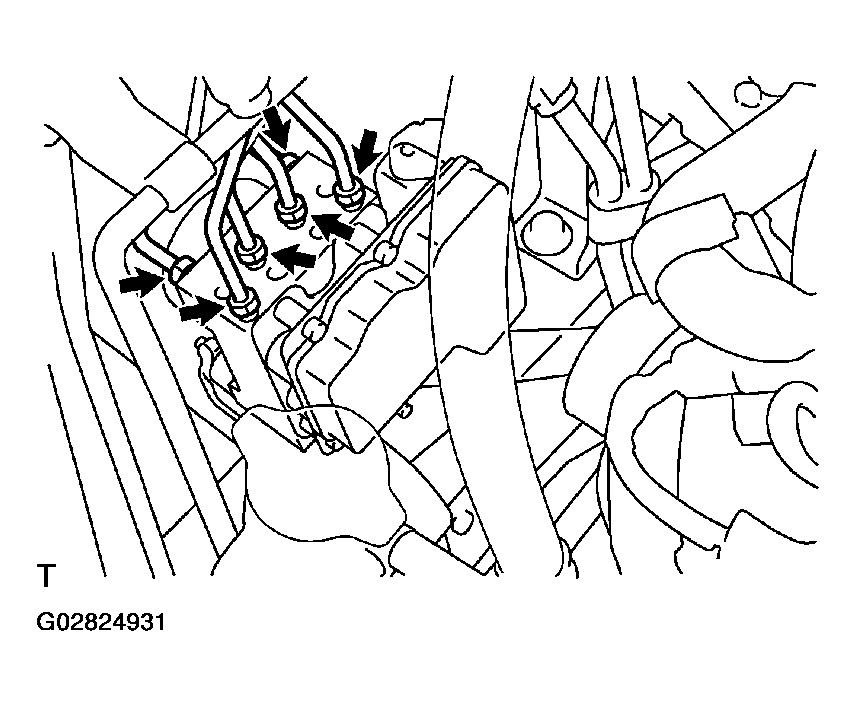

  Fig 1: Disconnecting Brake Tubes From Brake Actuator Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach tags or make a memo to identify the place to reconnect.

  Fig 2: Attaching Tags On Brake Tubes Of Brake Actuator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the nut, 2 bolts and brake actuator with bracket.
Fig 3: Removing Brake Actuator With Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE ACTUATOR ASSY
1. Remove the 3 nuts and brake actuator from bracket.
INSTALL BRAKE ACTUATOR ASSY
1. Install the brake actuator with the 3 nuts to the bracket.
  Torque: 4.7 N.m (48 kgf.cm, 42 in..lbf)
INSTALL BRAKE ACTUATOR WITH BRACKET
1. Install the brake actuator with bracket with the nut and 2 bolts.
  Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

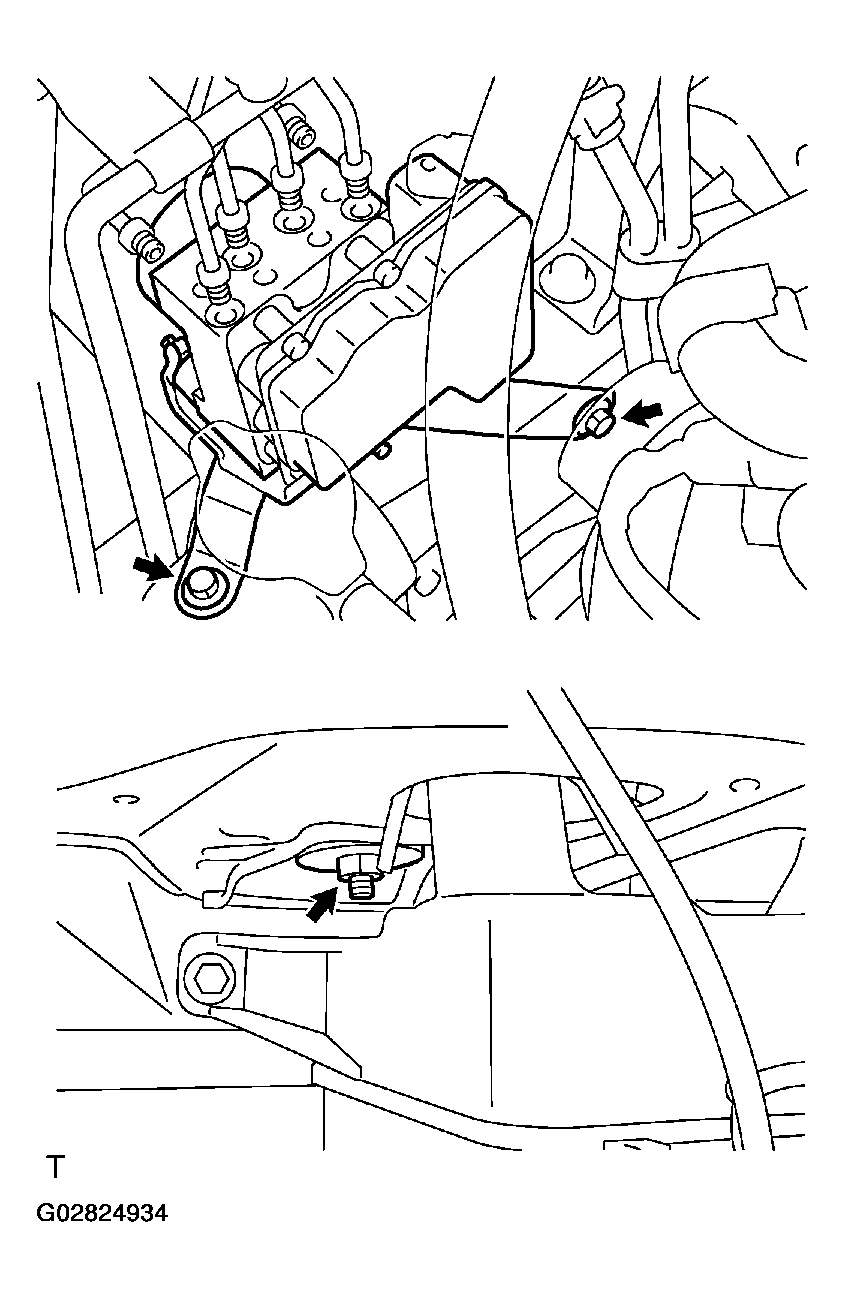

  Fig 4: Installing Brake Actuator With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, connect the 6 brake tubes to the correct position of brake actuator, as shown in the illustration.
  SST 09023-00100

  Torque: 15.2 N.m (155 kgf.cm, 11 ft.lbf)
3. Connect the brake actuator connector.

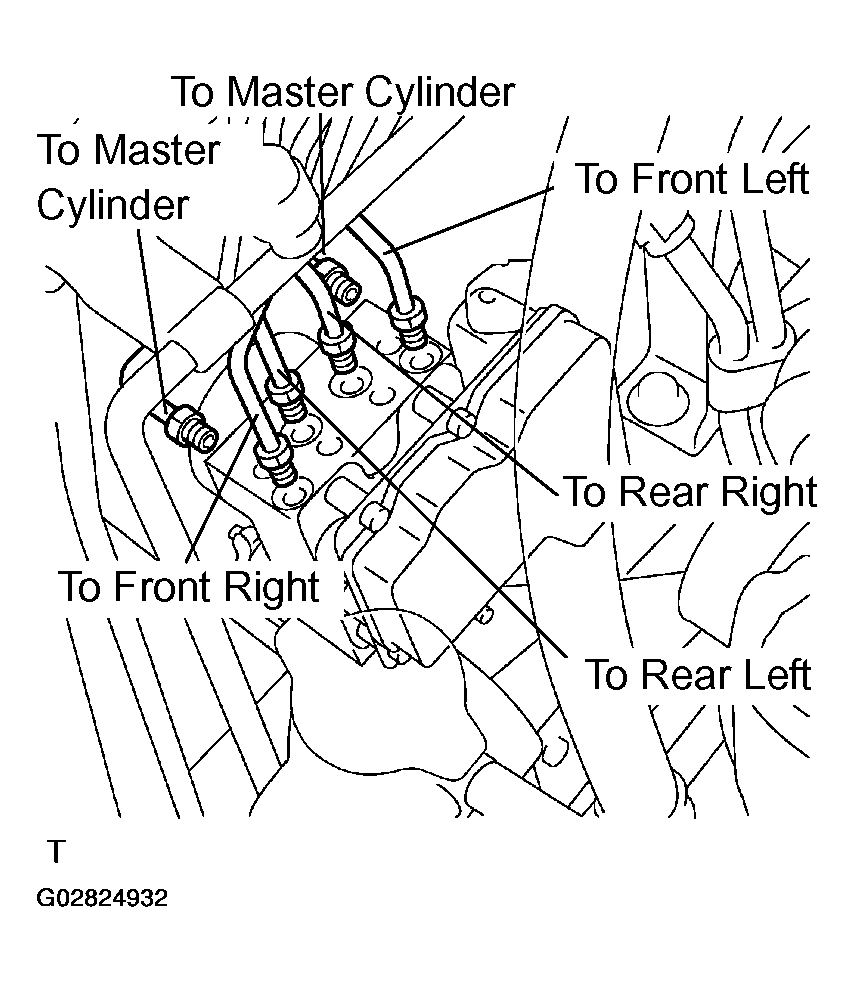

Fig 5: Connecting Brake Tubes To Correct Position Of Brake Actuator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER RH
INSTALL FRONT WHEEL RH
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
FILL RESERVOIR WITH BRAKE FLUID
BLEED MASTER CYLINDER (See )
SST 09023-00100
BLEED BRAKE LINE (See )
CHECK FLUID LEVEL IN RESERVOIR
CHECK BRAKE FLUID LEAKAGE
CHECK BRAKE ACTUATOR WITH HAND-HELD TESTER (See PRE-CHECK )
