On-Vehicle Inspection

1. After warming up the engine and then 5 minutes after the engine stop, oil level should be between the "L" and "F" marks on the dipstick. If low, check for leakage and add oil up to the "F" mark.

1. Check the oil for deterioration, entry of water, discoloring or thinning.
2. If the quality is visibly poor, replace the oil.

   Oil grade:

   API grade "SL" Energy-Conserving or ILSAC multigrade engine oil. Recommended viscosity is as shown in the illustration.

Fig 1: Identifying Oil Viscosity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the oil pressure switch connector and remove the oil pressure switch.

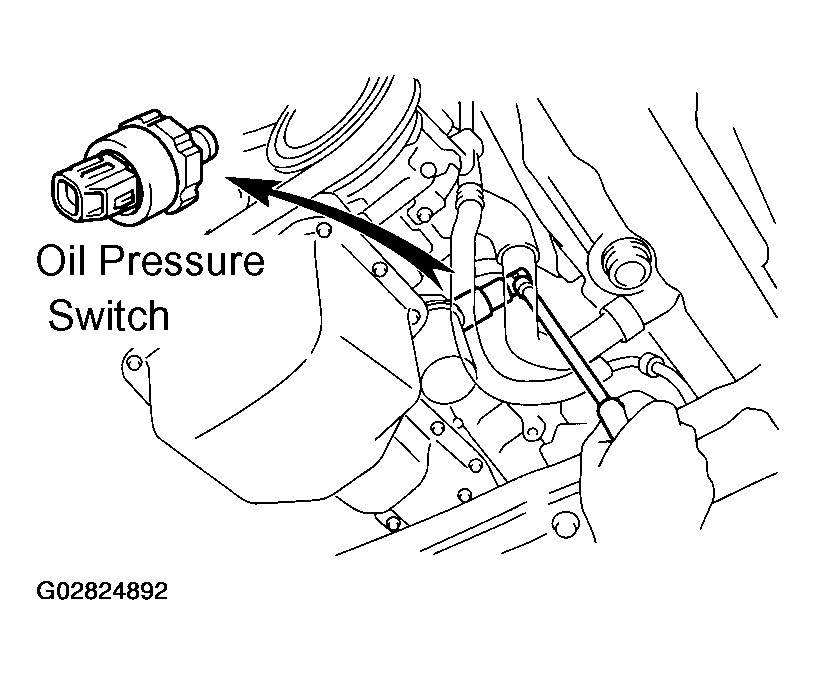

Fig 2: Identifying Pressure Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the oil pressure gauge.

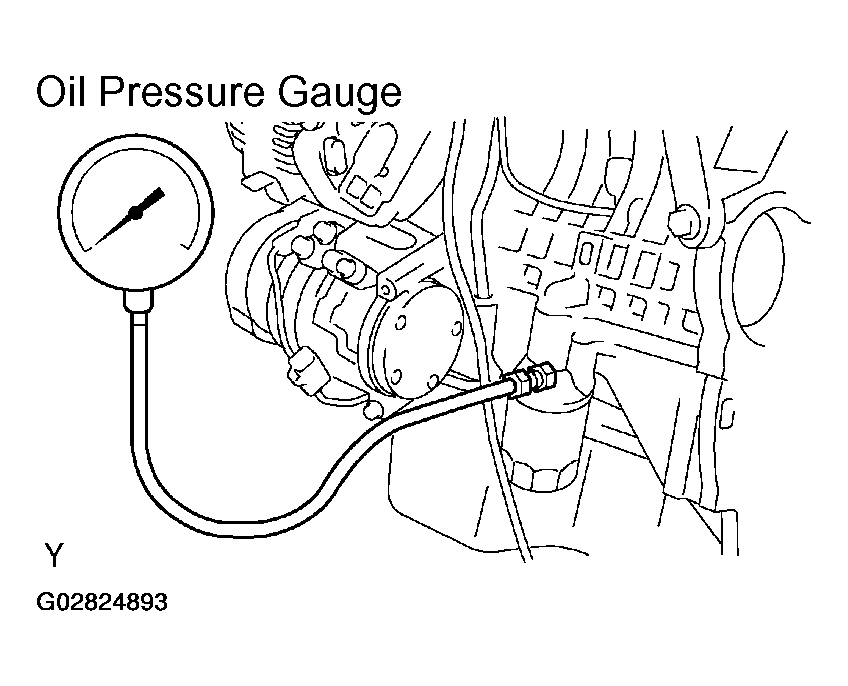

Fig 3: Installing Oil Pressure Gauge

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Oil pressure:

At idle 29 kPa (0.4kgf.cm ²  , 5.7 psi) or more

At 3000 r/min 294 - 539 kPa (3.0 - 5.5 kgf.cm ²  , 43 - 78 psi) or more

1. Apply adhesive to 2 or 3 threads of the oil pressure switch.

   Adhesive:

   Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

2. Install the oil pressure switch.

   Torque: 13 N.m (130 kgf.cm, 9.0 ft.lbf)

3. Connect the oil pressure switch connector.

Fig 4: Applying Adhesive Oil Pressure Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
