Chain Sub-ASSY: Components

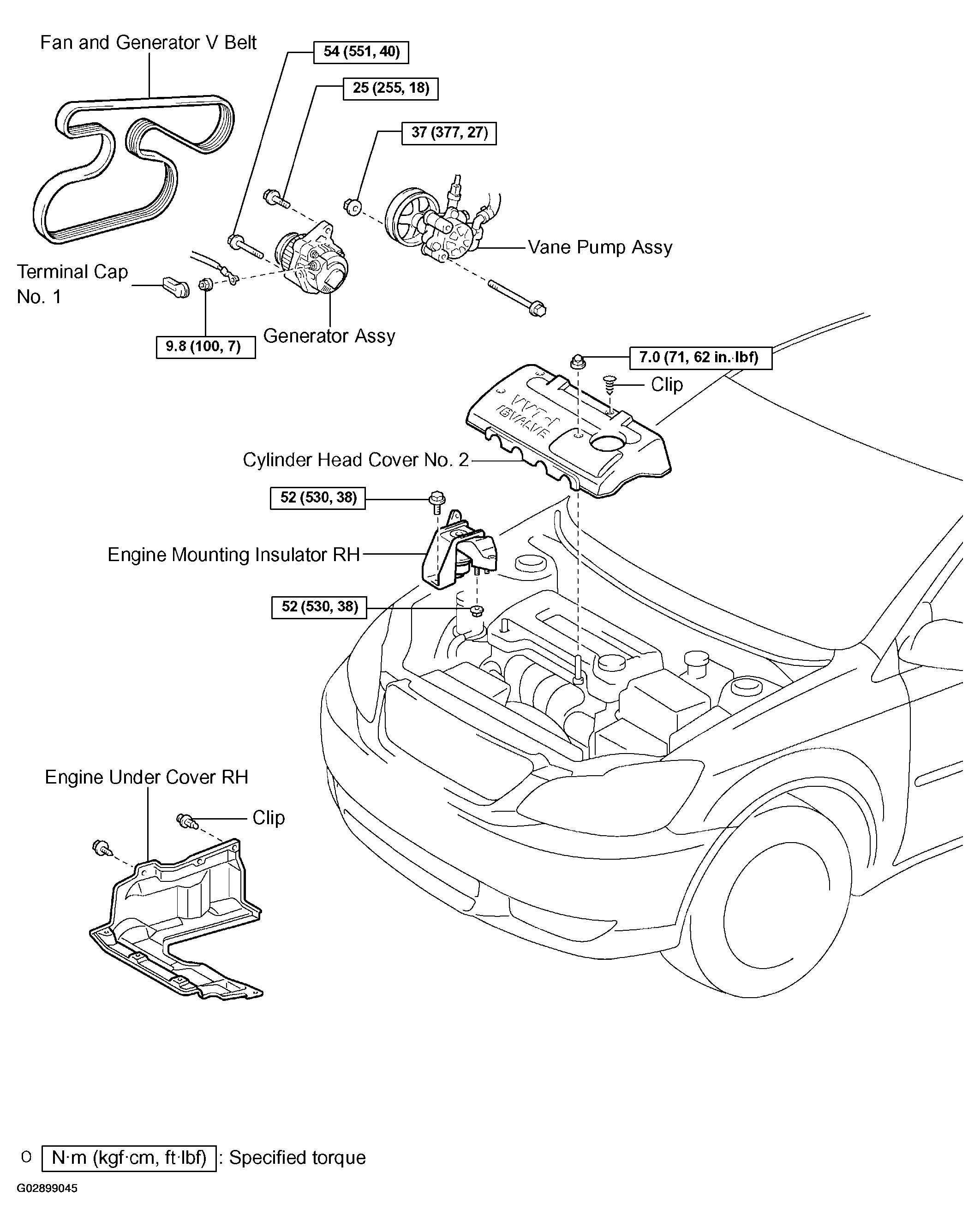

Fig 1: Identifying Chain Sub-Assy Components (1 Of 3)
G02899045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

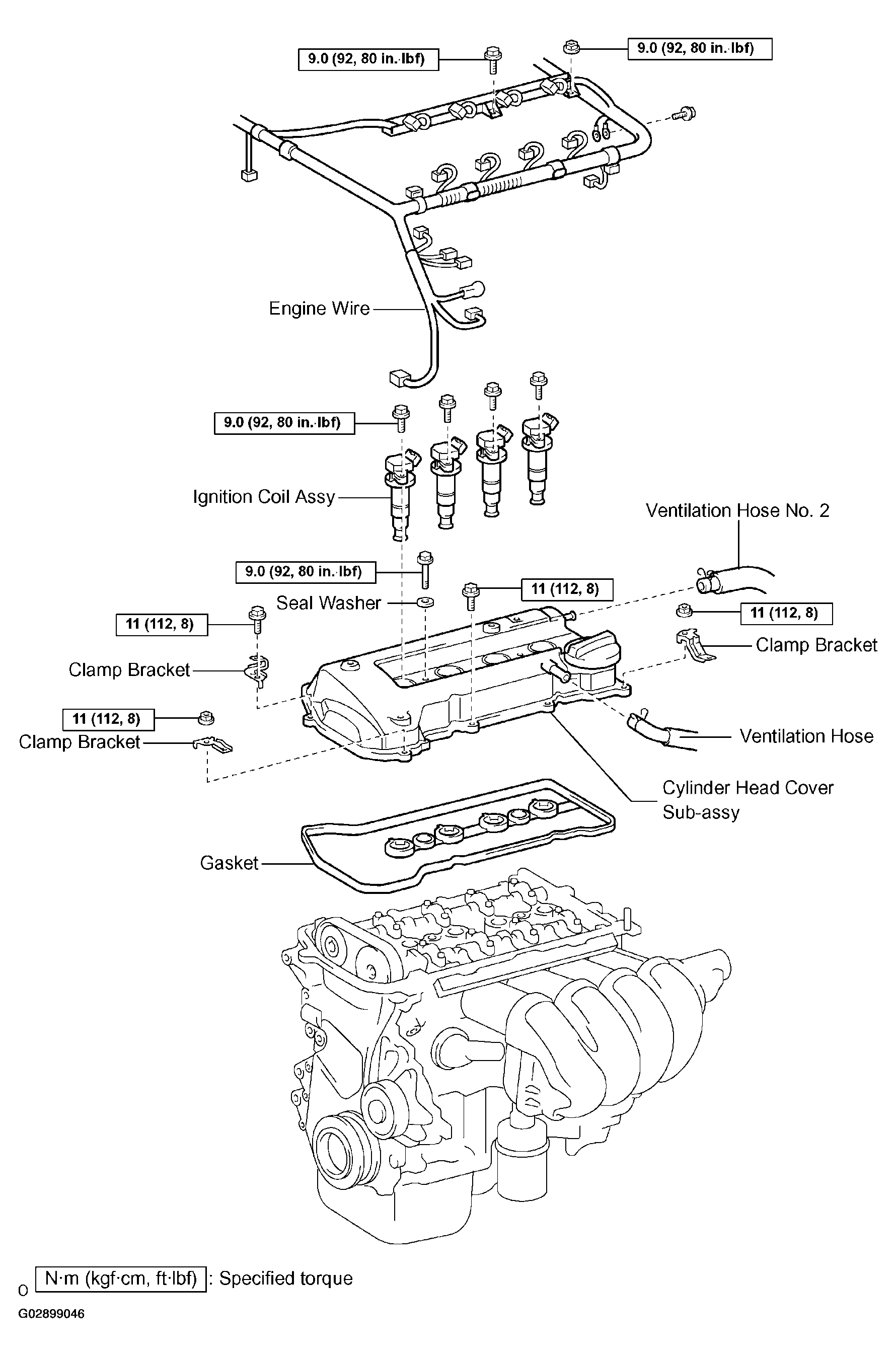

Fig 2: Identifying Chain Sub-Assy Components (2 Of 3)
G02899046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

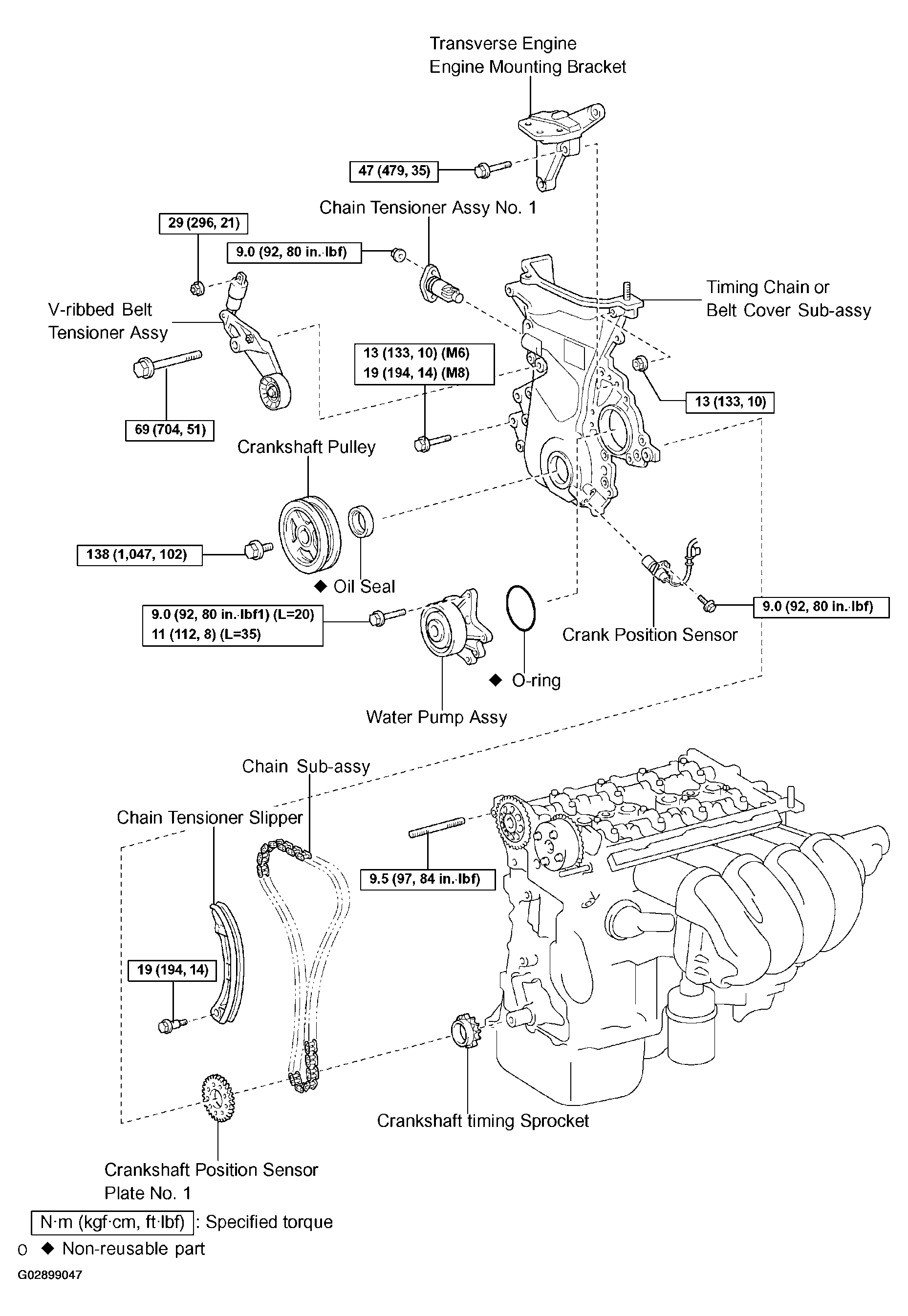

Fig 3: Identifying Chain Sub-Assy Components (3 Of 3)
G02899047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
