Instrument Panel/Meter: Components

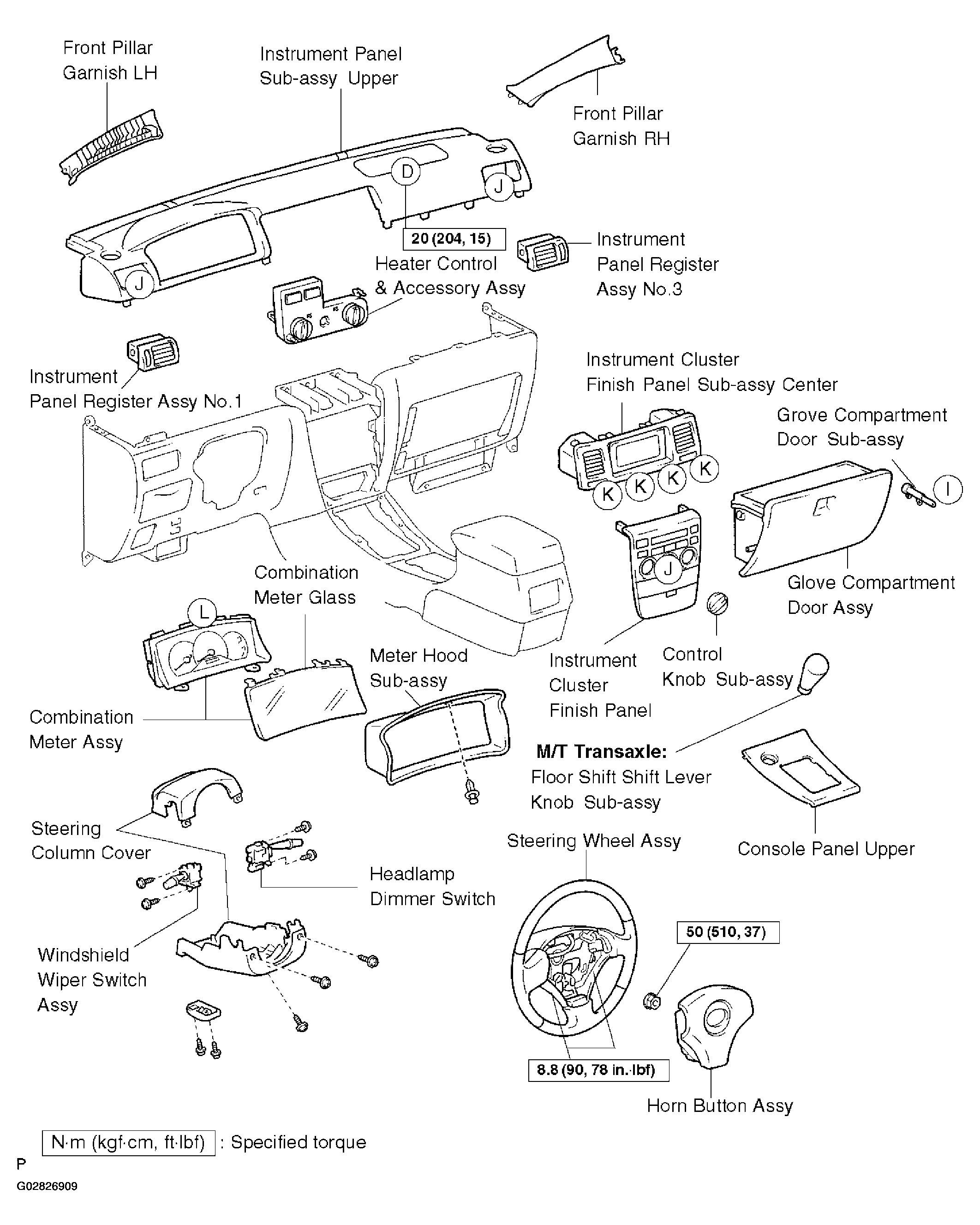

Fig 1: Instrument Panel/Meter Components (1 Of 2)
G02826909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

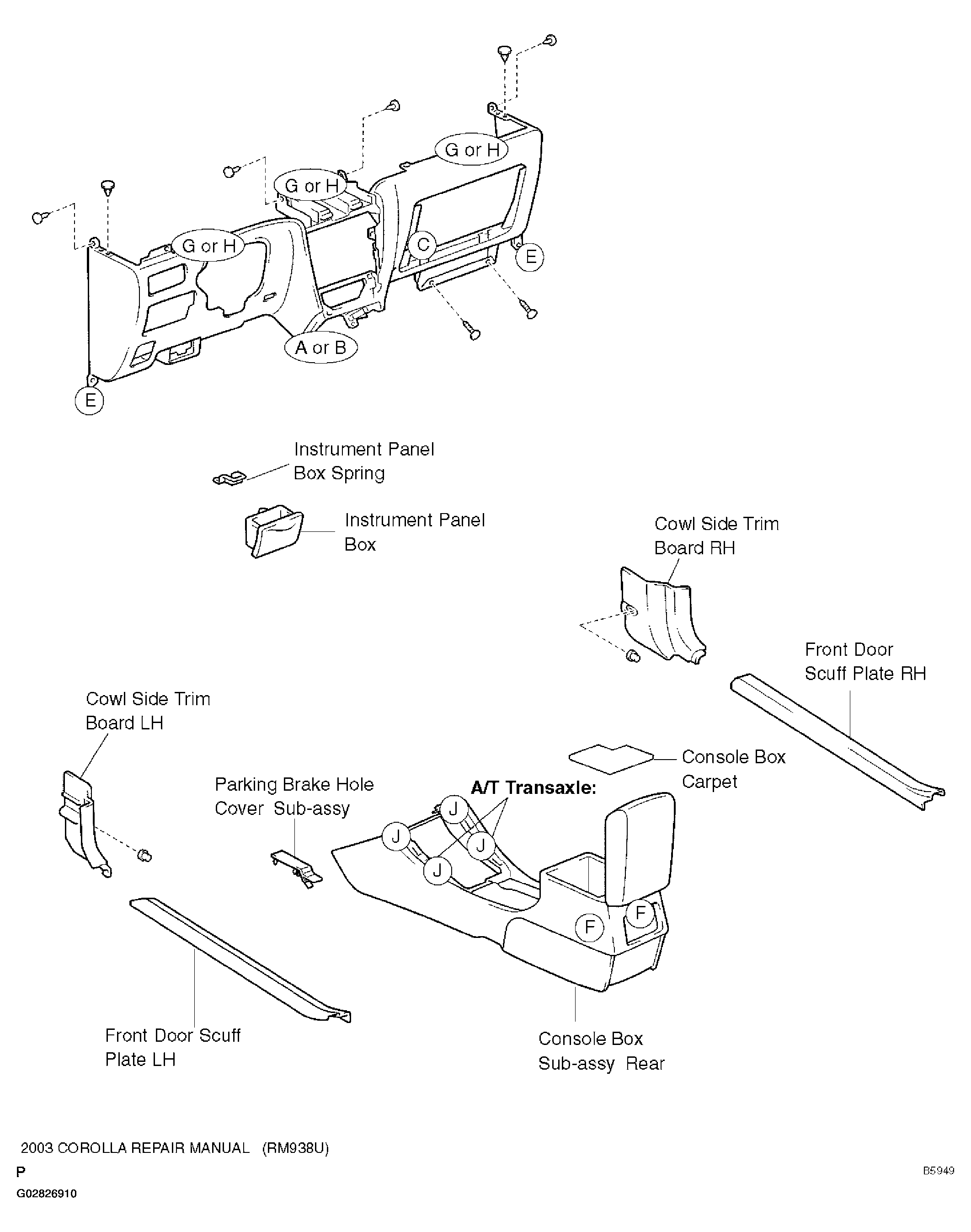

Fig 2: Instrument Panel/Meter Components (2 Of 2)
G02826910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
