Automatic Transmission Floor Shift Assembly: Components

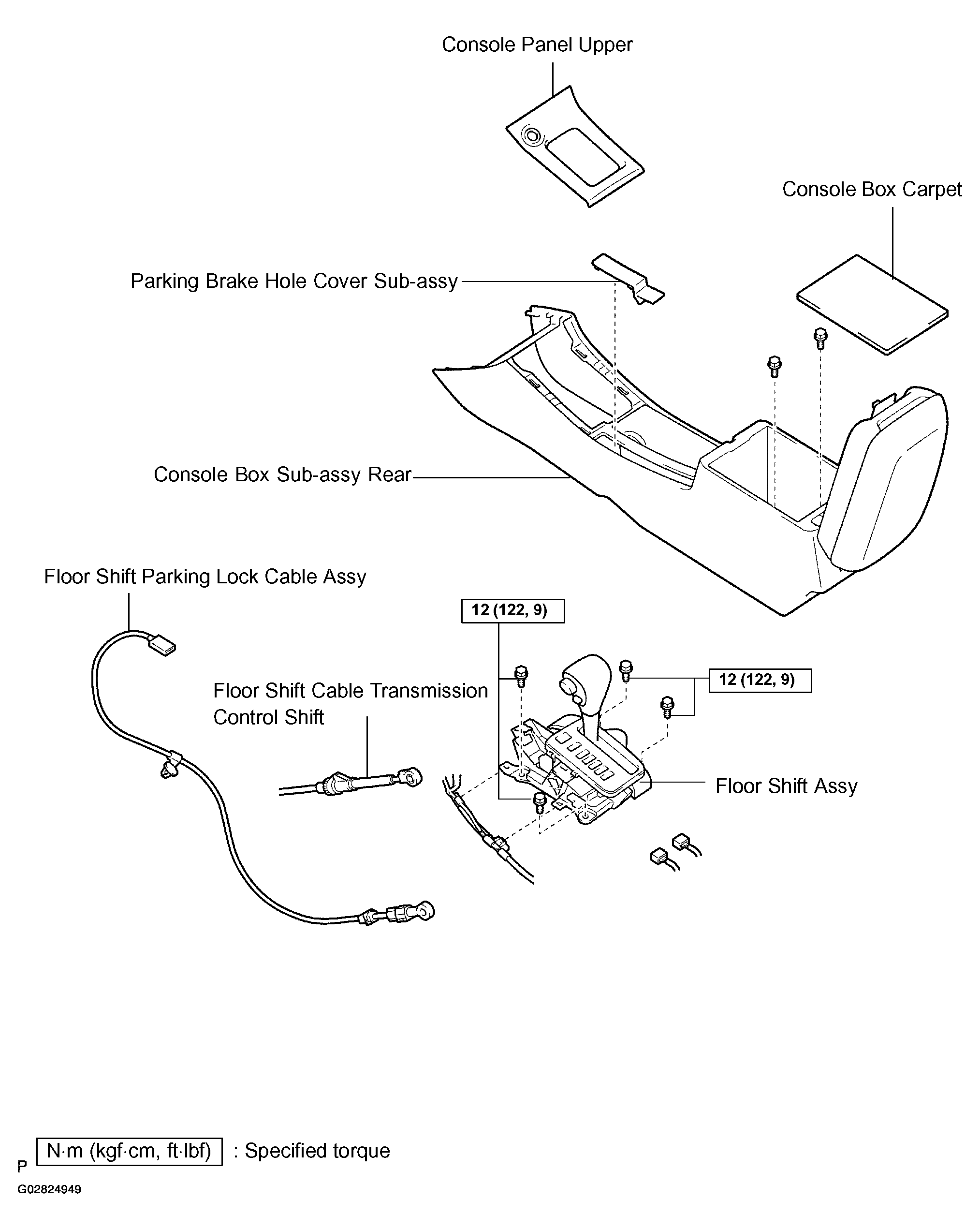

Fig 1: Identifying Floor Shift Assy Components (1 Of 2)
G02824949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

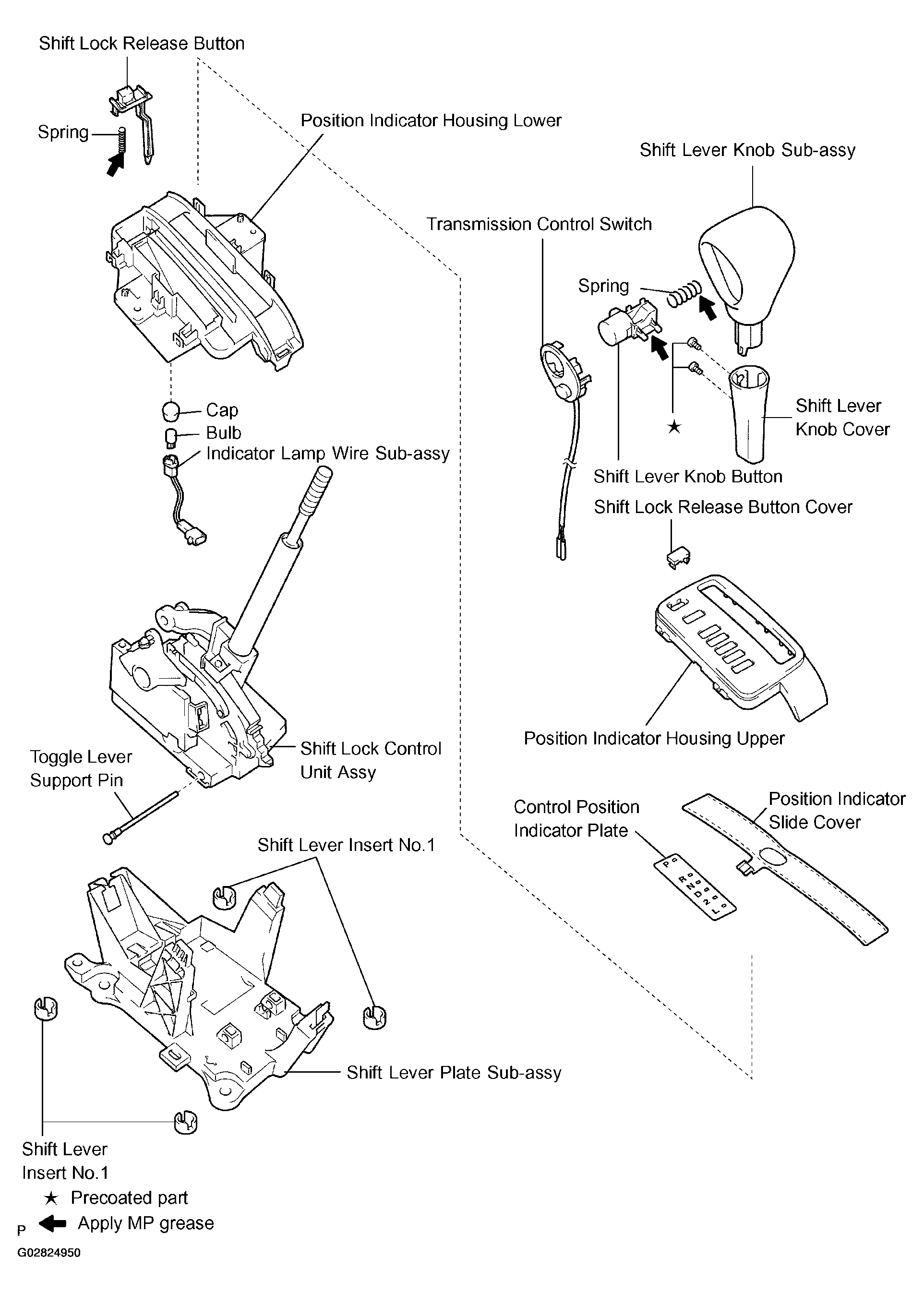

Fig 2: Identifying Floor Shift Assy Components (2 Of 2)
G02824950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
