Vehicle Lift And Support Locations

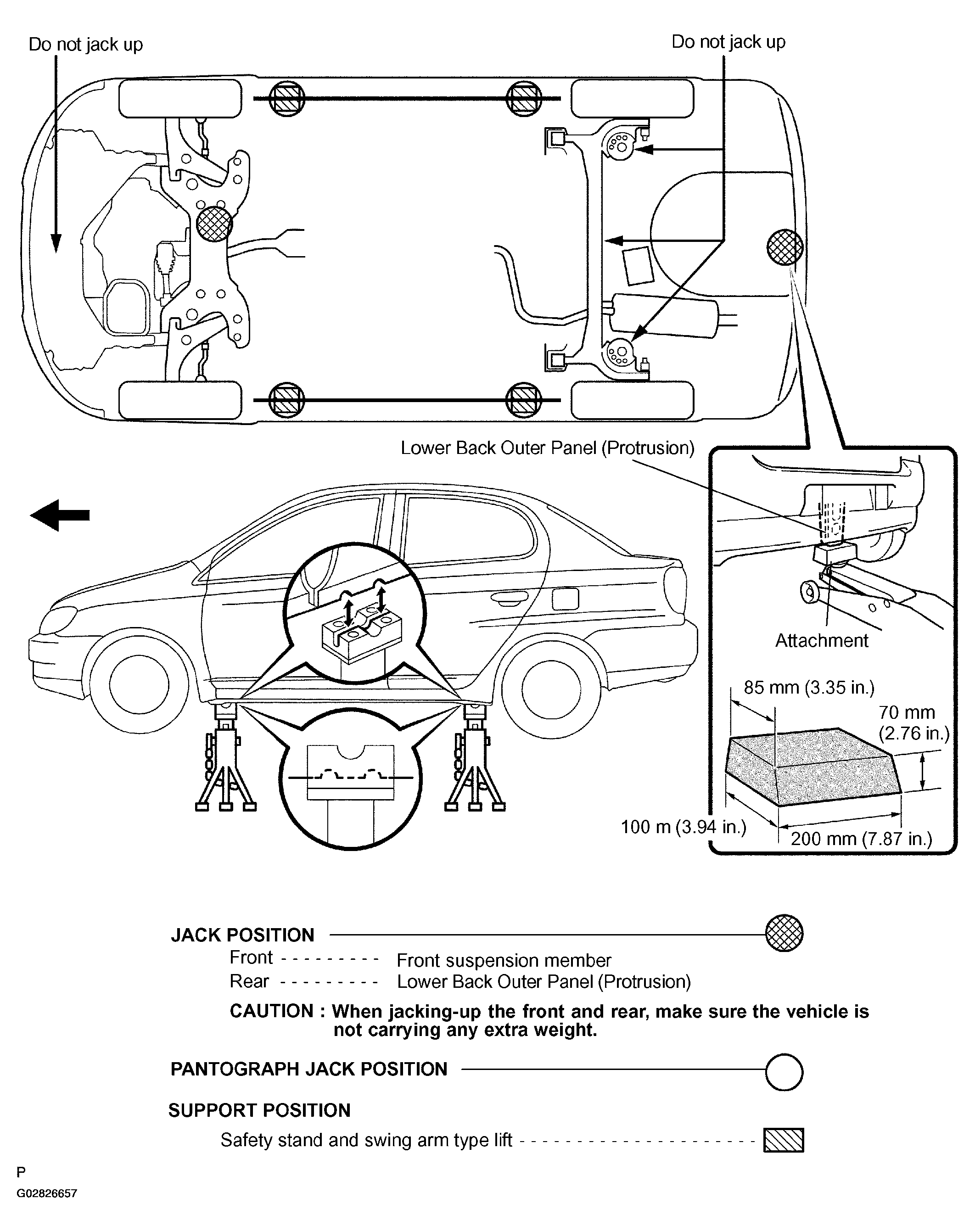

Fig 1: Identifying Vehicle Jacking And Support Locations
G02826657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

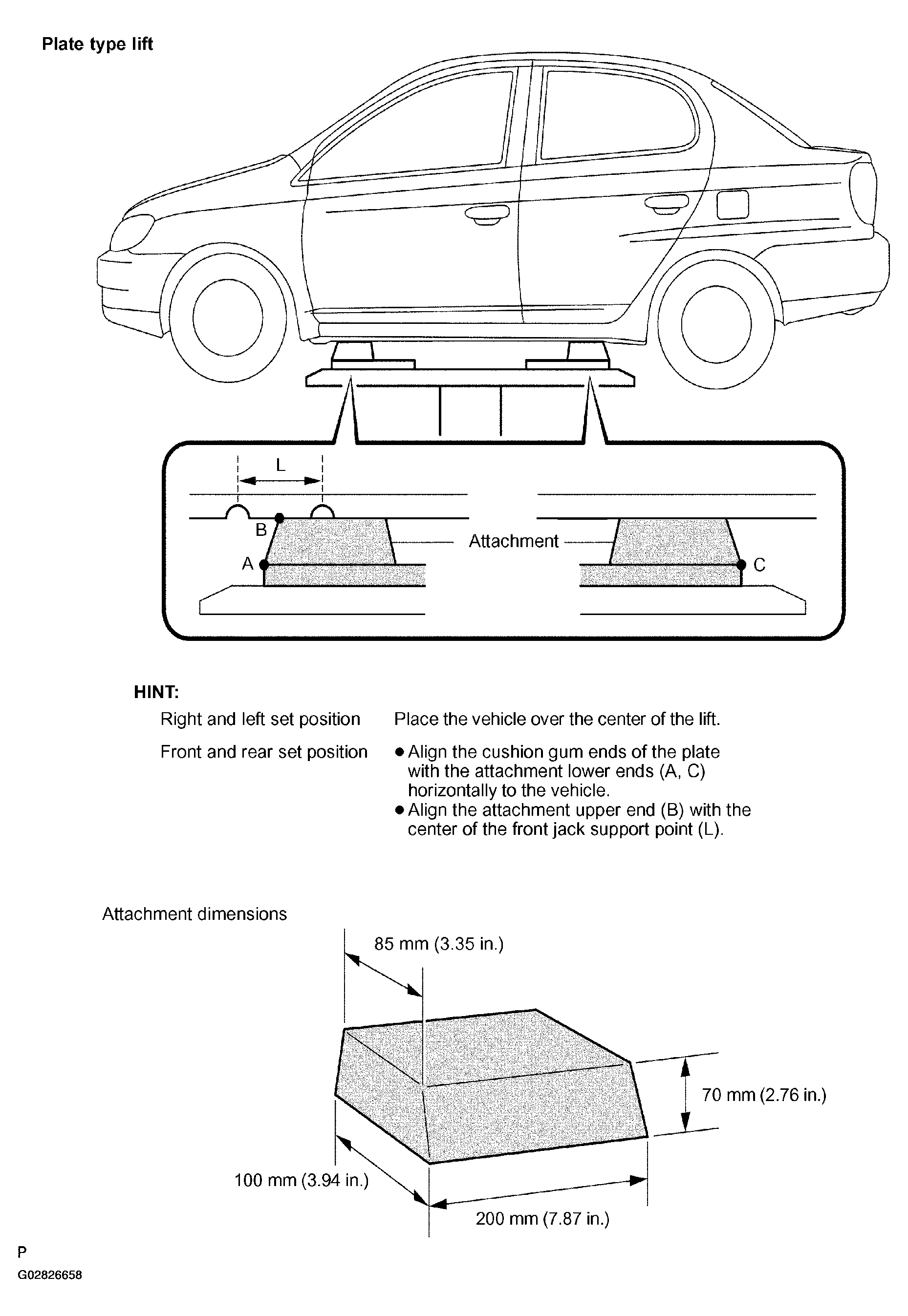

Fig 2: Identifying Vehicle Lifting Locations
G02826658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
