Power Mirror Control System: Inspection

INSPECT MIRROR SWITCH CONTINUITY

Left side for Left/Right adjustment switch

LEFT SIDE LEFT/RIGHT ADJUSTMENT SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
OFF	-	No continuity
UP	3 - 7	Continuity
	5 - 6
DOWN	3 - 6	Continuity
	5 - 7
LEFT	4 - 7	Continuity
	5 - 6
RIGHT	5 - 7	Continuity
	4 - 6

Right side for Left/Right adjustment switch

RIGHT SIDE LEFT/RIGHT ADJUSTMENT SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
OFF	-	No continuity
UP	2 - 7	Continuity
	5 - 6
DOWN	2 - 6	Continuity
	5 - 7
LEFT	1 - 7	Continuity
	5 - 6
RIGHT	1 - 6	Continuity
	5 - 7

If continuity is not as specified, replace the switch.

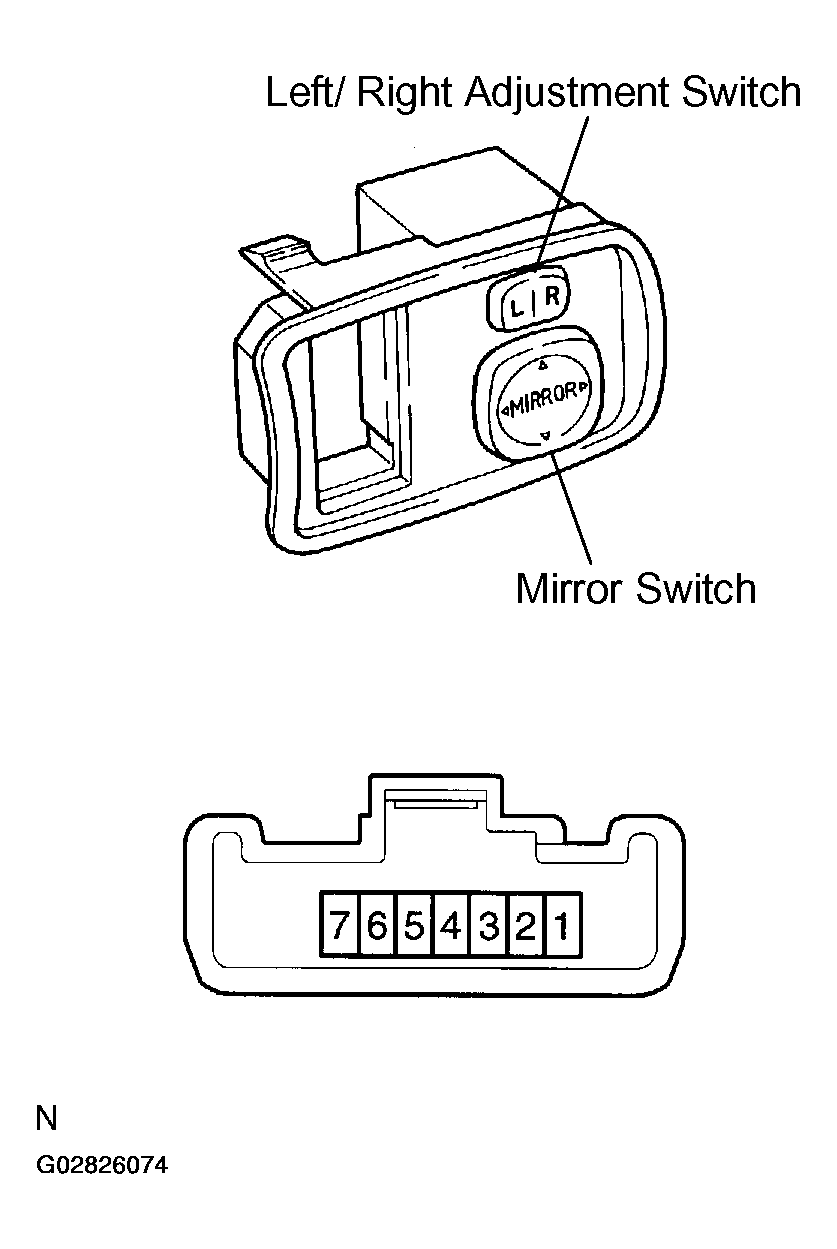

Fig 1: Locating Left/Right Mirror Adjustment Switch

G02826074

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT MIRROR MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1, and check that the mirror turns right side.

  Fig 2: Checking Mirror Turns Right Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, and check that the mirror turns left side.

  Fig 3: Checking Mirror Turns Left Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5, and check that the mirror turns to the downward.

  Fig 4: Checking Mirror Turns To Downward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reverse the polarity, and check that the mirror turns to the upward.
If operation is not as specified, replace the mirror assembly.

Fig 5: Checking Mirror Turns To Upward
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
