Data List

NOTE: According to DATA LIST displayed by OBD II scan tool or hand-held tester, you can read value of switch, sensor, actuator and so on without parts removal. Reading DATA LIST as a first step of trouble shooting is one of methods to shorten labor time.
  1. Warm up engine and turn ignition switch OFF.
  2. Connect OBD II scan tool or hand-held tester to DLC3. See Figure.
  3. Turn ignition switch ON. According to display on tester, read DATA LIST. See Fig 1 and Fig 2 .

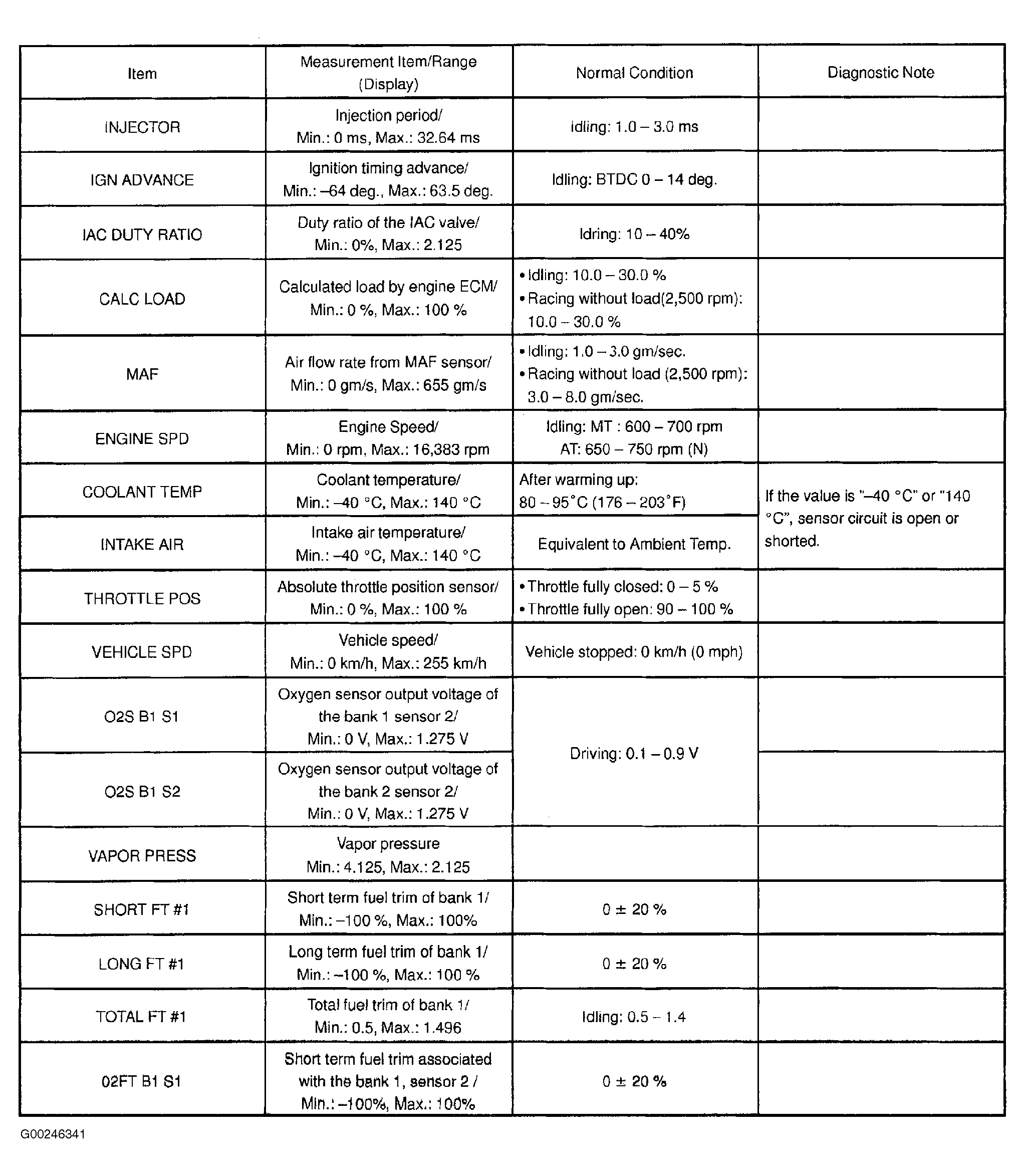

Fig 1: Identifying DATA LIST (1 Of 2)
G00246341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

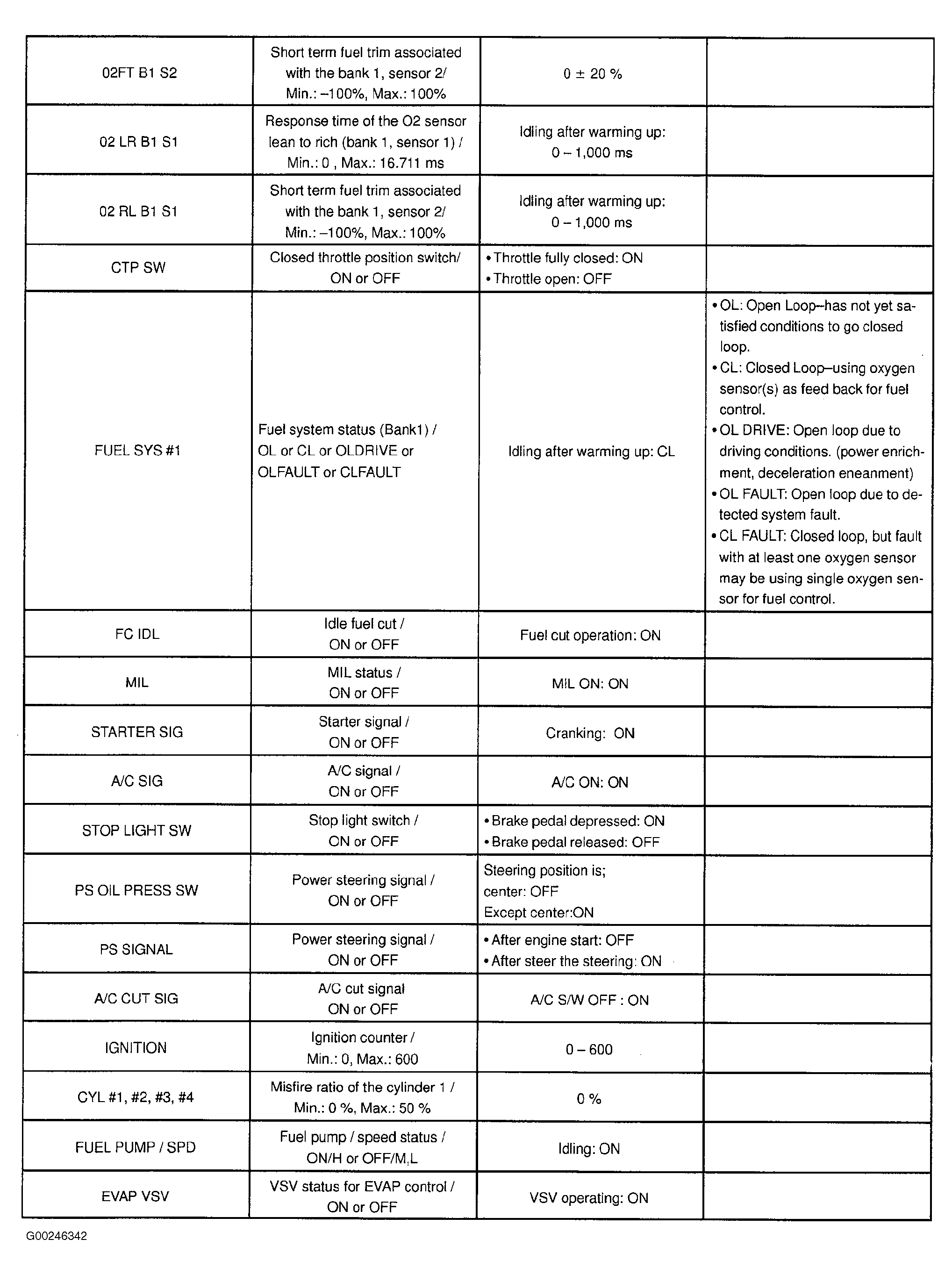

Fig 2: Identifying DATA LIST (2 Of 2)
G00246342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
