Component Locations

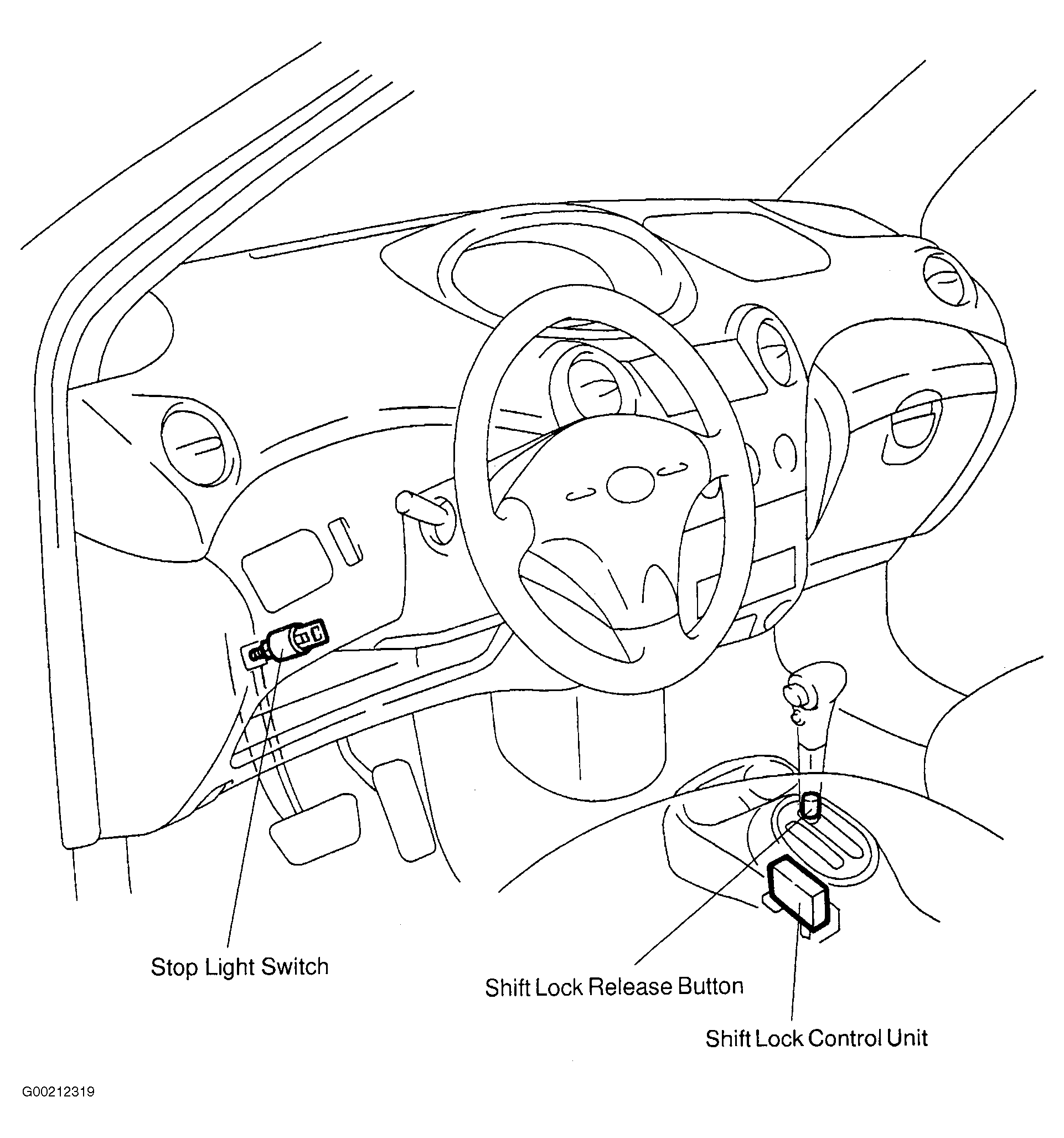

Fig 1: Locating Shift Lock System Components
G00212319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

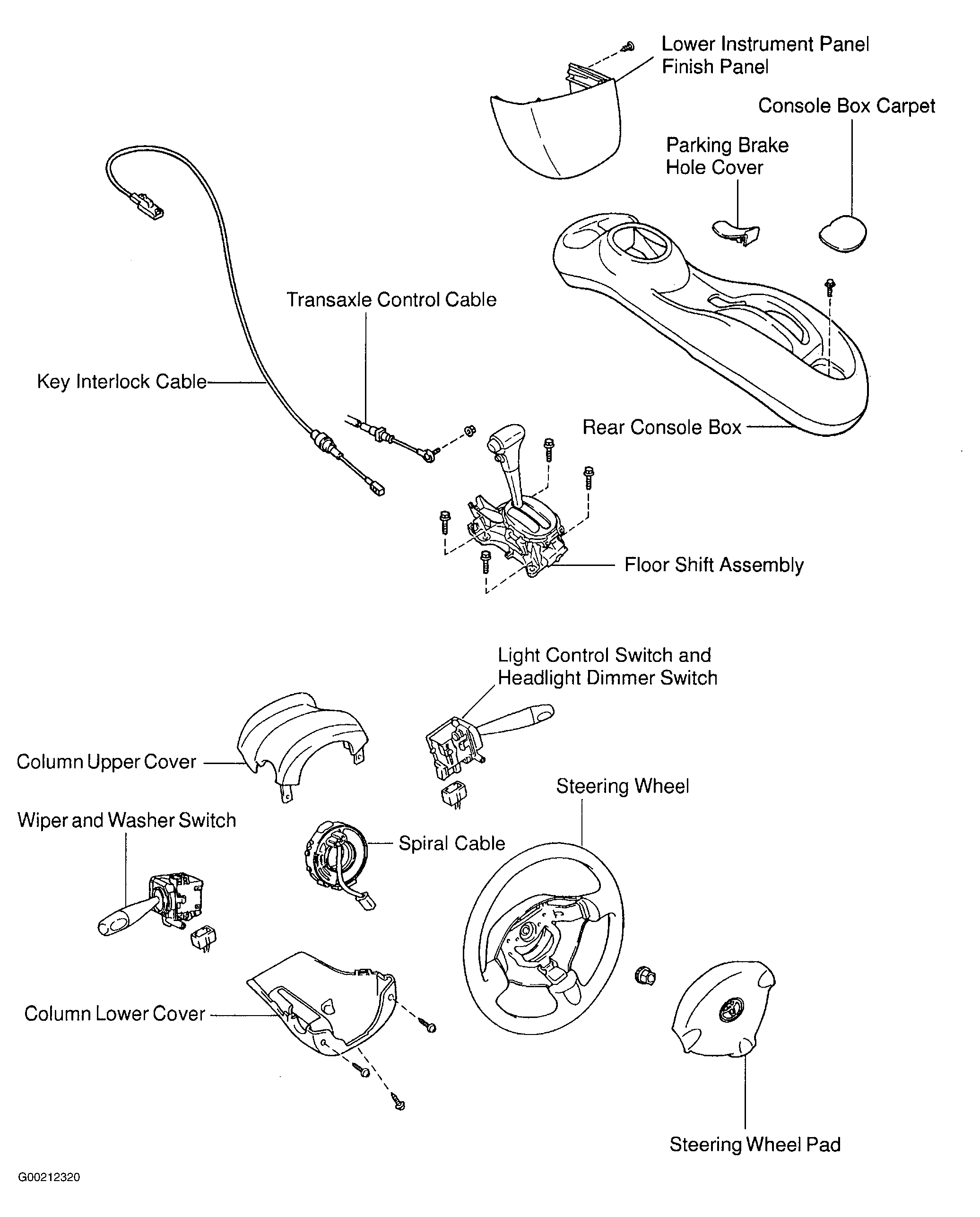

Fig 2: Exploded View Of Center Console & Steering Column Components
G00212320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

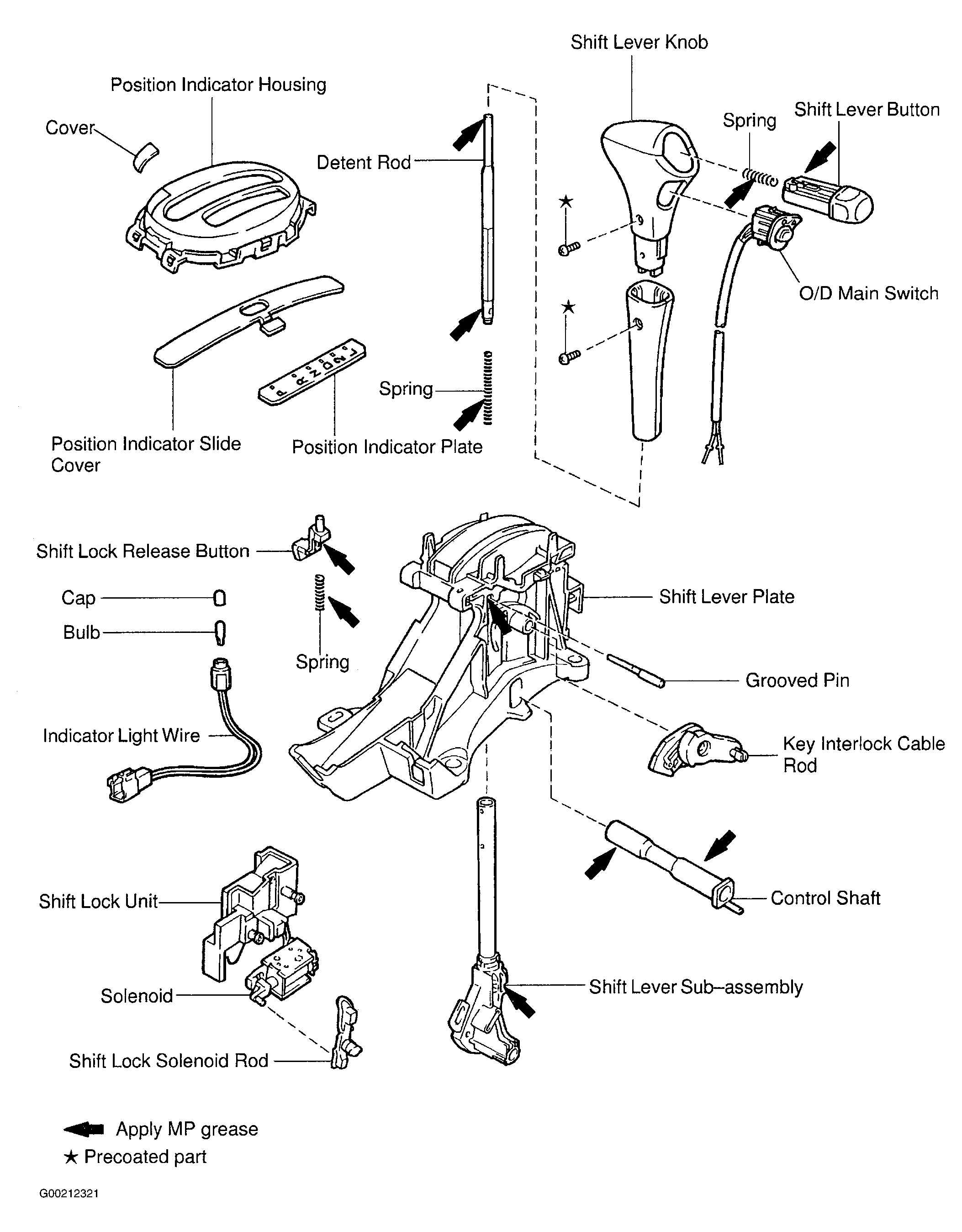

Fig 3: Exploded View Of Floor Shift Assembly
G00212321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
