Quarter Window Assembly LH: Components

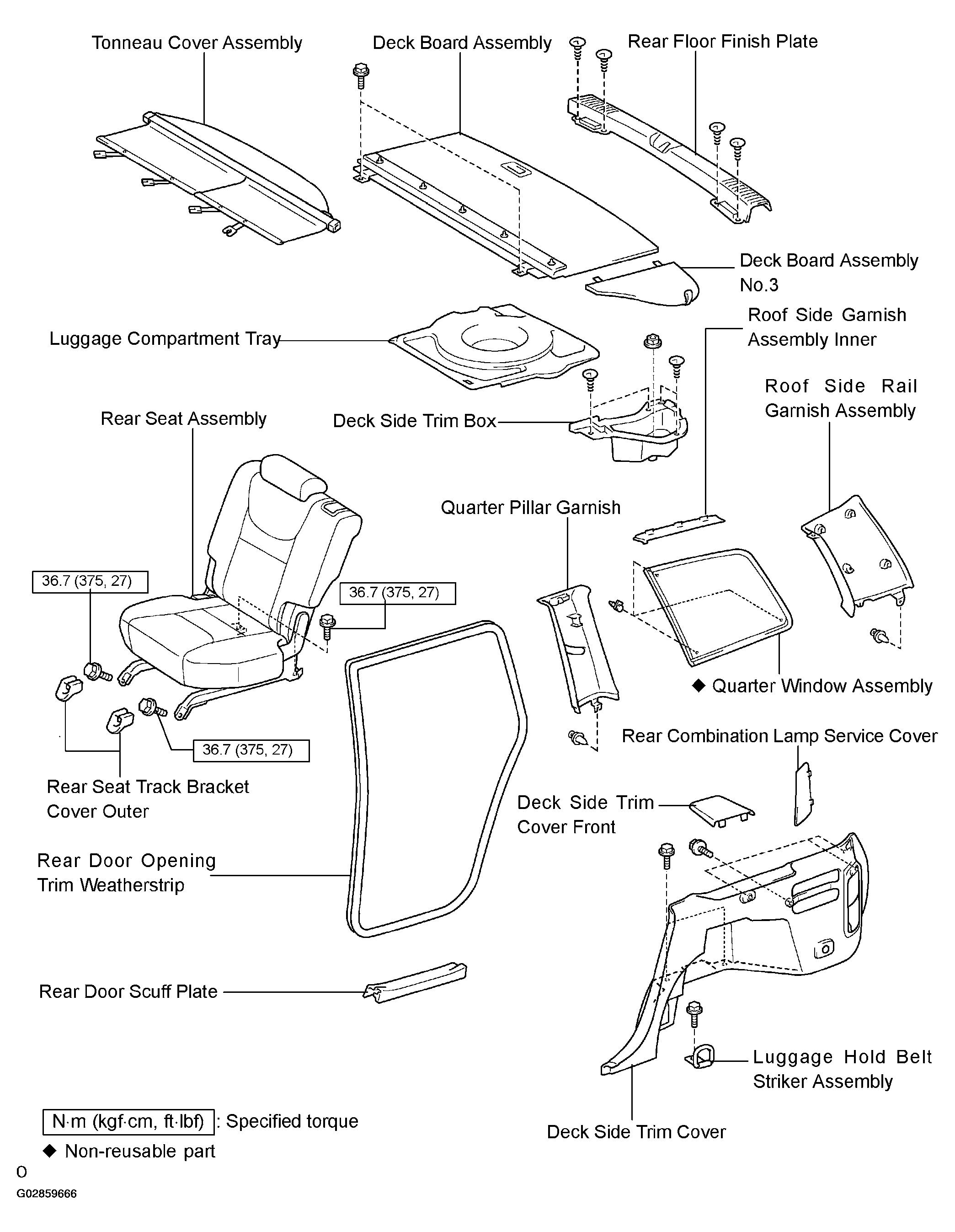

Fig 1: Identifying Quarter Window Assembly LH Components
G02859666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
