Driver Power Window Does Not Operate: Wiring Diagram

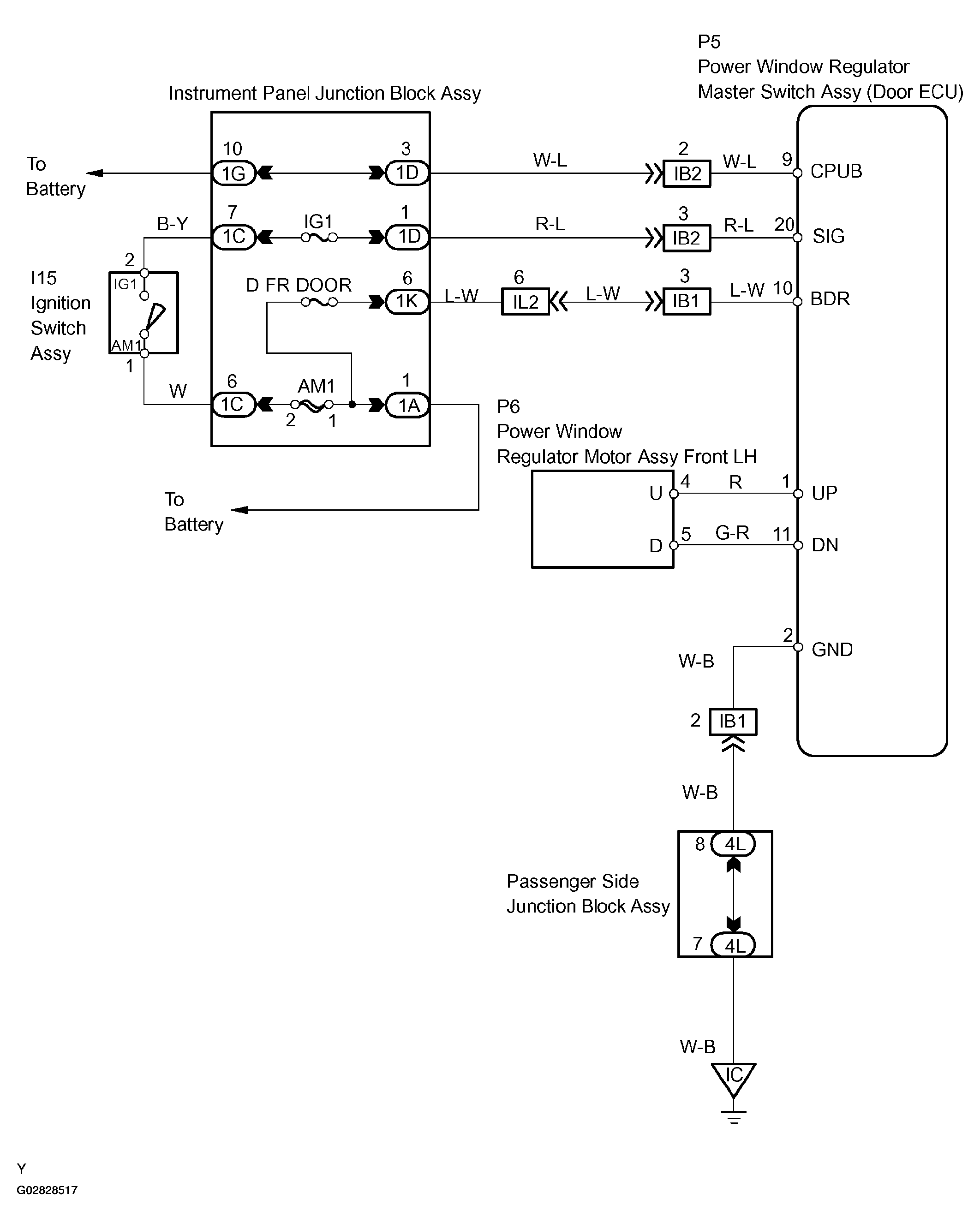

Fig 1: Driver Power Window - Wiring Diagram
G02828517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
