Inspection Procedure

CHECK FUSE
1. Check whether the regulator switch fuses P FR DOOR 25-amp, D RR DOOR 20-amp and P RR DOOR 20-amp of inoperative seats are normal.
  NOTE:
  - If the fuse for the passenger side door is normal, proceed to (OK-A) . Go to step 2.
  - If the fuse for the rear RH and LH doors is normal, proceed to OK-B . Go to step 6.
  - If the fuse for the passenger side door is defective, NG-A : REPLACE FUSE (P FR DOOR 25 A)
  - If the fuse for the rear RH door is defective, NG-B : REPLACE FUSE (D RR DOOR 20 A)
  - If the fuse for the rear LH door is defective, NG-B : REPLACE FUSE (P RR DOOR 20 A)

OK-A

CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)
1. Inspect the power source voltage.
  1. Disconnect the regulator switch connector.
  2. Check the voltage between terminal 7 (B) of the regulator switch vehicle's side connector and the body ground.

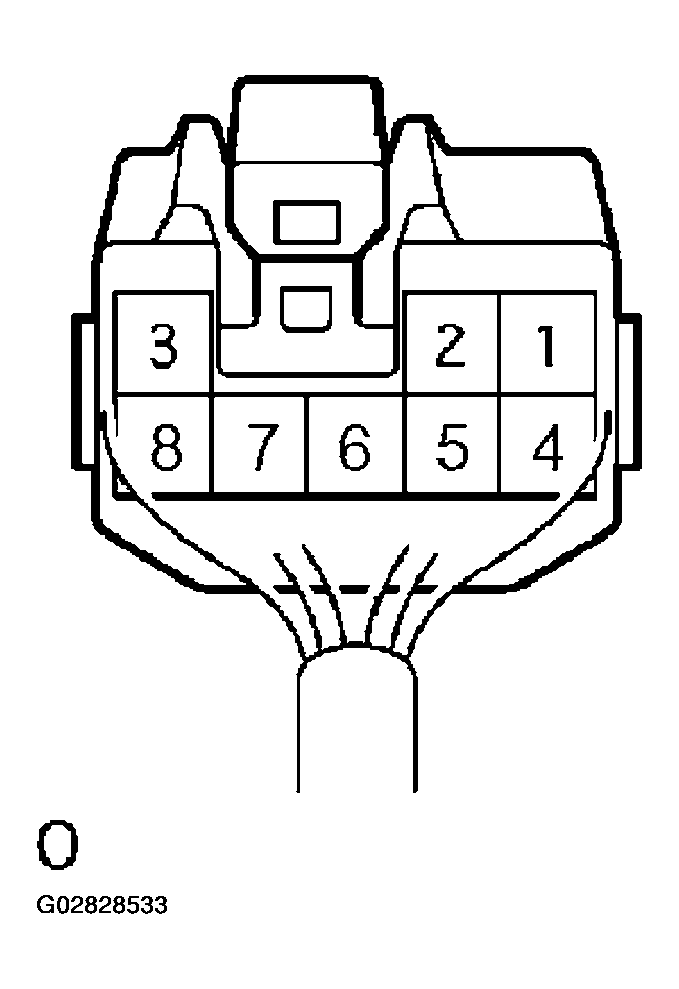

    Fig 1: Identifying Power Window Regulator Switch Connector Terminals (Passenger Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  Standard: 10-14 V with ignition switch ON
1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK : Go to Next Step
CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)
1. Inspect the GND.
  1. Disconnect the regulator switch connector.
  2. Check the continuity between terminal 1 (E) of the regulator switch vehicle's side connector and the body ground.

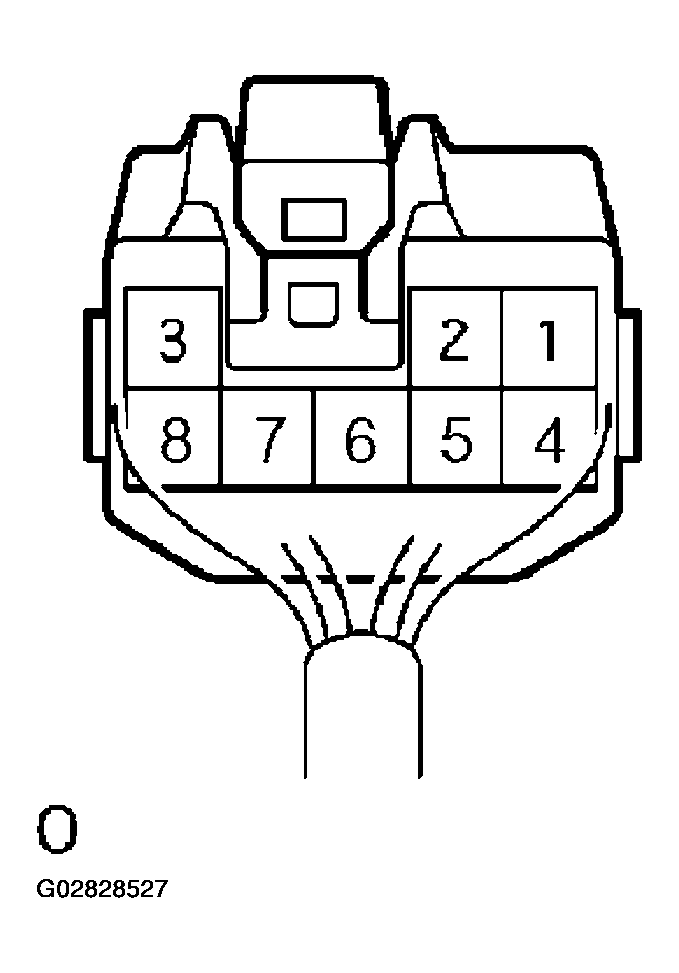

    Fig 2: Identifying Power Window Regulator Switch Connector Terminals (Passenger Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  Standard: Continuity (constant)
1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK : Go to Next Step
CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (PASSENGER SIDE)
1. Inspect the motor operation.
  1. Disconnect the regulator switch connector.
  2. Inspect the door glass operation when the battery voltage is applied between terminals 3 (U) and 6 (D) of the regulator switch vehicle's side connector.

    Fig 3: Identifying Power Window Regulator Switch Connector Terminals (Passenger Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  Standard:

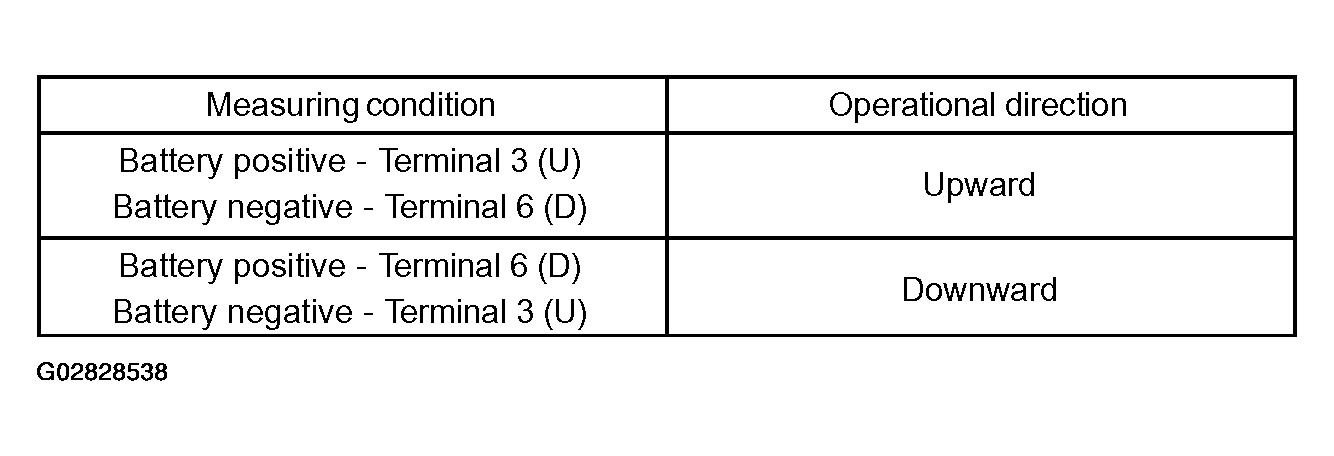

  Fig 4: Power Window Regulator Motor Assembly RH (Passenger Side) Operational Direction Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK : REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY
2. NG : Go to Next Step
INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (PASSENGER SIDE)
1. Inspect the operation of the front LH power window regulator motor assembly.

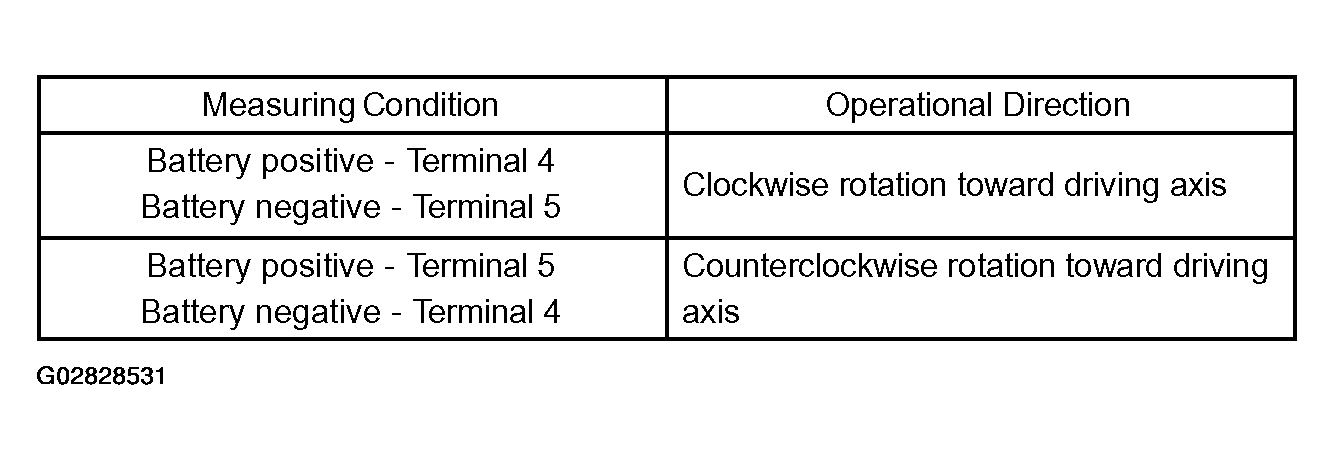

  1. Check that the motor operates smoothly when the battery voltage is applied to each terminal of the connector.
  Standard:

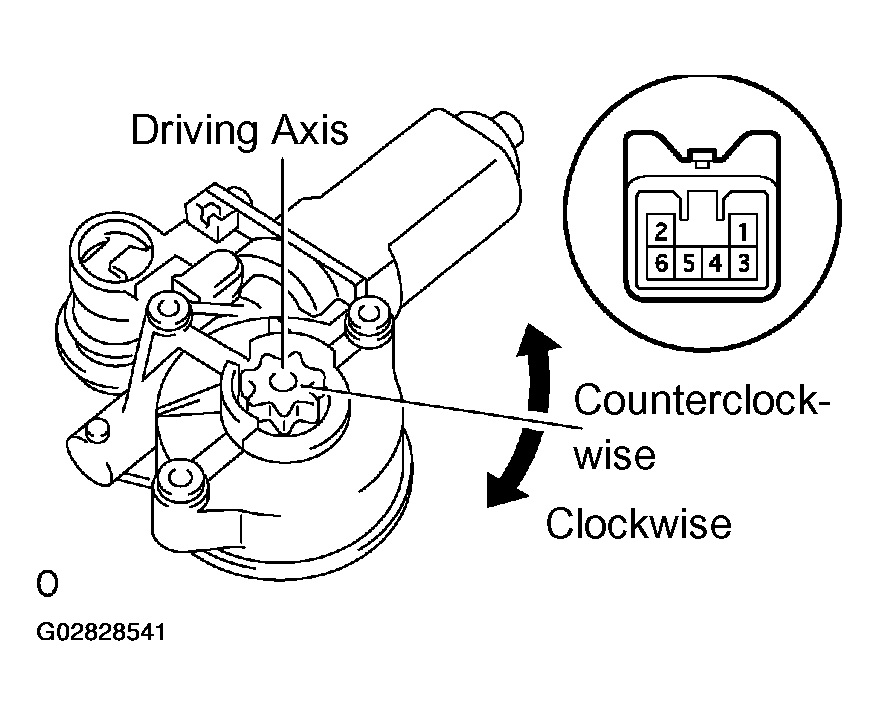

  Fig 6: Testing Power Window Regulator Motor Assembly RH (Passenger Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the PTC operation inside the power window regulator motor.
  NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
  1. Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
    NOTE: Match the arrow mark of the probe with the current direction.
  2. Set the door glass in the fully closed position.
  3. When 60 seconds have elapsed after the door glass is fully closed, check now long the current takes to charge, from approximately 16-34 A into 1 A or less, when the power window switch is turned UP once again.
    Standard: Approximately 4-90 seconds
  4. When approximately 60 seconds have elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch is turned DOWN.
1. OK : REPAIR OR REPLACE HARNESS AND CONNECTOR
2. NG : REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

OK-B

CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR (REAR RH AND LH)
1. Inspect the power source voltage.
  1. Disconnect the regulator switch connector.
  2. Check the voltage between terminal 7 (B) of the regulator switch vehicle's side connector and the body ground.
  Standard: 10-14 V with ignition switch ON
1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK : Go to Next Step
CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR (REAR RH AND LH)
1. Inspect the GND.
  1. Disconnect the regulator switch connector.
  2. Check the continuity between terminal 1 (E) of the regulator switch vehicle's side connector and the body ground.
  Standard: Continuity (constant)
1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK-A : Go to step 8 (In case Rear RH side)
3. OK-B : Go to step 10 (In case Rear LH side)
CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (REAR RH)
1. Inspect the motor operation.
  1. Disconnect the regulator switch connector.
  2. Inspect the door glass operation when the battery voltage is applied between terminals 3 (U) and 6 (D) of the regulator switch vehicle's side connector.

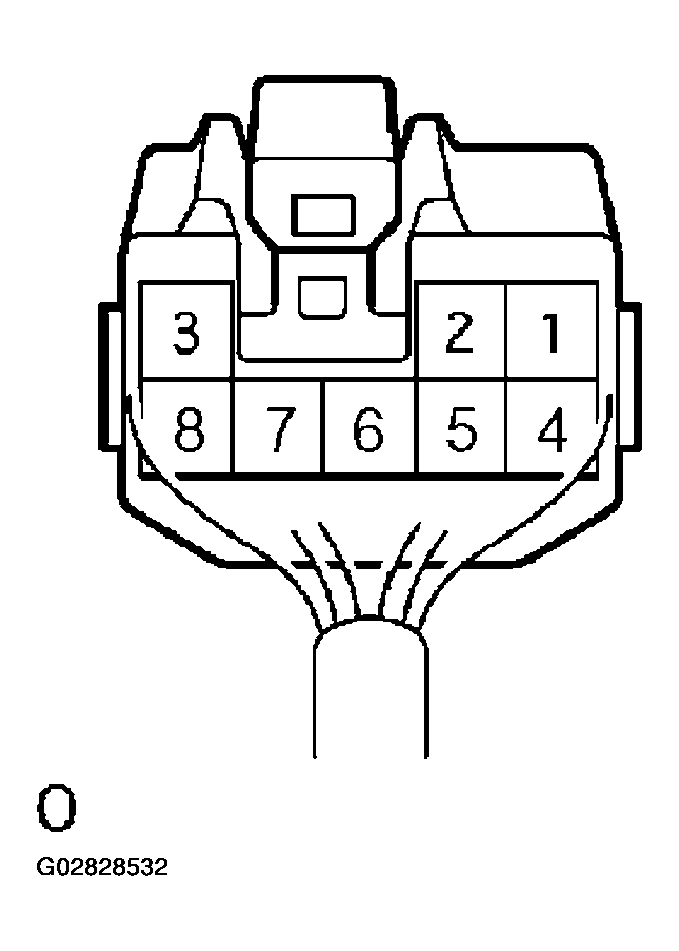

    Fig 9: Identifying Power Window Regulator Switch Assembly Connector Terminals (Rear)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  Standard:

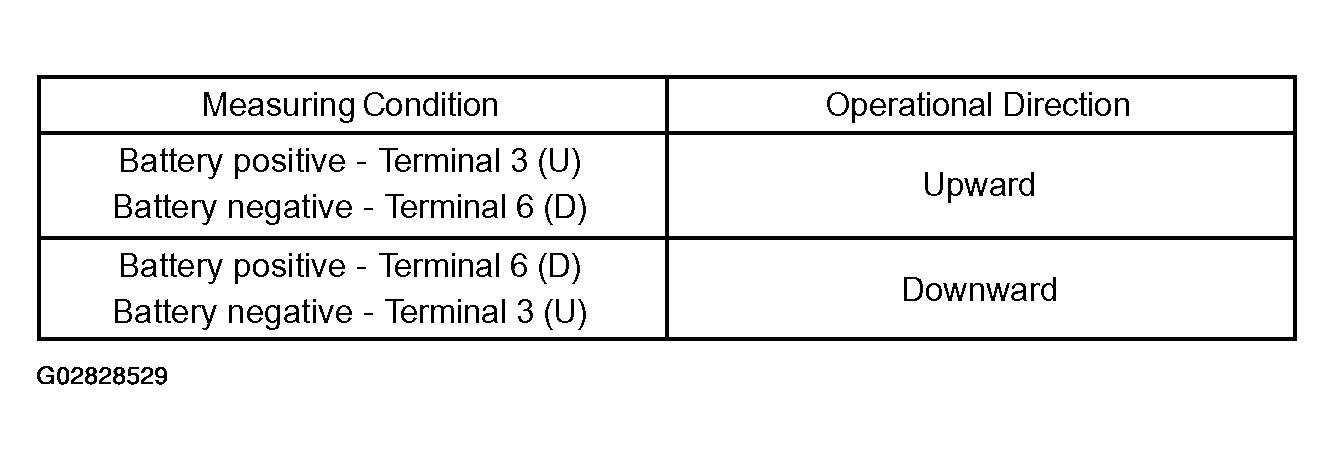

Fig 10: Testing Power Window Regulator Assembly (Rear - Regulator In Vehicle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK : REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR
2. NG : Go to Next Step
INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (REAR RH)
1. Inspect the operation of the power window regulator motor assembly RH (Rear RH side).
  1. Check that the motor operates smoothly when the battery voltage is applied to each terminal of the connector.
  Standard:

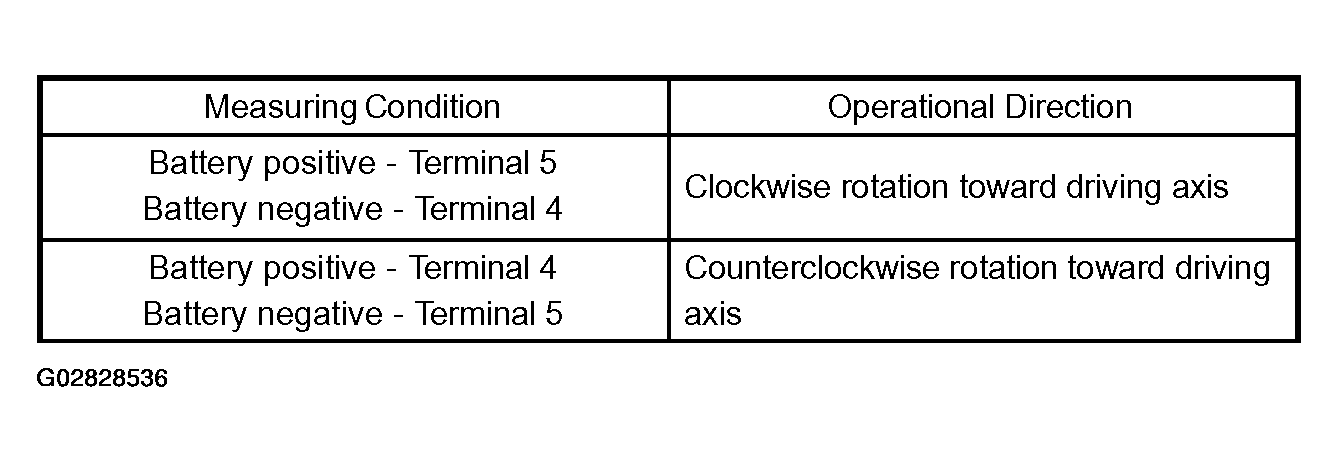

  Fig 12: Testing Power Window Regulator Assembly (Rear - Regulator Not In Vehicle)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the PTC operation inside the power window regulator motor.
  NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
  1. Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
    NOTE: Match the arrow mark of the probe with the current direction.
  2. Set the door glass in the fully closed position.
  3. When 60 seconds have elapsed after the door glass is fully closed, check now long the current takes to charge, from approximately 16-34 A into 1 A or less, when the power window switch is turned UP once again.
    Standard: Approximately 4-90 seconds
  4. When approximately 60 seconds have elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch is turned DOWN.
1. OK : REPAIR OR REPLACE HARNESS AND CONNECTOR
2. NG : REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (REAR LH)
1. Inspect the motor operation.
  1. Disconnect the regulator switch connector.
  2. Inspect the door glass operation when the battery voltage is applied between terminals 3 (U) and 6 (D) of the regulator switch vehicle's side connector.

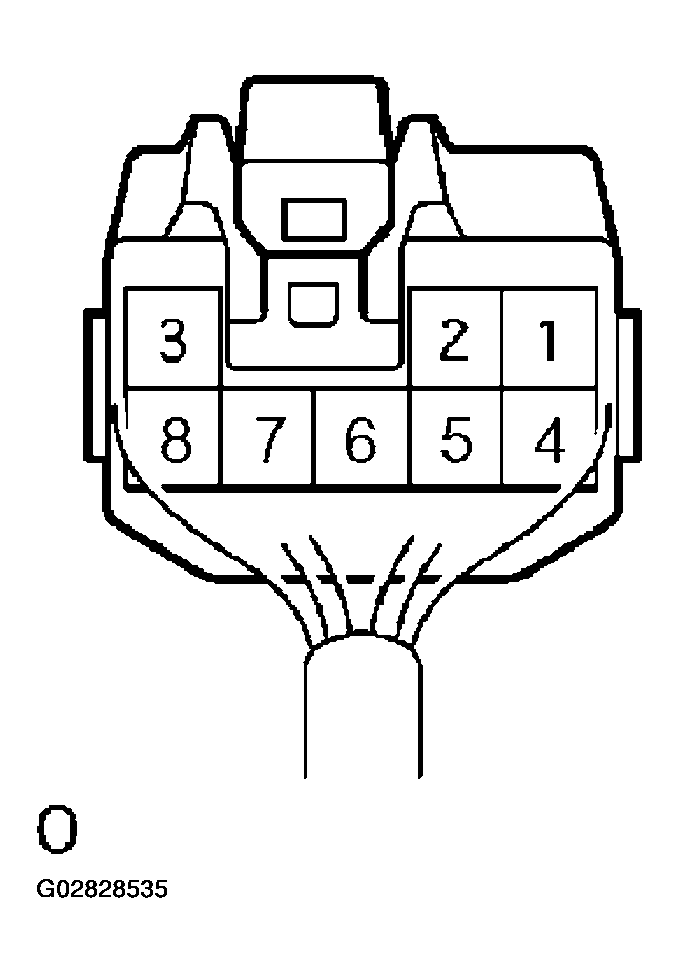

    Fig 13: Identifying Regulator Switch Connector Terminals (LH Rear)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  Standard:

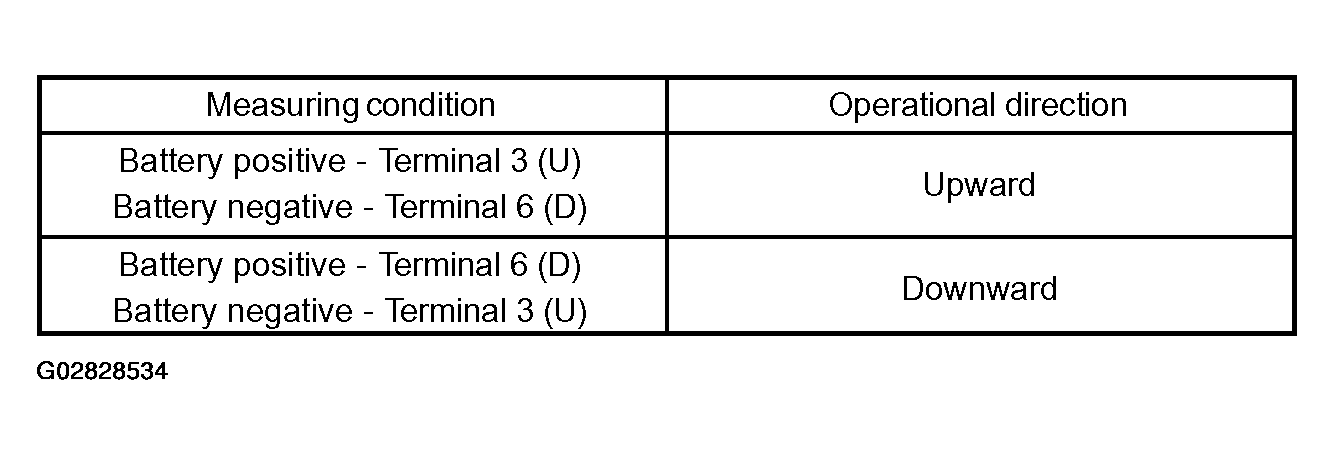

  Fig 14: Testing Power Window Regulator Motor Assembly (LH Rear - Regulator In Vehicle)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK : REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR
2. NG : Go to Next Step
INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (REAR LH)
1. Inspect the operation of the power window regulator motor assembly LH (Rear LH side).
  1. Check that the motor operates smoothly when the battery voltage is applied to each terminal of the connector.
  Standard:

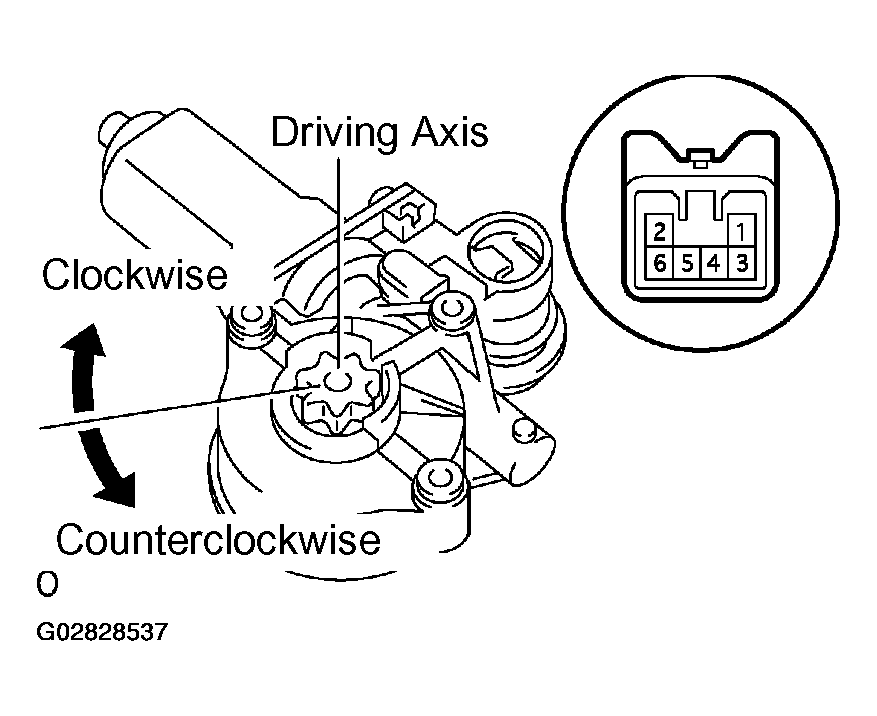

  Fig 15: Identifying Power Window Regulator Motor Assembly & Connector Terminals (LH Rear)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

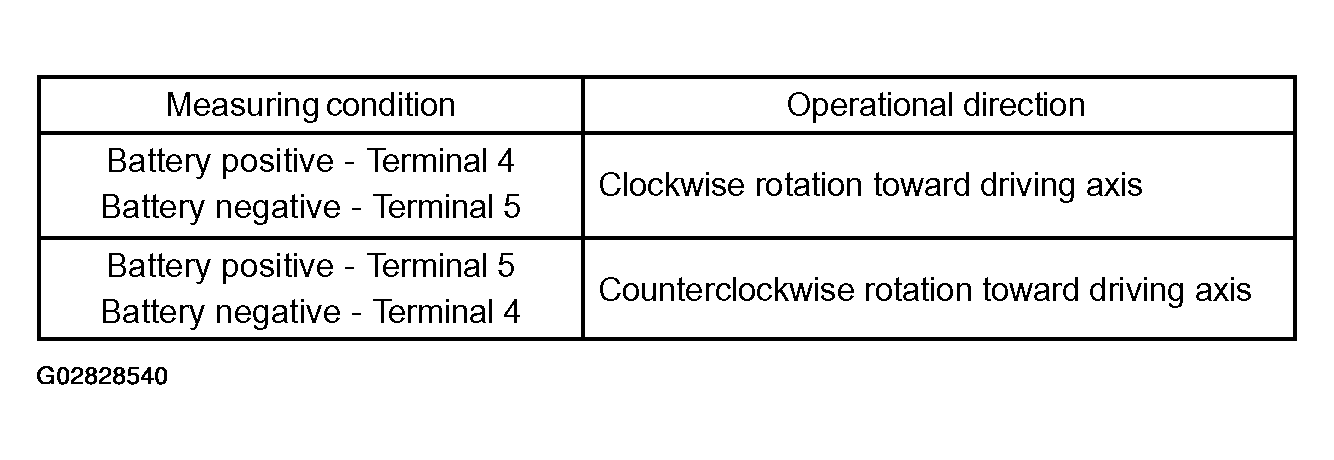

  Fig 16: Testing Power Window Regulator Motor Assembly (LH Rear - Regulator Not In Vehicle)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the PTC operation inside the power window regulator motor.
  NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
  1. Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
    NOTE: Match the arrow mark of the probe with the current direction.
  2. Set the door glass in the fully closed position.
  3. When 60 seconds have elapsed after the door glass is fully closed, check now long the current takes to charge, from approximately 16-34 A into 1 A or less, when the power window switch is turned UP once again.
    Standard: Approximately 4-90 seconds
  4. When approximately 60 seconds have elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch is turned DOWN.
1. NG : REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
2. OK : REPAIR OR REPLACE HARNESS AND CONNECTOR
