Body Clips: Replacement

The removal and installation methods of typical clips used in body parts are shown in the table below.

HINT:

If the clip is damaged during the operation, always replace it with a new clip.

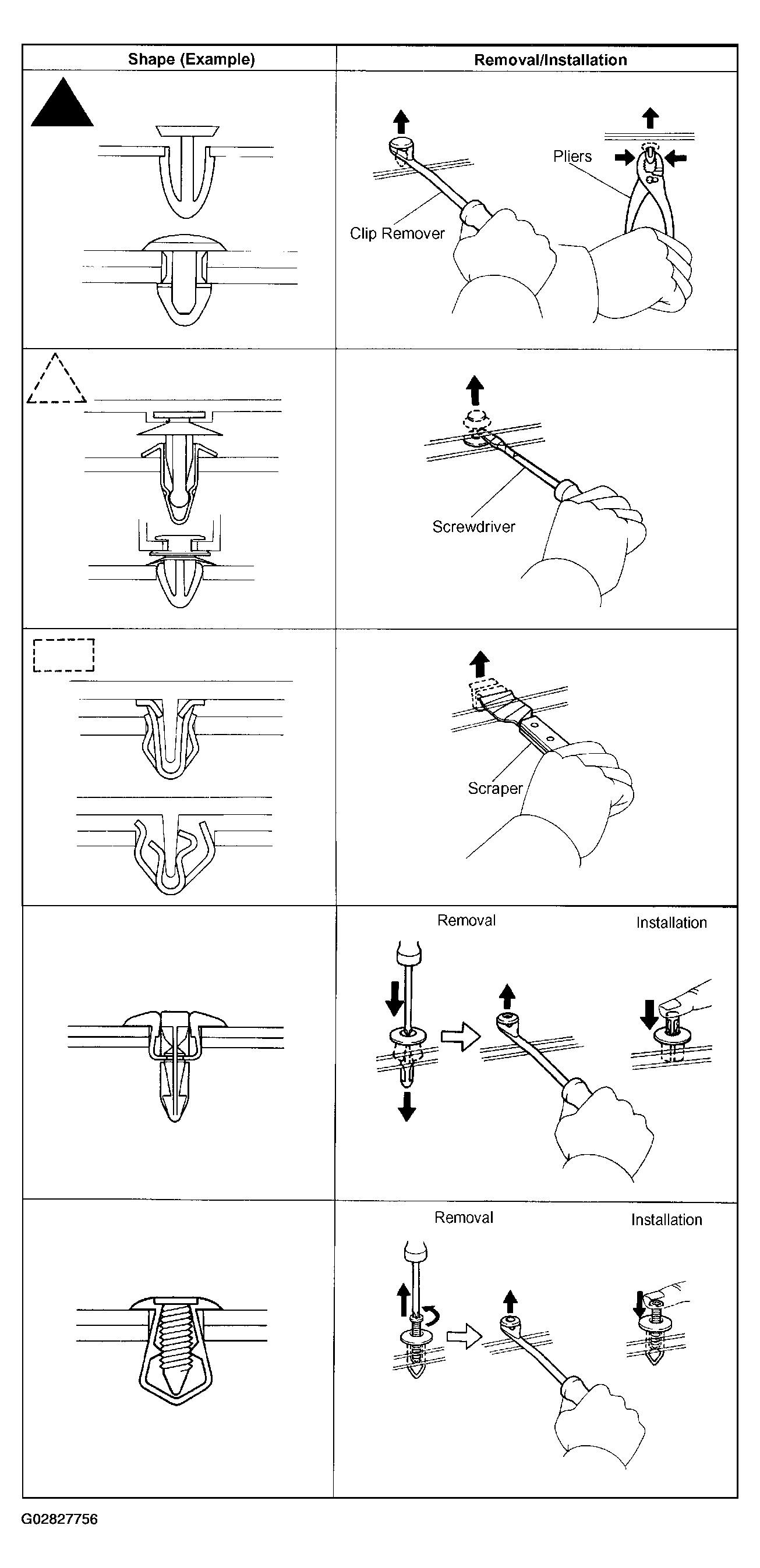

Fig 1: Identifying Clips & Their Removal & Installation Methods
G02827756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
